Toyota CAMRY 蓄电池和蓄电池电缆 — Figure 8201

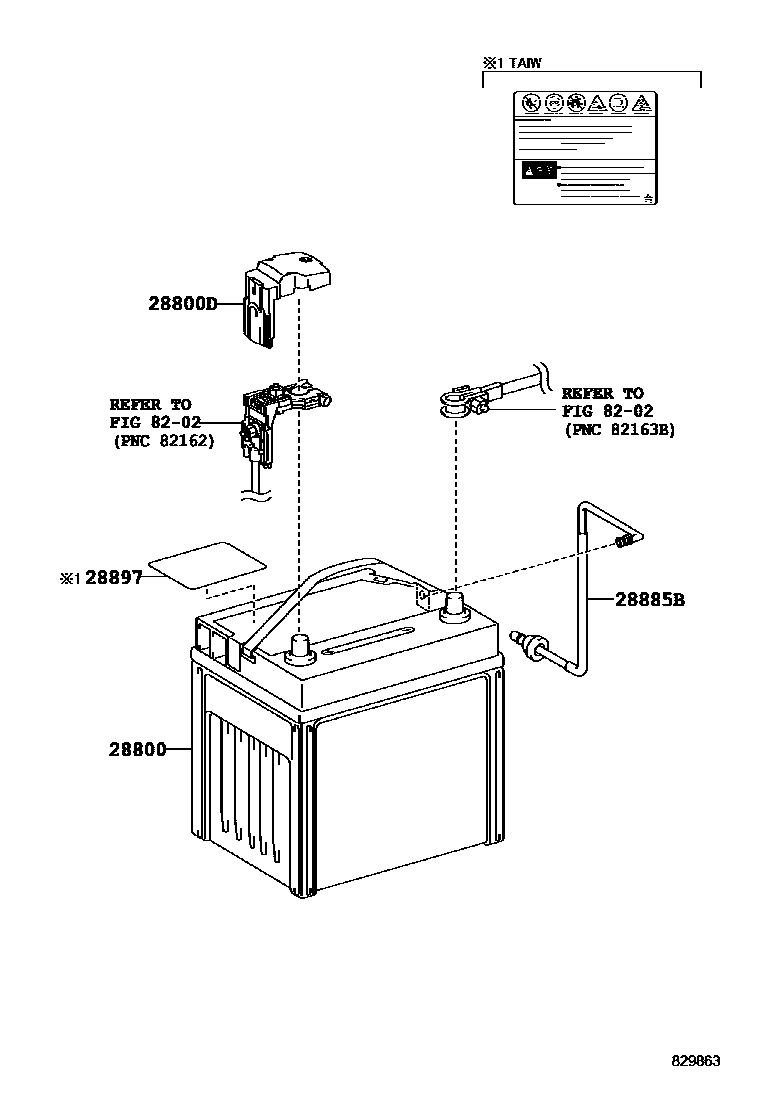

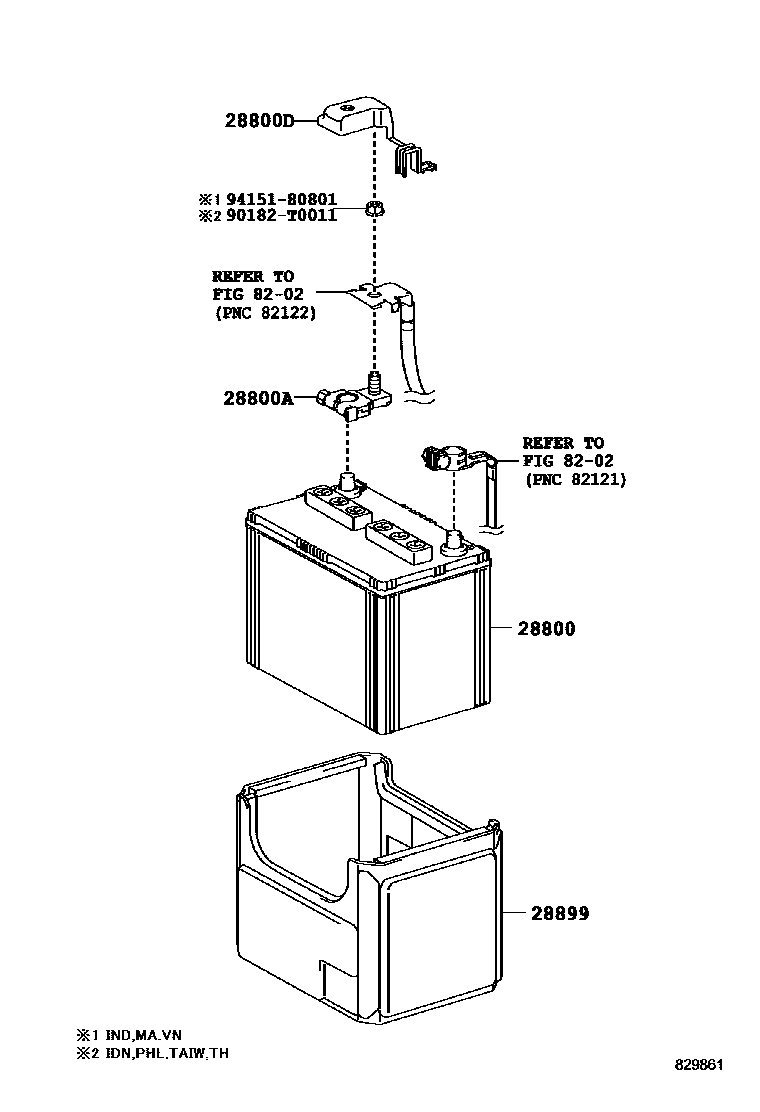

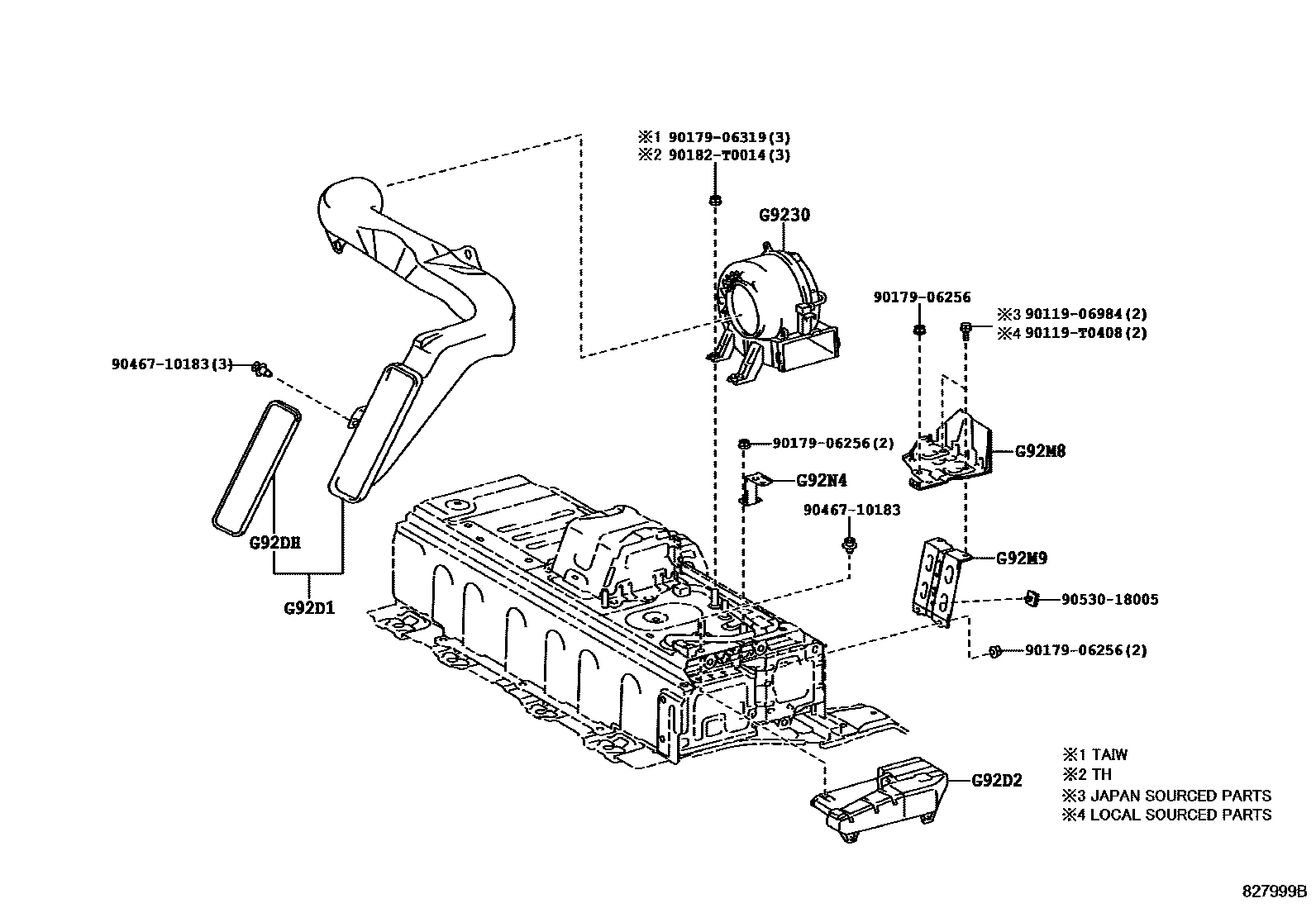

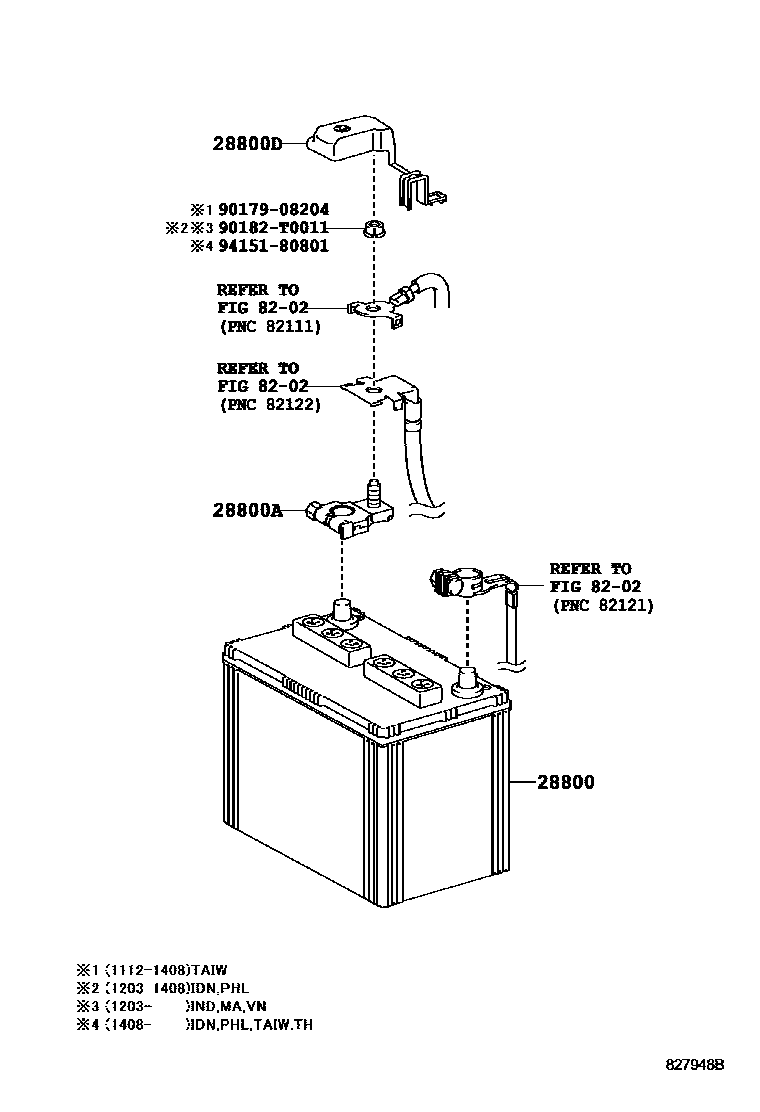

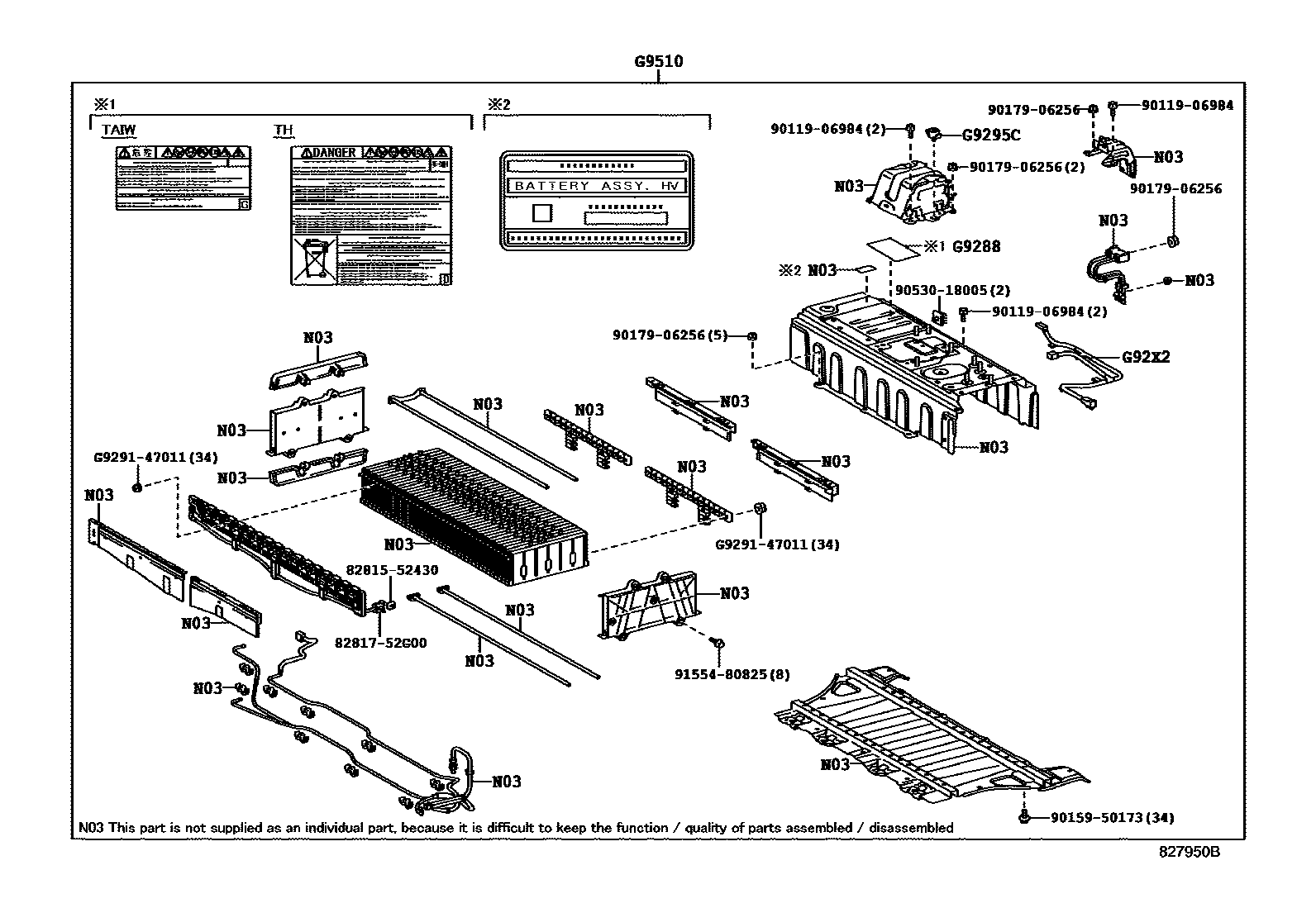

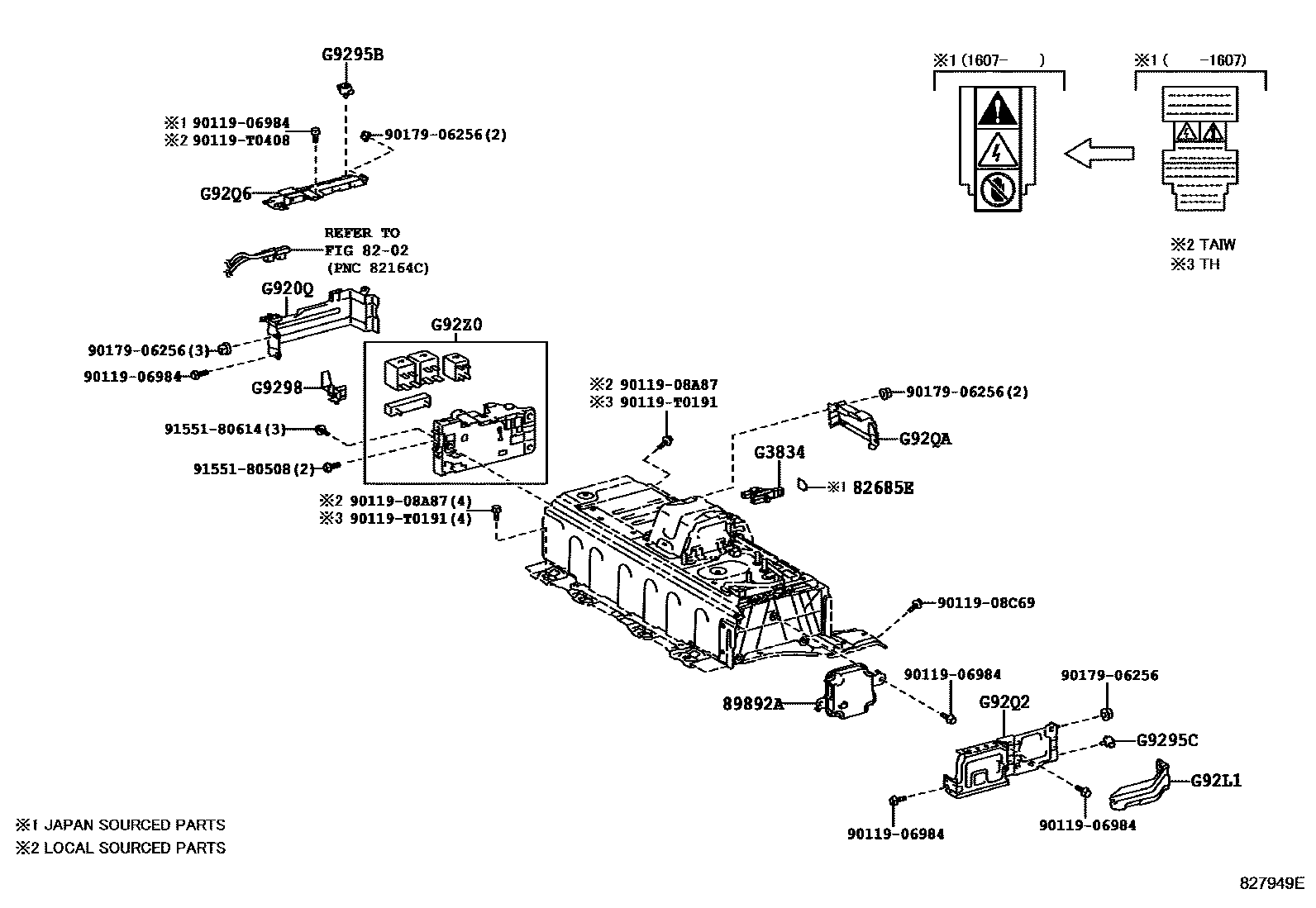

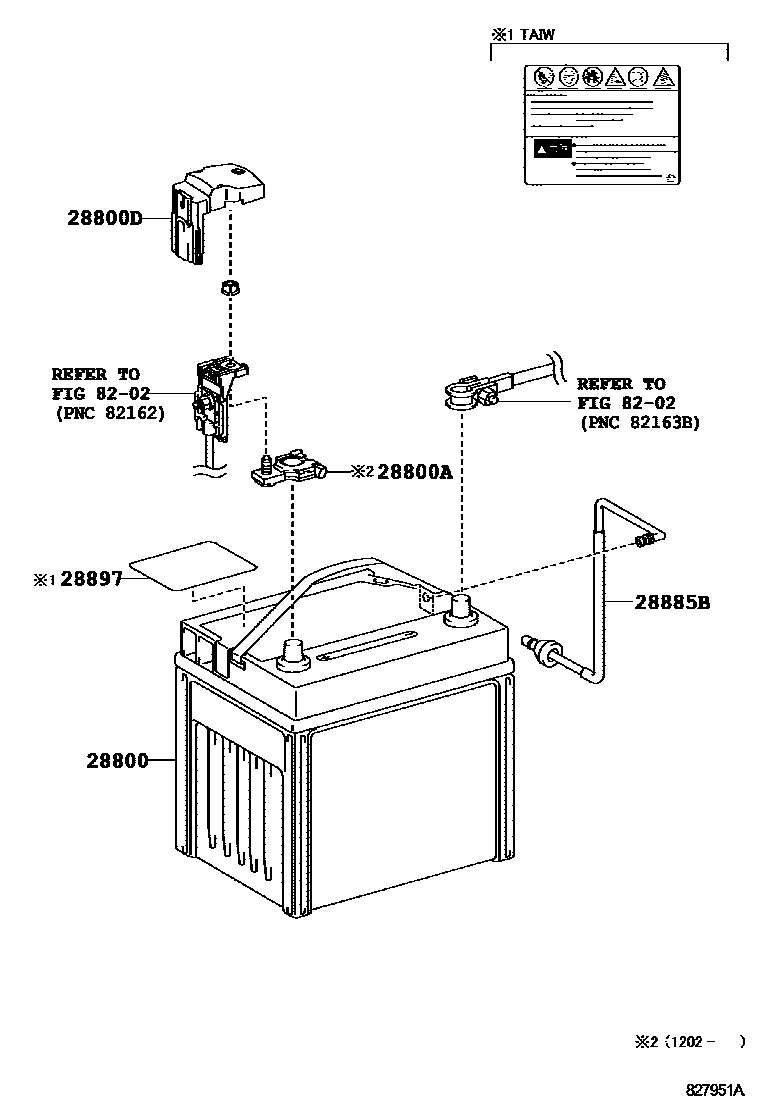

Toyota CAMRY EPC diagram 8201, 蓄电池和蓄电池电缆, with 7 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28800 | battery | 28800-0H010 · 28800-0H020 · 28800-0H040 · 28800-0H041 · 28800-0H042 · 28800-0H080 · 28800-0V050 · 28800-28100 |
| 28800A | battery positive terminal | 90982-05061 |
| 28800D | Connector cover (for battery terminals) | 82821-33350 · 82821-47110 |
| 28885B | battery hose | 28885-0V020 · 28885-0V021 · 28885-36010 · 28885-36011 |
| 28897 | Battery warning nameplate | 28897-0V010 |
| 28899 | Battery insulation cover | 28899-0V020 |
| 82685E | Maintenance plug warning nameplate | 82685-50050 · 82685-76020 |
| 89892A | battery voltage sensor | 89892-33020 · 89892-33030 |
| G3834 | Service plug handle | G3834-48010 |
| G920Q | No. 1 HV battery shielding sub-assembly | G920Q-33010 · G920Q-33020 |
| G9230 | Battery cooling blower assembly | G9230-33040 |
| G9288 | Battery charging precautions label | G9288-33010 · G9288-47100 |
| G9295B | Battery cover lock | G9295-30020 |
| G9295C | Battery cover No. 2 lock | G9295-30020 |
| G9298 | HV battery clip | G9298-33010 |
| G92D1 | No. 1 HV battery air inlet | G92D1-06090 · G92D1-06091 · G92D1-06100 · G92D1-06110 |
| G92D2 | No. 2 HV battery air inlet | G92D2-06090 · G92D2-06100 |
| G92DH | No. 1 HV battery air intake filter | G92DH-33040 |
| G92L1 | HV battery lower cover | G92L1-33020 · G92L1-33030 |
| G92M8 | HV battery No. 2 upper bracket bracket | G92M8-06010 · G92M8-33010 |
| G92M9 | HV battery No. 3 upper bracket bracket | G92M9-06010 · G92M9-33010 |
| G92N4 | HV battery cover No. 2 bracket | G92N4-06020 · G92N4-33010 |
| G92Q2 | HV battery No. 2 shielding plate | G92Q2-33010 |
| G92Q6 | HV battery No. 4 shielding plate | G92Q6-33010 · G92Q6-33020 |
| G92QA | HV battery No. 8 shielding plate | G92QA-33010 |
| G92X2 | HV battery pack wiring harness No. 2 | G92X2-33010 |
| G92Z0 | HV battery junction box assembly | G92Z0-33020 · G92Z0-33030 · G92Z0-33031 |
| G9510 | HV power supply battery assembly | G9510-33060 · G9510-33080 · G9510-33090 |
