Toyota CAMRY reflector — Figure 8115

Toyota CAMRY EPC diagram 8115, reflector, with 2 images and 3 PNC and OE references.

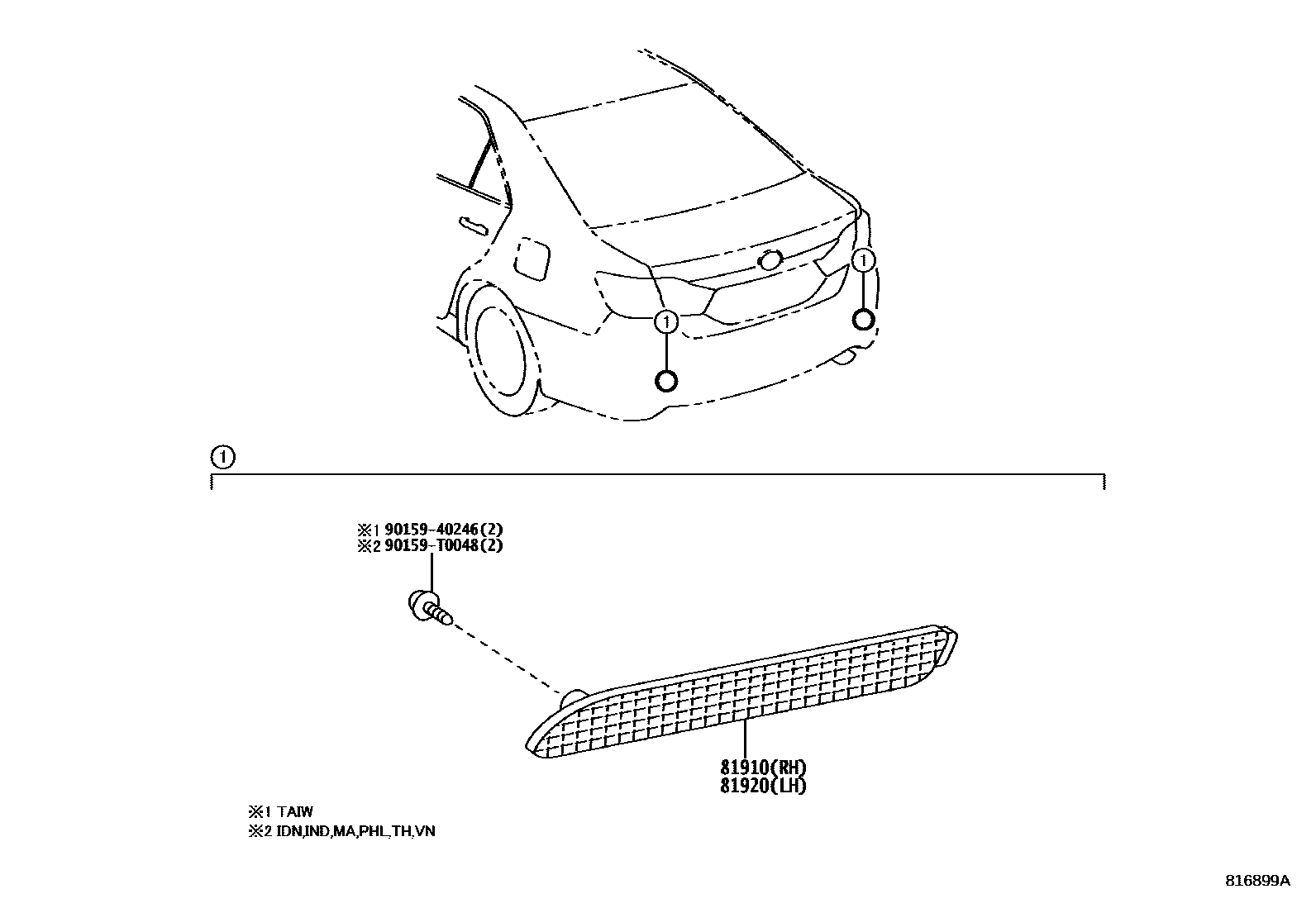

Toyota CAMRY reflector EPC diagram — 816899A
reflector — 816899A (201112 – 201504)

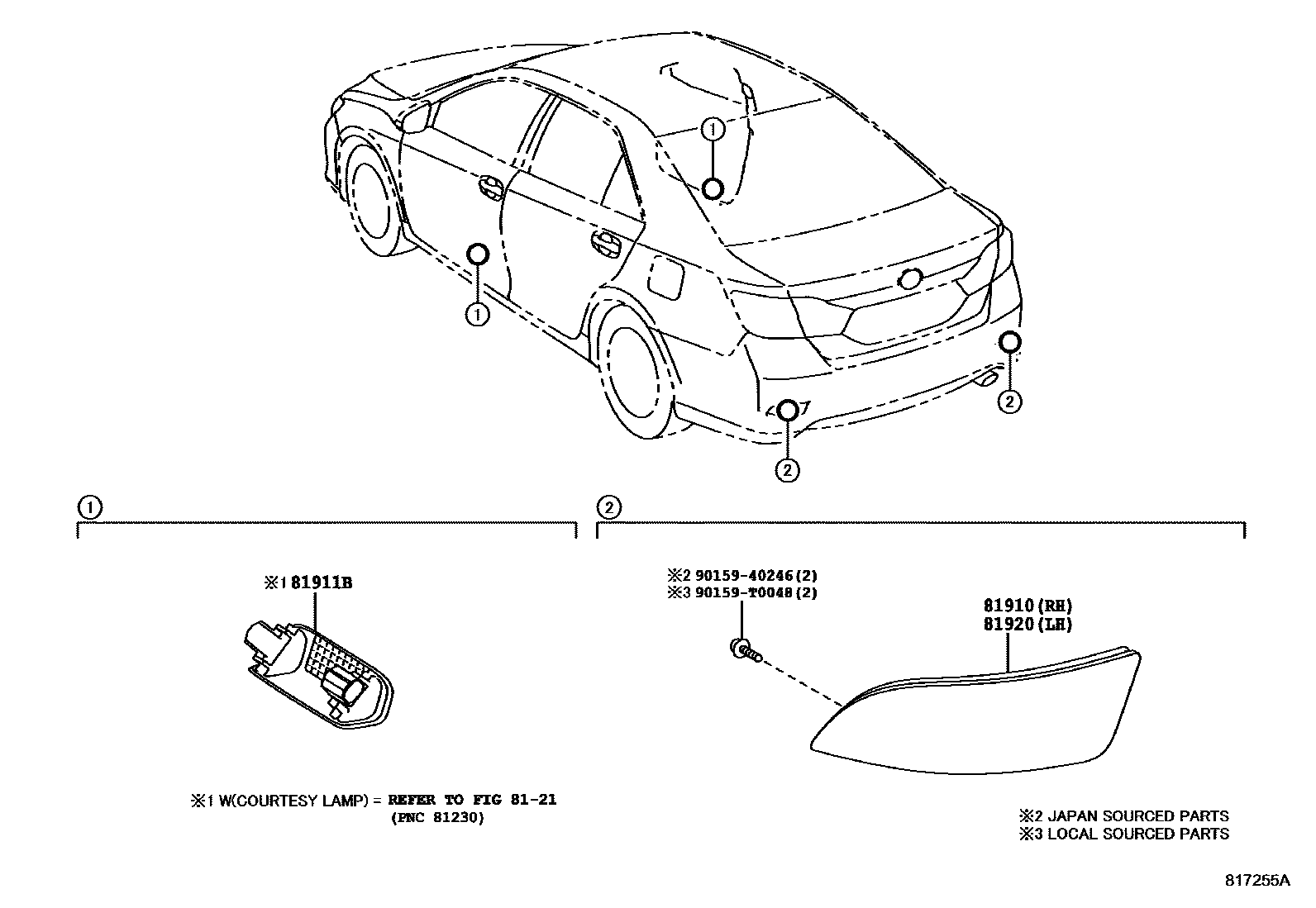

Toyota CAMRY reflector EPC diagram — 817255A
reflector — 817255A (201502 – 999999)

PNC and OE references

PNCPart nameOE numbers
81910Right reflector assembly81910-06020 · 81910-06030 · 81910-06050 · 81910-48012
81911Breflector81911-28020
81920Left reflector assembly81920-06010 · 81920-06020 · 81920-06040 · 81920-48012
