Toyota CAMRY 后牌照灯 — Figure 8113

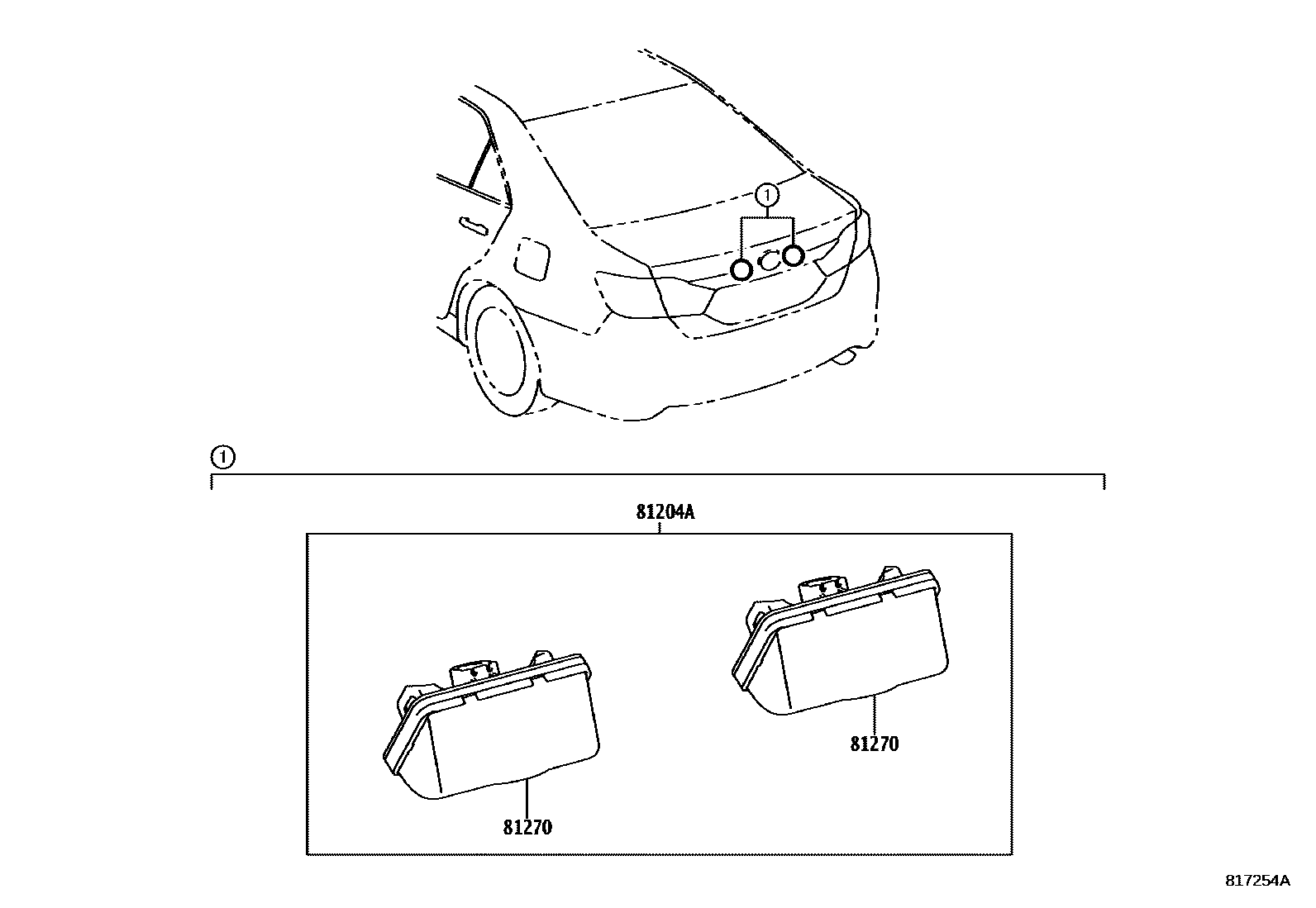

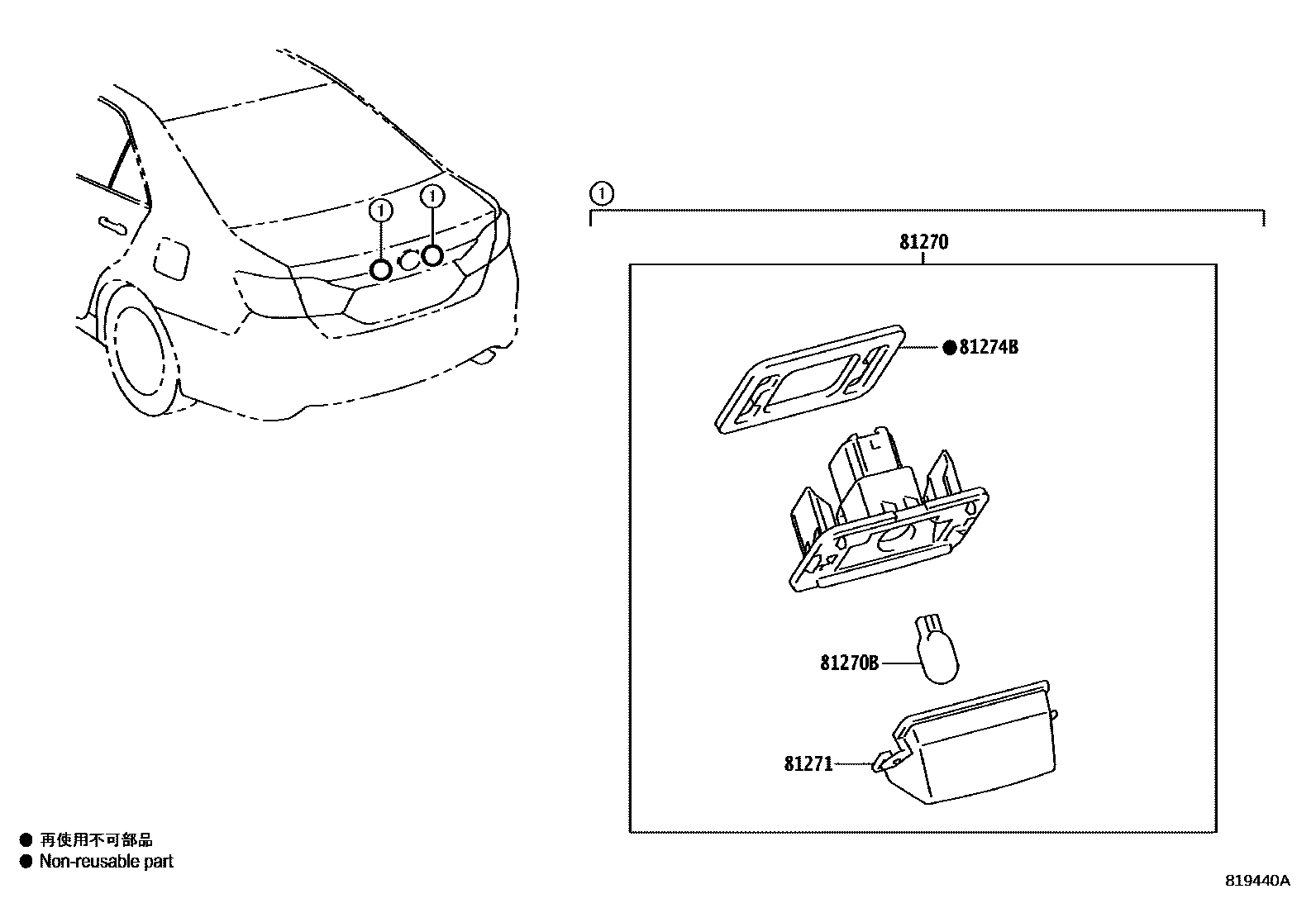

Toyota CAMRY EPC diagram 8113, 后牌照灯, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81204A | License plate light sub-assembly | 81204-33030 |
| 81270 | License plate light assembly | 81270-0D120 · 81270-33110 |
| 81270B | Bulb (for license plate light) | 99132-12050 |
| 81271 | license plate lamp shade | 81271-0D120 |
| 81274B | license plate light seal | 81274-02130 |
