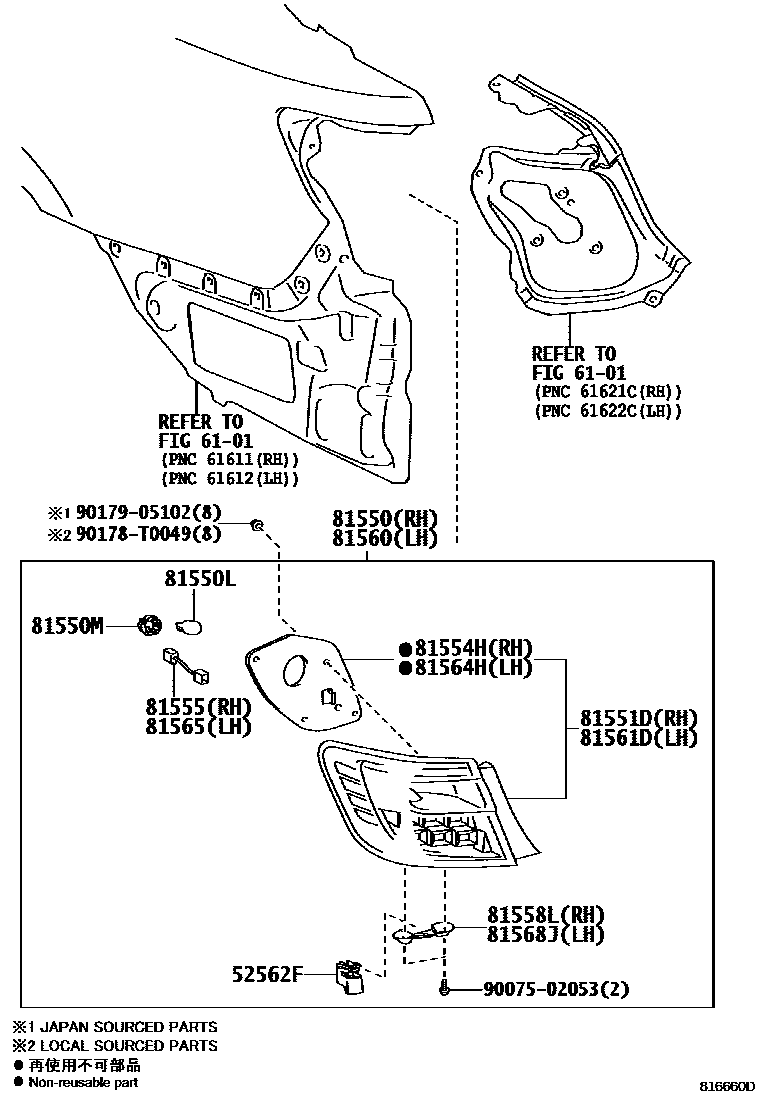

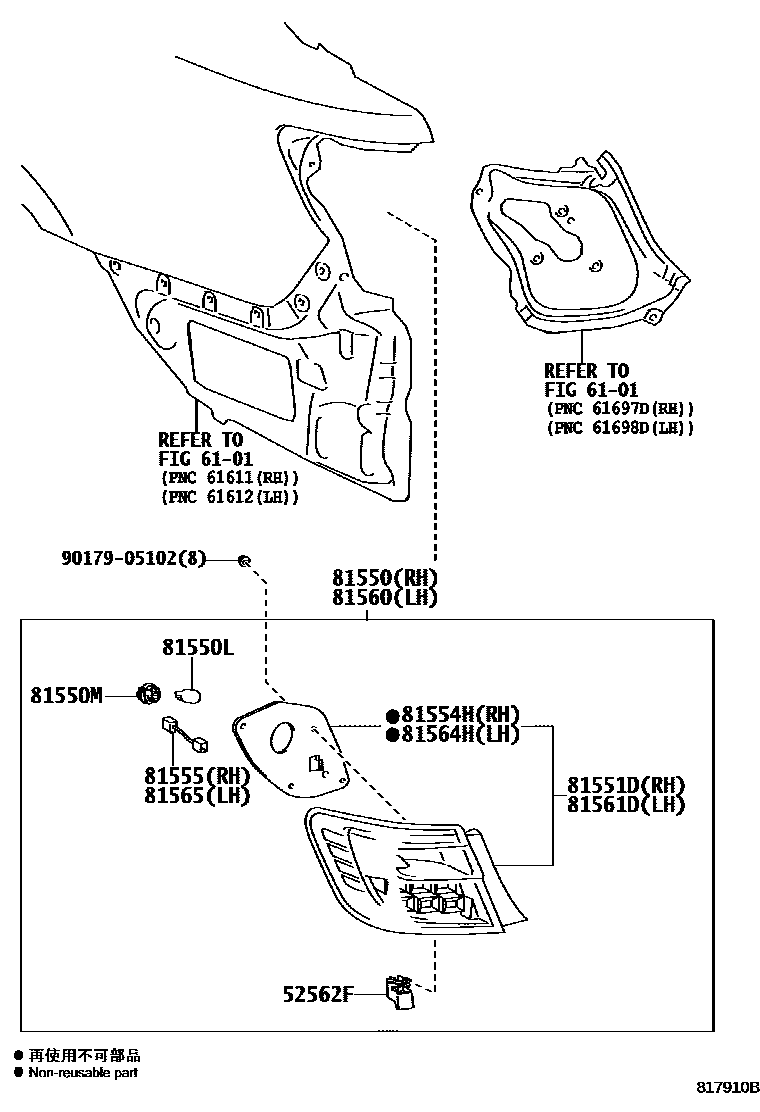

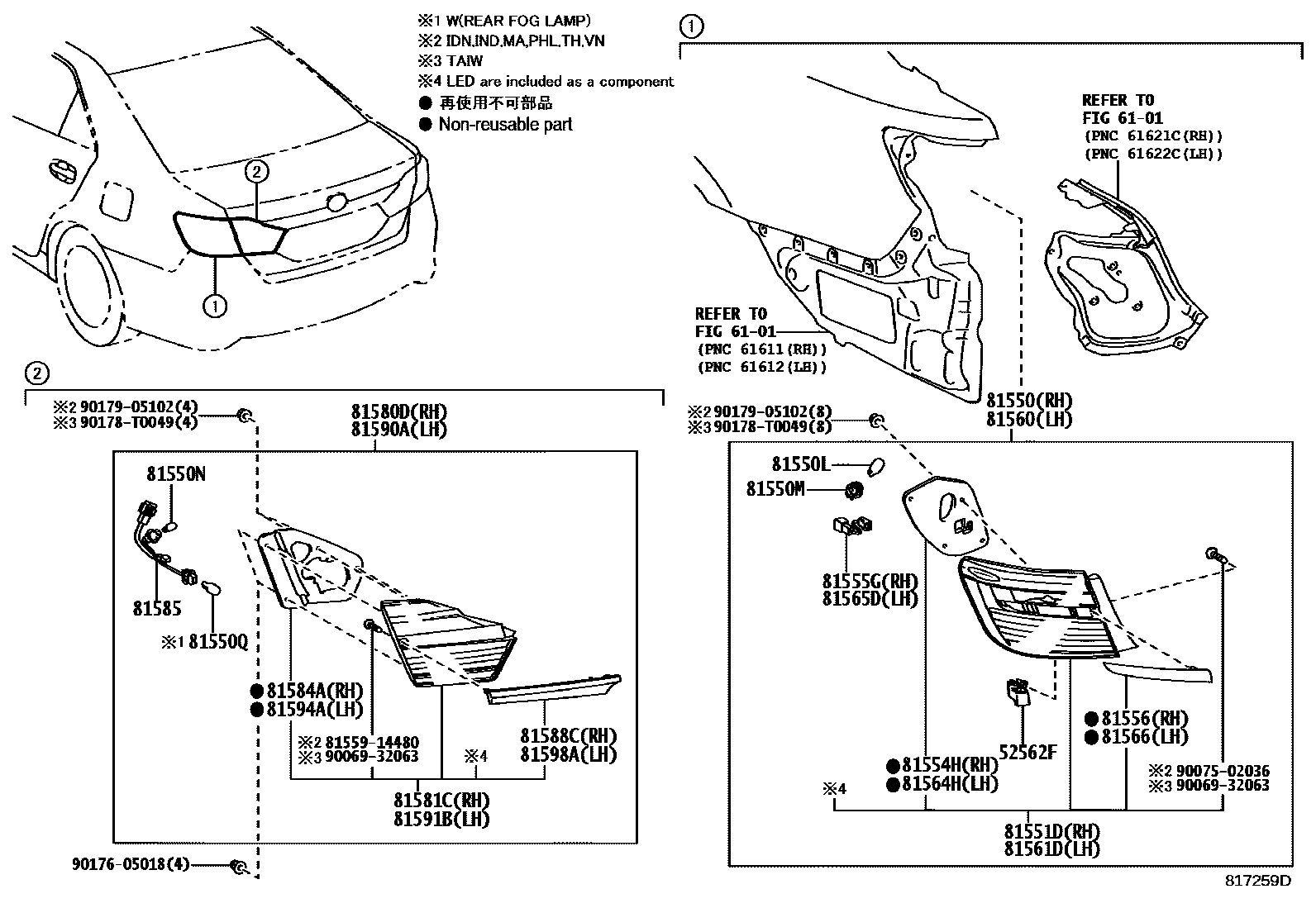

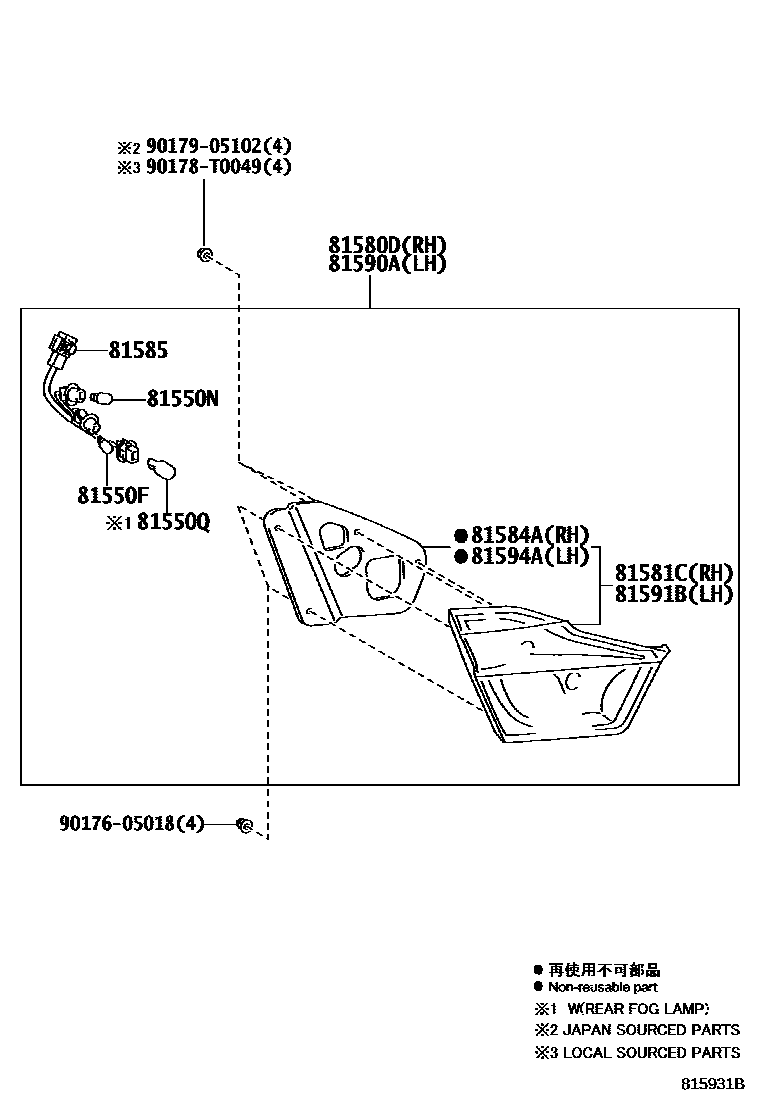

Toyota CAMRY 后组合灯 — Figure 8111
Toyota CAMRY EPC diagram 8111, 后组合灯, with 4 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52562F | Rear bumper upper side fixing bracket | 52562-06040 · 52562-06070 |
| 81550 | Right rear combination light assembly | 81550-06530 · 81550-06540 · 81550-06610 · 81550-06620 · 81550-06670 · 81550-06680 · 81550-06690 · 81550-06710 |
| 81550F | tail light bulb | 99132-12050 |
| 81550L | Rear turn signal light bulb | 90981-15021 |
| 81550M | Rear turn signal lamp holder | 90075-60026 · 90075-60088 |
| 81550N | reversing light bulb | 90981-11059 |
| 81550Q | Rear fog light bulb No. 1 | 90981-13043 |
| 81551D | Right rear combination lamp shade and lamp body | 81551-06530 · 81551-06540 · 81551-06610 · 81551-06620 · 81551-06670 · 81551-06680 · 81551-06690 · 81551-06710 |
| 81554H | Right rear combination lamp seal | 81552-06540 · 81554-06530 · 81554-06670 · 81554-06680 |
| 81555 | Right rear combination lamp lamp holder and wiring harness sub-assembly | 81555-06530 · 81555-06540 |
| 81555G | Right rear combination lamp wire | 81555-06530 · 81555-06670 · 81555-06680 |
| 81556 | Right rear combination light frame | 81556-06670 · 81556-06680 |
| 81558L | Right rear combination lamp protective cover | 81558-06540 |
| 81560 | Left rear combination light assembly | 81560-06530 · 81560-06540 · 81560-06620 · 81560-06630 · 81560-06670 · 81560-06680 · 81560-06690 · 81560-06710 |
| 81561D | Left rear combination lamp lampshade and lamp body | 81561-06530 · 81561-06540 · 81561-06620 · 81561-06630 · 81561-06670 · 81561-06680 · 81561-06690 · 81561-06710 |
| 81564H | Left rear combination lamp seal | 81562-06540 · 81564-06530 · 81564-06670 · 81564-06680 |
| 81565 | Left rear combination lamp lamp holder and wiring harness sub-assembly | 81555-06530 · 81555-06540 |
| 81565D | Left rear combination lamp wire | 81555-06530 · 81555-06670 · 81555-06680 |
| 81566 | Left rear combination light frame | 81566-06670 · 81566-06680 |
| 81568J | Left rear combination lamp protective cover | 81568-06540 |
| 81580D | Right rear light assembly | 81580-06450 · 81580-06460 · 81580-06470 · 81580-06520 · 81580-06530 · 81580-06560 · 81580-06570 · 81580-06580 · 81580-06590 · 81580-06610 |
| 81581C | Right rear light lampshade and lamp body | 81581-06450 · 81581-06460 · 81581-06470 · 81581-06520 · 81581-06530 · 81581-06560 · 81581-06570 · 81581-06580 · 81581-06590 · 81581-06610 |
| 81584A | Right rear light gasket | 81584-06450 · 81584-06460 · 81584-06560 · 81584-06570 |
| 81585 | Rear lamp holder and wiring harness | 81585-06450 · 81585-06460 · 81585-06470 · 81585-06520 · 81585-06560 · 81585-06570 · 81585-06580 |
| 81588C | Right rear light frame | 81588-06560 · 81588-06570 |
| 81590A | Left rear light assembly | 81590-06450 · 81590-06460 · 81590-06470 · 81590-06520 · 81590-06530 · 81590-06560 · 81590-06570 · 81590-06580 · 81590-06590 · 81590-06610 |
| 81591B | Left rear light shade and body | 81591-06450 · 81591-06460 · 81591-06470 · 81591-06520 · 81591-06530 · 81591-06560 · 81591-06570 · 81591-06580 · 81591-06590 · 81591-06610 |
| 81594A | Left rear light gasket | 81594-06450 · 81594-06460 · 81594-06560 · 81594-06570 |
| 81598A | Left rear light frame | 81588-06560 · 81598-06560 · 81598-06570 |
