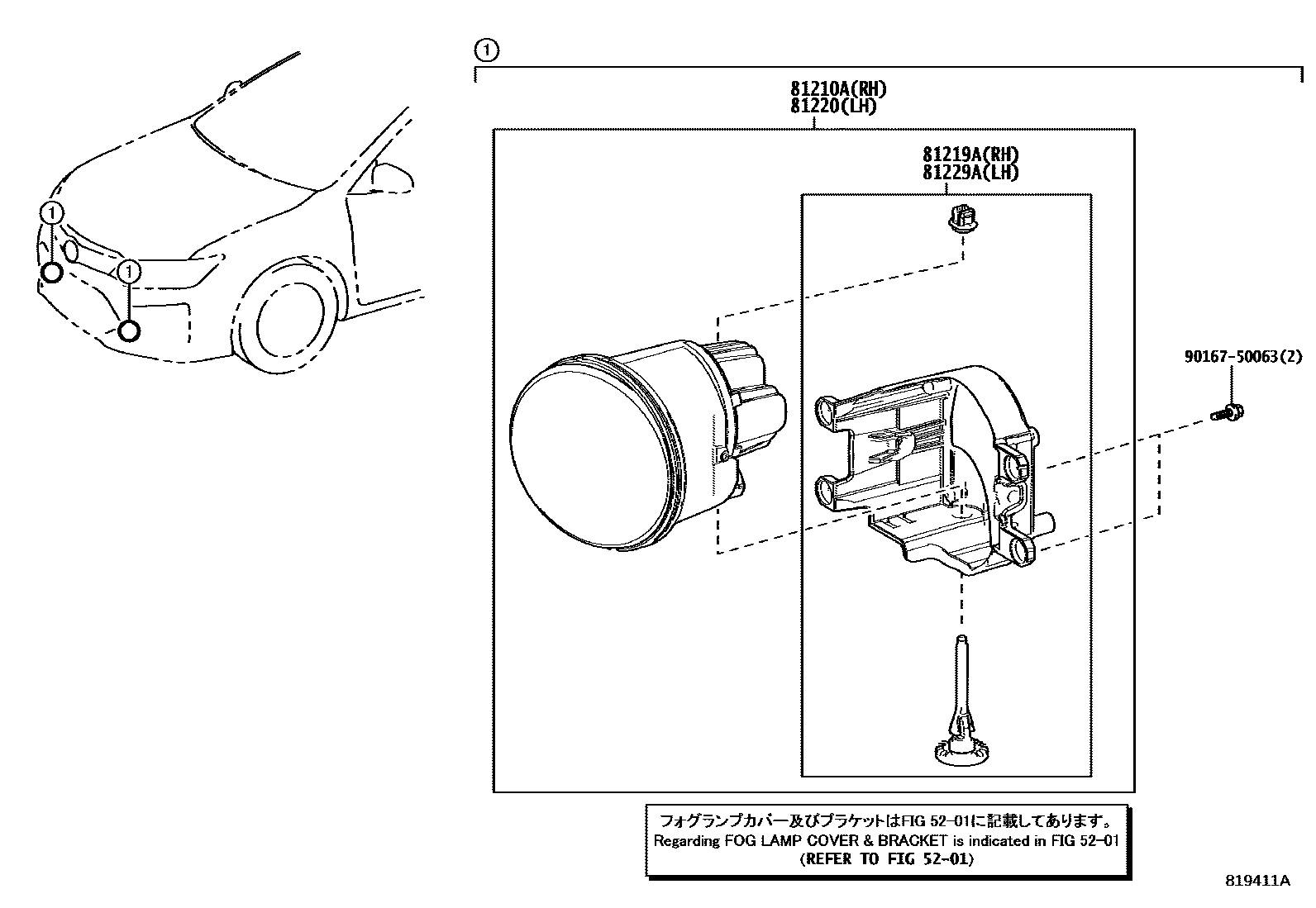

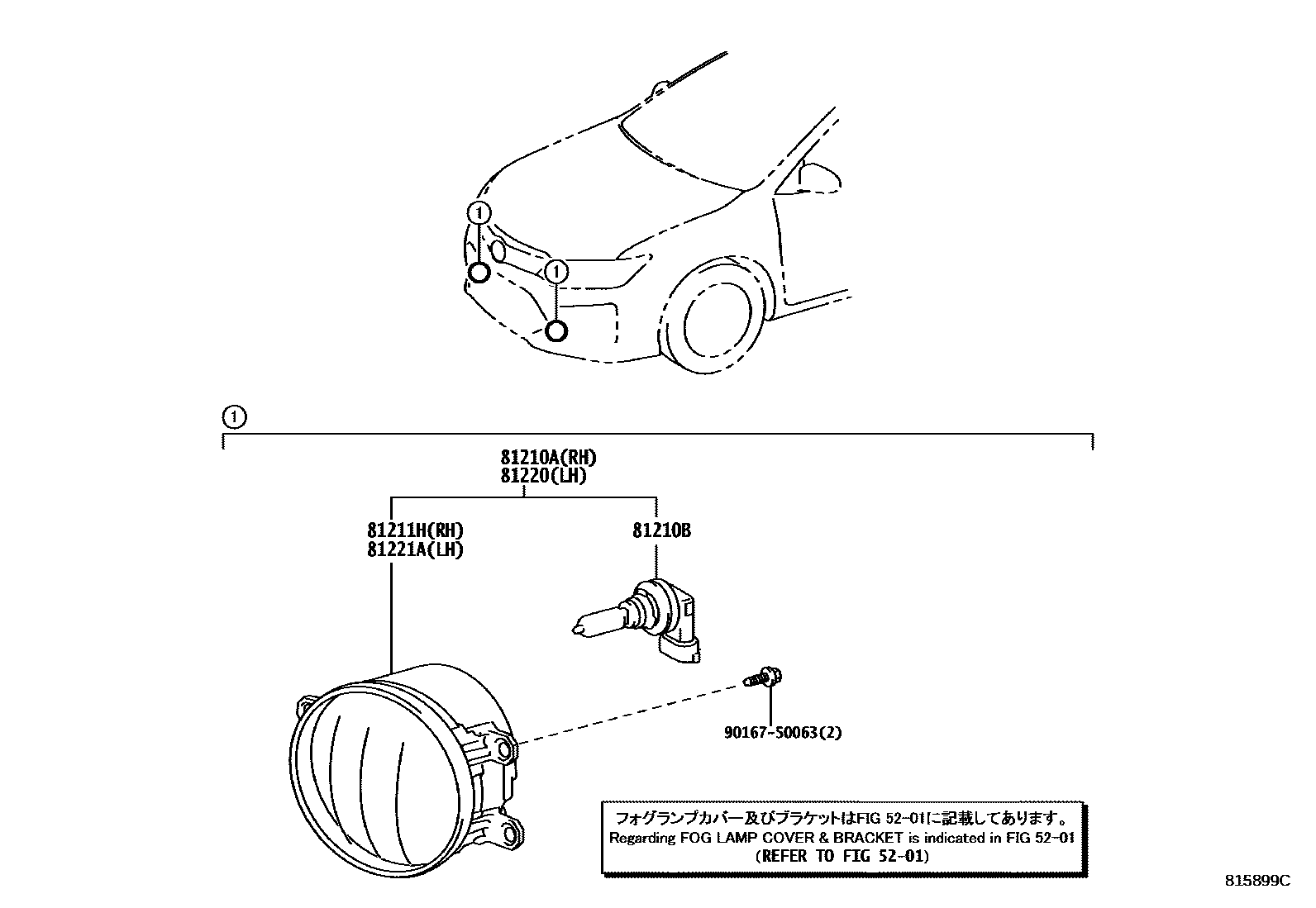

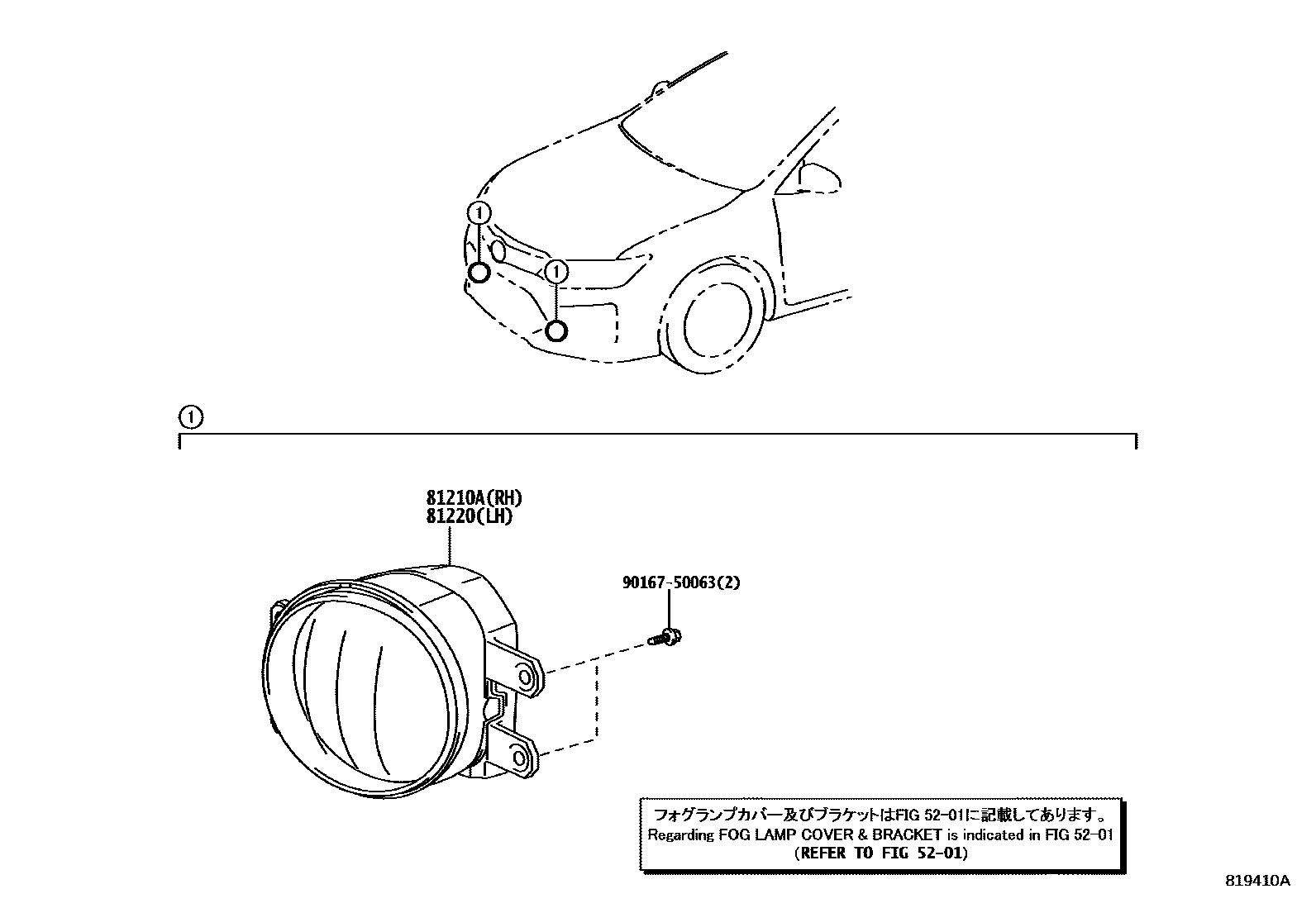

Toyota CAMRY Fog Lamp — Figure 8102
Toyota CAMRY EPC diagram 8102, Fog Lamp, with 3 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81210A | Right fog light assembly | 81210-02130 · 81210-0D042 · 81210-0M010 · 81210-48050 · 81210-48051 |
| 81210B | fog light bulb | 90981-13075 · 90981-13081 · 90981-13090 |
| 81211H | Right fog light cover and body | 81211-0M010 |
| 81219A | Right fog light bracket | 81219-48051 |
| 81220 | Left fog light assembly | 81220-02130 · 81220-0D042 · 81220-0M010 · 81220-48050 · 81220-48051 |
| 81221A | Left fog light cover and body | 81221-0M010 |
| 81229A | Left fog light bracket | 81229-48051 |
