Toyota CAMRY Headlamp — Figure 8101

Toyota CAMRY EPC diagram 8101, Headlamp, with 9 images and 23 PNC and OE references.

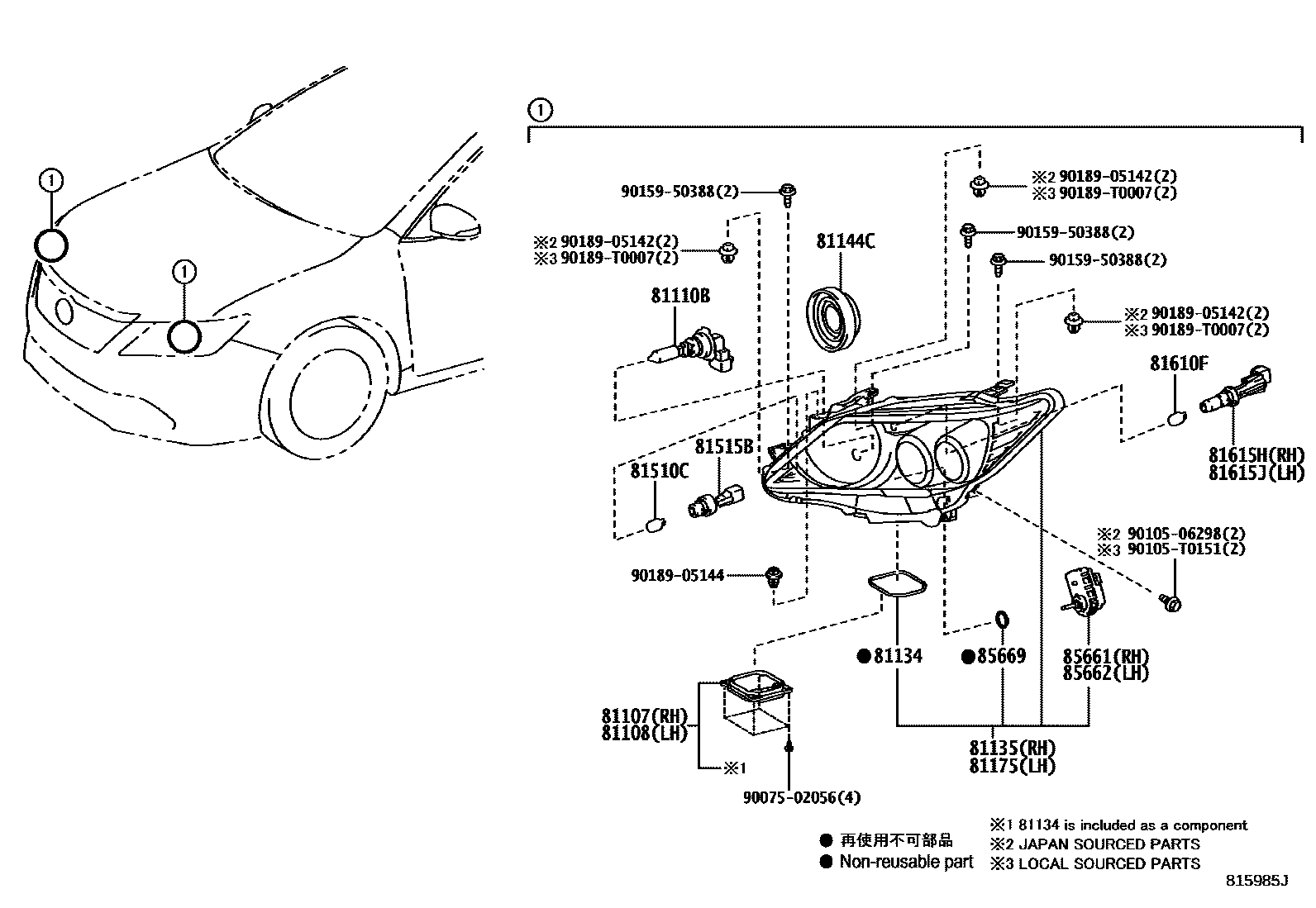

Toyota CAMRY Headlamp EPC diagram — 815985J — Headlamp — 815985J (201202 – 201310)

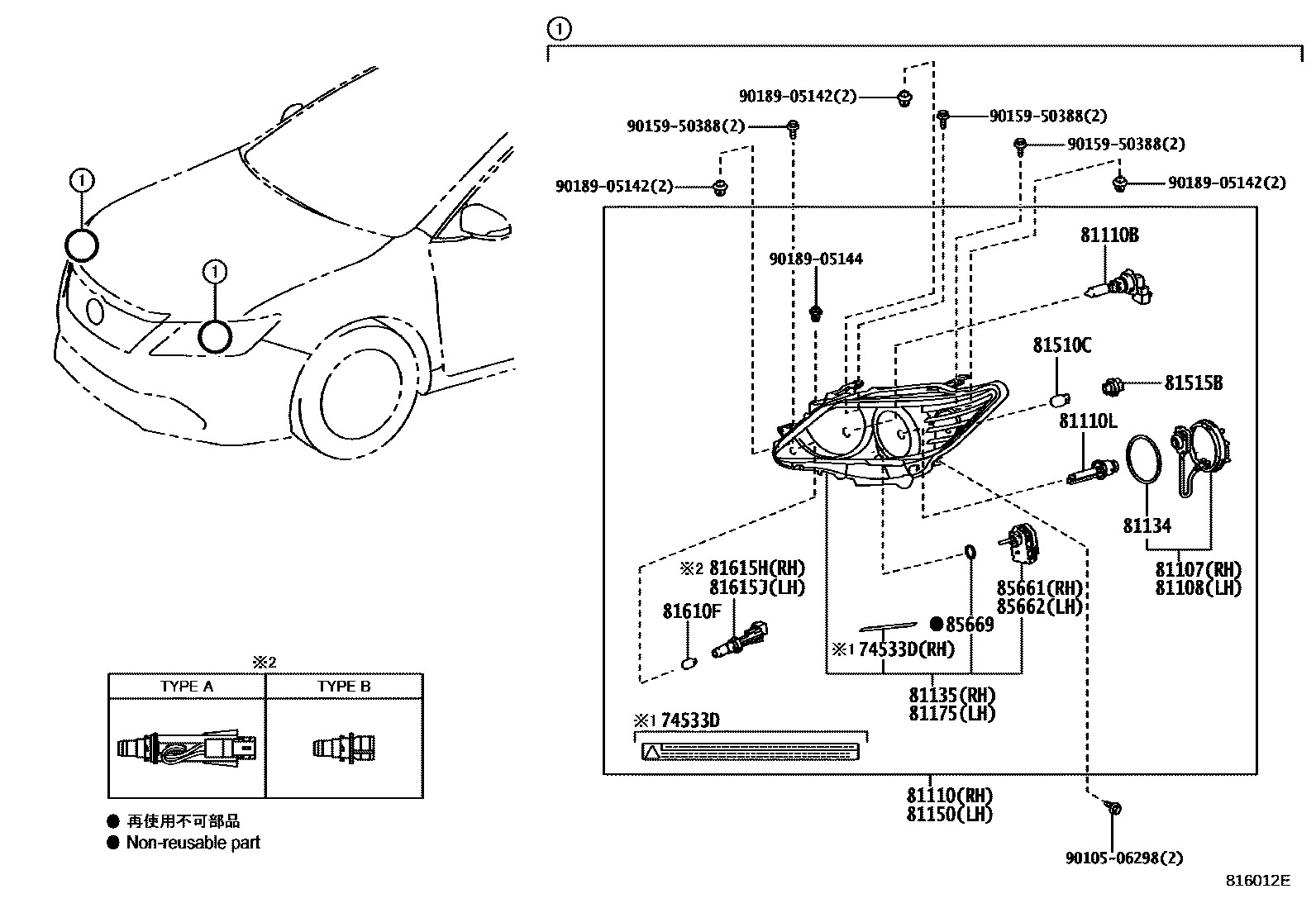

Toyota CAMRY Headlamp EPC diagram — 816012E — Headlamp — 816012E (201112 – 201503)

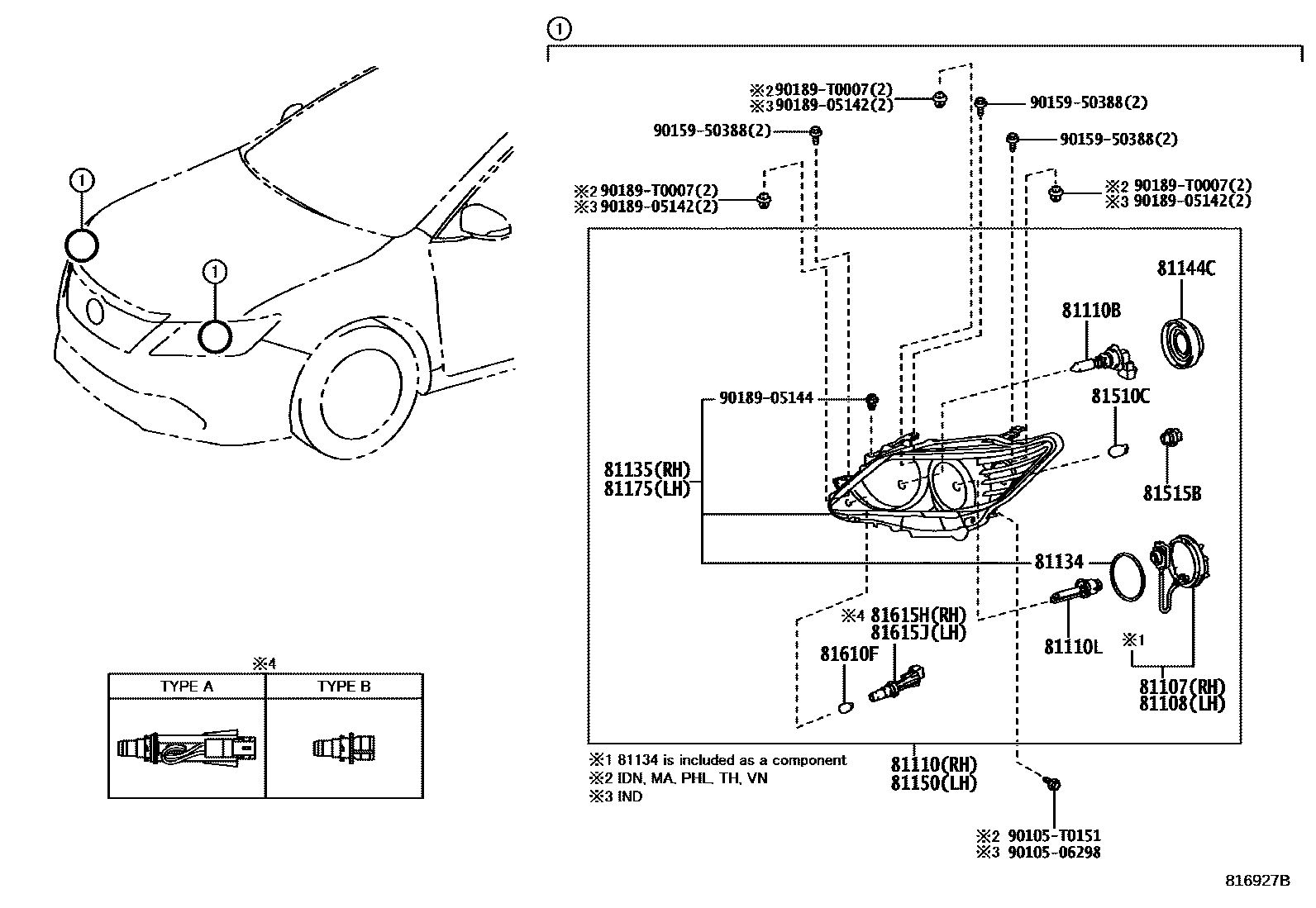

Toyota CAMRY Headlamp EPC diagram — 816927B — Headlamp — 816927B (201203 – 201504)

Toyota CAMRY Headlamp EPC diagram — 816928D — Headlamp — 816928D (201309 – 201504)

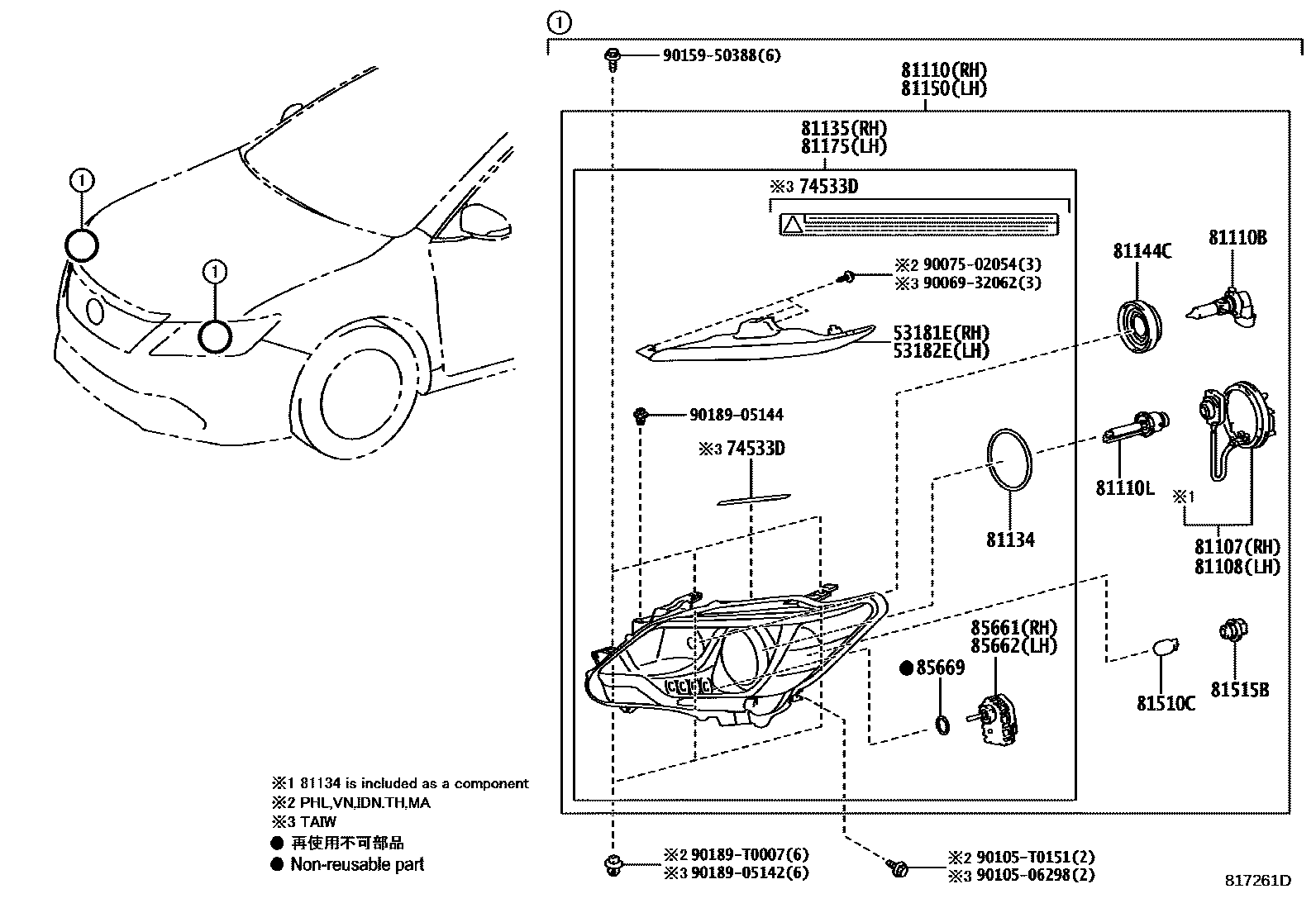

Toyota CAMRY Headlamp EPC diagram — 817261D — Headlamp — 817261D (201502 – 999999)

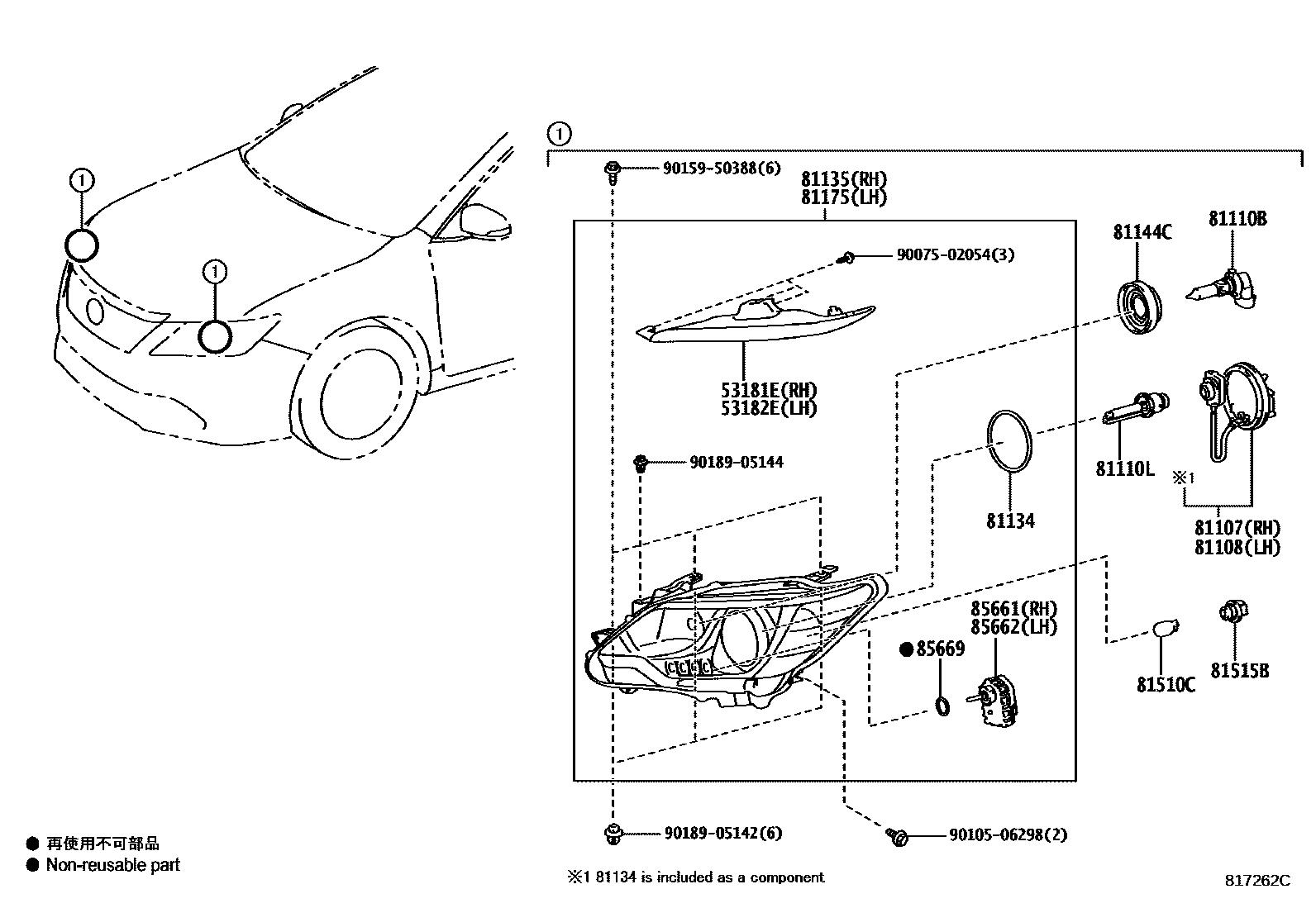

Toyota CAMRY Headlamp EPC diagram — 817262C — Headlamp — 817262C (201504 – 201709)

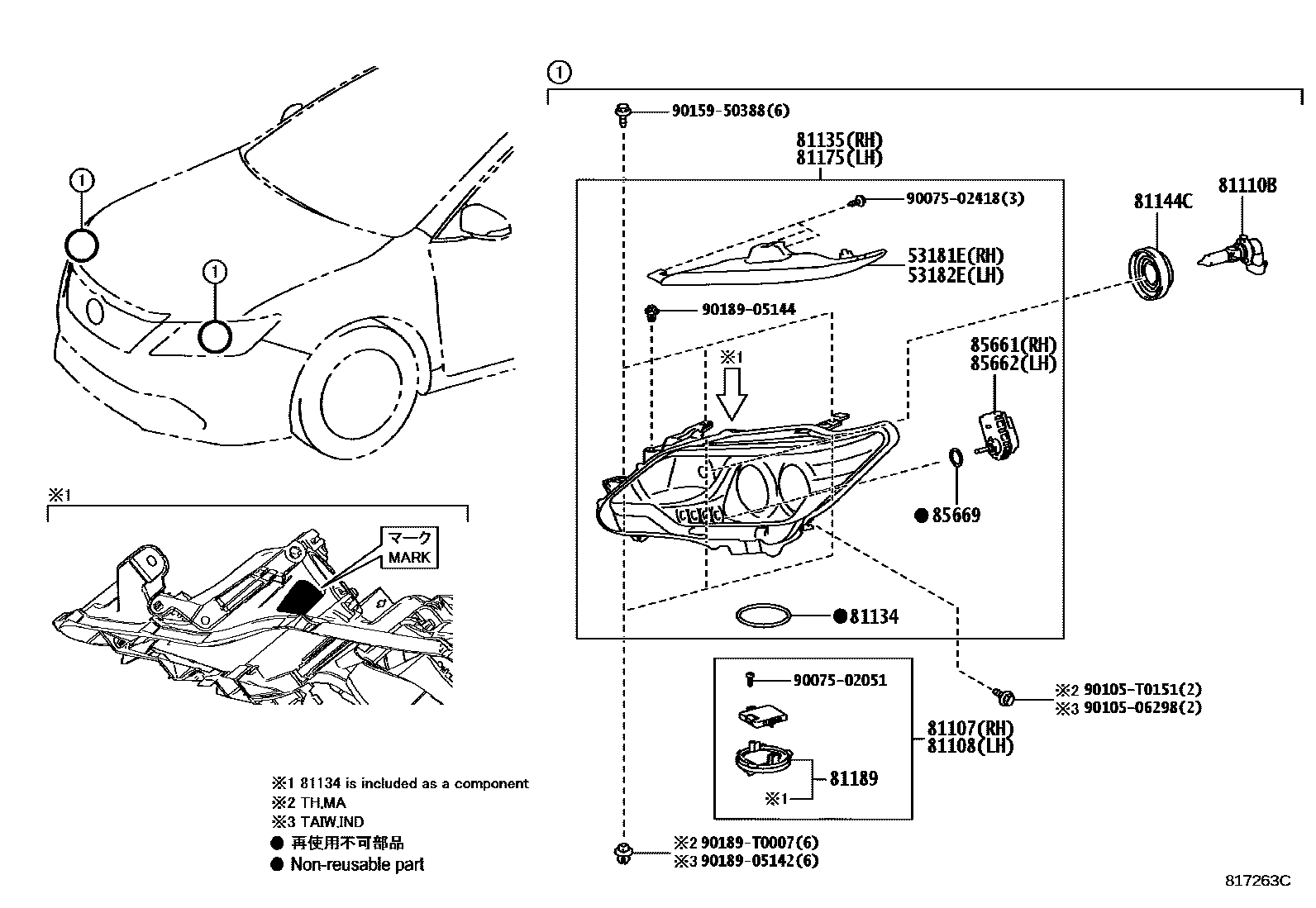

Toyota CAMRY Headlamp EPC diagram — 817263C — Headlamp — 817263C (201502 – 999999)

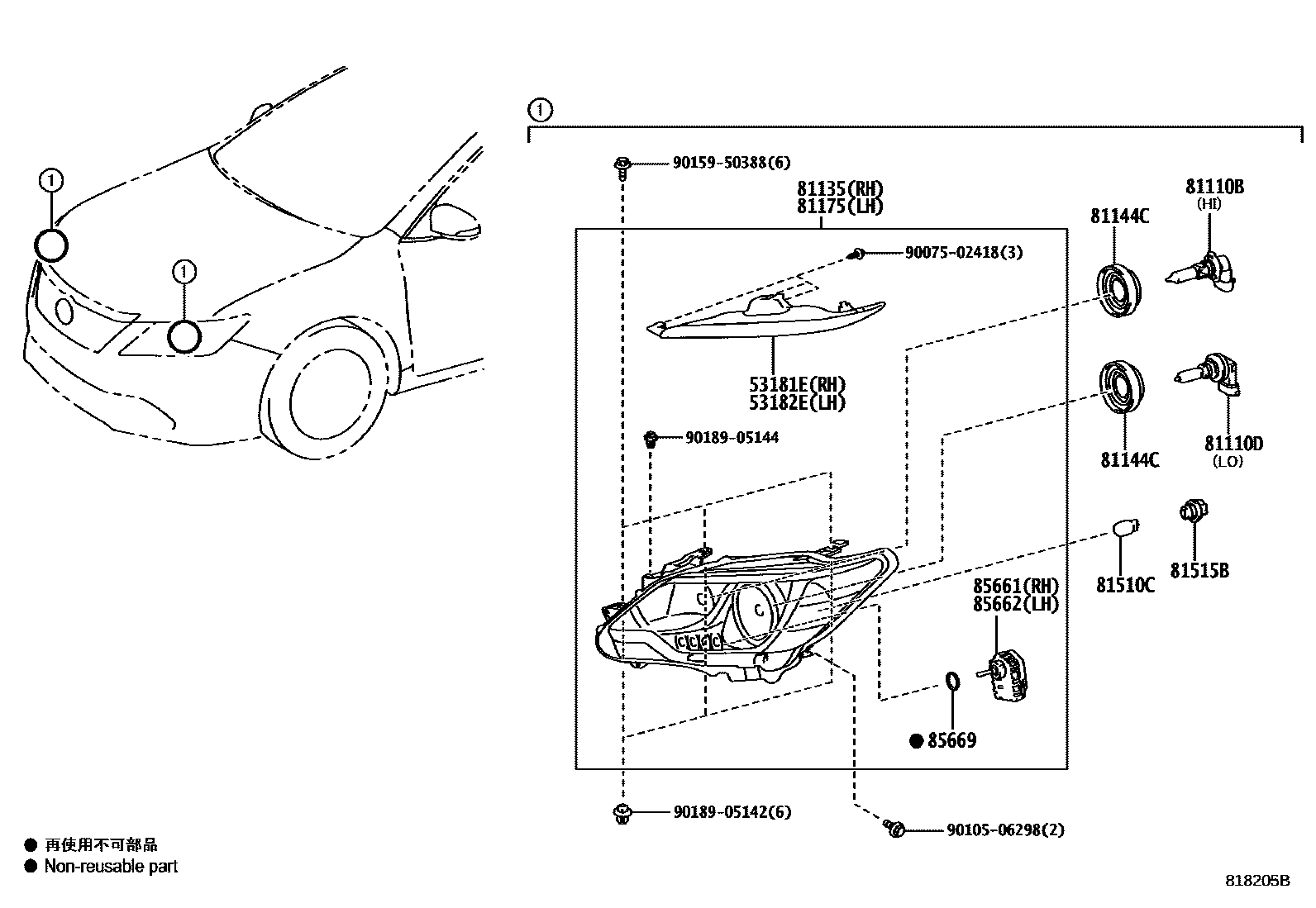

Toyota CAMRY Headlamp EPC diagram — 818205B — Headlamp — 818205B (201705 – 999999)

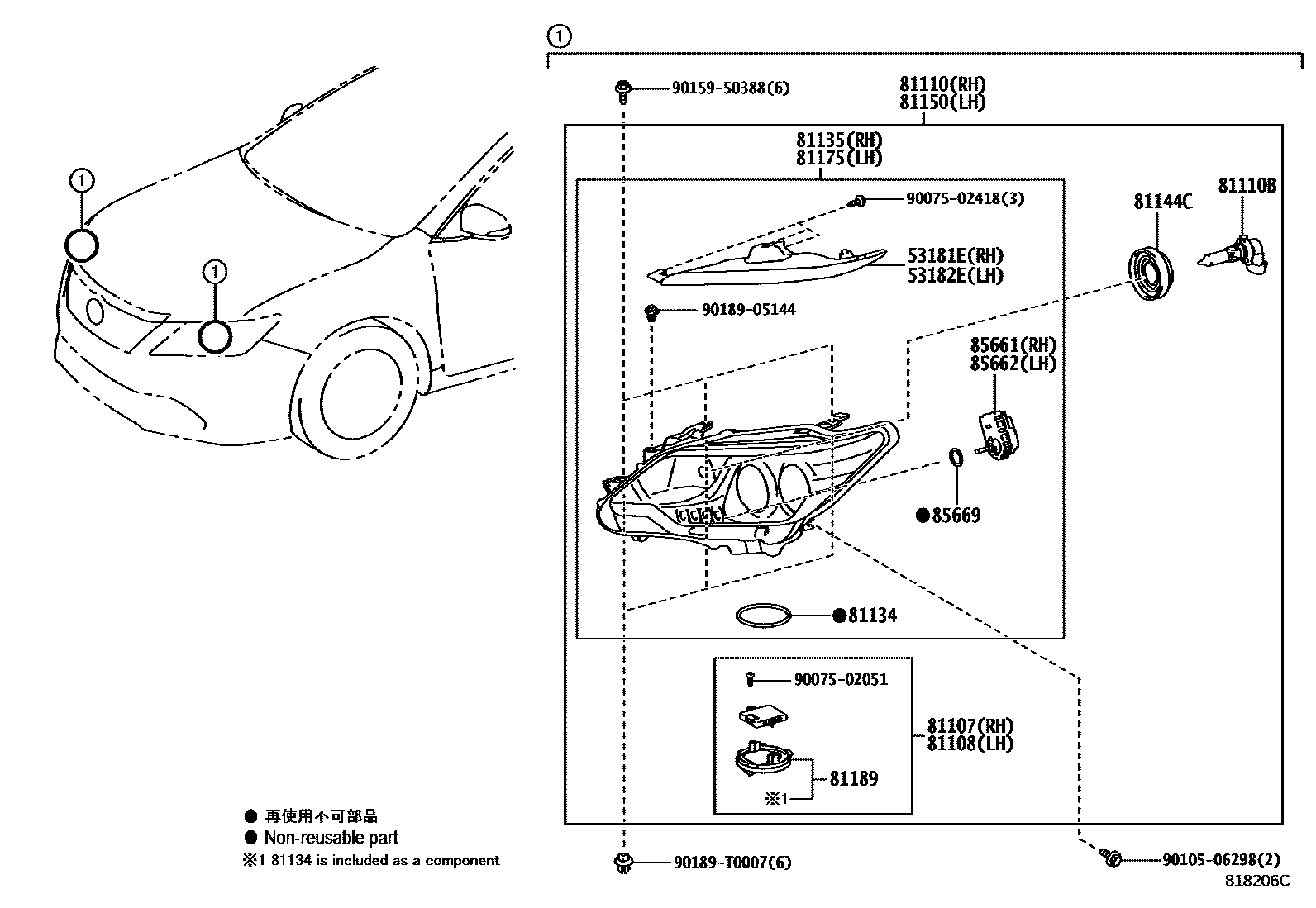

Toyota CAMRY Headlamp EPC diagram — 818206C — Headlamp — 818206C (201710 – 999999)

PNC and OE references

PNC	Part name	OE numbers
53181E	Right headlight cover	53181-06020 · 53181-06021 · 53181-06030 · 53181-33010
53182E	Left headlight cover	53182-06020 · 53182-06021 · 53182-06030 · 53182-33010
74533D	Headlight voltage warning label	74533-8C004
81107	Right headlight control ECU sub-assembly	81107-47290 · 81107-60G20 · 81107-75020
81108	Left headlight control ECU sub-assembly	81107-47290 · 81107-60G20 · 81107-75020
81110	Right headlight assembly	81110-06A60 · 81110-06A61 · 81110-06A62 · 81110-06A70 · 81110-06A71 · 81110-06A72 · 81110-06A90 · 81110-06A91 · 81110-06C60 · 81110-06C61 · 81110-06C62 · 81110-06D40 · 81110-06D50 · 81110-06D60 · 81110-33G90
81110B	Bulb (for headlight No. 1)	90981-13046
81110D	Bulb (for headlight No. 2)	90981-13075
81110L	Discharge headlight bulb	90981-20024
81134	headlight gasket	90075-23002 · 90075-68007
81135	Right headlight assembly assembly	81130-33771 · 81145-06A60 · 81145-06A62 · 81145-06A70 · 81145-06A72 · 81145-06A90 · 81145-06C60 · 81145-06C62 · 81145-06D40 · 81145-06D50 · 81145-06D60 · 81145-33A80 · 81145-33A90 · 81145-33C50 · 81145-33C60 · 81145-33G70 · 81145-33G90
81144C	Headlight lamp holder cover	90075-65006
81150	Left headlight assembly	81150-06A60 · 81150-06A61 · 81150-06A70 · 81150-06A71 · 81150-06A90 · 81150-06C60 · 81150-06C61 · 81150-06D40 · 81150-06D50 · 81150-06D60 · 81150-33G70
81175	Left headlight assembly assembly	81170-33771 · 81185-06A60 · 81185-06A61 · 81185-06A70 · 81185-06A71 · 81185-06A90 · 81185-06C60 · 81185-06C61 · 81185-06D40 · 81185-06D50 · 81185-06D60 · 81185-33A30 · 81185-33A40 · 81185-33C50 · 81185-33C60 · 81185-33G50 · 81185-33G70
81189	headlight cover	81135-60G20
81510C	Bulb (for front turn signal lamp)	90981-15021
81515B	Front turn signal lamp holder	81125-20A30 · 90075-60028
81610F	Light bulb (for width indicator light)	99132-12050
81615H	Right side width indicator lamp holder	81125-06A90 · 81125-06A91 · 81125-48470 · 90075-60077
81615J	Left side width indicator lamp holder	81125-06A90 · 81125-48470 · 90075-60077
85661	Right headlight beam height adjustment motor	85661-02040 · 85661-12010 · 85661-12020
85662	Left headlight beam height adjustment motor	85661-02040 · 85661-12010 · 85661-12020
85669	Headlight beam height adjustment motor base seal	90075-99120
