Toyota CAMRY 前防护条 — Figure 7502

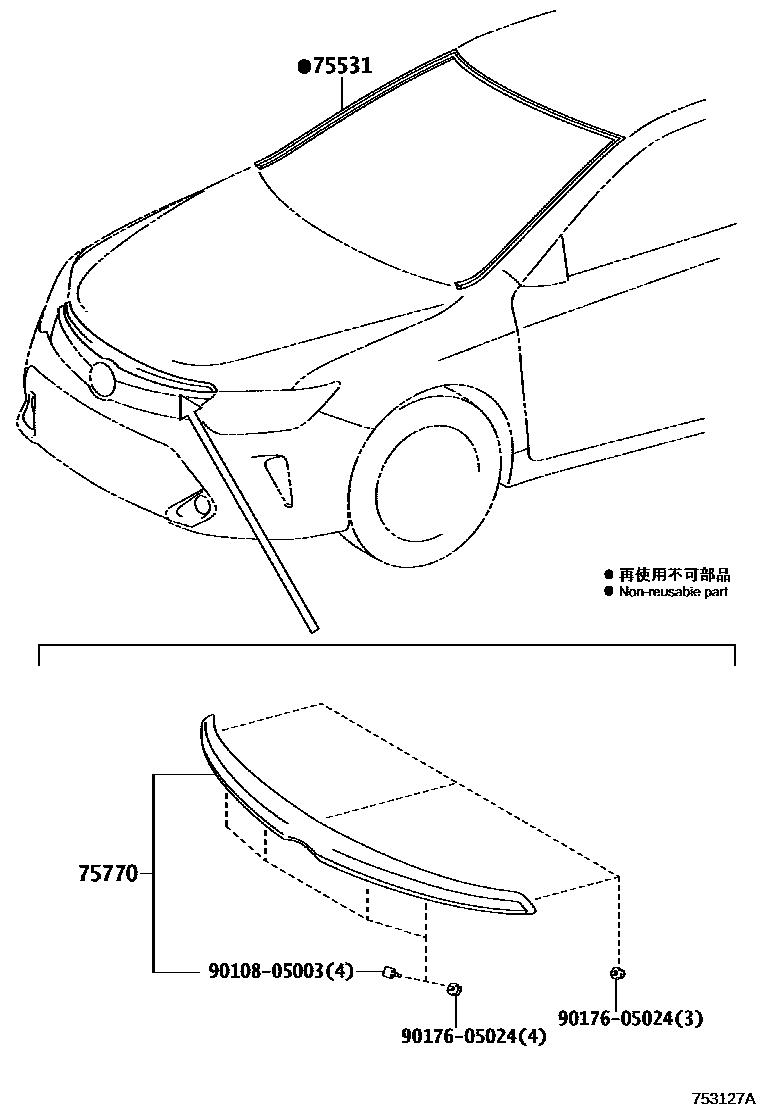

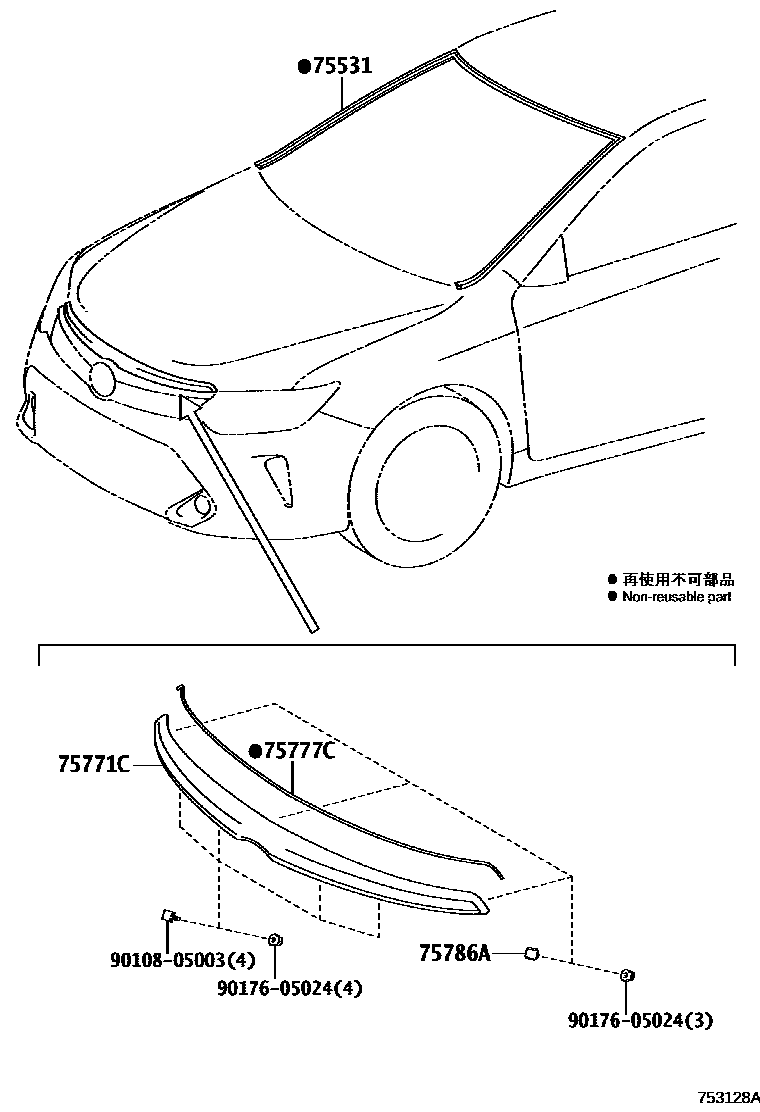

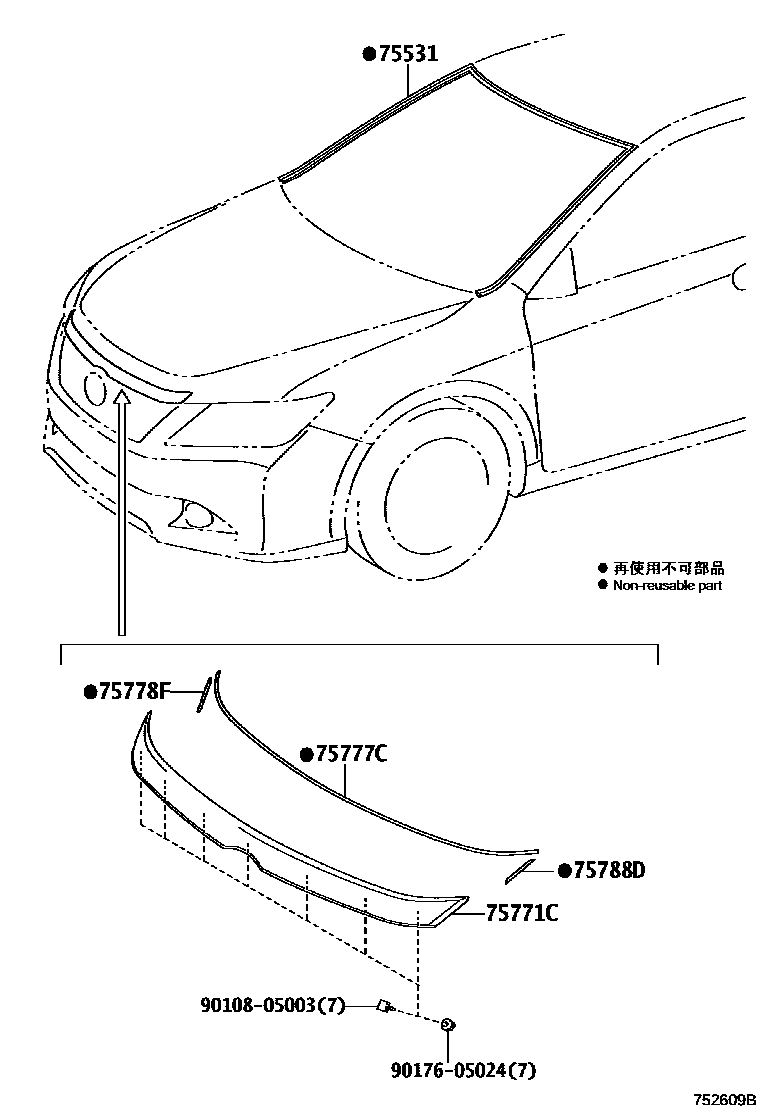

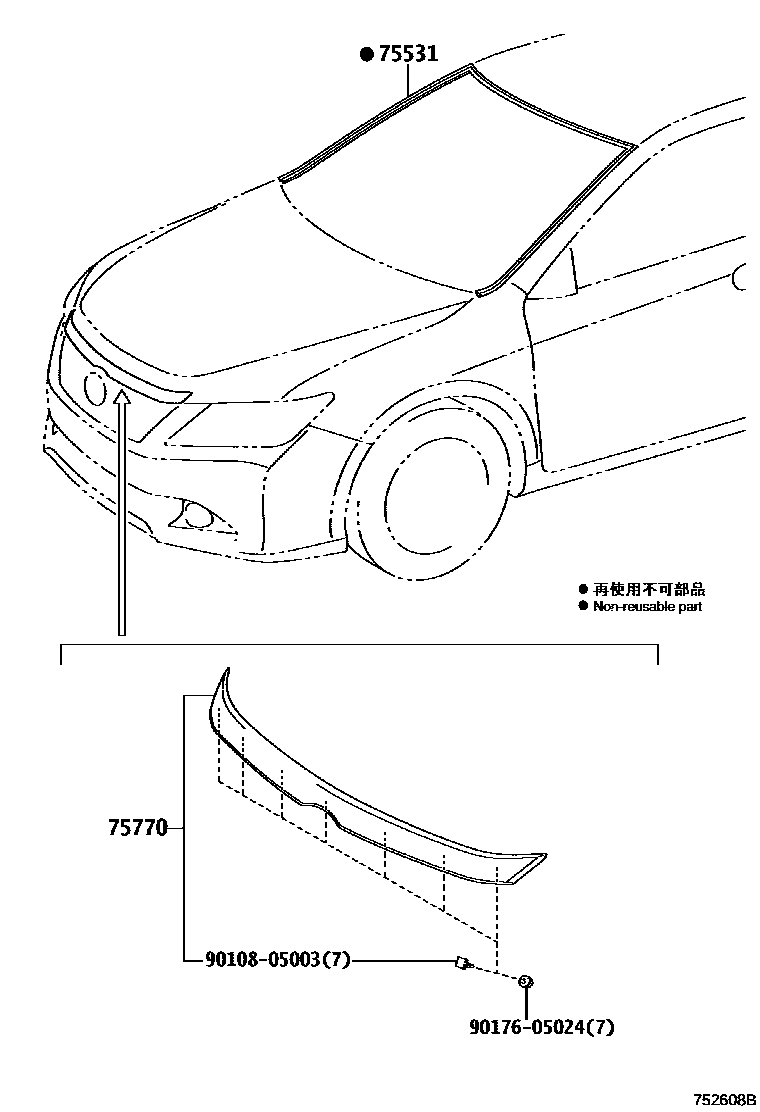

Toyota CAMRY EPC diagram 7502, 前防护条, with 4 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75531 | Windshield outer protective strip | 75531-06190 · 75531-06200 · 75531-33140 |
| 75770 | Engine cover front protective strip assembly | 75770-06020 · 75770-06021 · 75770-06070 |
| 75771C | Engine cover front protective strip | 75771-06030 · 75771-06080 |
| 75777C | Engine cover front protective strip liner | 75777-06060 · 75777-06120 |
| 75778F | Engine cover front protective strip right gasket | 75778-06030 |
| 75786A | Engine cover front protective strip fixings | 75786-33010 |
| 75788D | Engine cover front protective strip left gasket | 75788-06030 |
