Toyota CAMRY 丰田徽标和铭牌(车外和车内) — Figure 7501

Toyota CAMRY EPC diagram 7501, 丰田徽标和铭牌(车外和车内), with 2 images and 9 PNC and OE references.

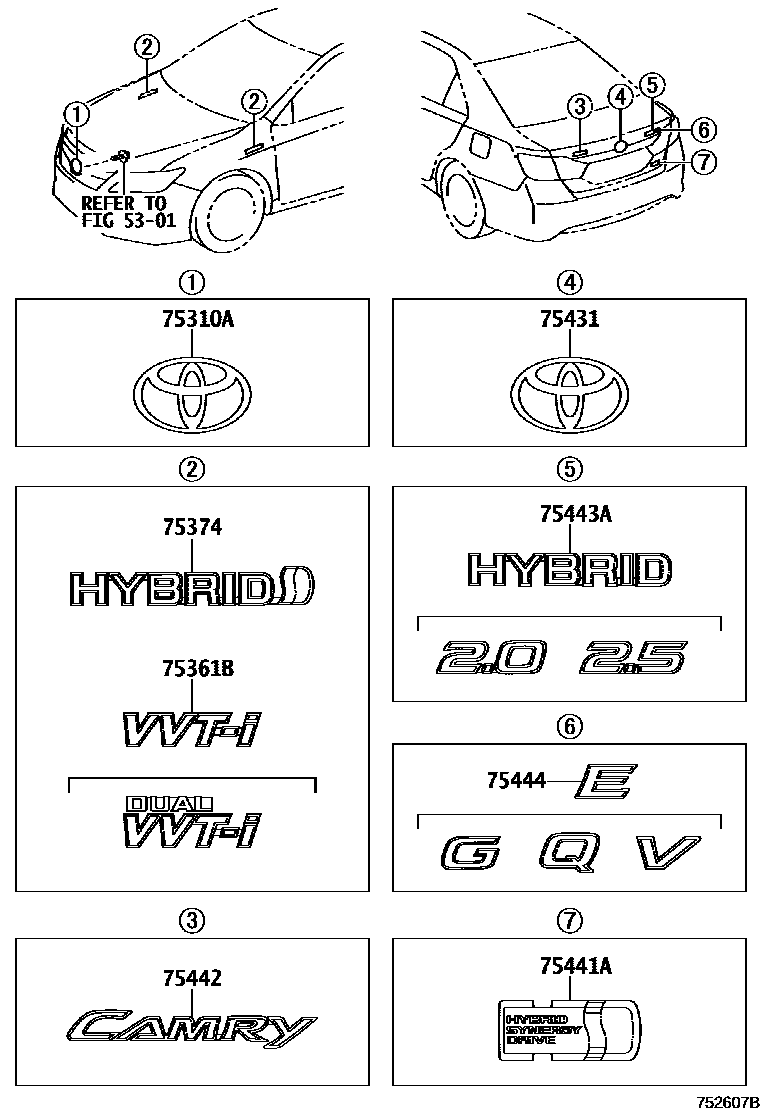

Toyota CAMRY 丰田徽标和铭牌(车外和车内) EPC diagram — 752607B
丰田徽标和铭牌(车外和车内) — 752607B (201112 – 201504)

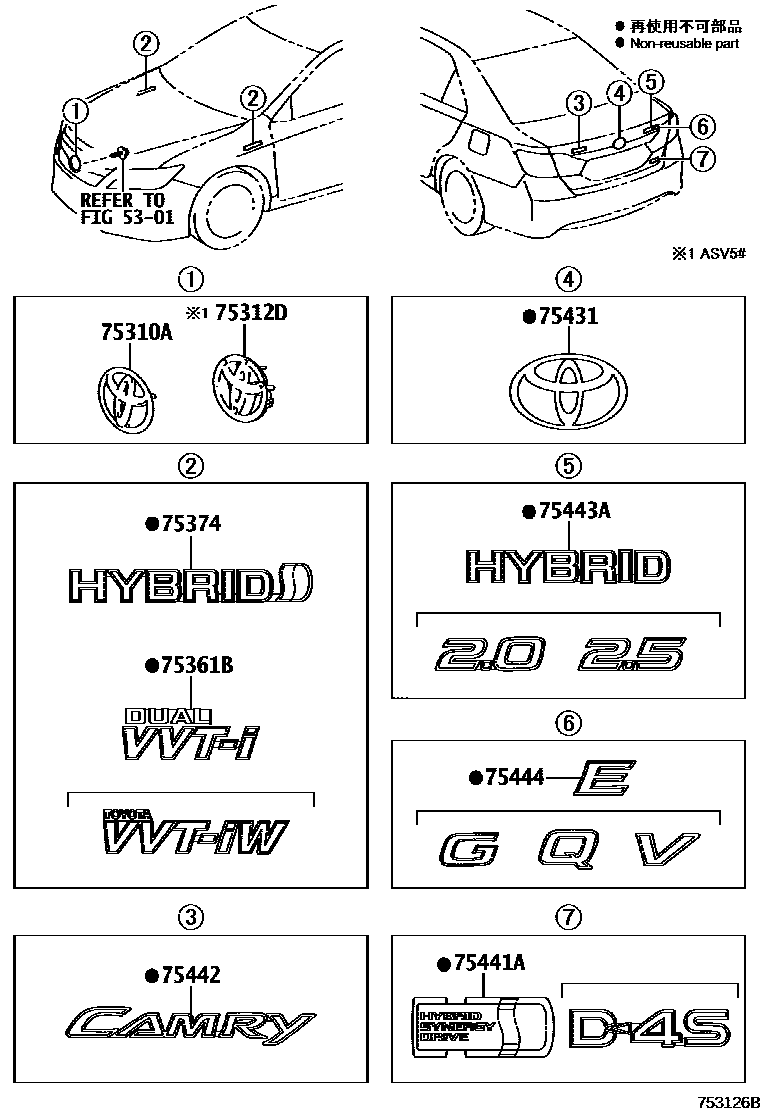

Toyota CAMRY 丰田徽标和铭牌(车外和车内) EPC diagram — 753126B
丰田徽标和铭牌(车外和车内) — 753126B (201502 – 999999)

PNC and OE references

PNCPart nameOE numbers
75310ARadiator grille plate assembly53141-47011 · 53141-47012 · 75310-06080 · 75310-06090 · 75310-47010 · 90975-02189 · 90975-T2005 · 90975-T2010
75312DRadiator grille plate base75311-06240 · 75311-06250
75361BSide panel nameplate75443-06A50 · 75443-06A70 · 75443-06A80
75374side panel sign75374-06150 · 75374-06160 · 75374-52050 · 75374-52060
75431luggage compartment door sign75403-06050 · 75403-06060 · 75403-06070 · 75403-06080 · 75403-33050 · 75403-75010 · 75431-02090
75441ATrunk door No. 1 name plate75441-33151 · 75443-06B70
75442Trunk door number plate No. 275442-06220 · 75442-06230
75443ATrunk door No. 3 nameplate75443-06780 · 75443-06790 · 75443-06810 · 75443-06820 · 75443-06830
75444Trunk door No. 4 nameplate75444-06300 · 75444-06340 · 75444-06350 · 75444-06360
