Toyota CAMRY 警示铭牌(车外和车内) — Figure 7403

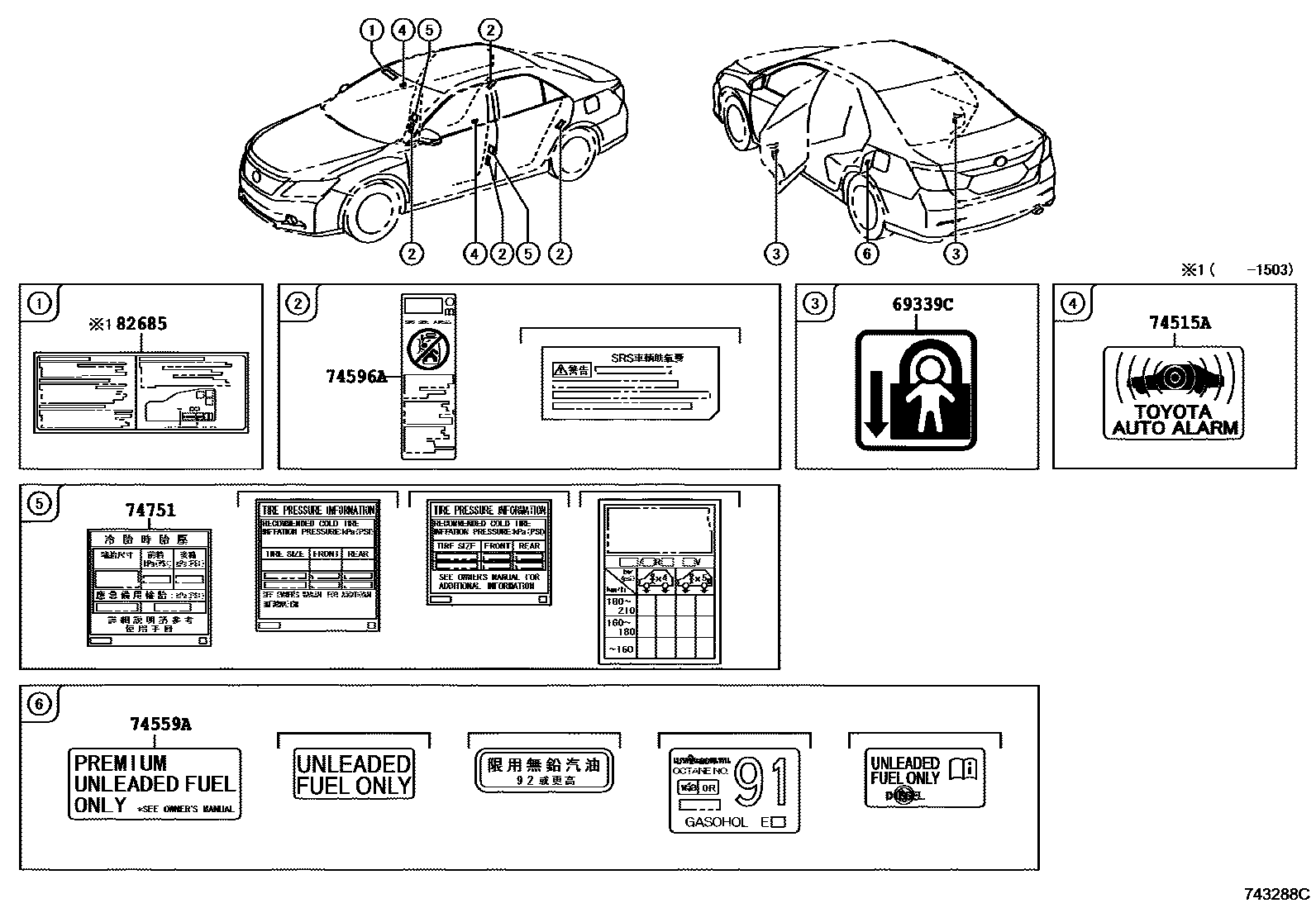

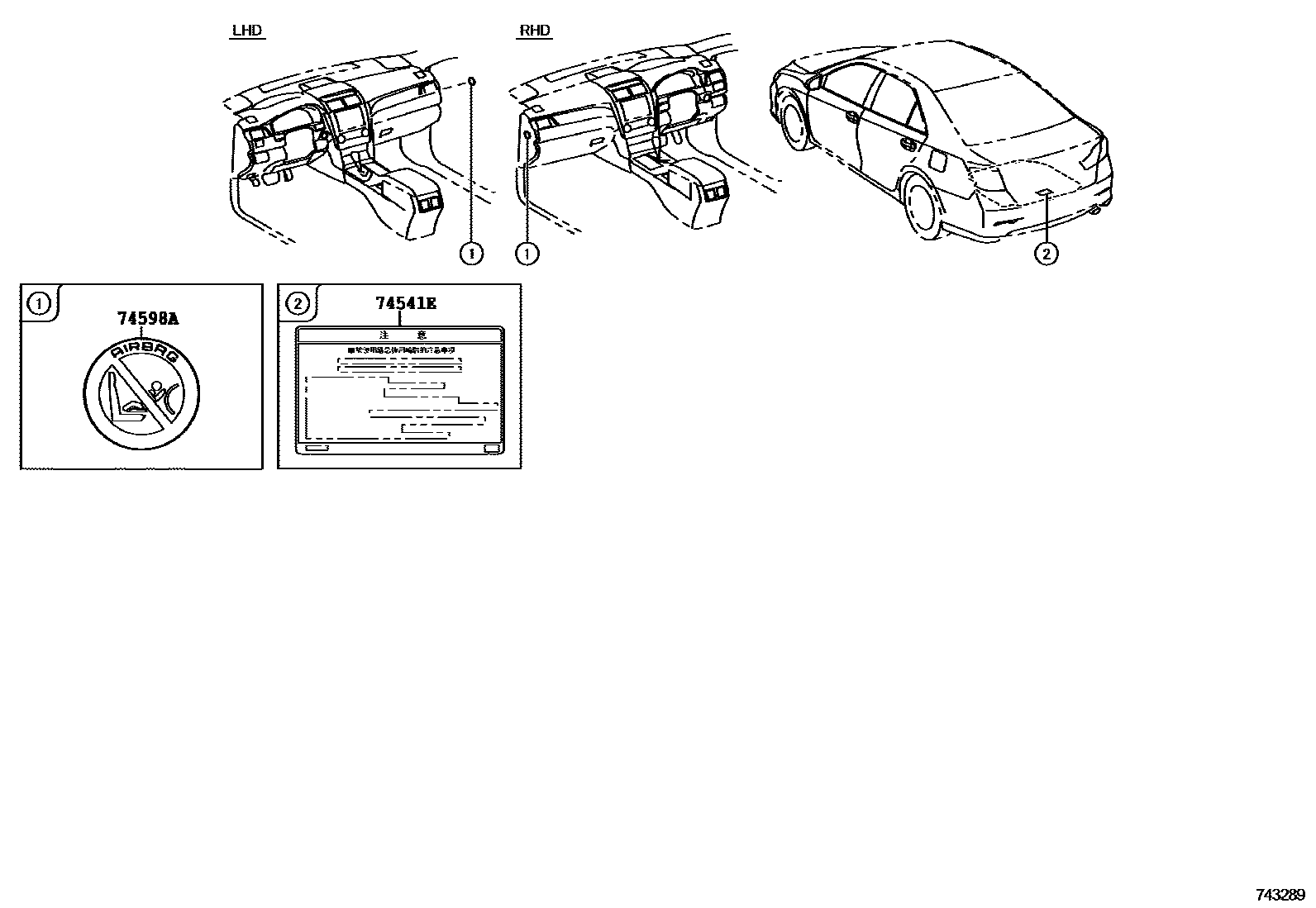

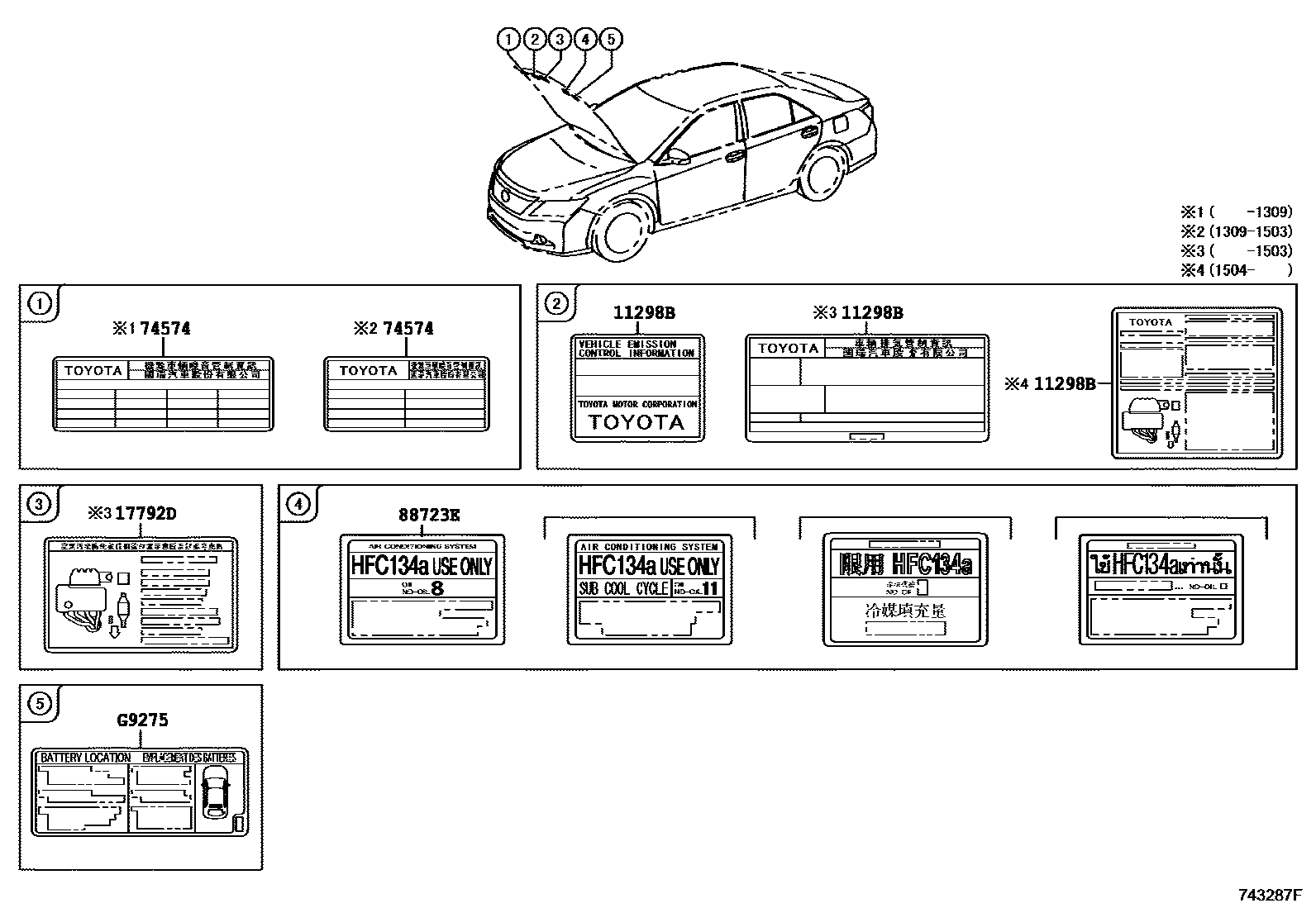

Toyota CAMRY EPC diagram 7403, 警示铭牌(车外和车内), with 4 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11291B | Engine name plate | 11291-36040 |
| 11293D | engine warning label | 11293-36070 |
| 11298B | Emission Control Information Label | 11298-0H200 · 11298-0H230 · 11298-0H280 · 11298-0H290 · 11298-0H300 · 11298-0V040 · 11298-0V050 · 11298-0V210 · 11298-0V220 · 11298-0V290 · 11298-0V291 · 11298-0V300 · 11298-0V301 · 11298-0V380 · 11298-0V400 · 11298-0V410 · 11298-0V420 · 11298-0V460 · 11298-0V470 · 11298-0V480 · 11298-0V490 · 11298-0V500 · 11298-0V510 · 11298-36160 · 11298-36161 |
| 16793E | Cooling fan warning label | 16793-28010 · 16793-31030 · 16793-31040 · 16793-36040 |
| 17792D | Emission control device information label | 17792-0H120 · 17792-0H160 · 17792-0H170 · 17792-0V030 · 17792-0V031 · 17792-0V040 · 17792-0V070 · 17792-0V090 |
| 69339C | Child Restraint Information Label | 69339-06060 · 69339-06070 · 69339-0K010 |
| 74515A | Anti-theft warning nameplate | 74515-02010 · 74515-02020 · 74515-02080 · 74515-0K020 · 74515-33020 |
| 74541E | Small spare tire warning plate | 42668-16020 |
| 74559A | Fuel warning plate | 74559-02021 · 74559-02050 · 74559-14050 · 74559-20140 · 74559-50010 · 74559-60030 · 74579-0B010 |
| 74574 | Noise identification nameplate | 74574-06060 · 74574-06070 · 74574-06080 · 74574-06090 |
| 74596A | Side air bag warning label | 74596-06010 · 74596-53020 |
| 74598A | Passenger air bag warning label | 74598-02040 · 74598-20010 |
| 74751 | tire pressure information label | 42661-06A00 · 42661-06A10 · 42661-06A20 · 42661-33860 · 42661-33870 |
| 82685 | warning nameplate | 82685-06020 |
| 88723E | Cooler maintenance warning label | 88723-02080 · 88723-06090 · 88723-06100 · 88723-06150 · 88723-28220 · 88723-47070 |
| G9275 | No. 1 battery warning label | G9275-33010 · G9275-76020 |
