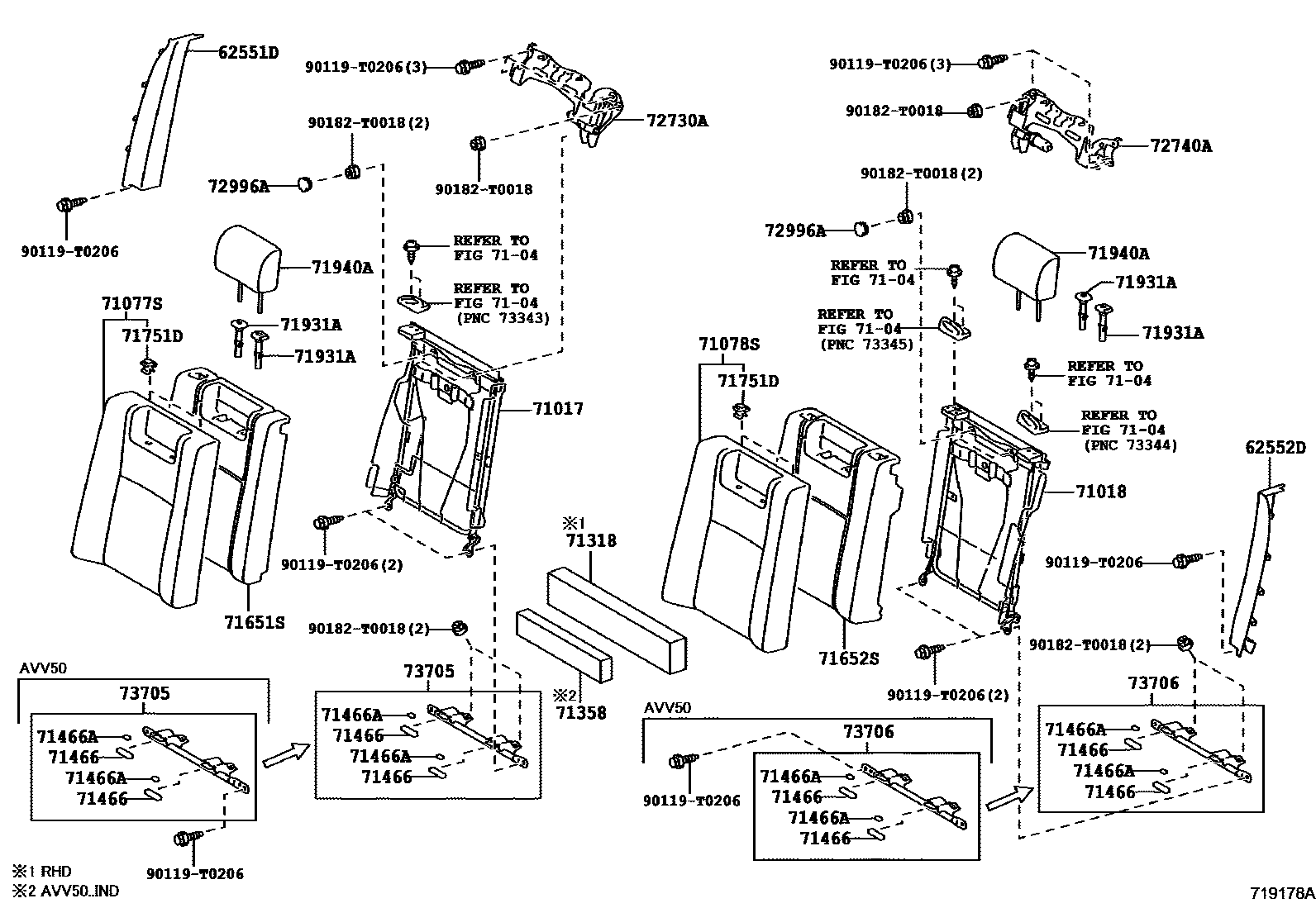

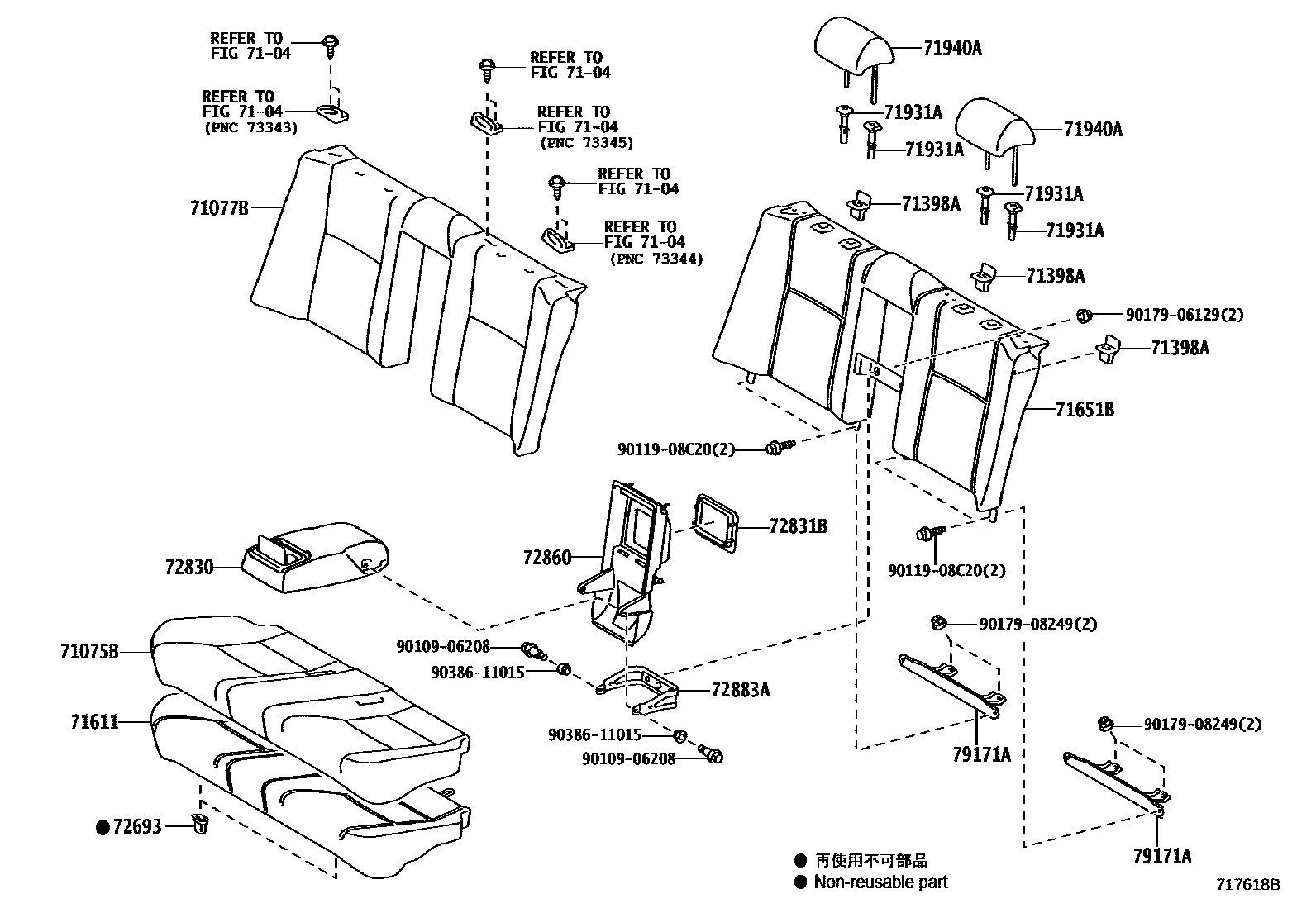

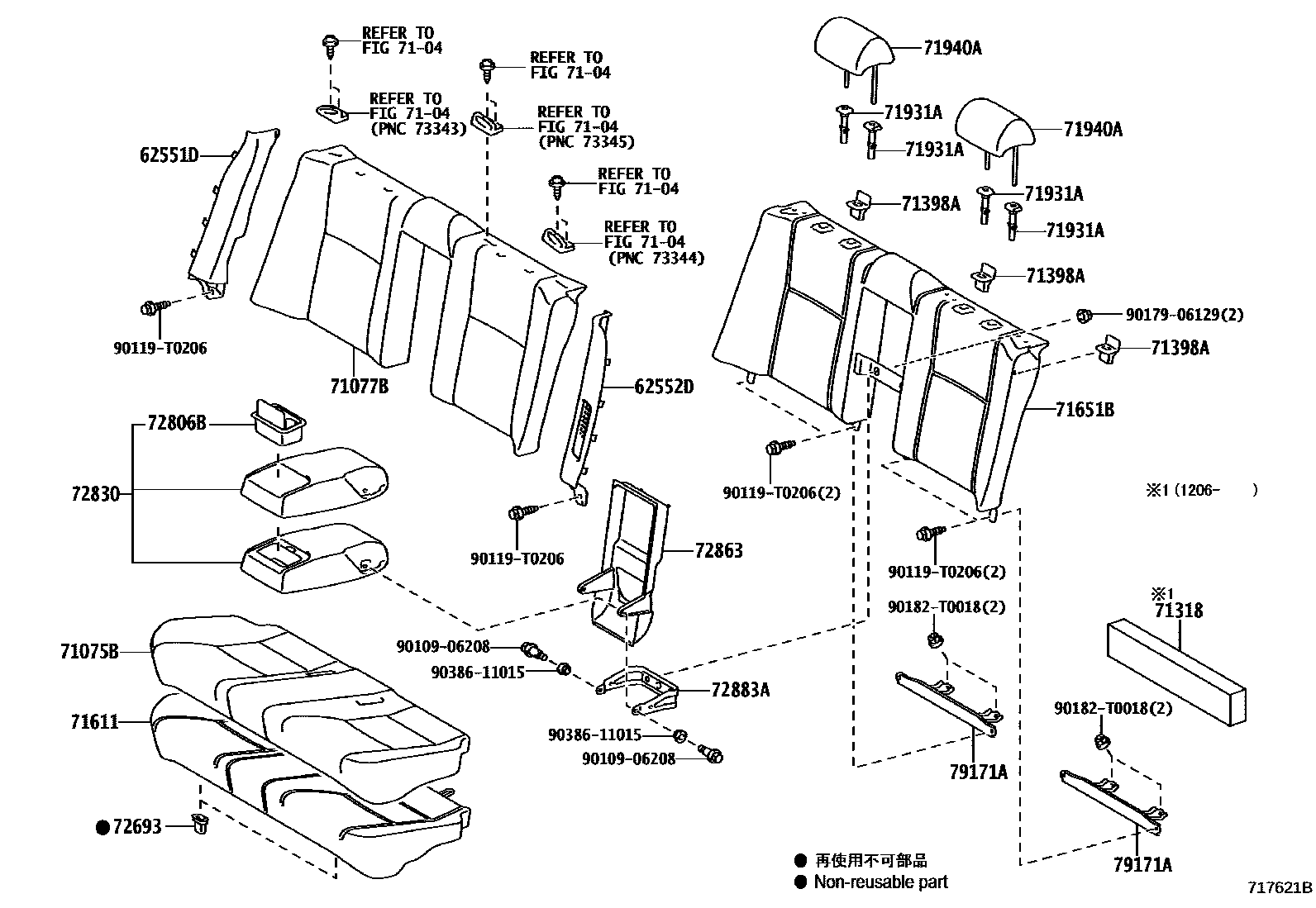

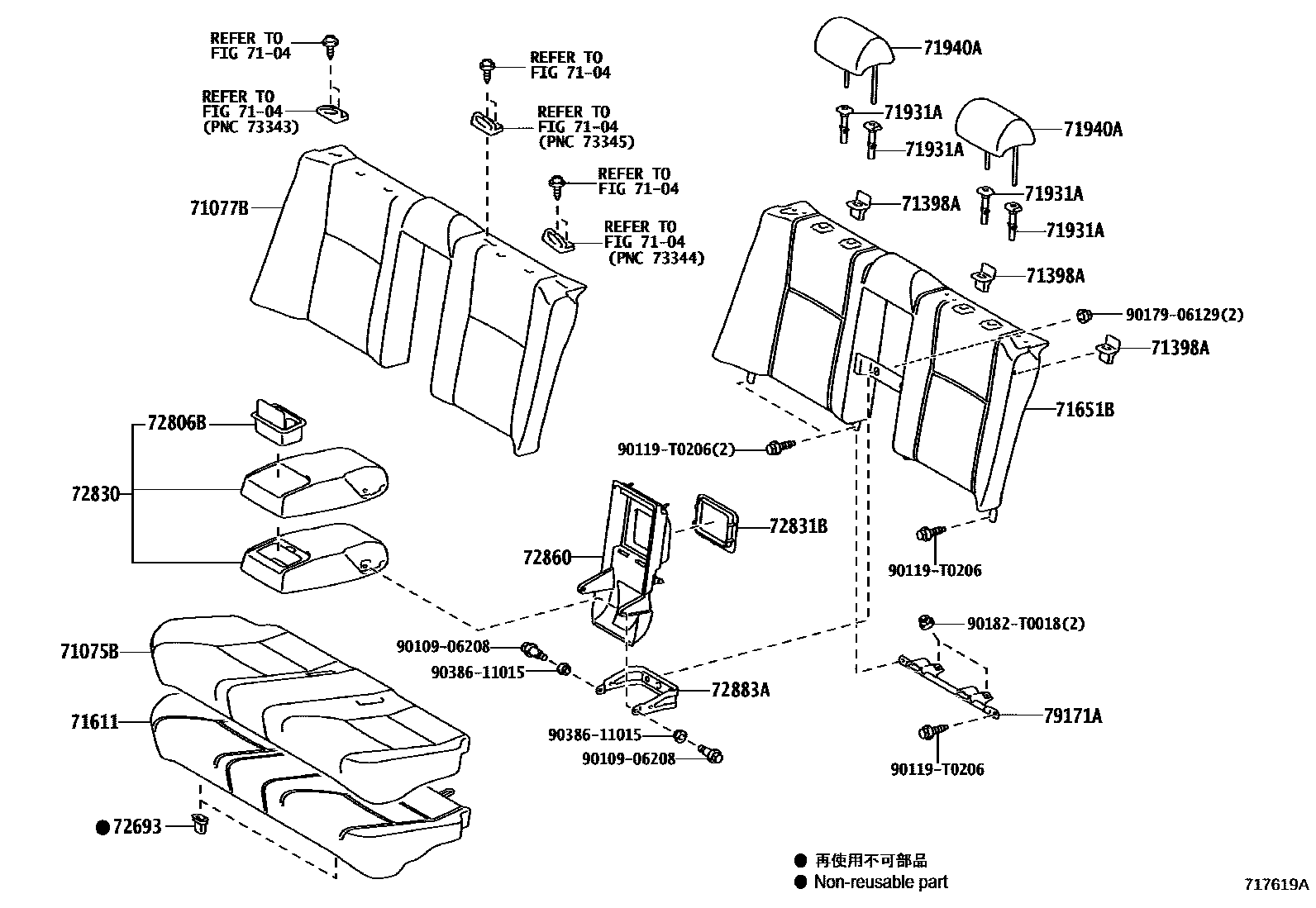

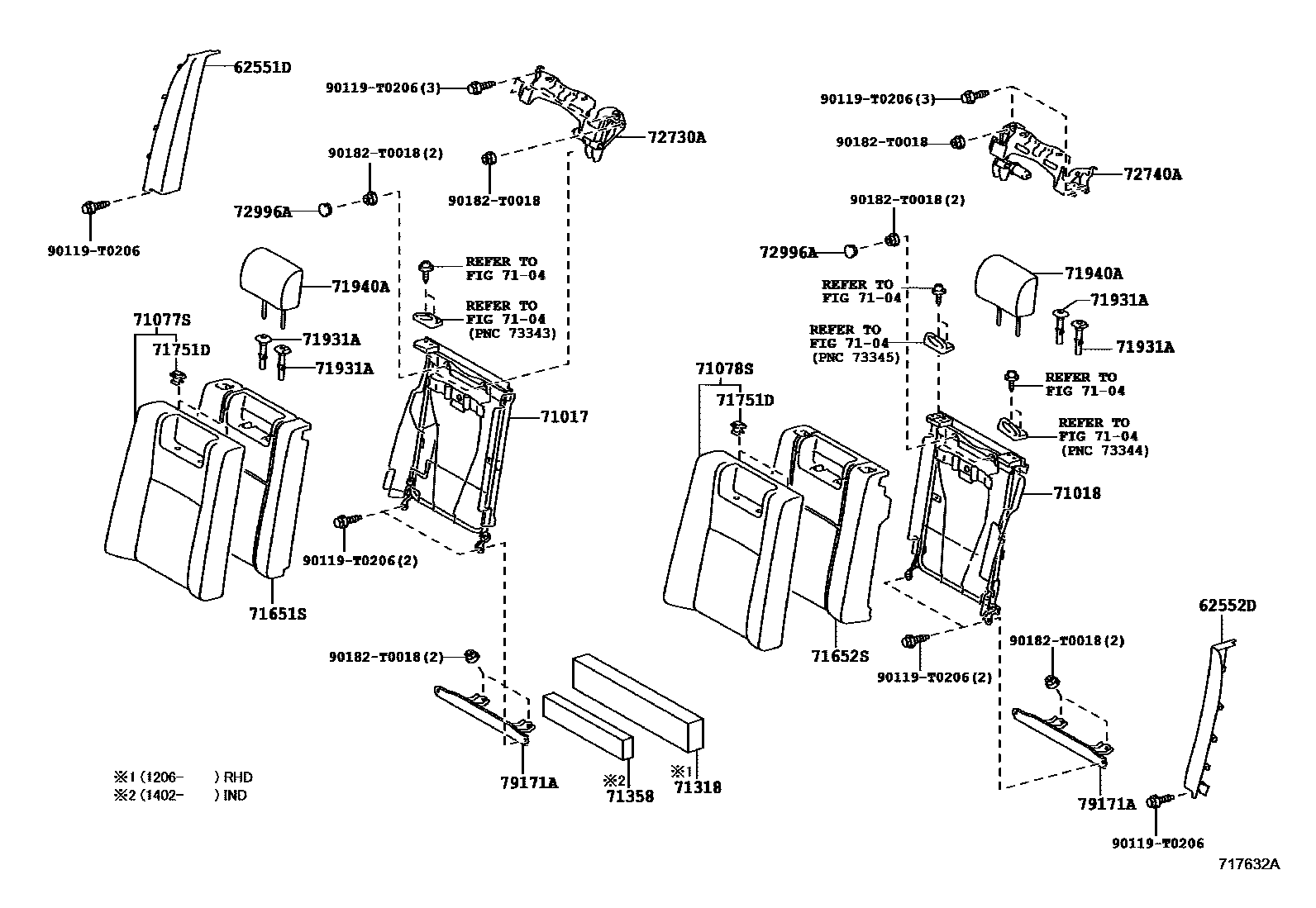

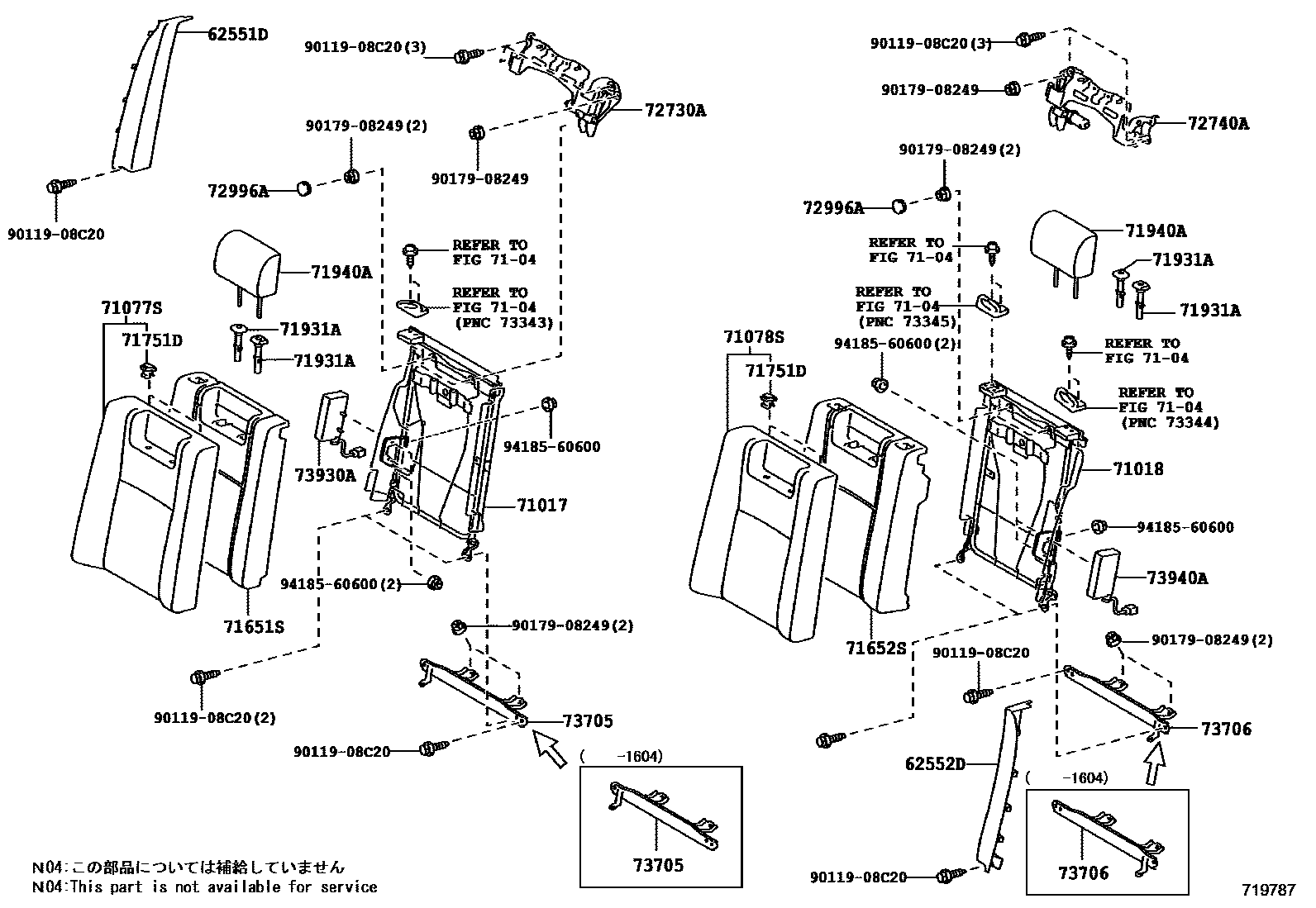

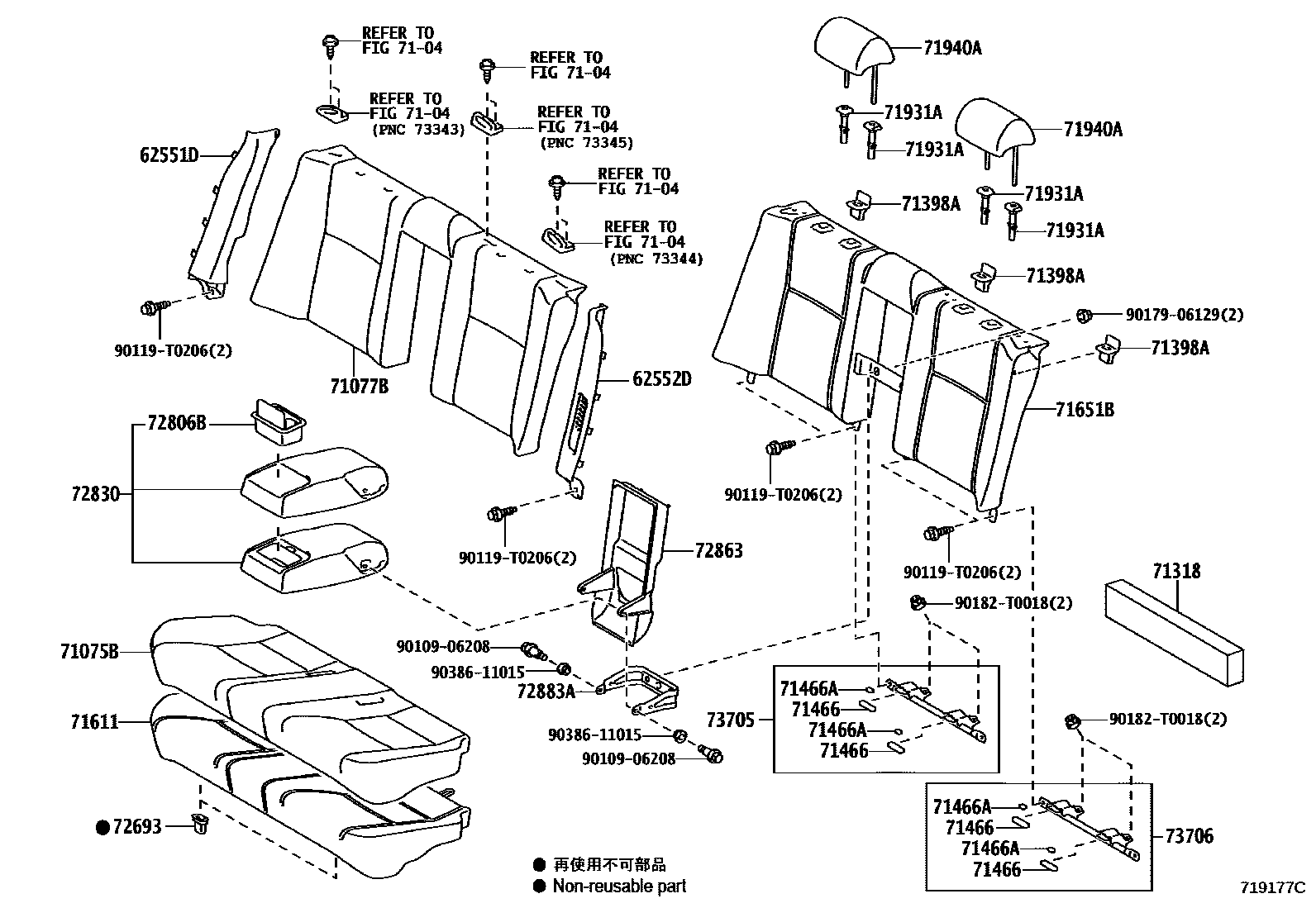

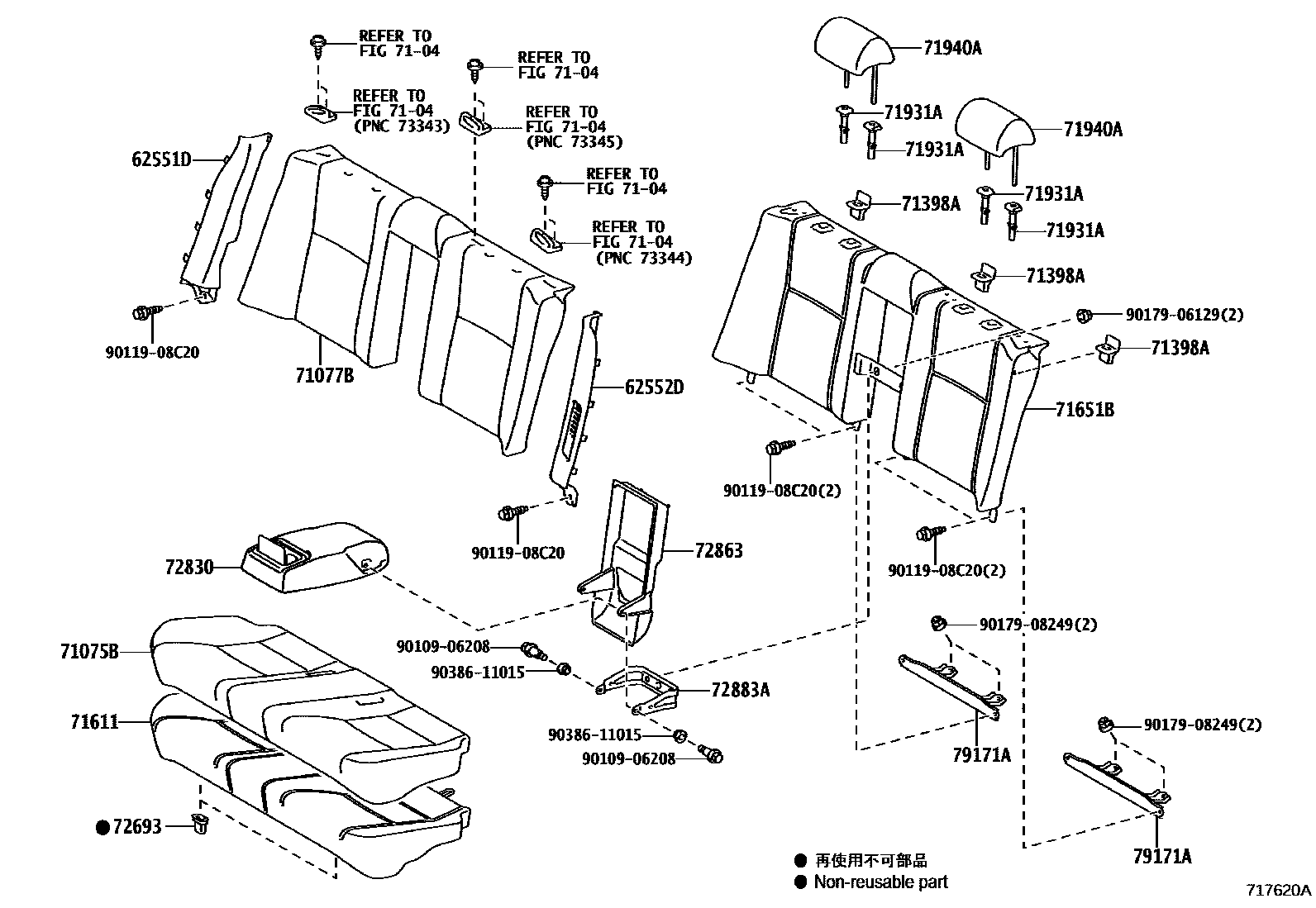

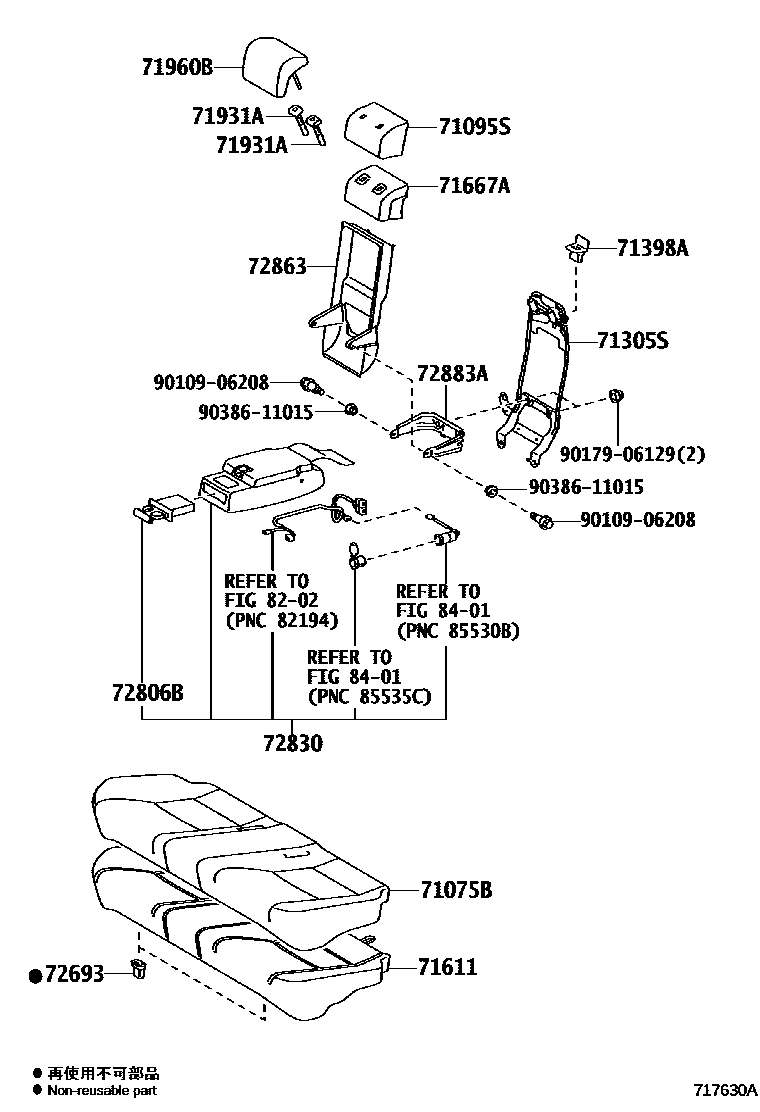

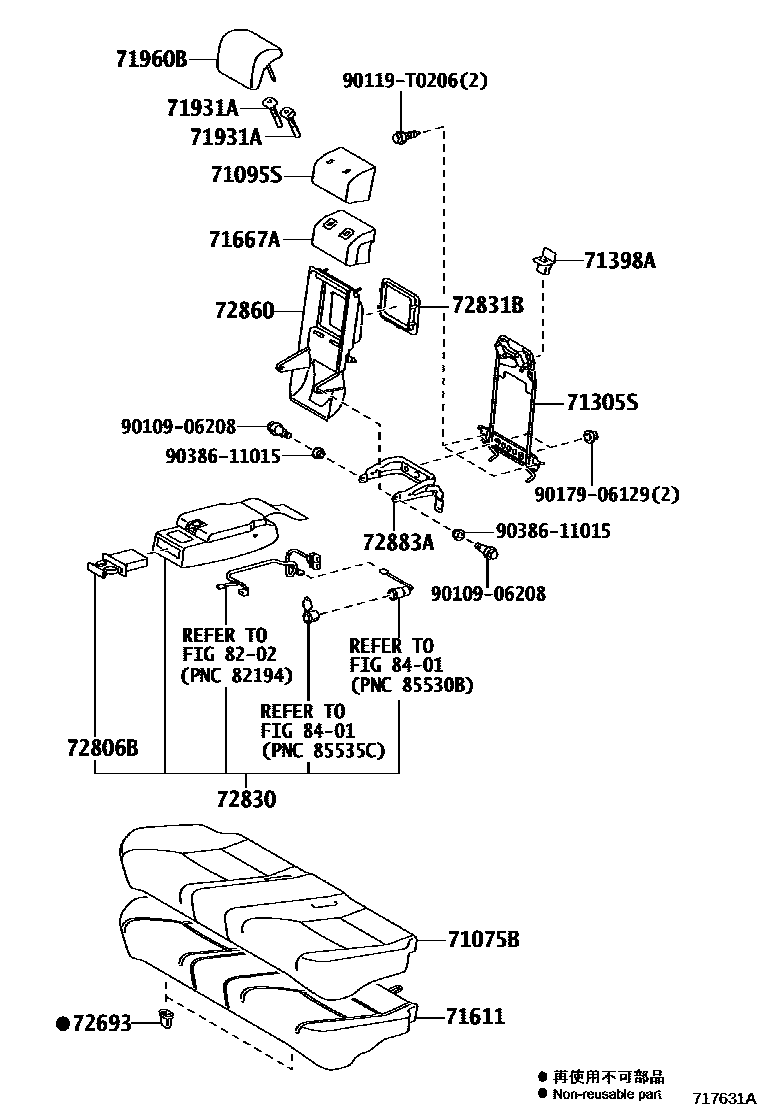

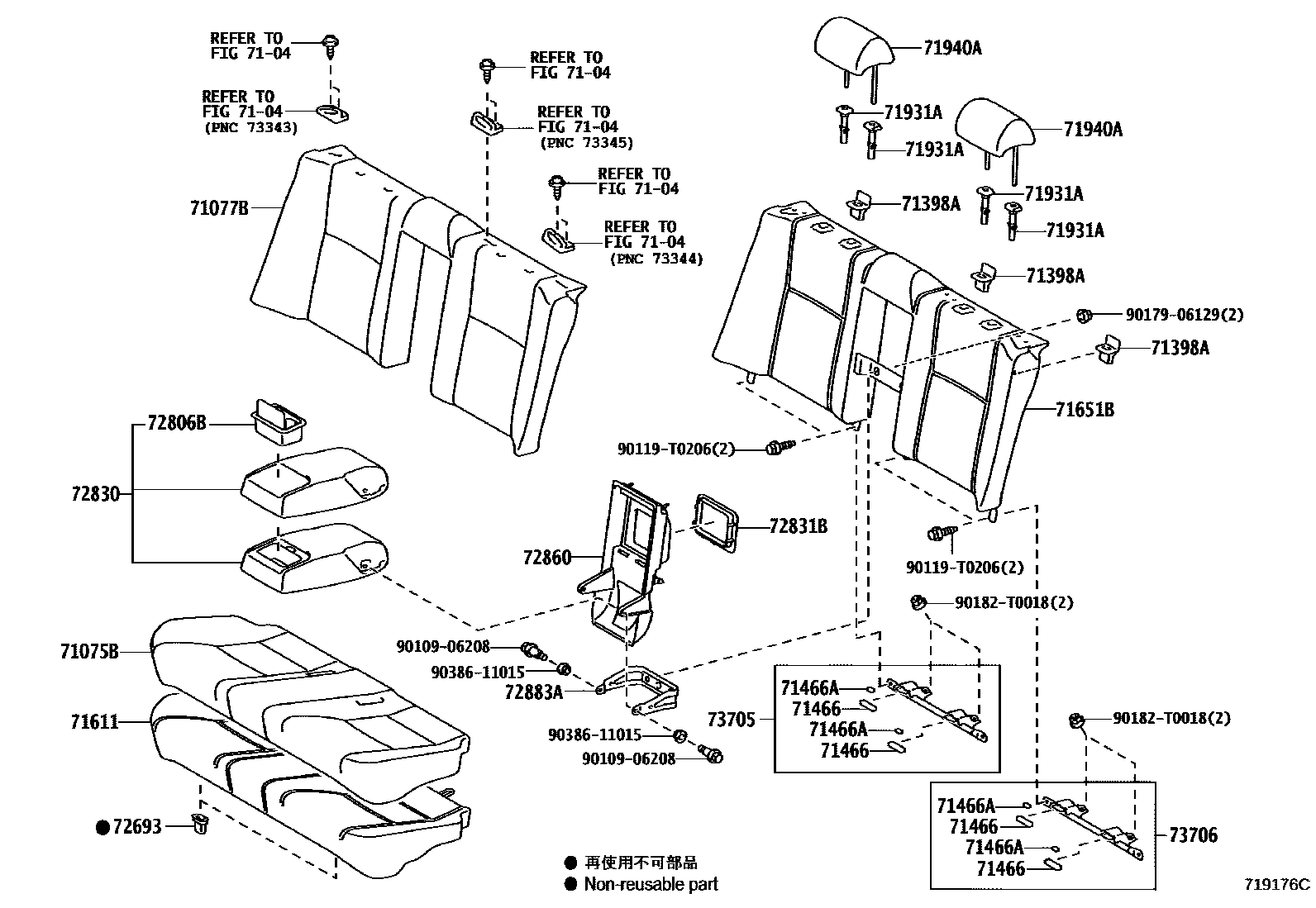

Toyota CAMRY 后排座椅和座椅滑轨 — Figure 7102
Toyota CAMRY EPC diagram 7102, 后排座椅和座椅滑轨, with 11 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71017 | Right rear seat back frame sub-assembly | 71017-06280 · 71017-06290 · 71017-06390 |
| 71018 | Rear left seat back frame sub-assembly | 71018-06190 · 71018-06200 · 71018-06230 |
| 71077S | Right rear seat back cover (for split seats) | 71077-06J71 |
| 71078S | Rear left seat back cover (for split seats) | 71078-06A31 |
| 71305S | Center seat back frame sub-assembly | 71305-06110 · 71305-06120 · 71305-06130 |
| 71318 | Center seat cushion cushion | 71316-06010 · 71316-06011 |
| 71358 | Center seat back cushion | 71316-06030 |
| 71398A | Rear seat back retainer | 71398-02040 |
| 71466 | Soft cushion under rear seat cushion | 71316-06040 |
| 71466A | Soft cushion under rear seat cushion | 71316-06050 |
| 71611 | Rear seat cushion cushion | 71503-06310 · 71503-06320 · 71503-06330 · 71503-06360 · 71503-06390 · 71503-06400 |
| 71651B | Rear seat back cushions (for bench seats) | 71651-06530 · 71651-06540 · 71651-06550 · 71651-06560 · 71651-06570 · 71651-06620 |
| 71651S | Rear right seat back cushion (for split seats) | 71651-06520 · 71651-06580 · 71651-06590 · 71651-06690 |
| 71652S | Rear left seat back cushion (for split seats) | 71652-06270 · 71652-06280 · 71652-06290 · 71652-06390 |
| 71667A | Rear center A seat back cushion | 71507-06120 · 71507-06130 · 71507-06140 |
| 71751D | Rear seat cover hanger | 71751-06040 · 71751-06050 |
| 71940A | Rear seat headrest assembly | 71940-06A01 · 71940-06A21 · 71940-06A42 |
| 71960B | Rear center seat headrest assembly | 71960-06401 |
| 72693 | Rear seat cushion hook | 72693-12080 |
| 72730A | Rear right seat backrest tilt adjuster assembly | 72730-33100 |
| 72740A | Rear left seat backrest angle adjuster assembly | 72740-33100 |
| 72831B | No. 1 rear seat center armrest panel | 72831-06040 · 72831-06090 · 72831-06120 |
| 72883A | Center armrest bracket for rear seat No. 1 | 72883-06030 · 72883-06140 · 72883-06170 · 72883-06180 · 72883-06200 |
| 73705 | Child restraint seat anchor right side bracket sub-assembly | 73705-06090 · 73705-06100 · 73705-06230 · 73705-06240 · 73705-06260 · 79001-06021 · 79001-06031 |
| 73706 | Child restraint seat anchor left bracket sub-assembly | 73706-06090 · 73706-06100 · 73706-06230 · 73706-06240 · 73706-06260 · 79002-06021 · 79002-06031 |
| 73930A | Rear right seat airbag assembly | 73930-06030 |
| 73940A | Rear left seat air bag assembly | 73940-06030 |
| 79171A | Seat bracket No. 1 | 79001-06021 · 79001-06031 · 79001-06041 · 79001-06080 · 79002-06021 · 79002-06031 · 79002-06041 · 79002-06060 |
