Toyota CAMRY 后门锁和后门把手 — Figure 6706

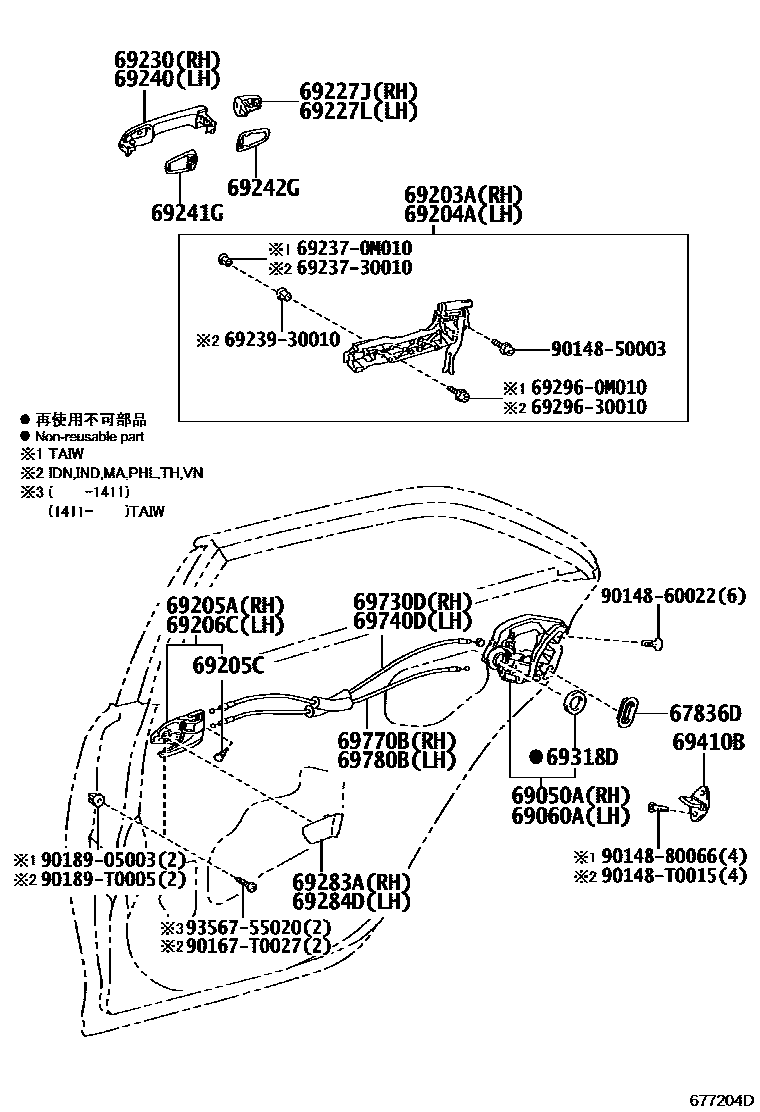

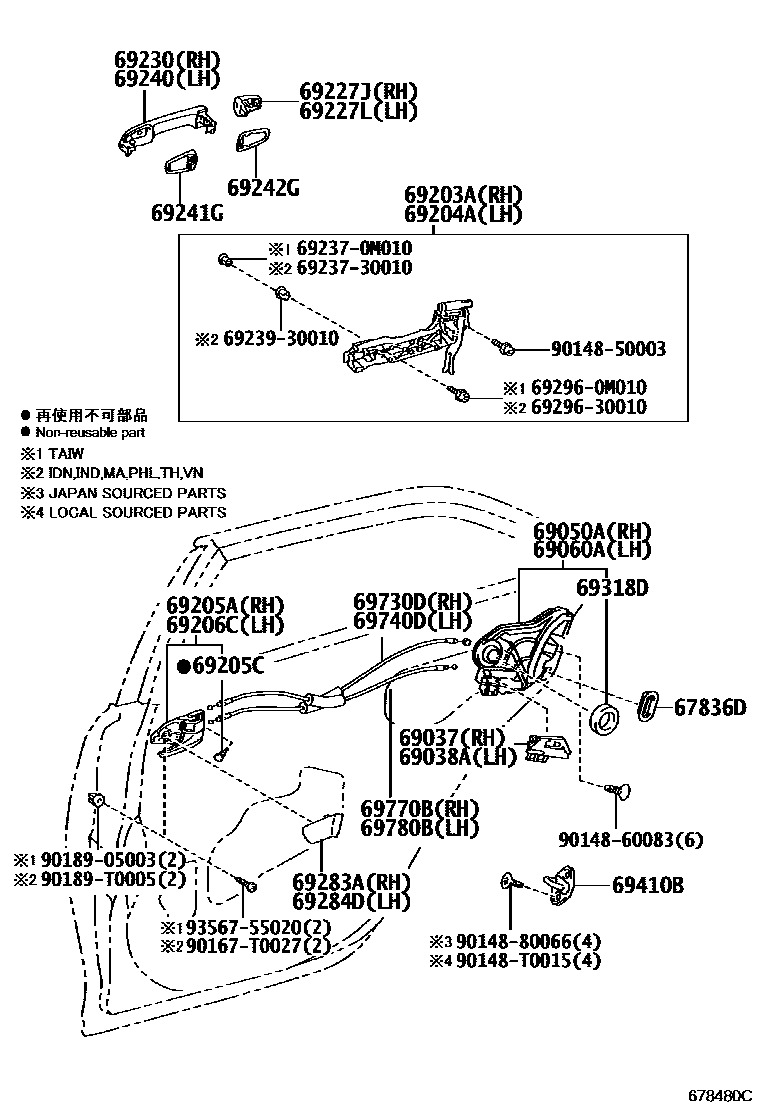

Toyota CAMRY EPC diagram 6706, 后门锁和后门把手, with 2 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67836D | Rear door lock child restraint cover | 67836-02030 · 67836-06030 · 67836-0K020 |
| 69037 | Right rear door door lock cover sub-assembly | 69037-02040 · 69037-02050 · 69037-02080 |
| 69038A | Left rear door door lock cover sub-assembly | 69038-02040 · 69038-02050 · 69038-02080 |
| 69050A | Right rear door lock assembly with motor | 69050-02370 · 69050-02420 · 69050-02430 · 69050-06060 · 69050-06070 |
| 69060A | Left rear door lock assembly with motor | 69060-02370 · 69060-02420 · 69060-02430 · 69060-06060 · 69060-06070 |
| 69203A | Right rear door outer handle frame sub-assembly | 69203-06100 · 69203-33051 |
| 69204A | Left rear door outer handle frame sub-assembly | 69204-06100 · 69204-33051 |
| 69205C | Cushion pad (for rear door inner handle) | 90080-54005 · 90541-04027 |
| 69227J | Right rear door outer handle cover | 69227-52901 |
| 69227L | Left rear door outer handle cover | 69227-52901 |
| 69230 | Right rear door outer handle assembly | 69211-52901 |
| 69240 | Left rear door outer handle assembly | 69211-52901 |
| 69241G | Rear door front exterior handle pad | 69241-33030 · 69241-52020 |
| 69242G | Rear door rear outer handle pad | 69242-33040 · 69242-52030 |
| 69318D | door lock harness seal | 69318-51010 |
| 69410B | Rear door lock plate assembly | 69410-02040 |
| 69730D | Right rear door lock remote control cable assembly | 69730-06120 · 69730-06130 · 69730-06150 · 69730-06160 |
| 69740D | Left rear door lock remote control cable assembly | 69730-06120 · 69730-06130 · 69730-06150 · 69730-06160 |
| 69770B | Right rear door inner lock cable assembly | 69770-06110 · 69770-06120 · 69770-06140 · 69770-06150 |
| 69780B | Left rear door inner lock cable assembly | 69770-06110 · 69770-06120 · 69770-06140 · 69770-06150 |
