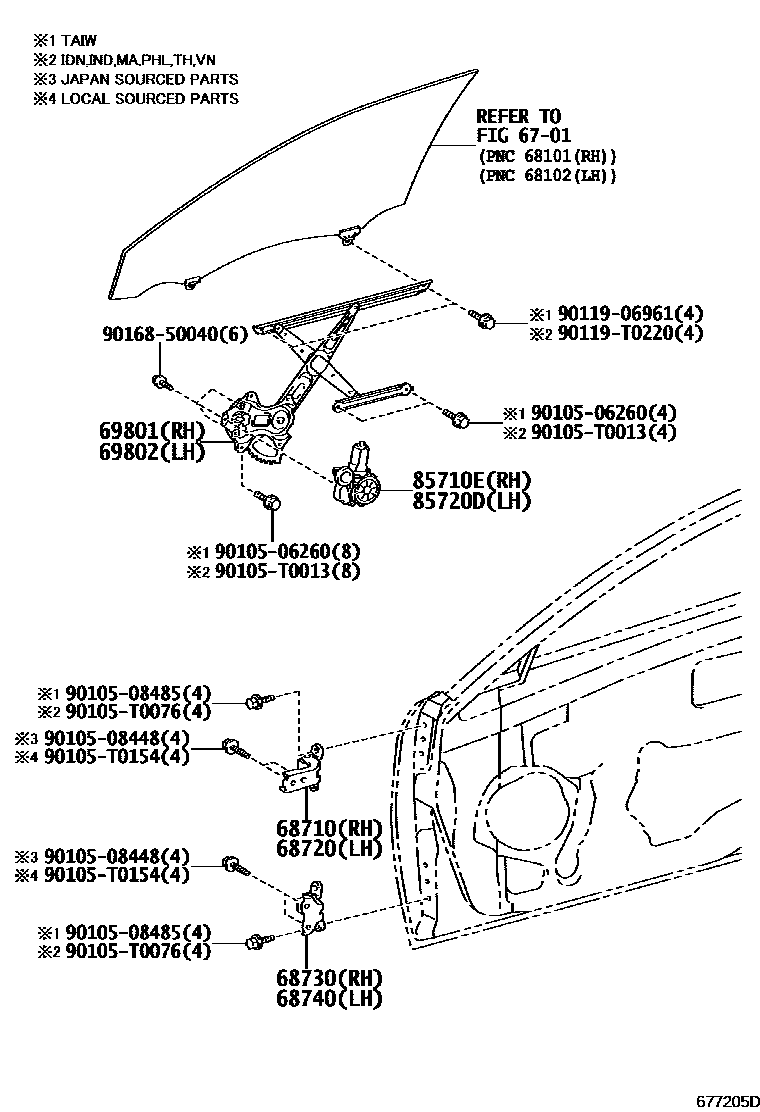

Toyota CAMRY 前门车窗升降器和合页 — Figure 6704
Toyota CAMRY EPC diagram 6704, 前门车窗升降器和合页, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 68710 | Right front door upper hinge assembly | 68710-0D050 |
| 68720 | Left front door upper hinge assembly | 68720-0D050 |
| 68730 | Right front door lower hinge assembly | 68730-02100 |
| 68740 | Left front door lower hinge assembly | 68740-02100 |
| 69801 | Right front door window lifter sub-assembly | 69801-06110 · 69801-0M020 |
| 69802 | Left front door window lifter sub-assembly | 69802-06110 · 69804-0M020 |
| 85710E | Right power window lift motor assembly | 85710-06090 · 85710-06100 · 85710-06210 · 85710-06211 · 85710-06240 · 85710-0K010 |
| 85720D | Left electric window lift motor assembly | 85720-06070 · 85720-06230 · 85720-06240 · 85720-06241 · 85720-0K010 |
