Toyota CAMRY 前门锁和车门把手 — Figure 6703

Toyota CAMRY EPC diagram 6703, 前门锁和车门把手, with 2 images and 23 PNC and OE references.

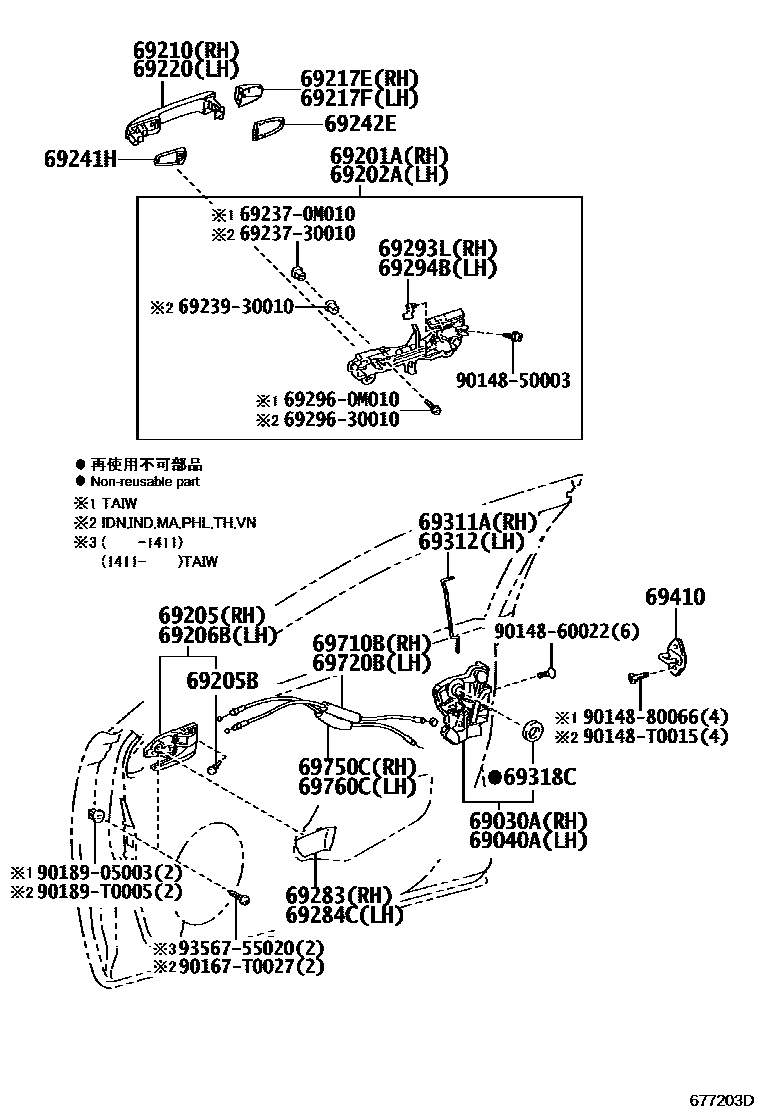

Toyota CAMRY 前门锁和车门把手 EPC diagram — 677203D
前门锁和车门把手 — 677203D (201112 – 201504)

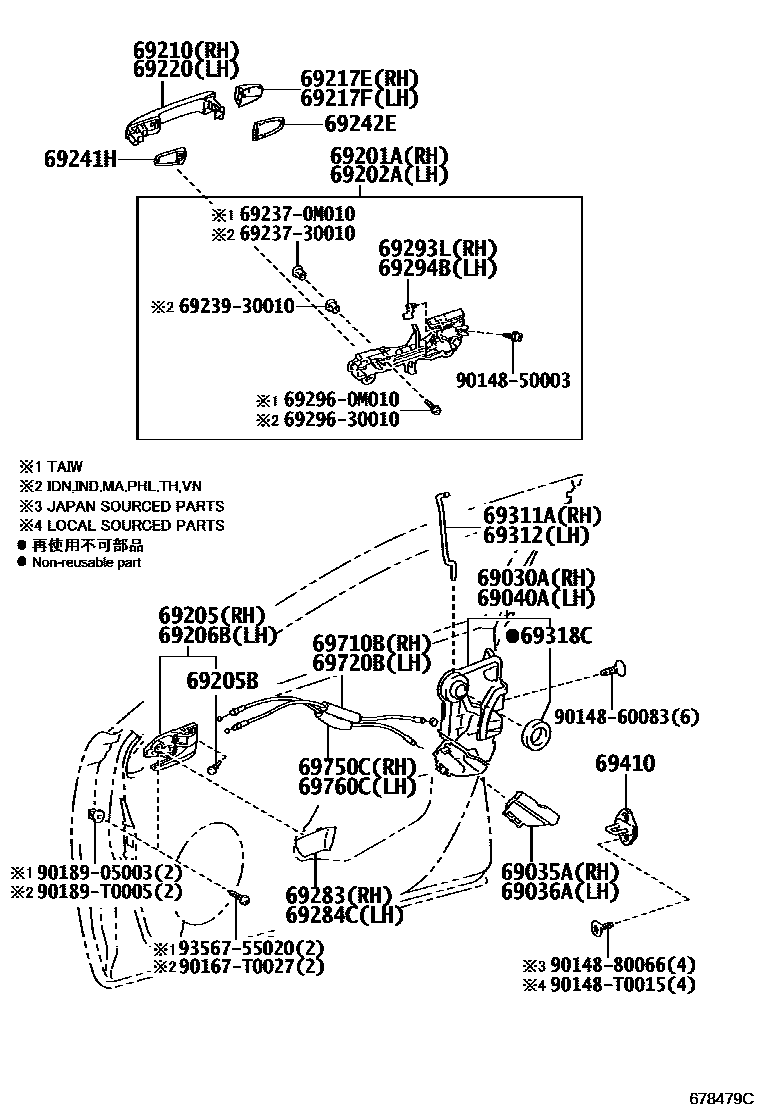

Toyota CAMRY 前门锁和车门把手 EPC diagram — 678479C
前门锁和车门把手 — 678479C (201502 – 999999)

PNC and OE references

PNCPart nameOE numbers
69030ARight front door lock assembly with motor69030-02470 · 69030-02480 · 69030-02580 · 69030-02610 · 69030-06110 · 69030-06120 · 69030-06130
69035ARight front door lock cover sub-assembly69035-02040 · 69035-02050 · 69035-02080
69036ALeft front door lock cover sub-assembly69036-02040 · 69036-02050 · 69036-02080
69040ALeft front door door lock assembly with motor69040-02450 · 69040-02470 · 69040-02560 · 69040-02570 · 69040-06100 · 69040-06110 · 69040-06120
69201ARight front door outer handle frame sub-assembly69201-06110 · 69201-52130
69202ALeft front door outer handle frame sub-assembly69202-06110 · 69202-52070
69205BCushion pad (for inner front door handle)90080-54005 · 90541-04027
69210Right front door outer handle assembly69211-52901
69217ERight front door outer handle cover69217-52901 · 69217-52902
69217FLeft front door outer handle cover69217-52901 · 69217-52902
69220Left front door outer handle assembly69211-52901
69241HFront door exterior handle pad69241-33030 · 69241-52020
69242EFront door rear outer handle pad69242-33040 · 69242-52030
69293LRight front door outer handle buckle69293-12030
69294BLeft front door outer handle buckle69293-12040
69311ARight front door lock opening lever69311-06131 · 69311-06141
69312Left front door lock opening lever69312-06131 · 69312-06141
69318Cdoor lock harness seal69318-51010
69410Front door lock plate assembly69410-02040
69710BRight front door lock remote control cable assembly69710-06130 · 69710-06140 · 69710-06160 · 69710-06170
69720BLeft front door lock remote control cable assembly69710-06130 · 69710-06140 · 69710-06160 · 69710-06170
69750CRight front door inner lock cable assembly69750-06120 · 69750-06130 · 69750-06150 · 69750-06160
69760CLeft front door inner lock cable assembly69750-06120 · 69750-06130 · 69750-06150 · 69750-06160
