Toyota CAMRY 杂物箱板和行李箱垫 — Figure 6403

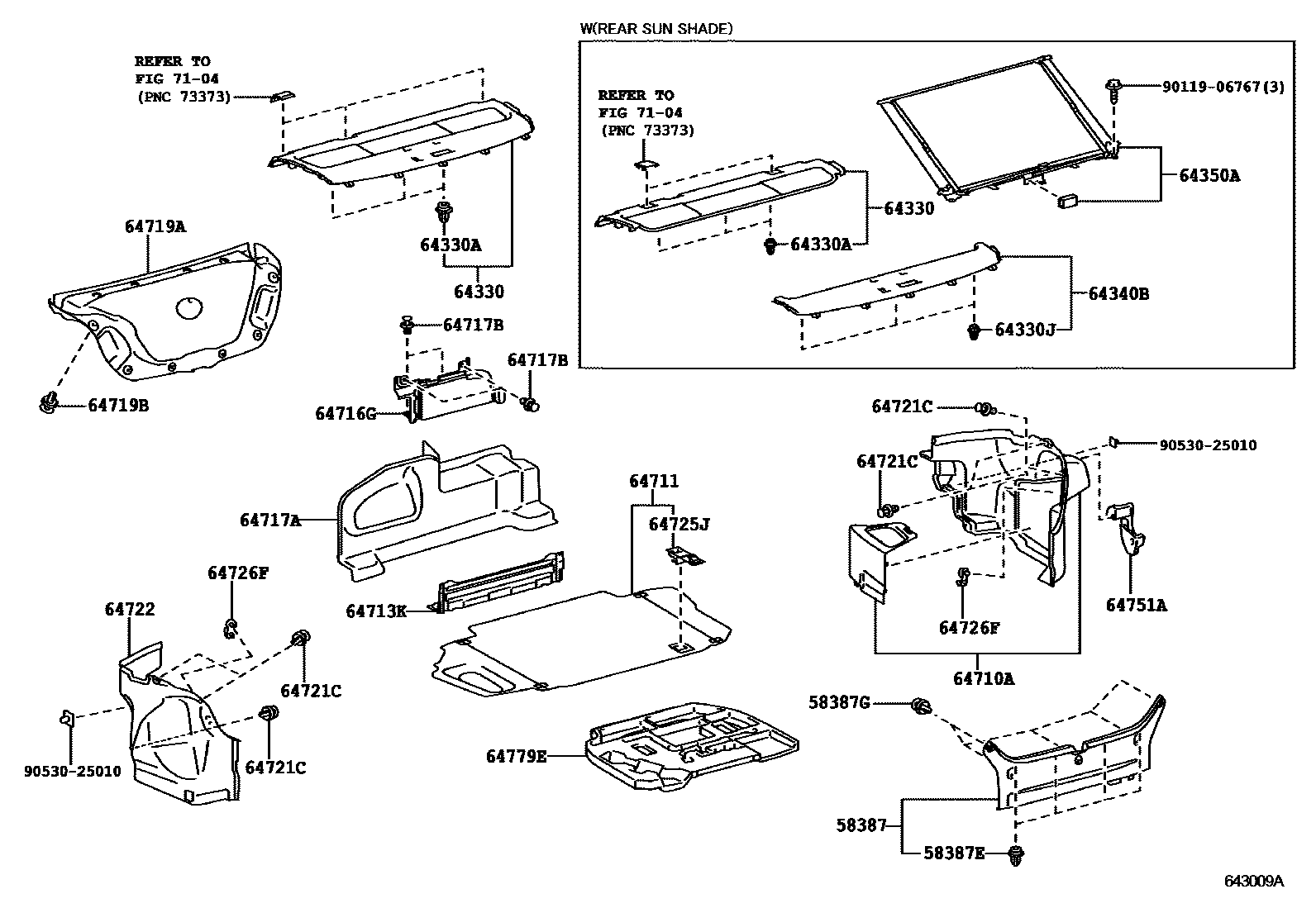

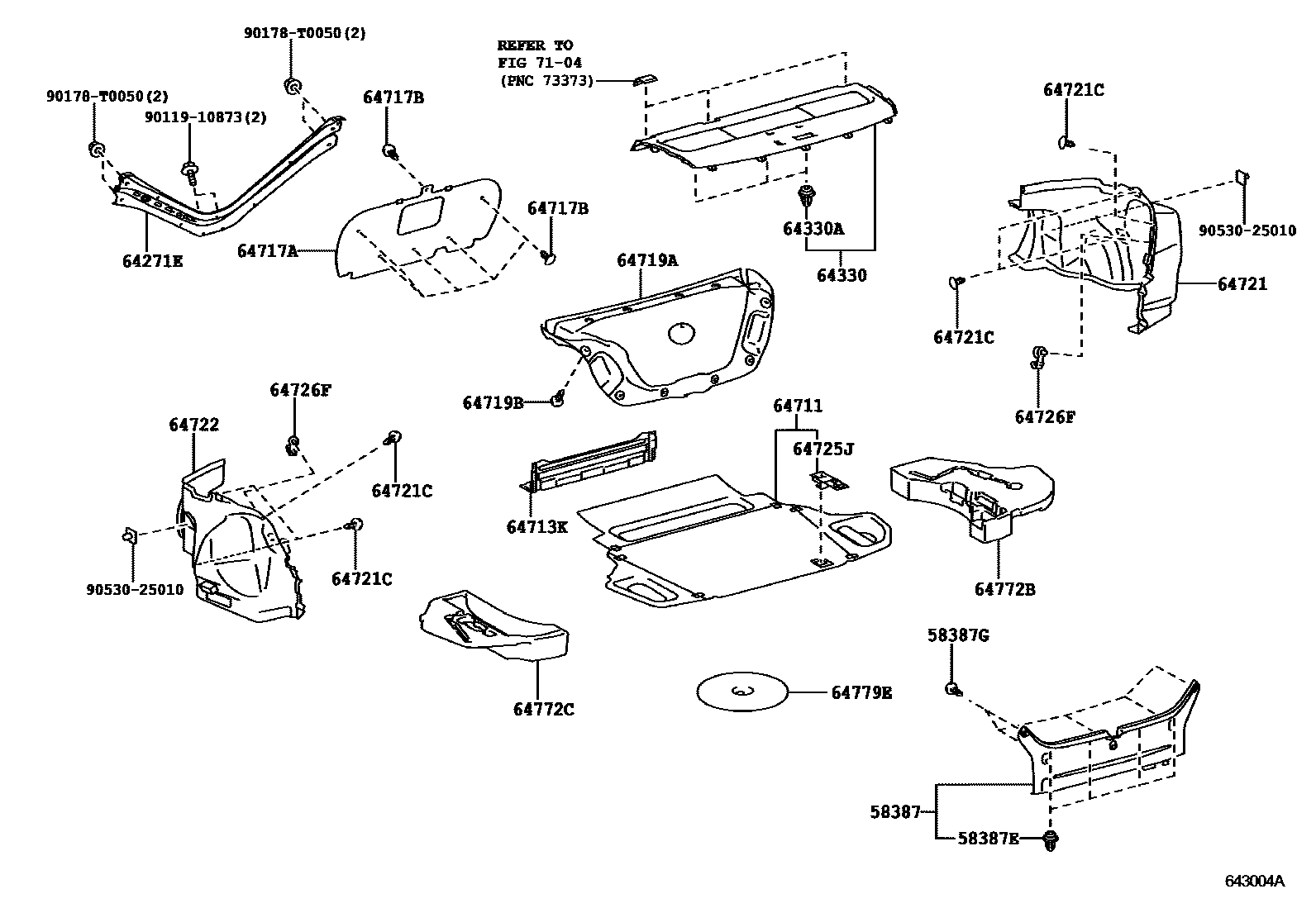

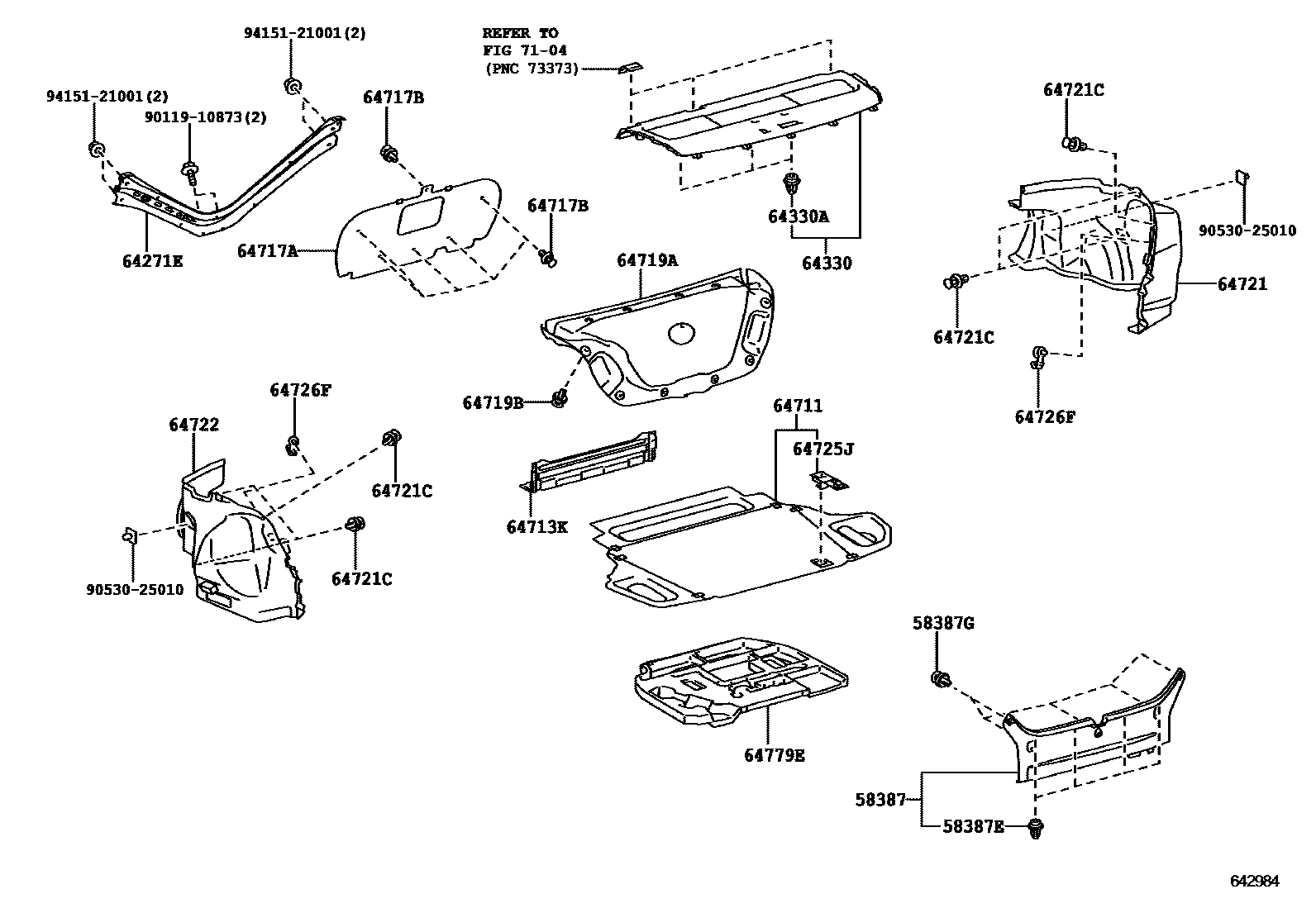

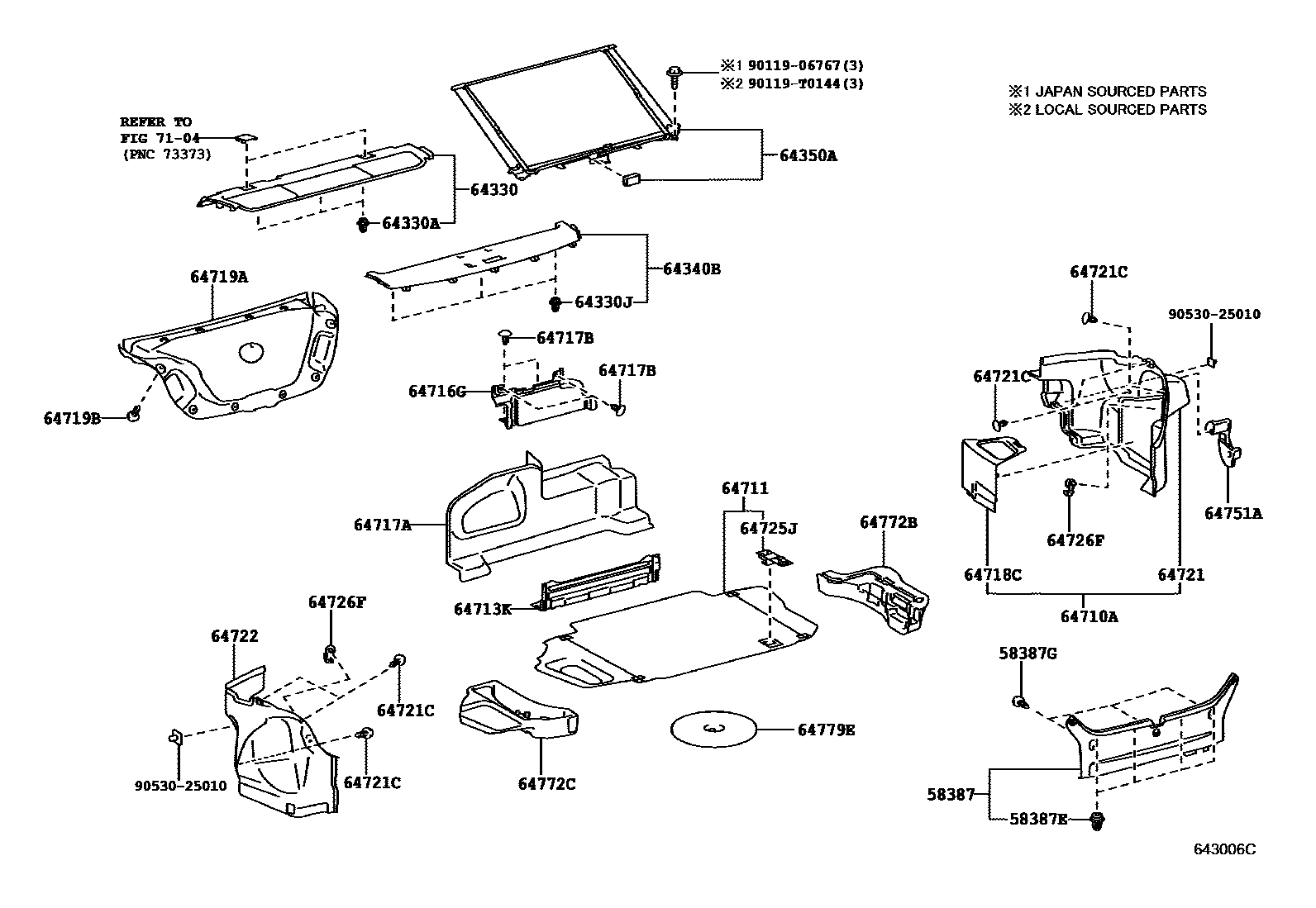

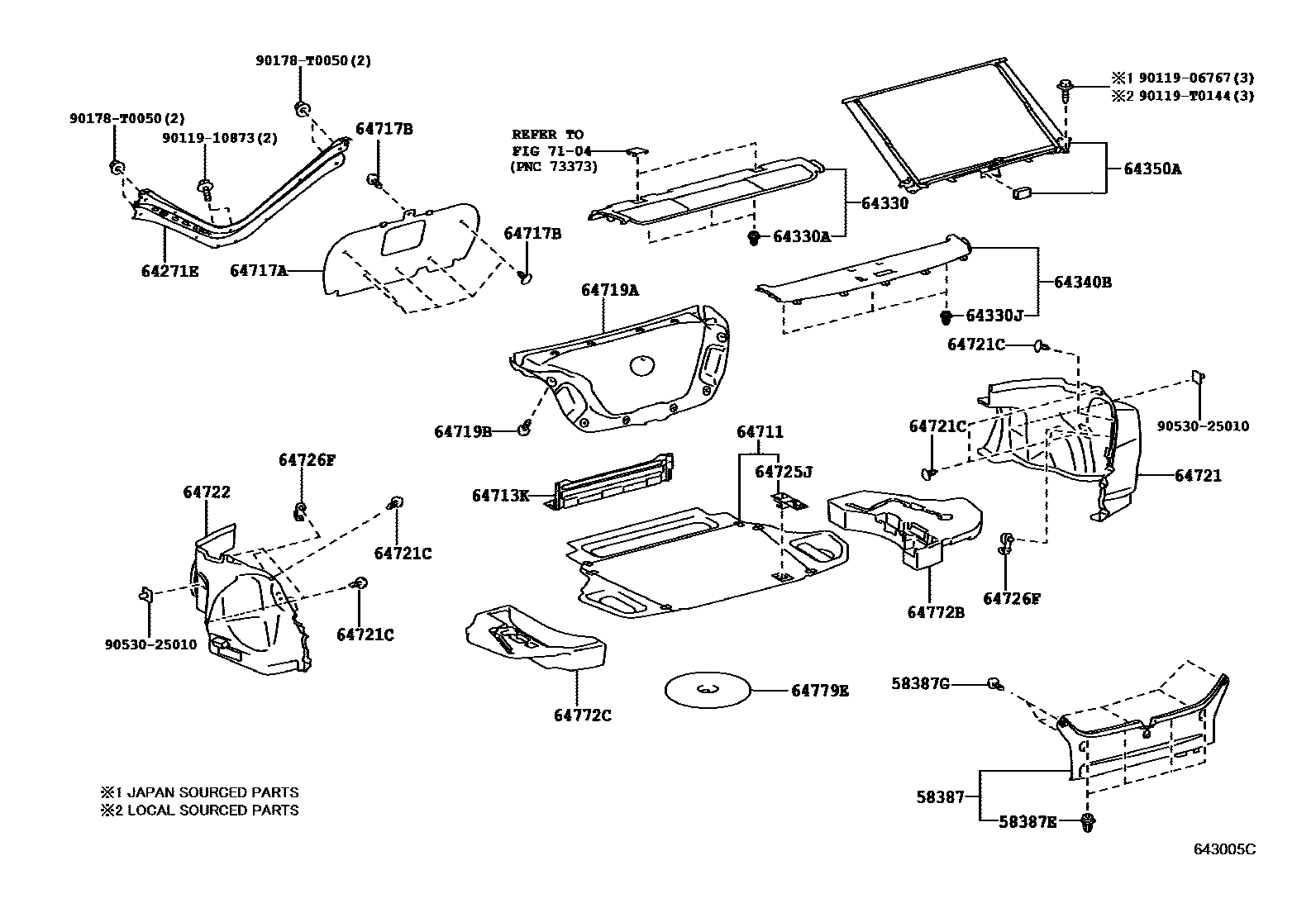

Toyota CAMRY EPC diagram 6403, 杂物箱板和行李箱垫, with 5 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58387 | Rear floor decorative panel | 58387-06171 · 58387-06181 |
| 58387E | Clip (for rear floor trim panel) | 90467-10161 · 90467-T0021 |
| 58387G | Clip (for rear floor trim panel) | 90467-07201 |
| 64271E | compartment partition | 64241-06030 · 64241-06040 |
| 64330A | Clip (for glove box decorative panel) | 90467-10161 · 90467-T0021 |
| 64330J | Clip (for glove box decorative panel) | 90467-10161 · 90467-T0021 |
| 64350A | Rear window sun visor assembly | 64350-06120 · 64350-06150 |
| 64717B | Clip (for trunk front decorative cover) | 90467-07201 |
| 64718C | Trunk trim access hole cover | 64718-06080 |
| 64719B | Catch (for trunk door) | 90467-07201 |
| 64721C | Clip (suitcase) | 90467-07201 |
| 64725J | Luggage decorative hook No. 1 | 64725-06060 · 64725-06070 |
| 64751A | No. 1 trunk door decorative cover bracket | 64751-06030 · 64751-06040 |
| 64772B | Spare tire cover liner | 64772-06201 · 64772-06211 |
| 64772C | Spare tire cover liner | 64773-06181 |
| 64779E | Spare tire cover bracket | 64779-06071 · 64779-06101 |
