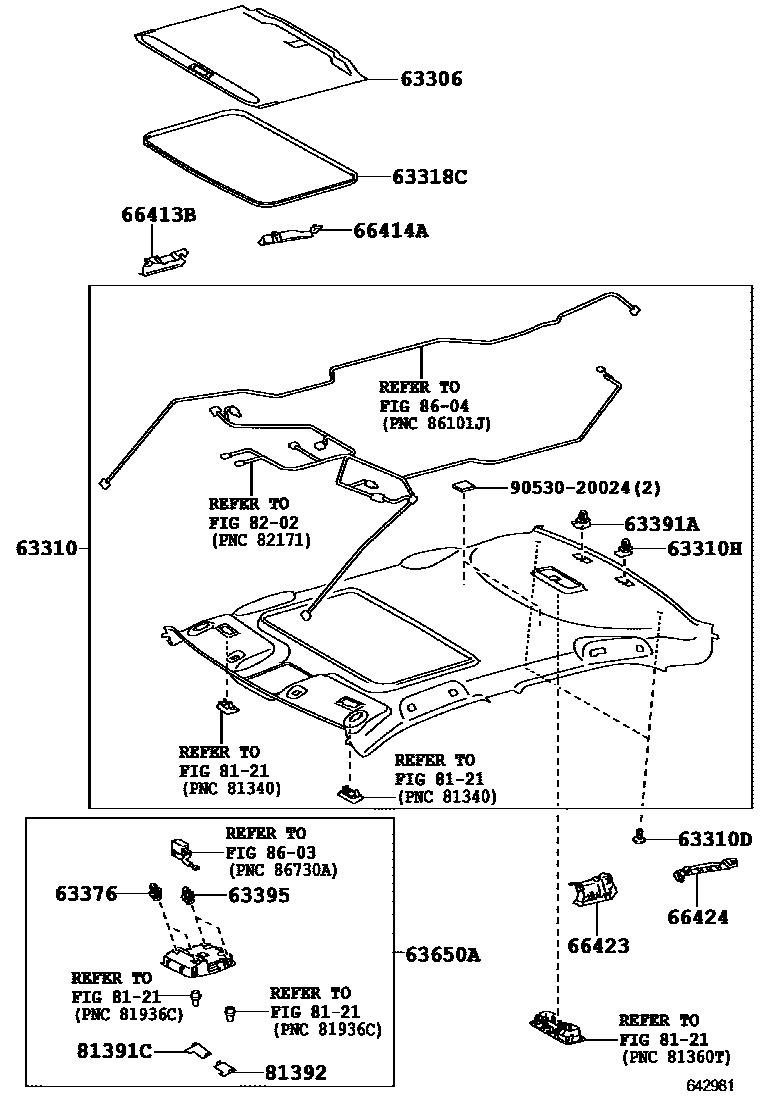

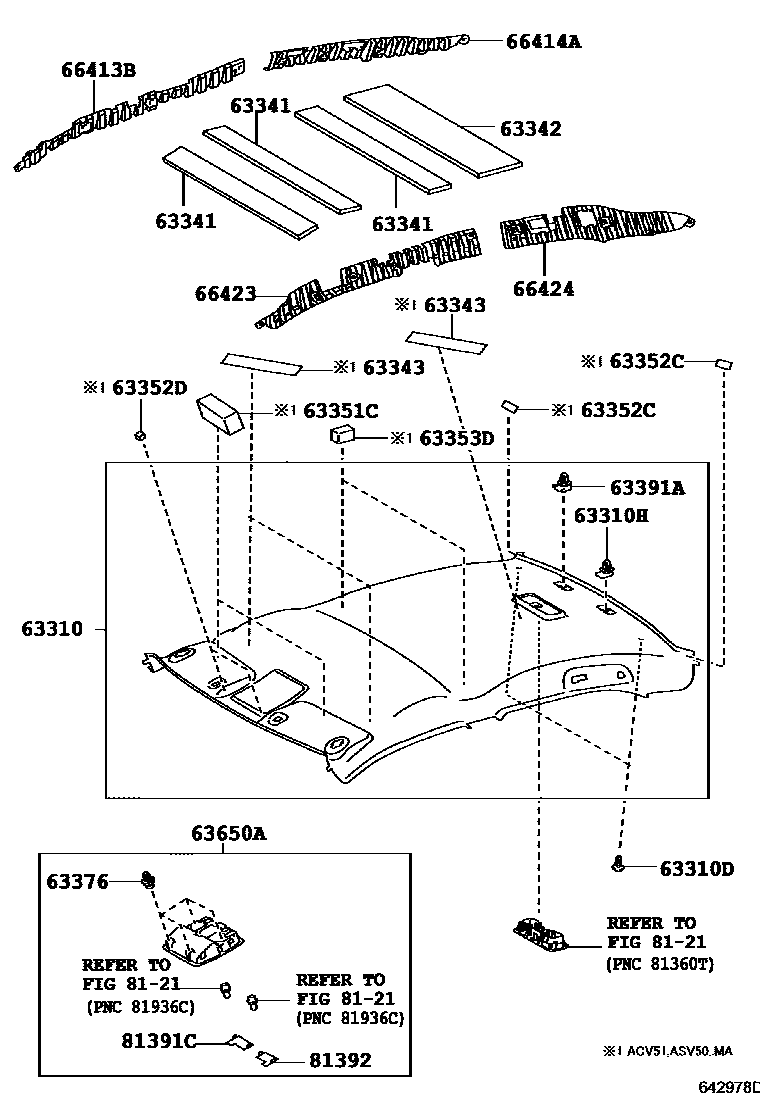

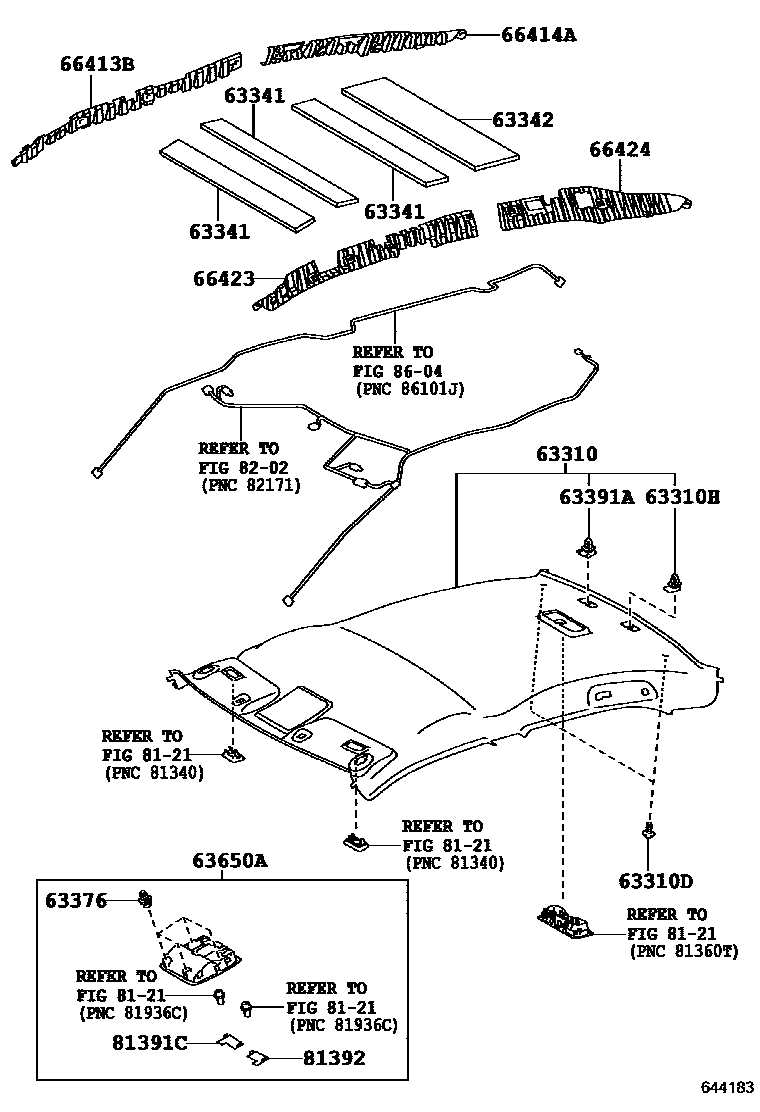

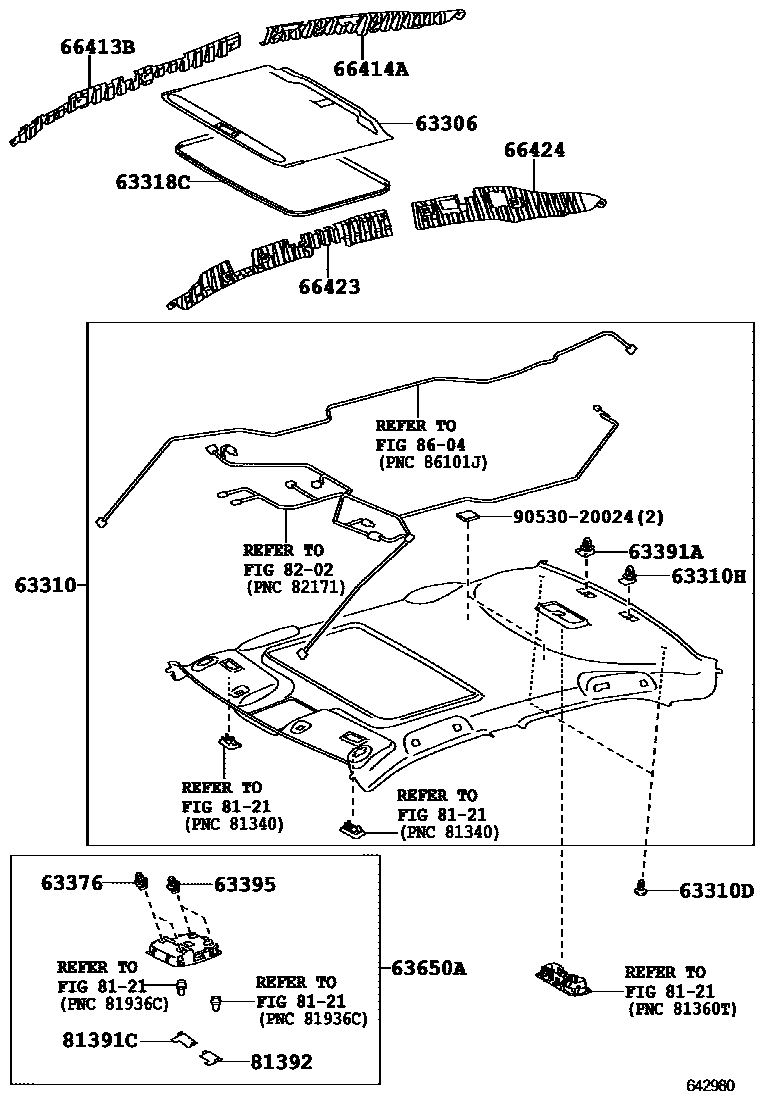

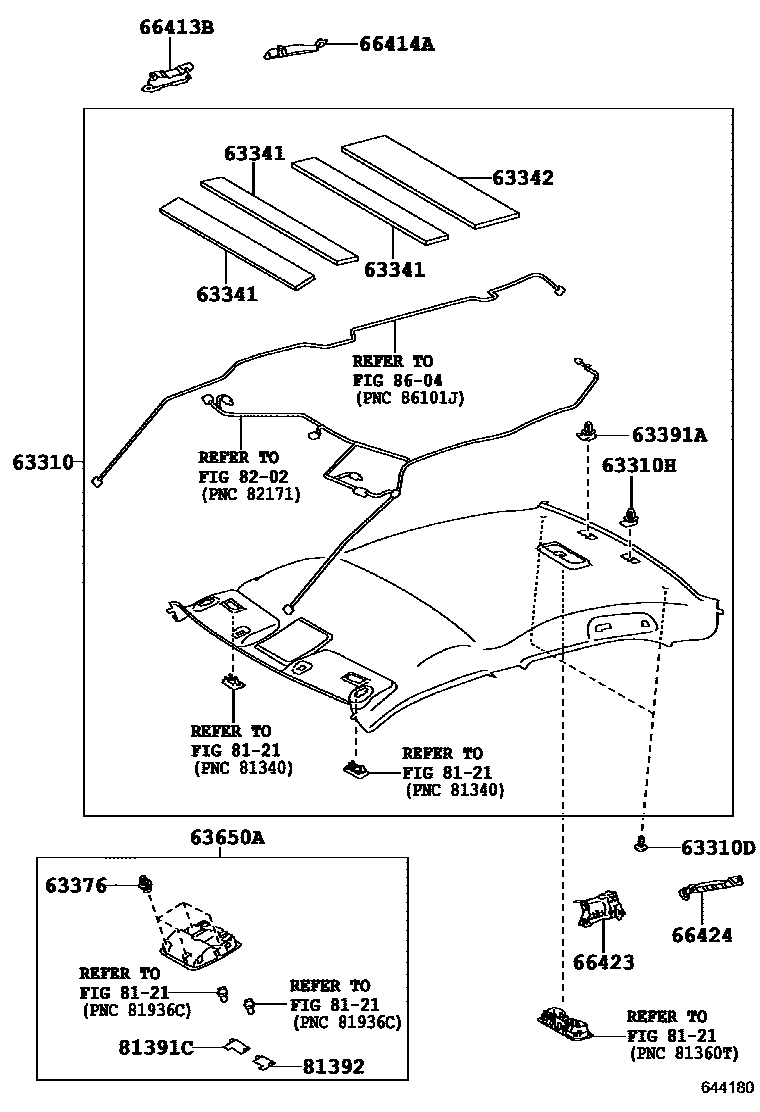

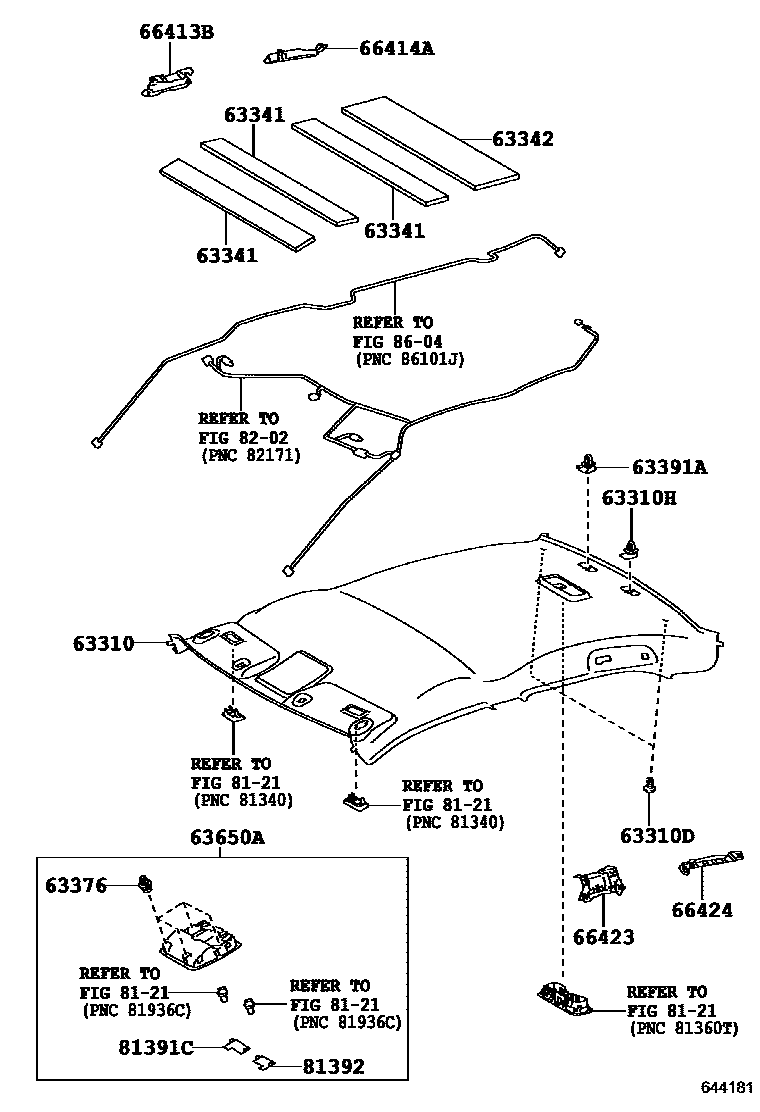

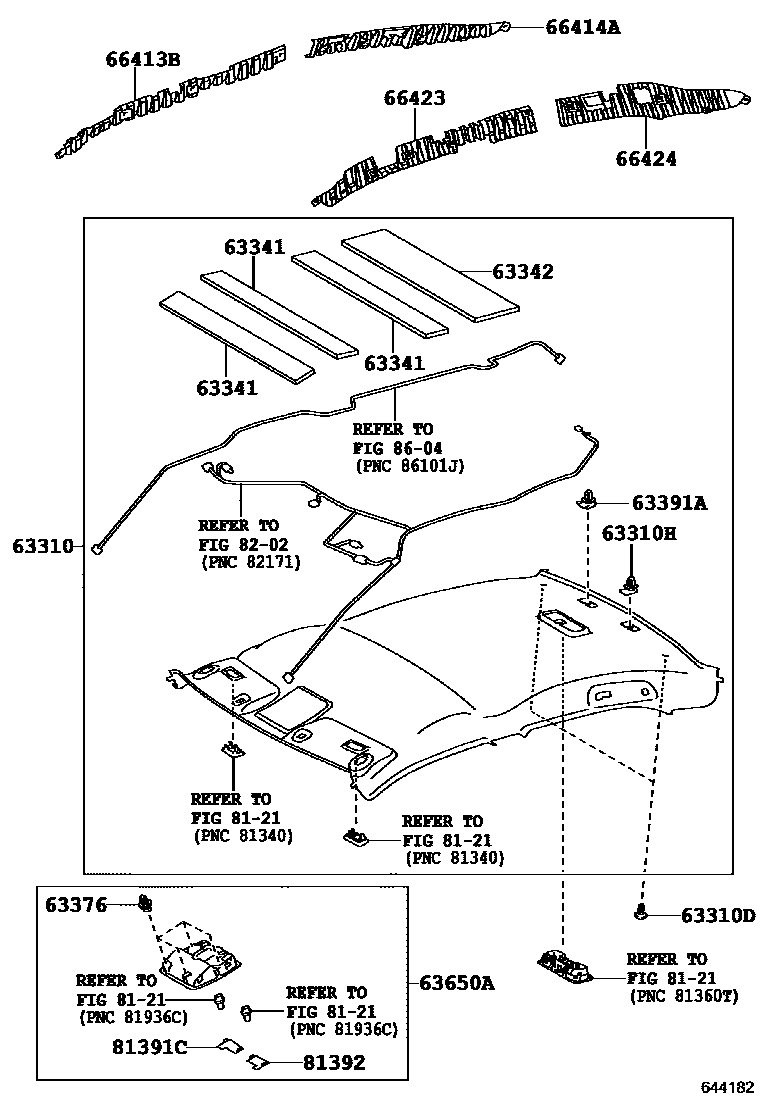

Toyota CAMRY 车顶内衬和消声垫 — Figure 6402
Toyota CAMRY EPC diagram 6402, 车顶内衬和消声垫, with 7 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63310H | Clip (for headliner) | 90467-09126 |
| 63341 | No. 1 roof silencer mat | 63341-06150 · 63341-06160 |
| 63342 | No. 2 roof muffler pad | 63342-06150 · 63342-06160 |
| 63343 | No. 3 roof muffler pad | 63343-06160 |
| 63351C | roof lining pads | 63351-06040 |
| 63352C | Headlining end pads | 63352-06050 |
| 63352D | No. 2 roof lining lining block | 63352-06040 |
| 63353D | Center roof lining lining | 63353-06020 |
| 63376 | Lined clips | 90467-10167 |
| 63391A | Clip (for headliner trim) | 90467-10181 |
| 63395 | Headlining trim panel clip | 63395-12150 |
| 63650A | Roof console assembly | 63650-06630 |
| 66413B | Right front longitudinal member spacer | 66413-06130 · 66413-06140 · 66415-06140 · 66415-06160 |
| 66414A | Right rear longitudinal member spacer | 62495-06040 · 62495-06050 · 66414-06060 · 66414-06070 |
| 66423 | Left front longitudinal member spacer | 66423-06070 · 66423-06130 · 66425-06120 · 66425-06130 |
| 66424 | Left rear longitudinal member spacer | 62496-06040 · 62496-06050 · 66424-06060 · 66424-06070 |
| 81391C | Lampshade right front fixing piece | 81391-06020 · 81391-06030 · 81391-33010 · 81391-33020 |
| 81392 | Lampshade left front fixing piece | 81392-06010 · 81392-06020 · 81392-33010 · 81392-33020 |
