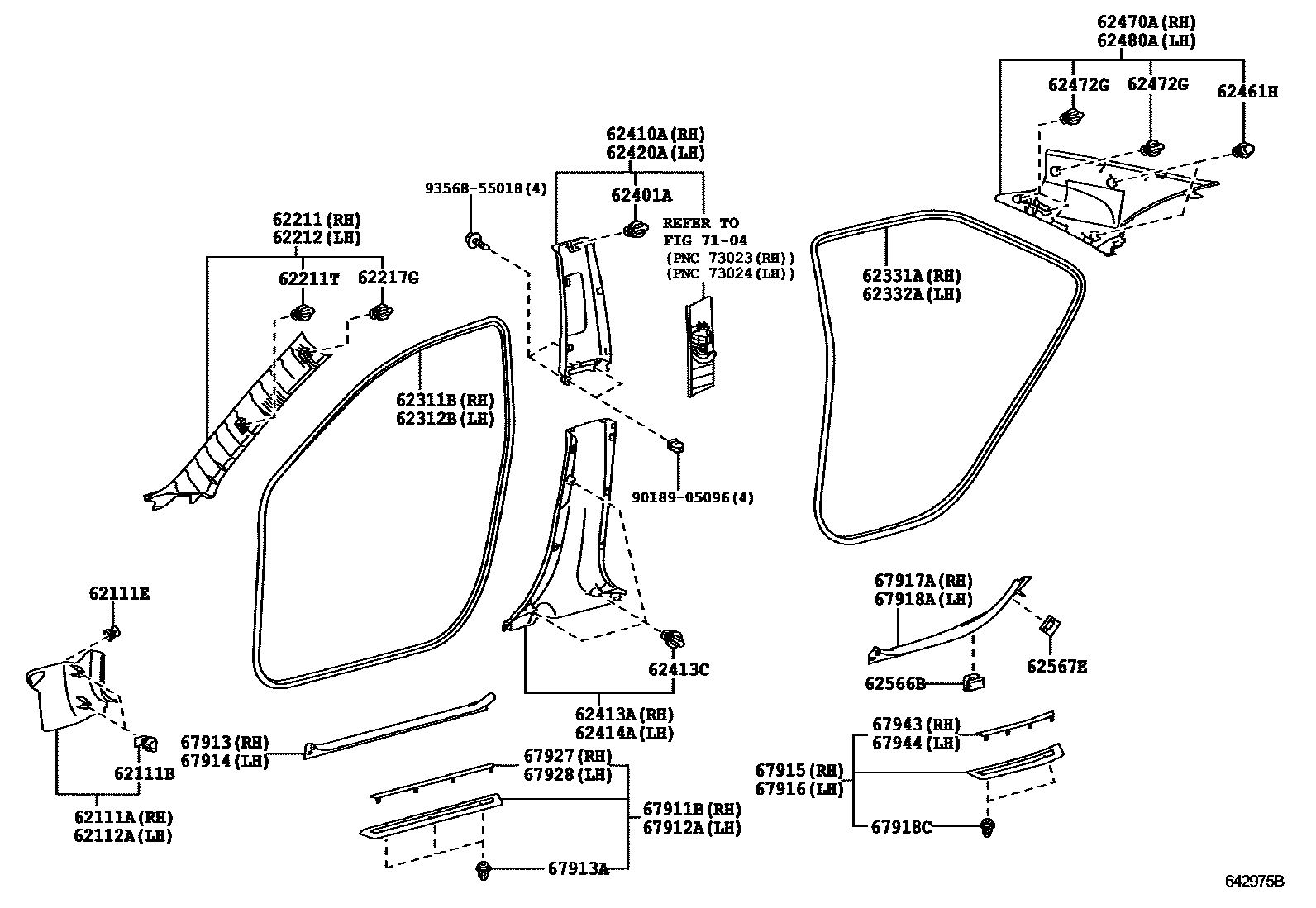

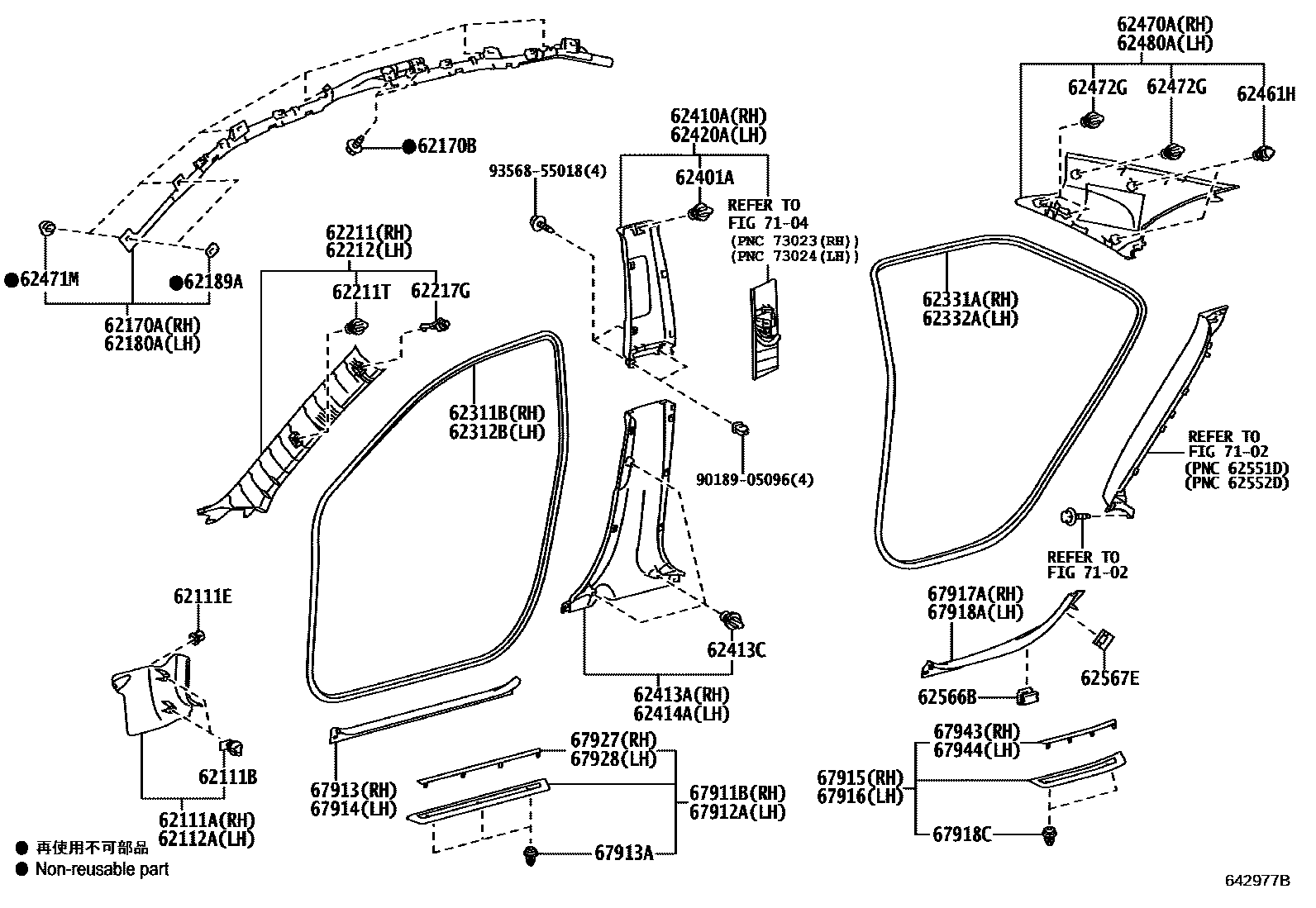

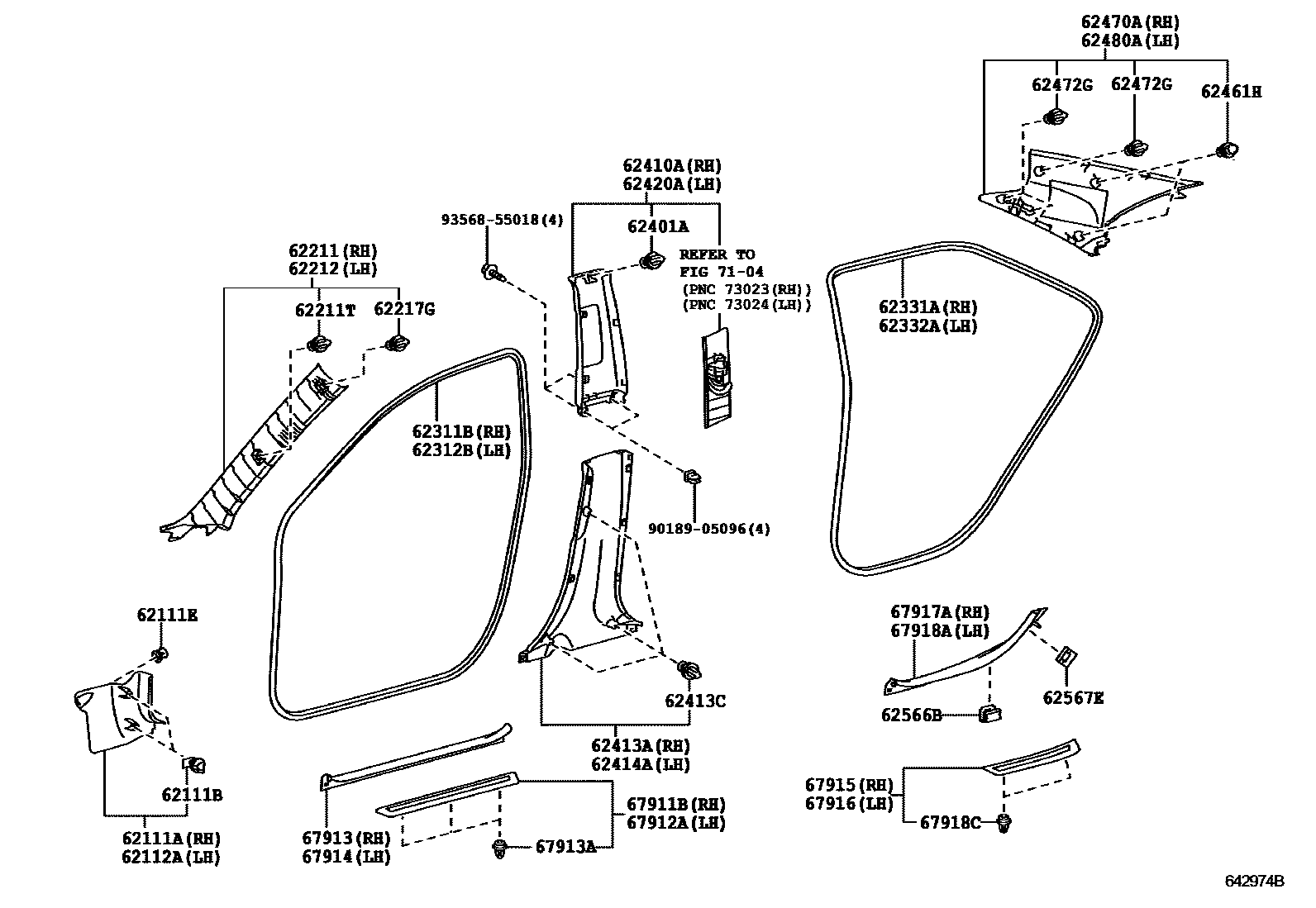

Toyota CAMRY 内饰板和车门防水胶条 — Figure 6401
Toyota CAMRY EPC diagram 6401, 内饰板和车门防水胶条, with 3 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62111B | Clip (for cowl side trim panel) | 90467-09212 |
| 62111E | Front wall side trim panel fixings | 90467-06147 |
| 62170A | Right curtain air bag assembly | 62170-33040 |
| 62170B | Bolts with washers | 90119-06869 |
| 62180A | Left curtain air bag assembly | 62180-33040 |
| 62189A | Curtain air bag clip spacer | 62189-33010 |
| 62211T | Clip (for front pillar decorative panel) | 90467-10161 · 90467-T0021 |
| 62217G | Front pillar decorative plate clip | 62217-33040 · 90467-10161 · 90467-T0021 |
| 62401A | Clips (for decorative panels on center pillars) | 90467-10167 |
| 62413C | Clip (for the decorative panel under the center pillar) | 90467-10161 · 90467-T0021 |
| 62461H | Clips (for roof side interior panels) | 90467-10161 · 90467-T0021 |
| 62471M | clip | 62184-06010 |
| 62472G | Clips (for roof side trim panels) | 90467-10188 |
| 62566B | No. 1 door inner sill protection strip clip | 62566-06010 · 62566-32010 |
| 62567E | No. 2 door inner sill guard strip clip | 62567-06020 · 62567-33040 |
| 67911B | Right front door outer wear plate | 67911-06080 · 67911-06090 · 67911-06100 · 67911-06110 |
| 67912A | Left front door outer wear plate | 67912-06080 · 67912-06090 · 67912-06100 · 67912-06110 |
| 67913A | Clip (for wear plate) | 90467-10162 |
| 67915 | Right rear door outer wear plate | 67915-06060 · 67915-06070 · 67915-06080 · 67915-06090 |
| 67916 | Left rear door outer wear plate | 67916-06060 · 67916-06070 · 67916-06080 · 67916-06090 |
| 67918C | Catch (for rear door wear plate) | 90467-10162 |
| 67927 | Right front door wear plate trim | 67927-06120 |
| 67928 | Left front door wear plate trim | 67928-06120 |
| 67943 | Right rear door wear plate trim | 67943-06100 |
| 67944 | Left rear door wear plate trim | 67944-06100 |
