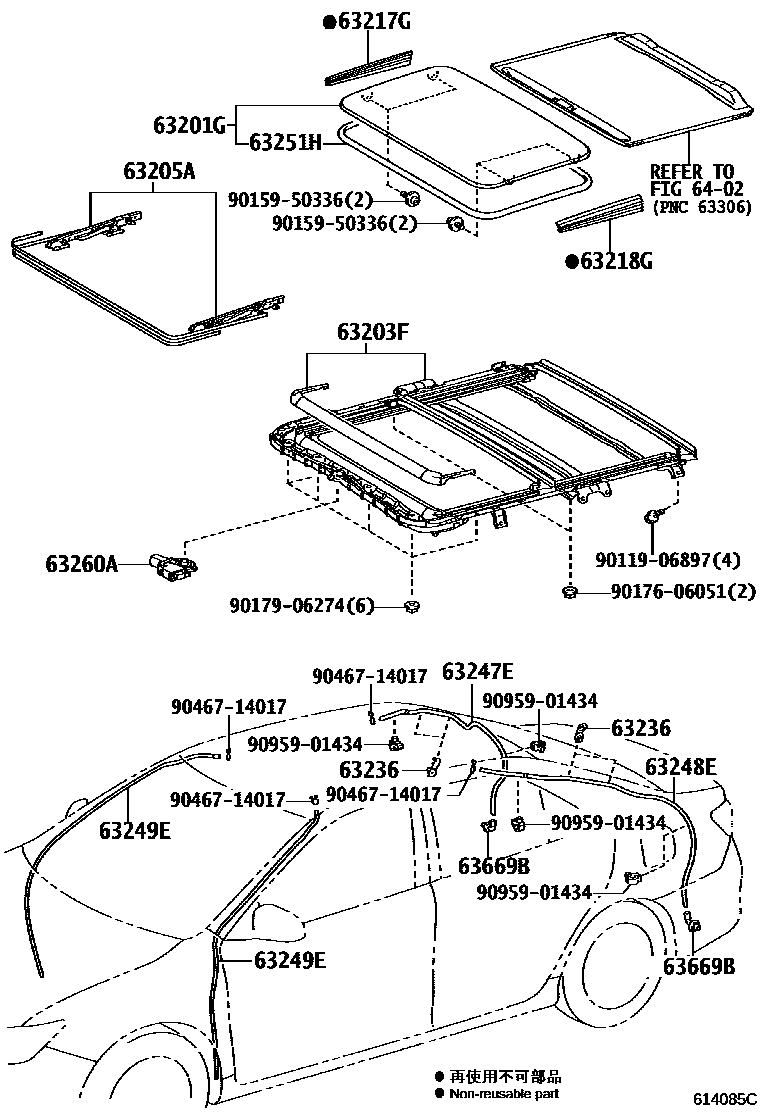

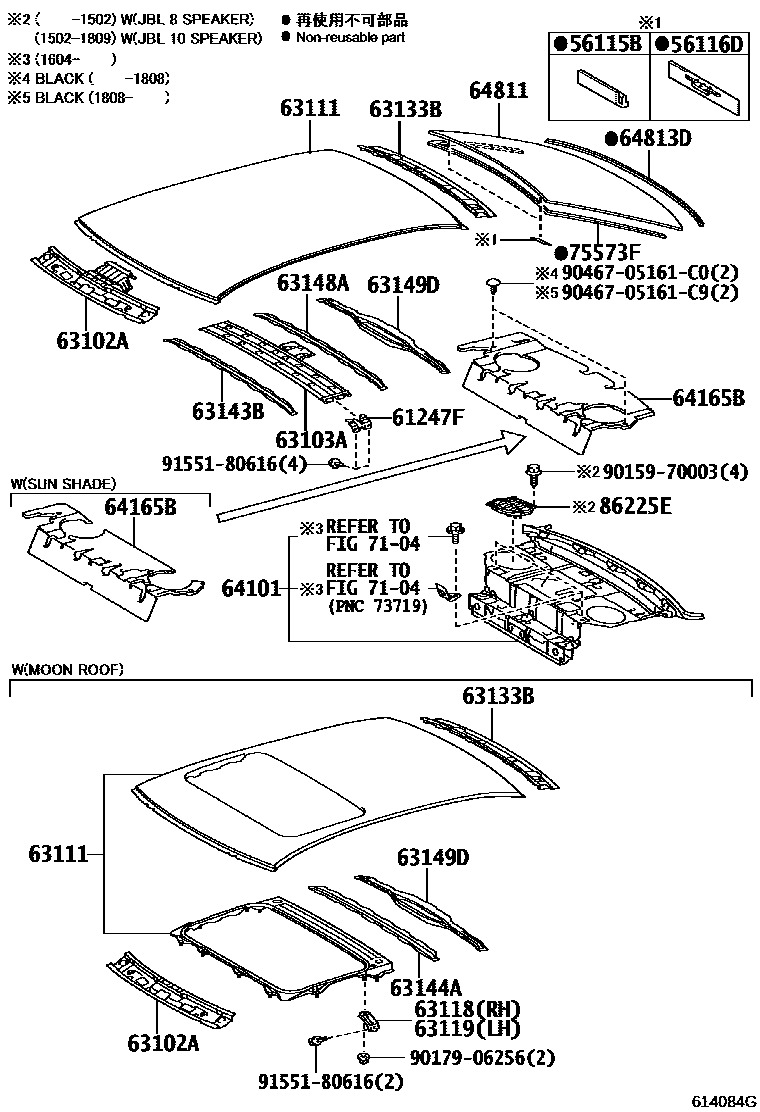

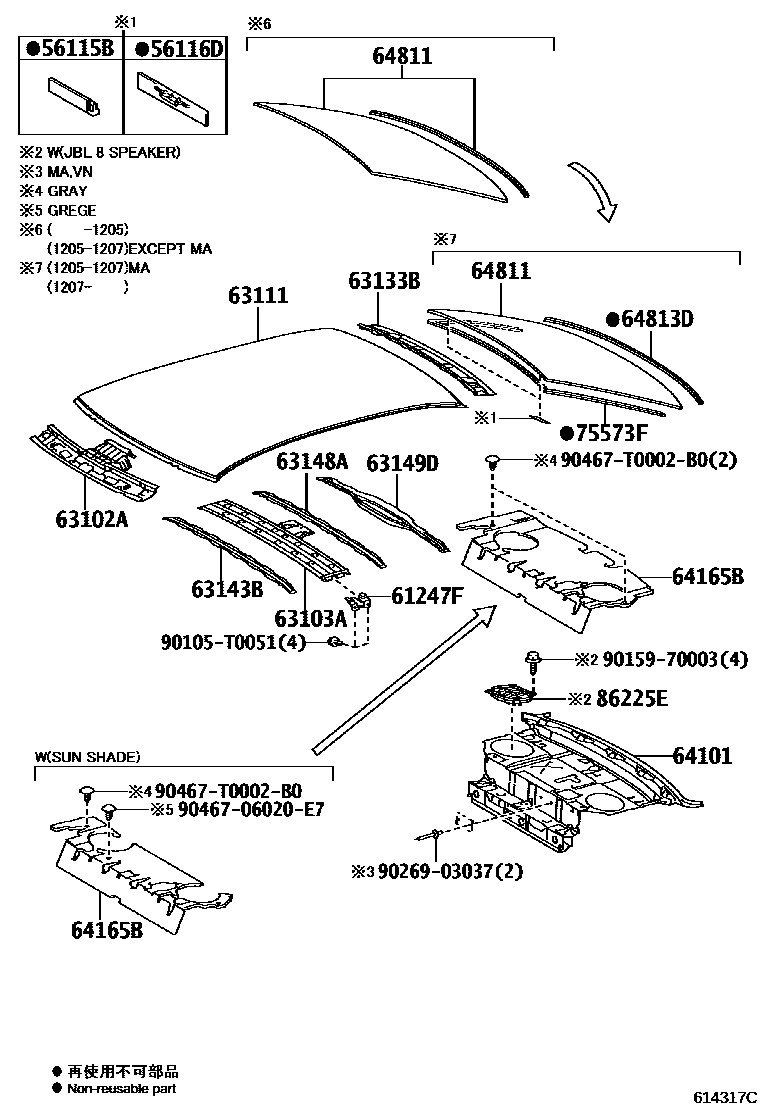

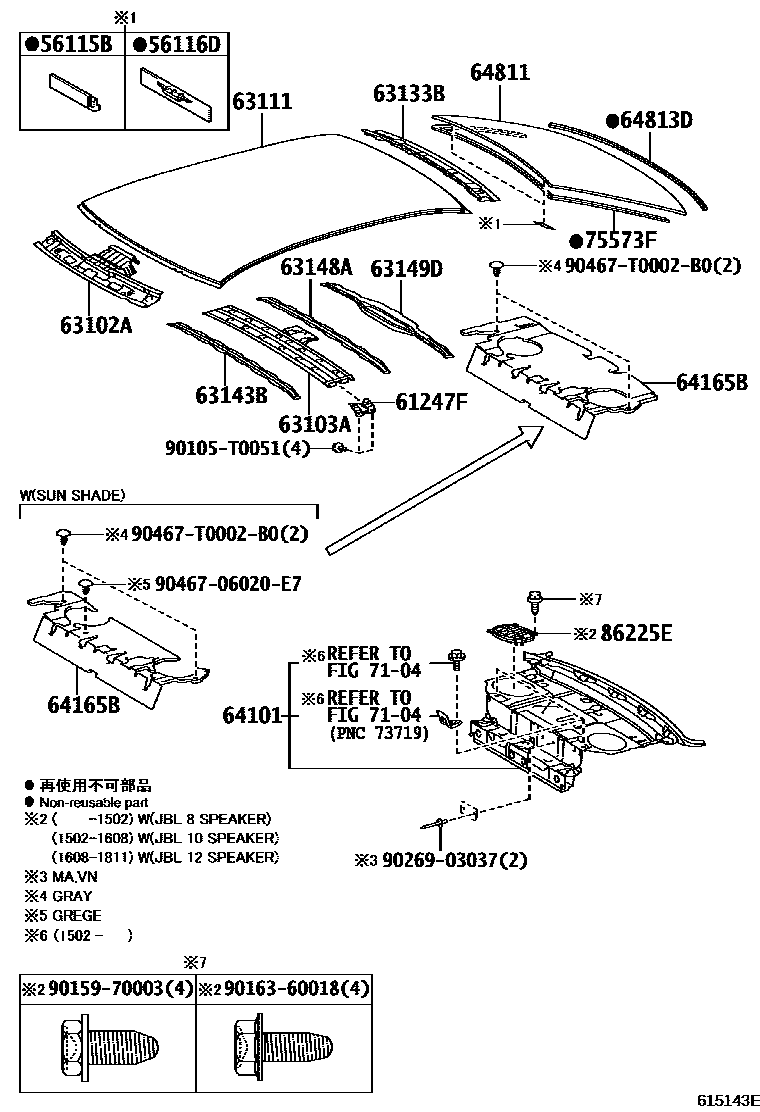

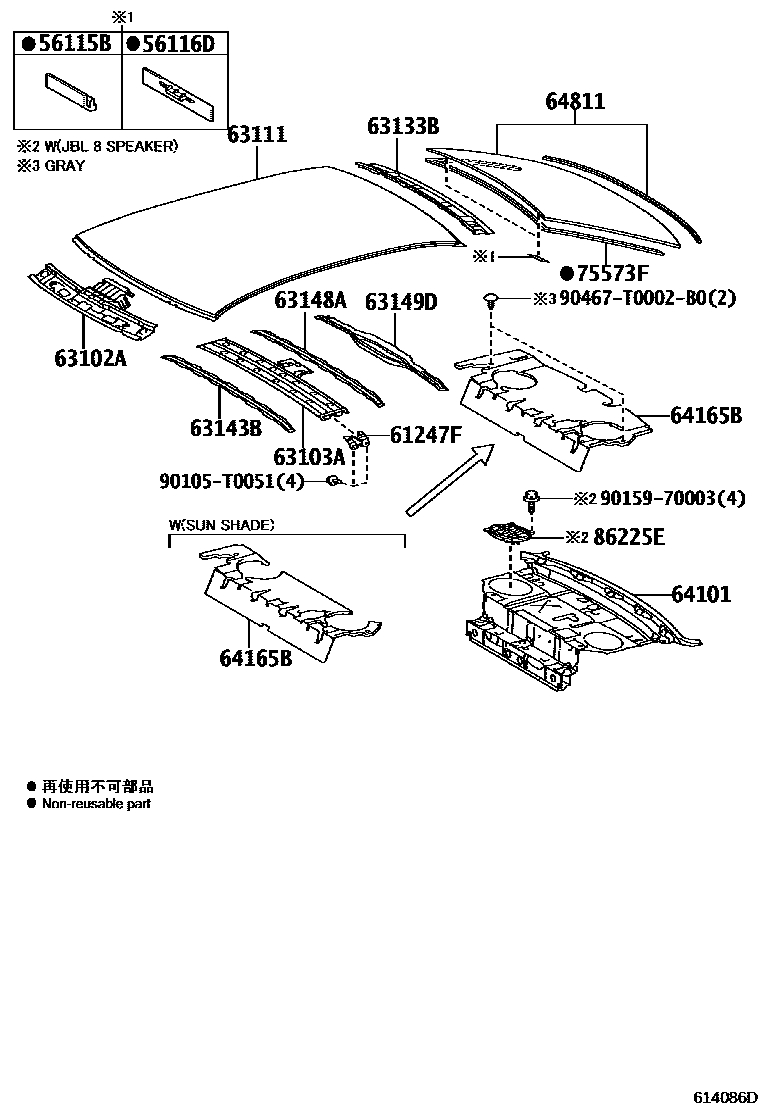

Toyota CAMRY 天窗板和背窗玻璃 — Figure 6104
Toyota CAMRY EPC diagram 6104, 天窗板和背窗玻璃, with 5 images and 31 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 56115B | Back window glass stop No. 1 | 56115-30120 |
| 56116D | No. 2 stopper for back window glass | 56116-22050 |
| 61247F | Roof inner longitudinal beam reinforcement | 61247-06100 · 61247-06110 |
| 63102A | Windshield roof sub-assembly | 63102-06910 · 63102-06913 · 63102-06914 |
| 63103A | Roof panel reinforcement sub-assembly | 63103-06110 · 63103-06120 · 63103-06121 |
| 63111 | roof panel | 63111-06500 · 63111-06520 · 63111-06916 |
| 63118 | Right roof panel bracket | 63118-06100 |
| 63119 | Left roof panel bracket | 63118-06100 |
| 63133B | back window frame | 63133-06130 · 63133-06140 |
| 63143B | No. 3 roof panel reinforcement | 63143-06100 · 63143-06110 |
| 63144A | No. 4 roof panel reinforcement | 63144-06210 |
| 63148A | No. 7 roof panel reinforcement | 63148-06110 · 63148-06120 |
| 63149D | No. 8 roof panel reinforcement | 63149-06060 · 63149-06070 |
| 63201G | Sliding sunroof glass sub-assembly | 63201-06110 |
| 63203F | Sliding sunroof frame sub-assembly | 63203-06080 |
| 63205A | Sliding sunroof transmission cable sub-assembly | 63205-06040 · 63205-06041 |
| 63217G | Right sliding sunroof trim | 63217-33080 · 63217-33110 |
| 63218G | Sliding sunroof trim, left | 63217-33080 · 63217-33110 |
| 63236 | Sliding sunroof or removable roof drain hose clip | 63236-30010 |
| 63247E | Right rear sliding sunroof drain hose | 63247-06080 |
| 63248E | Left rear sliding sunroof drain hose | 63248-06060 |
| 63249E | Sliding skylight drain hose | 63249-06110 |
| 63251H | Sliding skylight seal | 63251-0N010 |
| 63260A | Sliding sunroof driving gear sub-assembly | 63260-06080 |
| 63669B | Sliding skylight drain seal | 63669-06030 |
| 64101 | Upper back panel sub-assembly | 64101-06320 · 64101-06321 · 64101-06330 · 64101-06340 |
| 64165B | No. 1 upper back panel hole cover | 64165-06260 · 64165-06261 · 64165-06270 · 64165-06271 · 64165-06300 · 64165-06301 · 64165-06310 · 64165-06311 |
| 64811 | back window glass | 64801-06905 · 64801-06906 · 64801-06907 · 64801-06909 · 64801-06910 · 64811-06340 |
| 64813D | Back window glass adhesive seal | 56117-50140 · 64813-06090 |
| 75573F | Protective strip for rear window | 75573-06100 · 75573-06110 |
| 86225E | Right speaker cover | 86225-33010 |
