Toyota CAMRY 侧梁 — Figure 6101

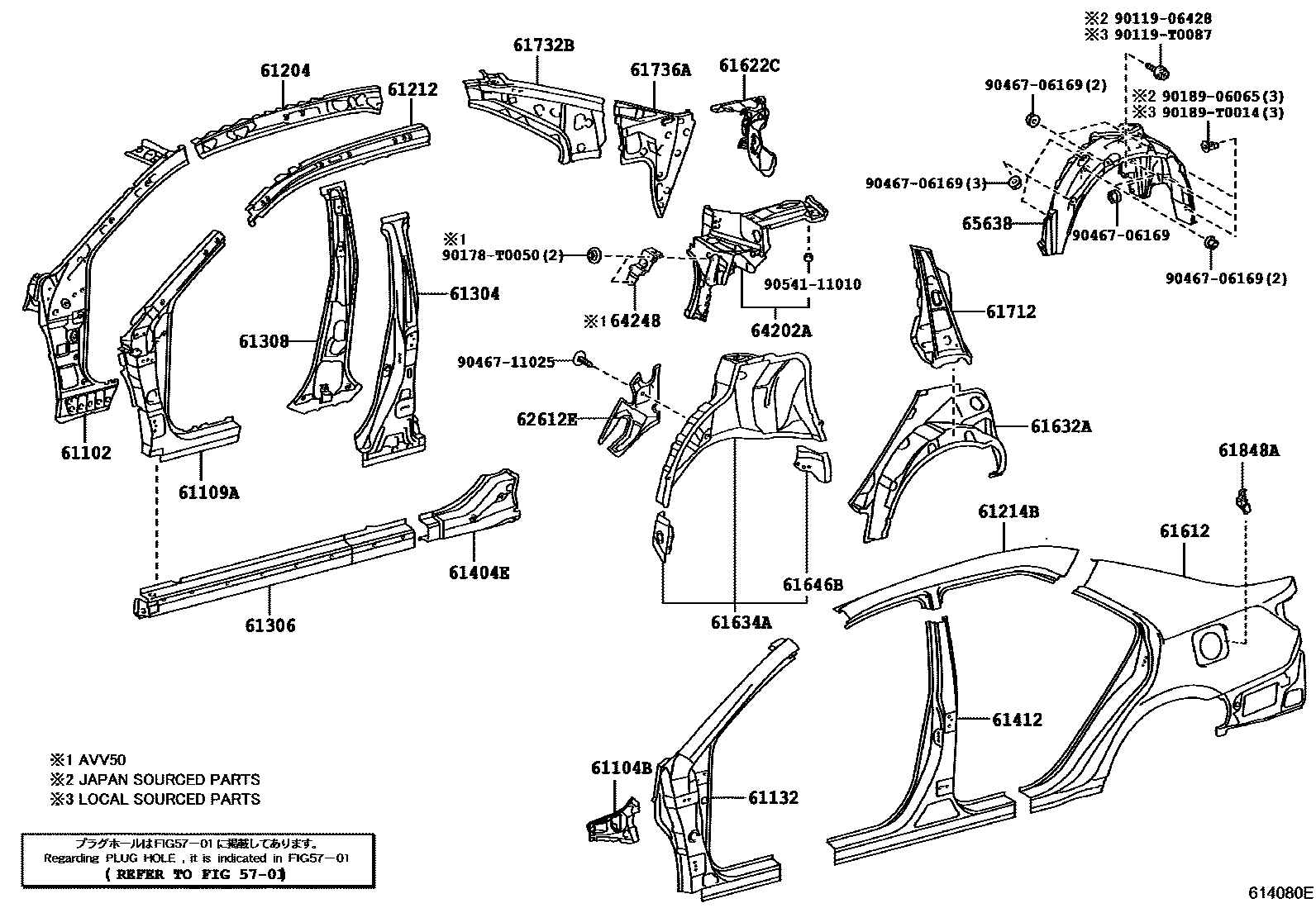

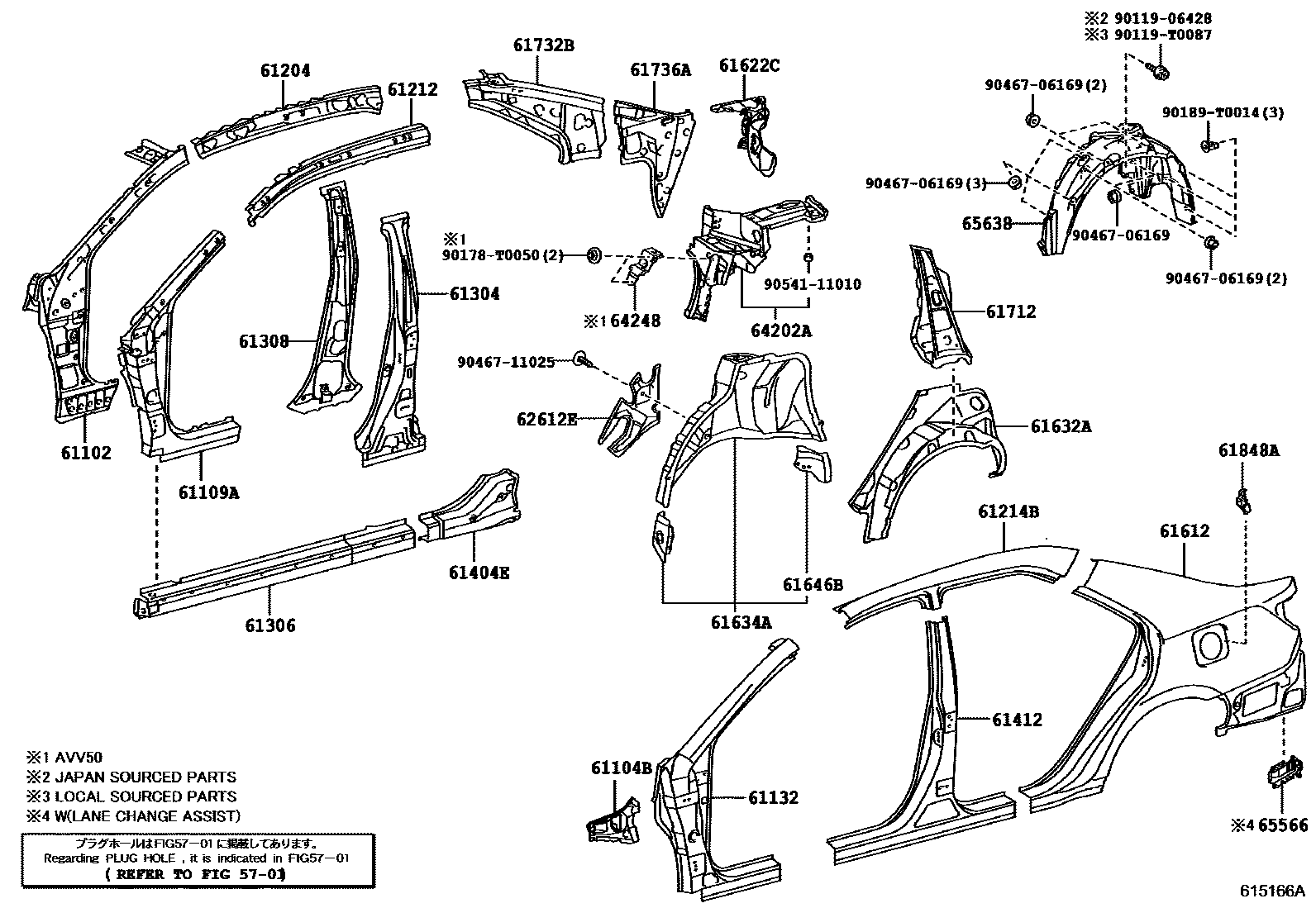

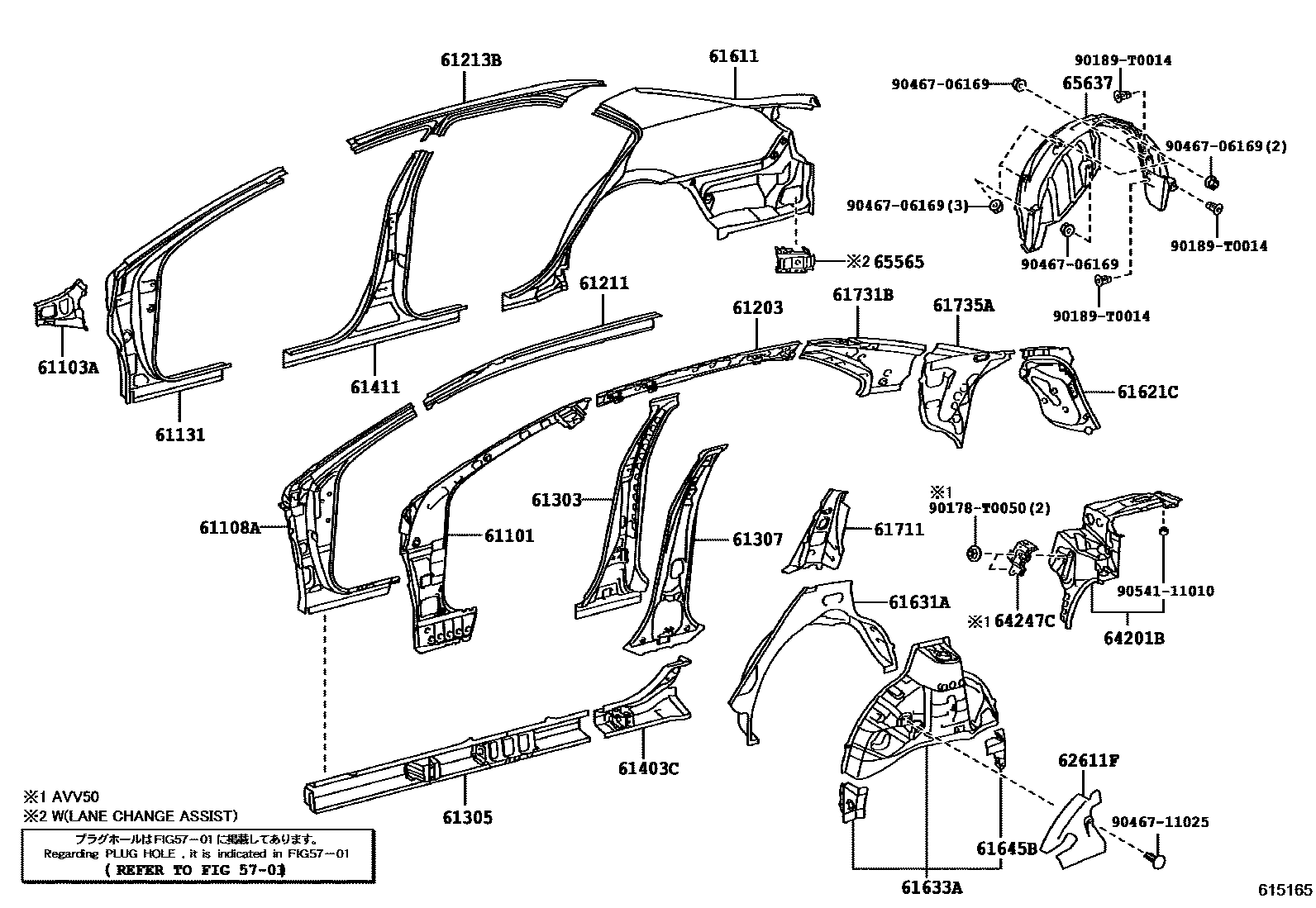

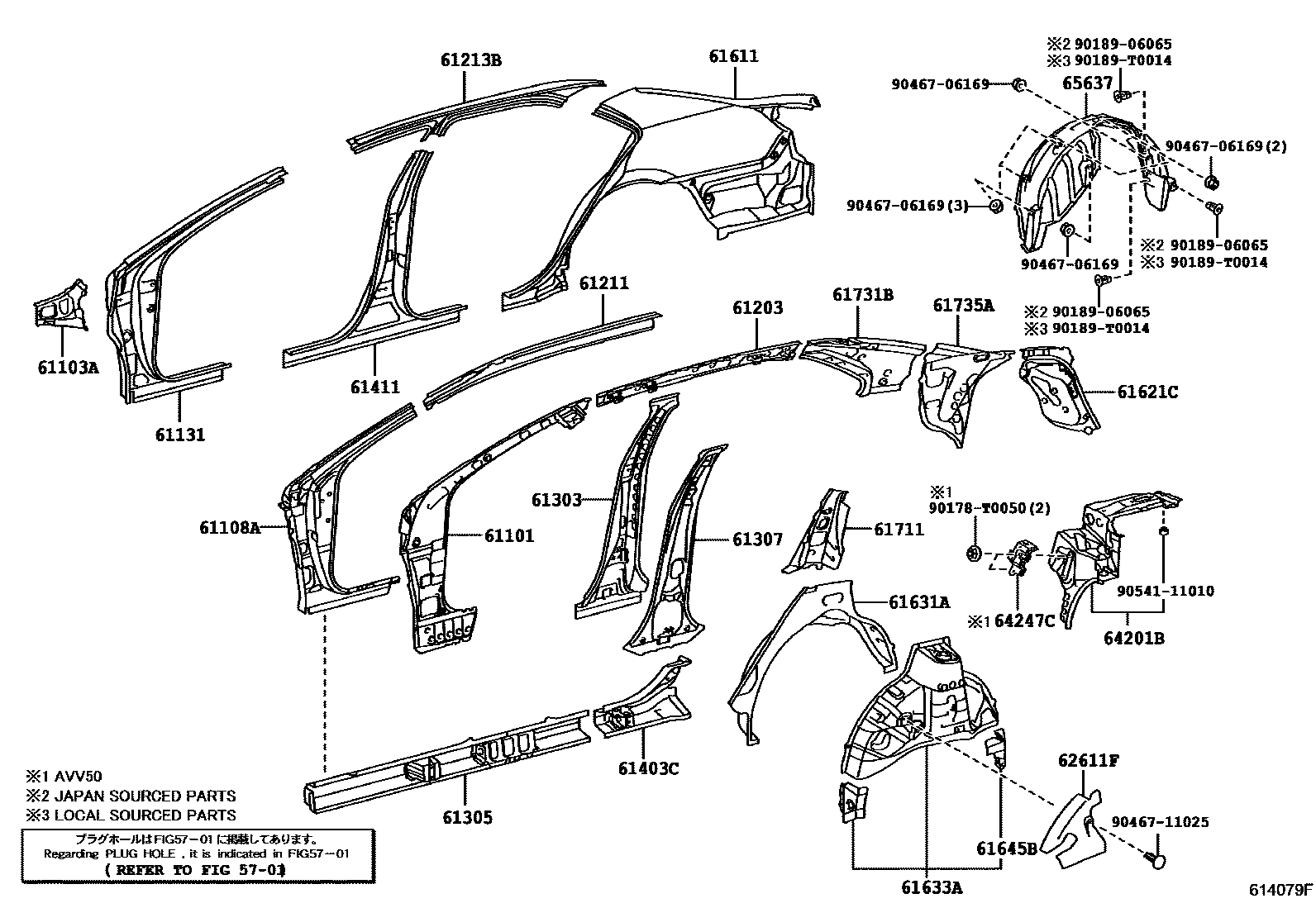

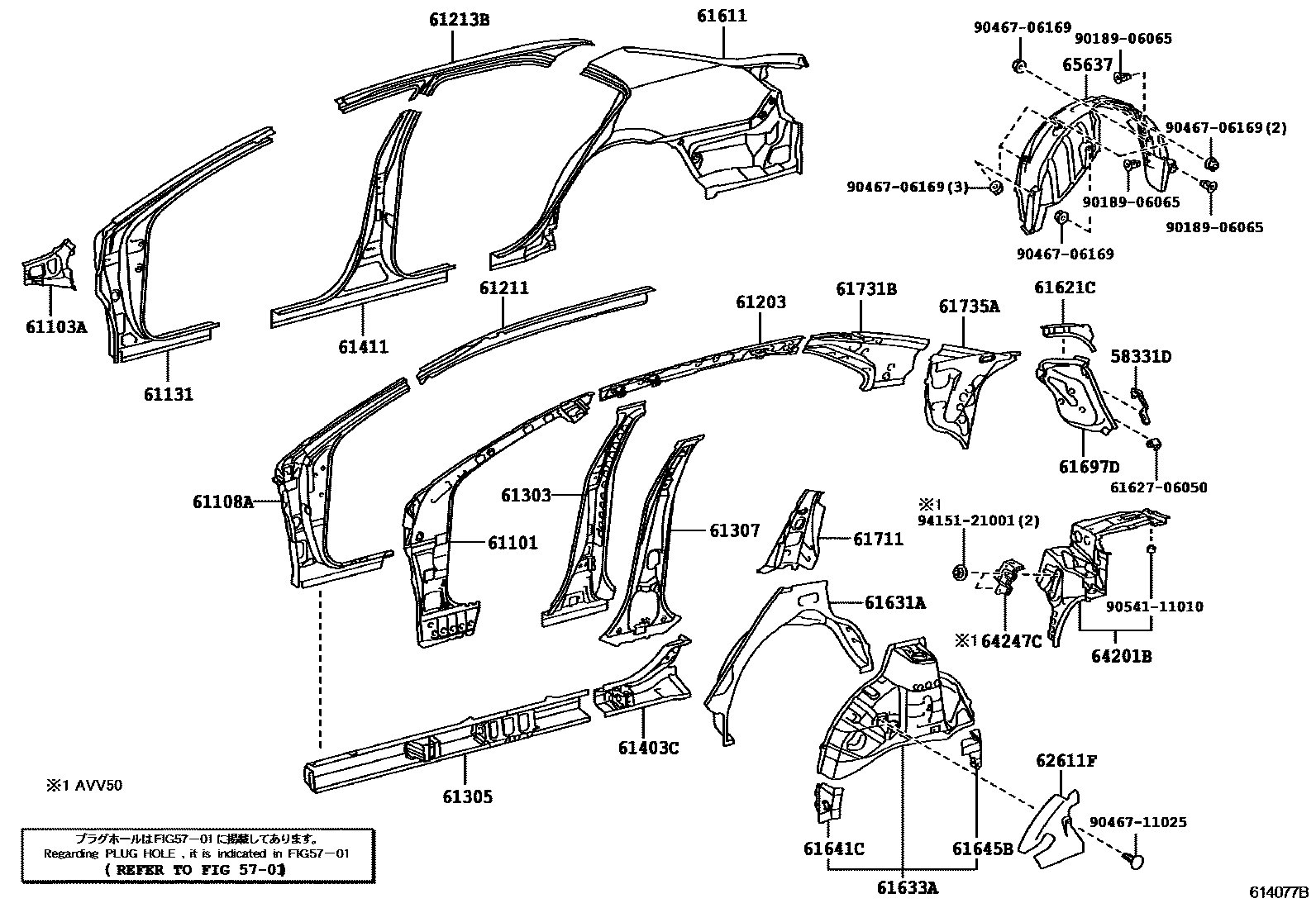

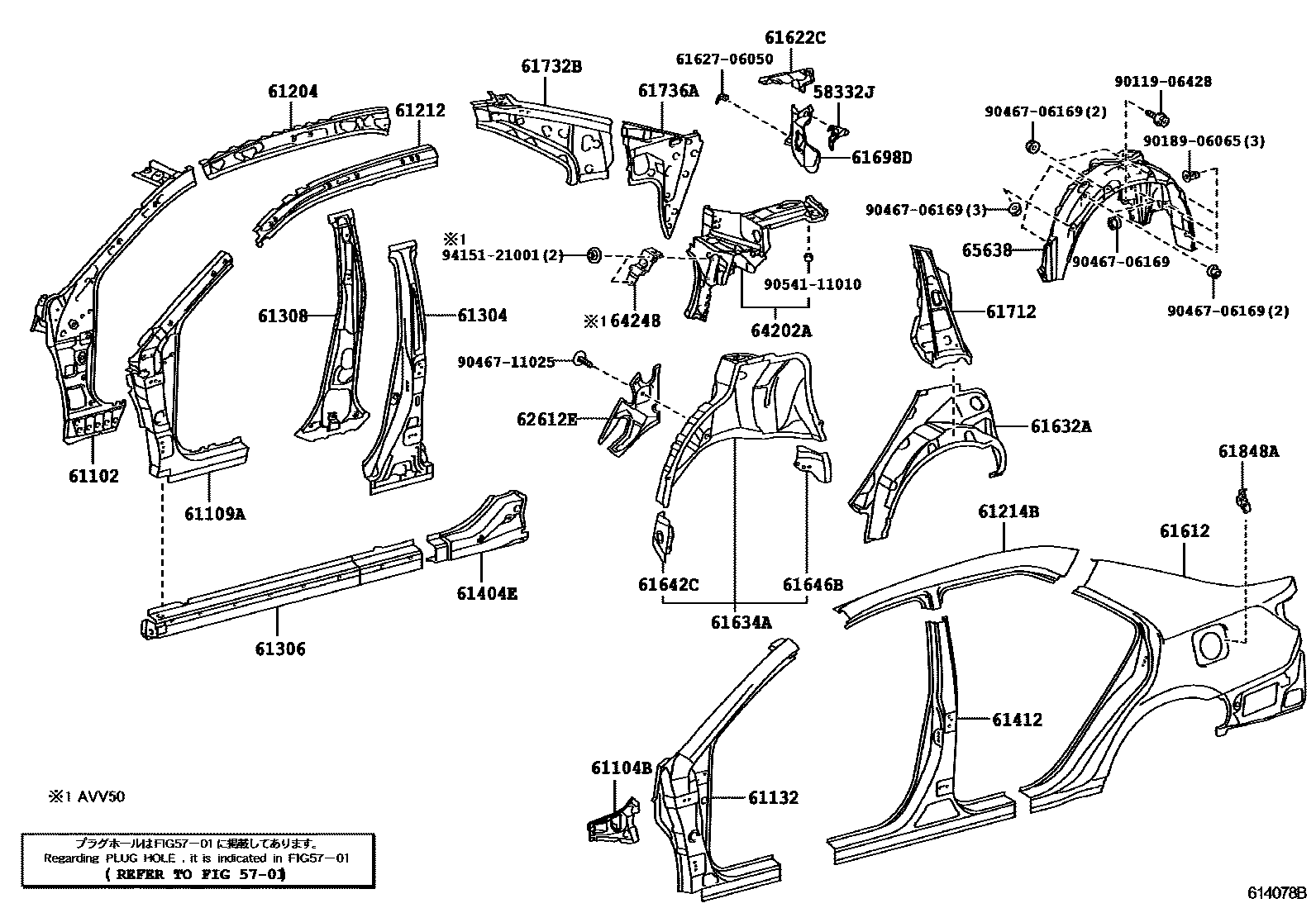

Toyota CAMRY EPC diagram 6101, 侧梁, with 6 images and 57 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58331D | No. 1 suitcase decorative panel bracket | 58331-06090 |
| 58332J | No. 2 suitcase decorative panel bracket | 58332-06090 |
| 61101 | Right front wall side panel sub-assembly | 61101-06180 · 61101-06190 |
| 61102 | Left front wall side panel sub-assembly | 61102-06190 · 61102-06200 |
| 61103A | Right front wall side reinforcement sub-assembly | 61103-06050 · 61103-06060 |
| 61104B | Left front wall side reinforcement sub-assembly | 61104-06050 · 61104-06060 |
| 61108A | Right body front pillar lower reinforcement sub-assembly | 61108-06130 · 61108-06140 |
| 61109A | Left side body front pillar lower reinforcement sub-assembly | 61109-06130 · 61109-06140 |
| 61131 | Right body outer front upper pillar | 61131-06130 · 61131-06140 |
| 61132 | Left body outer front upper pillar | 61132-06130 · 61132-06140 |
| 61203 | Roof right inner longitudinal beam sub-assembly | 61203-06160 · 61203-06170 |
| 61204 | Roof left inner longitudinal beam sub-assembly | 61204-06160 · 61204-06170 |
| 61211 | Roof right outer longitudinal beam | 61201-06100 · 61201-06110 · 61201-06111 |
| 61212 | Roof left outer longitudinal beam | 61202-06100 · 61202-06110 · 61202-06111 |
| 61213B | No. 2 longitudinal beam on the outer right side of the roof | 61213-06110 · 61213-06120 |
| 61214B | No. 2 longitudinal beam on the left side of the roof | 61214-06100 · 61214-06110 |
| 61303 | Right body center pillar reinforcement sub-assembly | 61303-06110 · 61303-06120 |
| 61304 | Left body center pillar reinforcement sub-assembly | 61304-06110 · 61304-06120 |
| 61305 | Right body center pillar lower reinforcement sub-assembly | 61305-06120 · 61305-06130 |
| 61306 | Left body center pillar lower reinforcement sub-assembly | 61306-06120 · 61306-06130 |
| 61307 | Right body inner center pillar sub-assembly | 61307-06120 · 61307-06130 |
| 61308 | Left body inner center pillar sub-assembly | 61308-06120 · 61308-06130 |
| 61403C | Right door outer sill reinforcement sub-assembly | 61403-06060 · 61403-06070 |
| 61404E | Left door outer sill reinforcement sub-assembly | 61404-06060 · 61404-06070 |
| 61411 | Right door outer sill panel | 61411-06170 · 61411-06180 |
| 61412 | Left door outer sill panel | 61412-06170 · 61412-06180 |
| 61611 | Right side hoarding | 61601-06200 · 61601-06210 |
| 61612 | left side panel | 61602-06200 · 61602-06210 |
| 61621C | Luggage right opening slot | 61621-06110 · 61621-06910 |
| 61622C | Luggage trunk left opening slot | 61622-06110 · 61622-06910 |
| 61631A | Right wheel cover outer panel | 61631-06140 · 61631-06150 |
| 61632A | Left side wheel cover outer panel | 61632-06140 · 61632-06150 |
| 61633A | Right wheel housing lining panel | 61633-06907 · 61633-06909 |
| 61634A | Left side wheel housing lining panel | 61634-06907 · 61634-06909 |
| 61641C | Right front side wheel housing corner panel | 61641-06110 |
| 61642C | Left front side wheel housing corner panel | 61642-06110 |
| 61645B | Right rear side wheel housing corner panel | 61645-06110 · 61645-06120 |
| 61646B | Left rear side wheel housing corner panel | 61646-06120 · 61646-06130 |
| 61697D | Right side enclosure end cover | 61697-06140 |
| 61698D | Left side enclosure end cover | 61698-06150 |
| 61711 | Roof right side outer panel | 61711-06130 · 61711-06140 |
| 61712 | Roof left outer panel | 61712-06130 · 61712-06140 |
| 61731B | Roof right inner panel | 61731-06160 · 61731-06170 |
| 61732B | Roof left inner panel | 61732-06150 · 61732-06160 |
| 61735A | Right rear roof inner panel | 61735-06130 · 61735-06140 |
| 61736A | Left rear roof inner panel | 61736-06130 · 61736-06140 |
| 61848A | Left side panel fixing | 61848-06040 · 61848-06050 |
| 62611F | Right wheel cover vibration isolation pad | 62611-06120 · 62611-06130 |
| 62612E | Left side wheel cover vibration isolation pad | 62612-06120 · 62612-06130 |
| 64201B | Glove box to floor right filter sub-assembly | 64201-06150 · 64201-06160 |
| 64202A | Glove box to floor left filter sub-assembly | 64202-06150 · 64202-06160 |
| 64247C | Car partition right side bracket | 64247-06040 · 64247-06050 |
| 64248 | Car partition left bracket | 64248-06050 · 64248-06060 |
| 65565 | Right side panel rear end lining | 65565-06070 |
| 65566 | Left side panel rear end lining | 65565-06070 |
| 65637 | Right rear wheel house lining | 65637-06090 · 65637-06100 · 65637-06190 · 65637-06200 |
| 65638 | Left rear wheel house lining | 65638-06090 · 65638-06100 · 65638-06190 · 65638-06200 |
