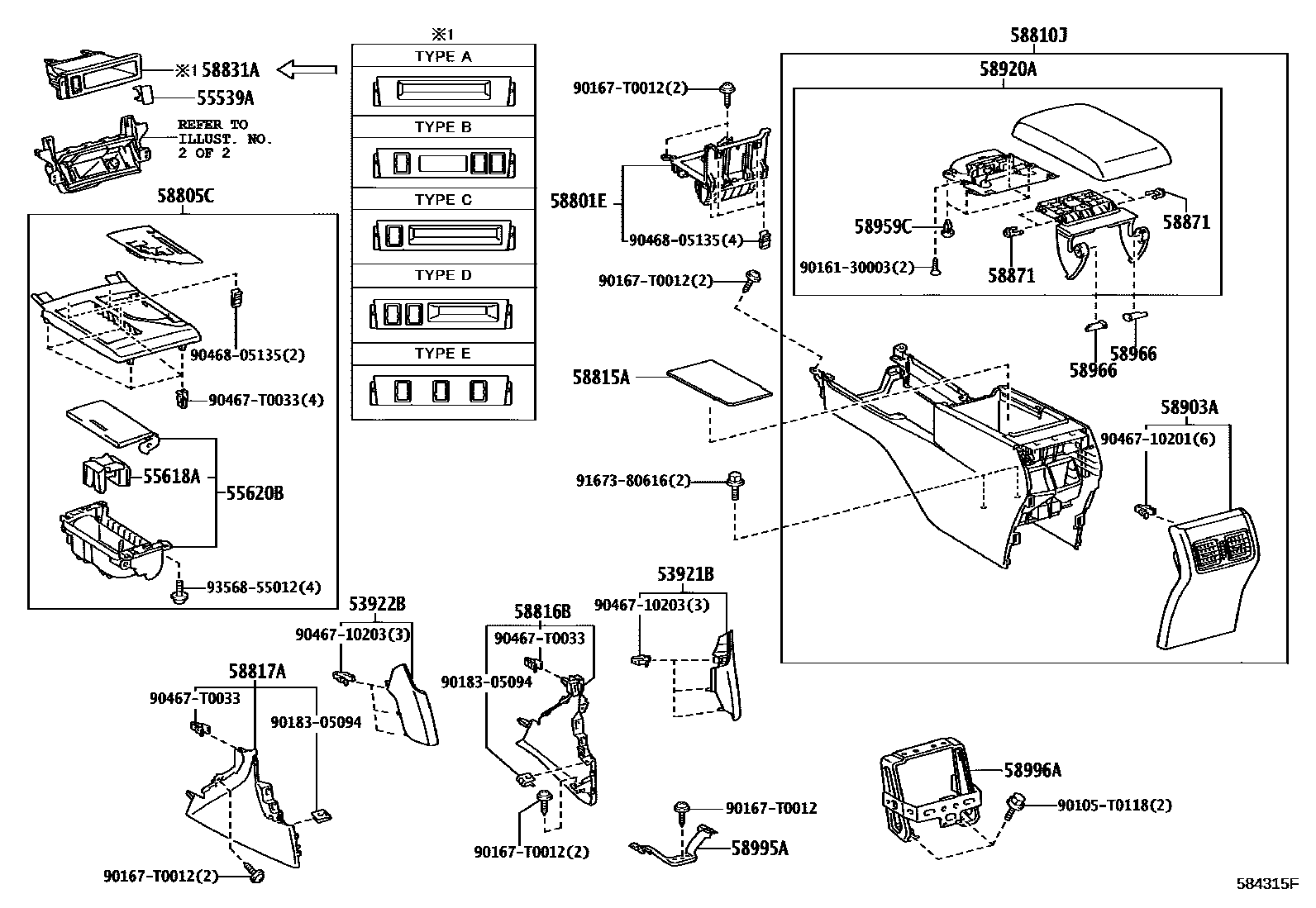

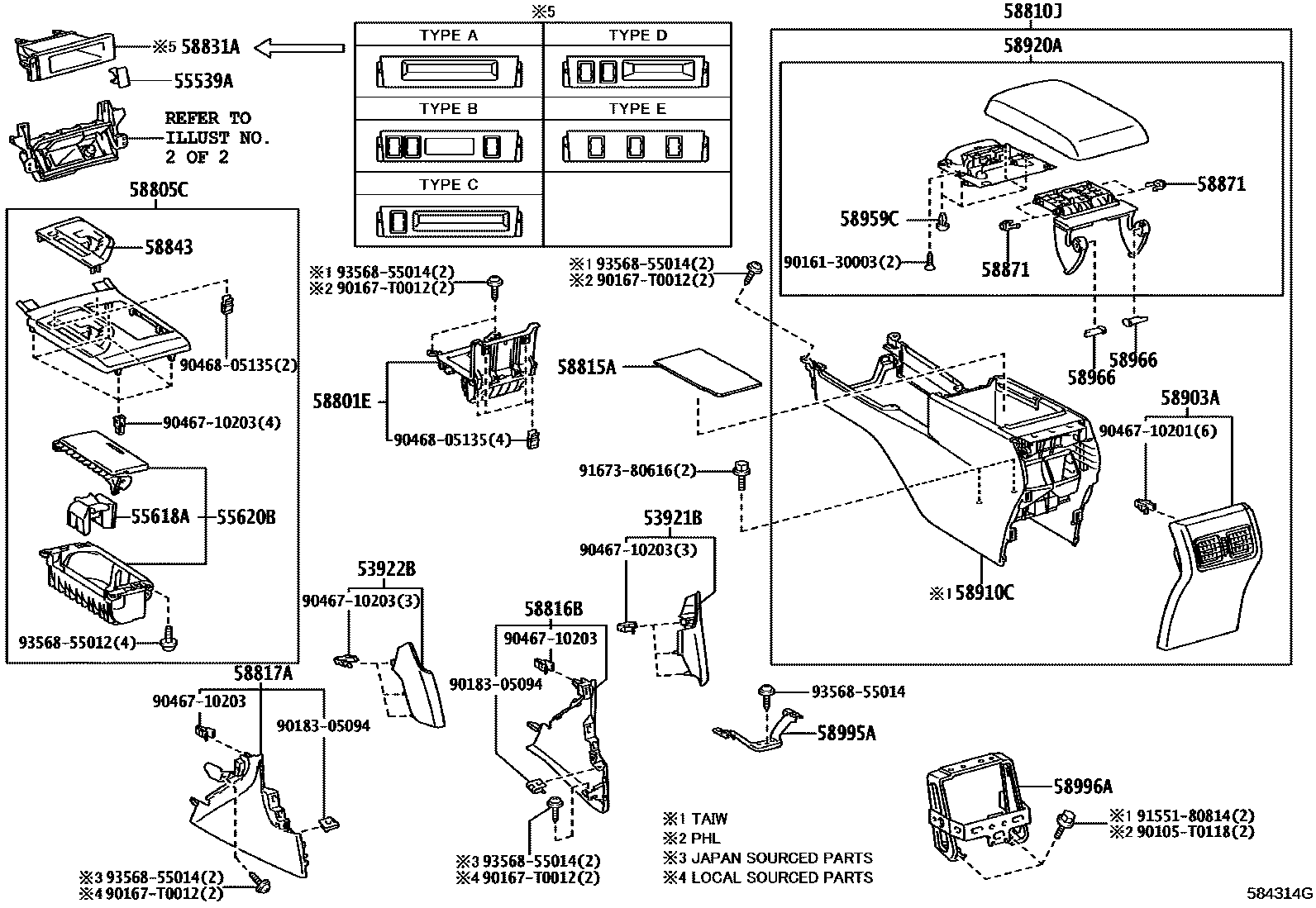

Toyota CAMRY 中央扶手箱和支架 — Figure 5806
Toyota CAMRY EPC diagram 5806, 中央扶手箱和支架, with 3 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55618A | Armrest box cup holder | 55618-06140 · 55618-06150 |
| 55620B | Dashboard cup holder | 55620-06450 |
| 58804A | Armrest box upper panel sub-assembly | 74110-06360 |
| 58805C | Rear armrest box upper panel sub-assembly | 58805-06510 · 58805-06640 · 58805-06C90 · 58805-06D00 |
| 58811G | Clip (armrest box) | 90467-10203 · 90467-T0033 |
| 58815A | Armrest box felt pad | 58815-06140 · 58815-06150 · 58815-06160 |
| 58831A | Front armrest box upper panel decorative parts | 58831-06680 · 58831-06690 · 58831-06700 · 58831-06750 · 58831-06760 · 58831-06770 · 58831-06790 · 58831-06791 |
| 58843 | shift hole frame | 58843-06100 · 58843-06140 · 58843-06150 · 58843-06170 |
| 58871 | Armrest box cushion | 58871-30070 |
| 58959C | Armrest box cover cushion | 58959-60060 |
| 58966 | Armrest box cover hinge shaft | 58966-30030 |
| 58995A | Armrest box No. 1 mounting bracket | 58995-06180 · 58995-06190 |
| 58996A | Armrest box No. 2 mounting bracket | 58996-06100 · 58996-06110 |
