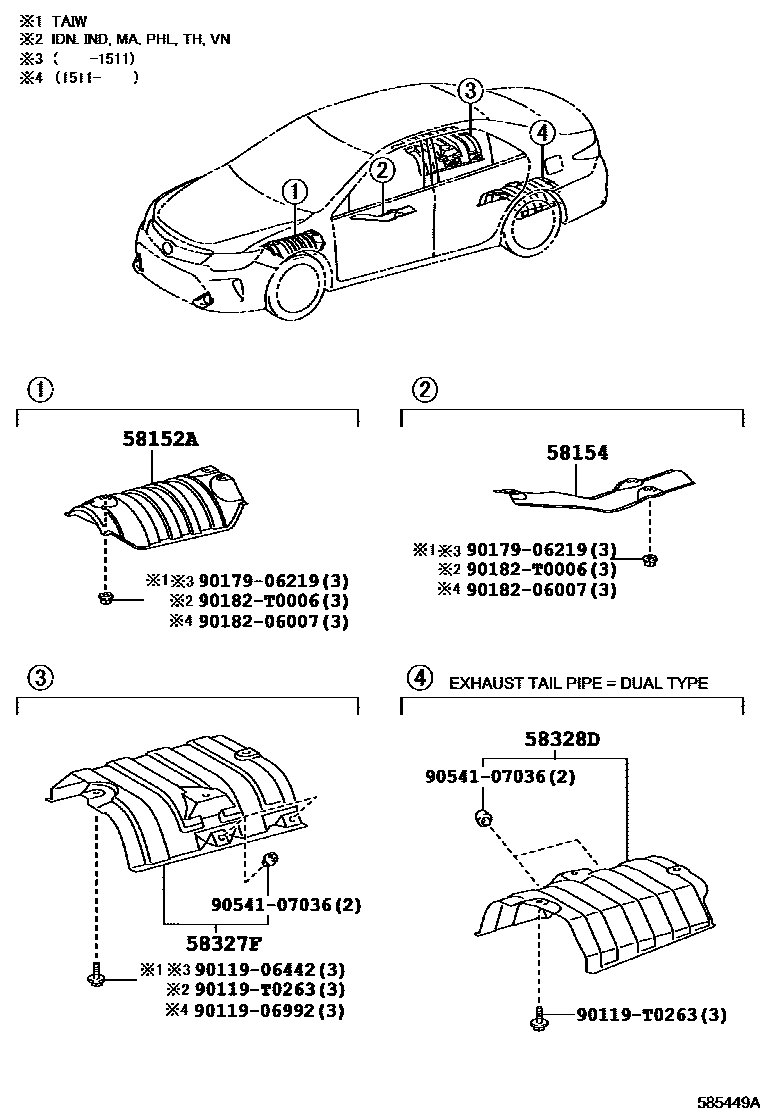

Toyota CAMRY 地板隔热垫 — Figure 5802
Toyota CAMRY EPC diagram 5802, 地板隔热垫, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58152A | Front floor No. 1 lower heat insulation pad | 58152-06050 · 58152-06060 |
| 58154 | Front floor No. 2 lower heat insulation pad | 58154-06020 · 58154-06030 |
| 58327F | Main muffler right heat insulation pad | 58327-06021 · 58327-06031 |
| 58328D | Main muffler left heat insulation pad | 58328-06020 |
