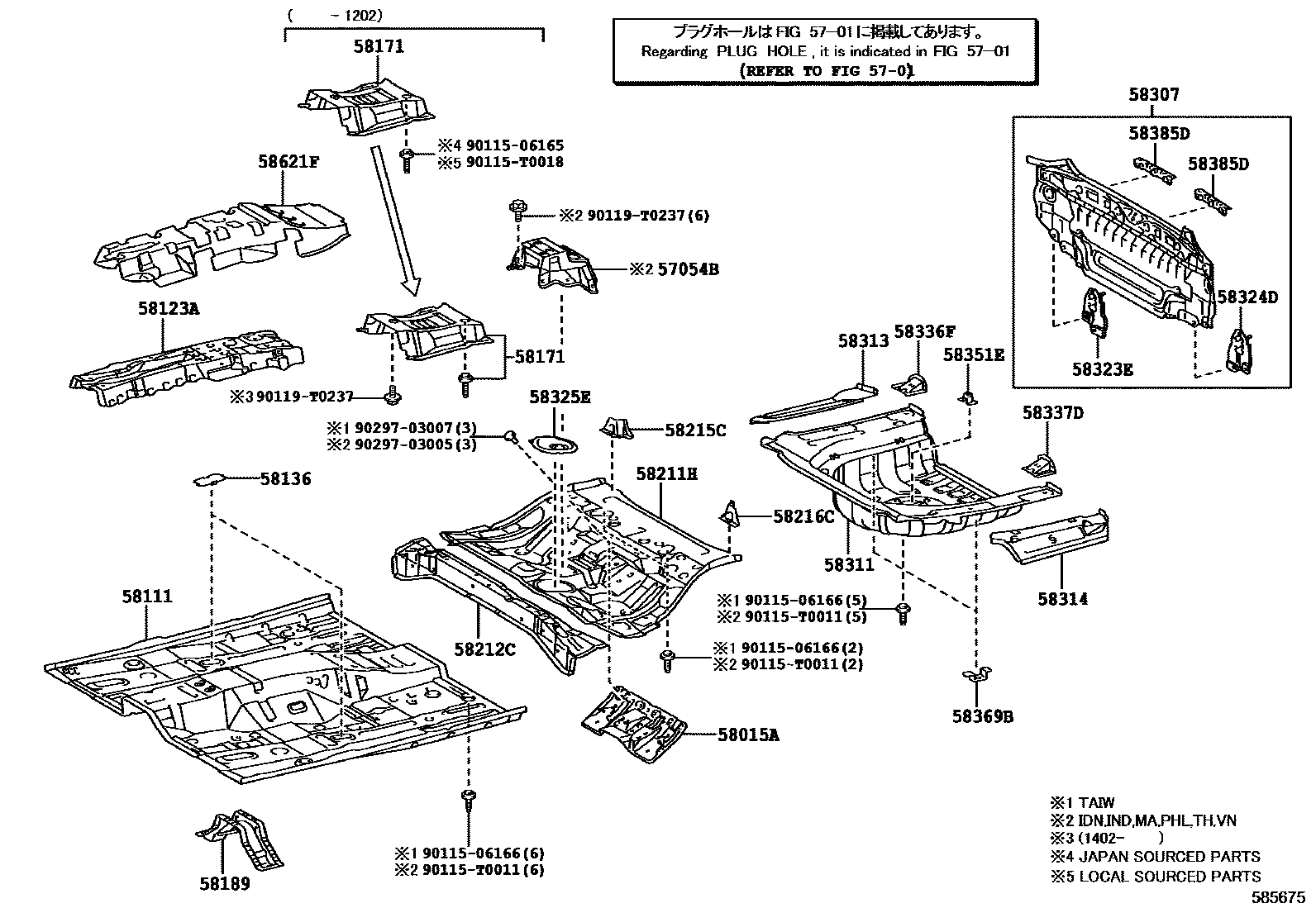

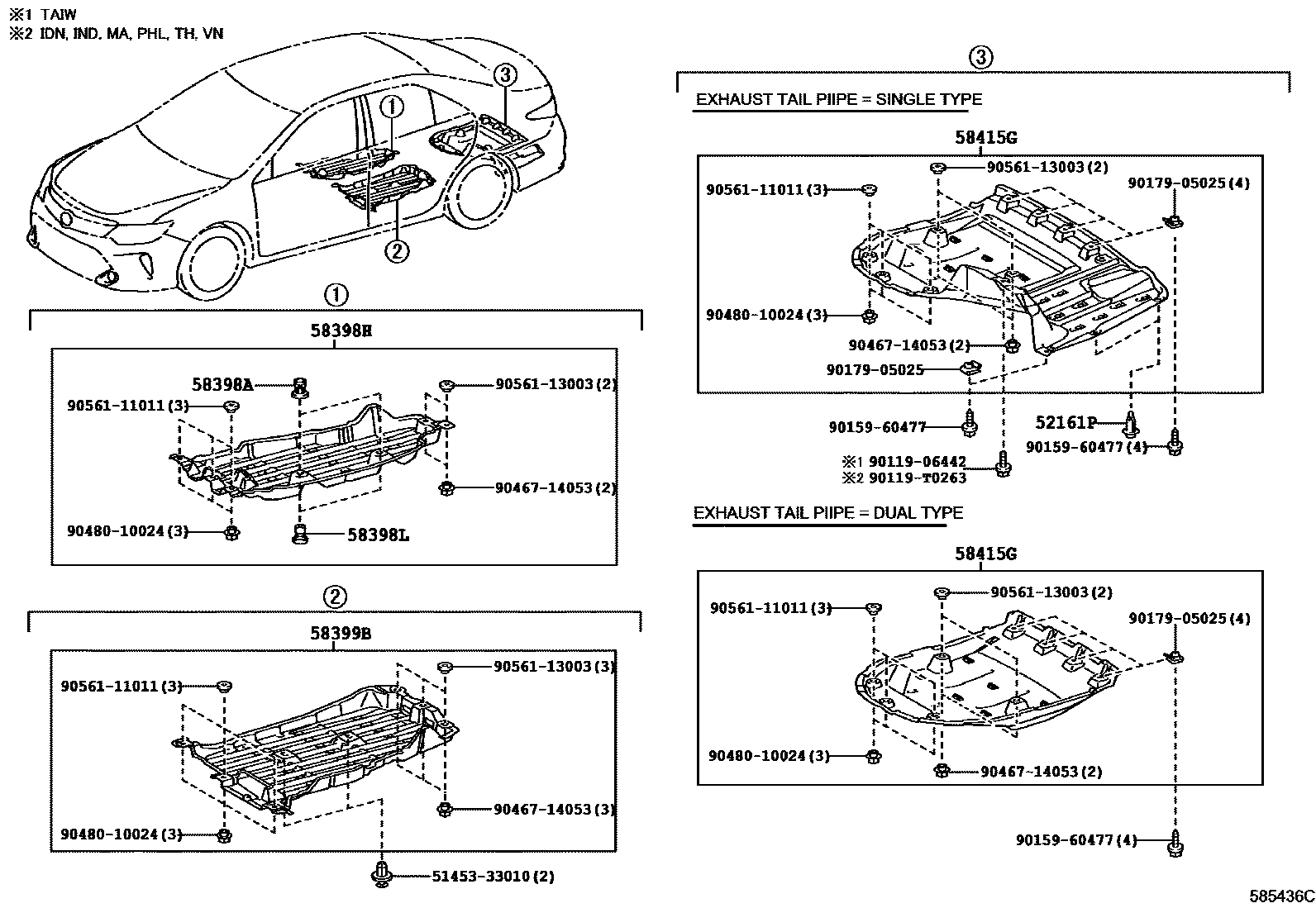

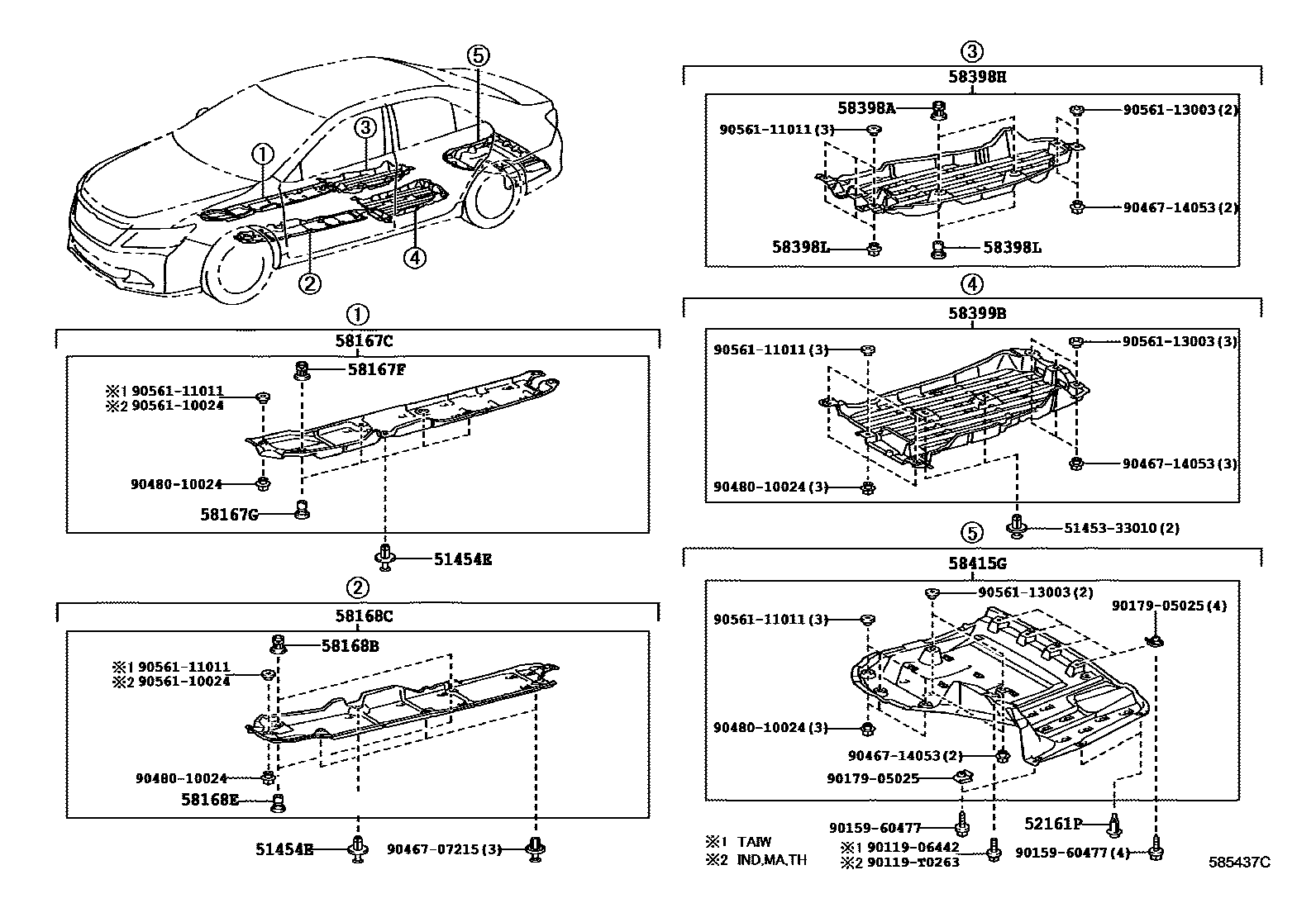

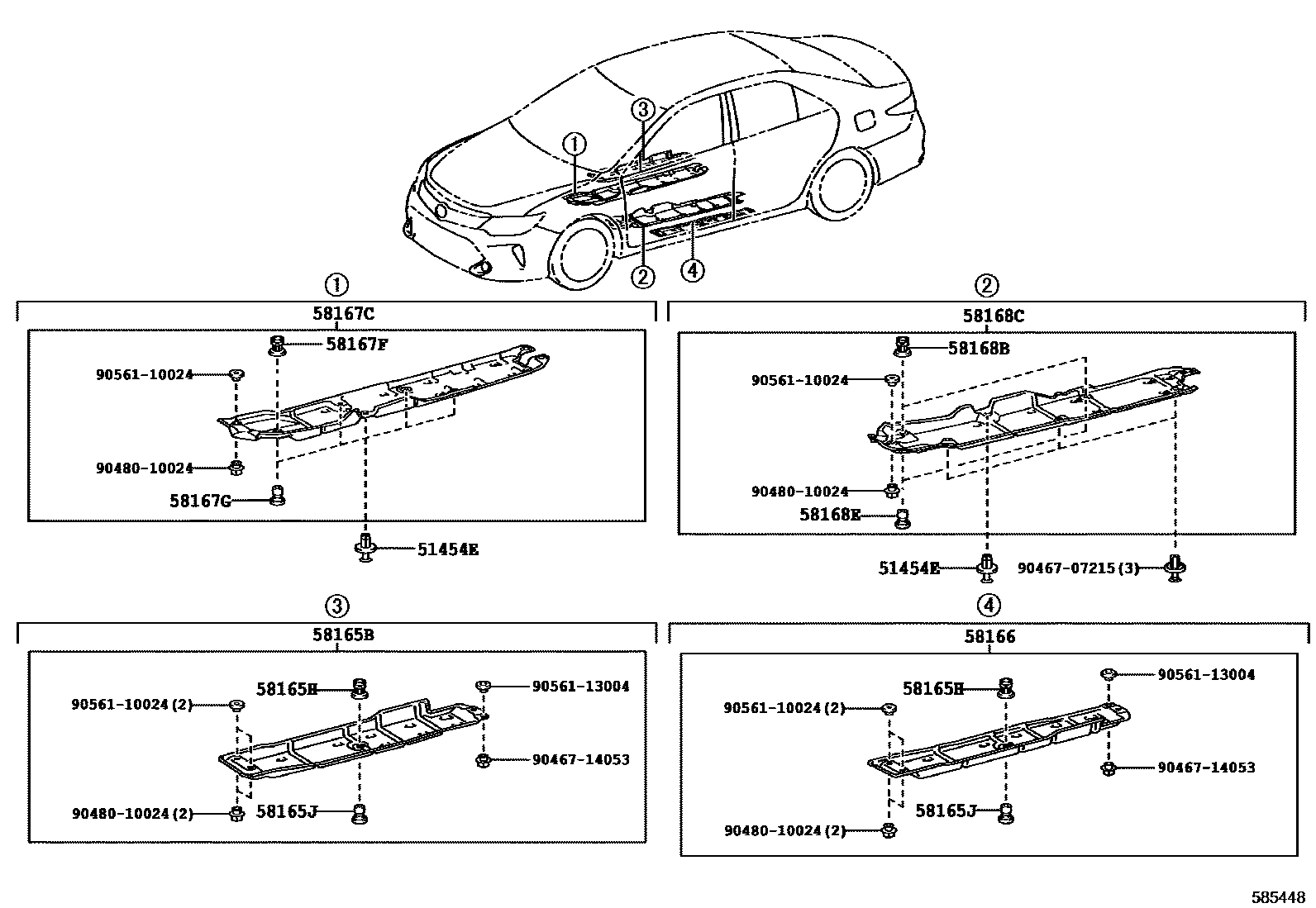

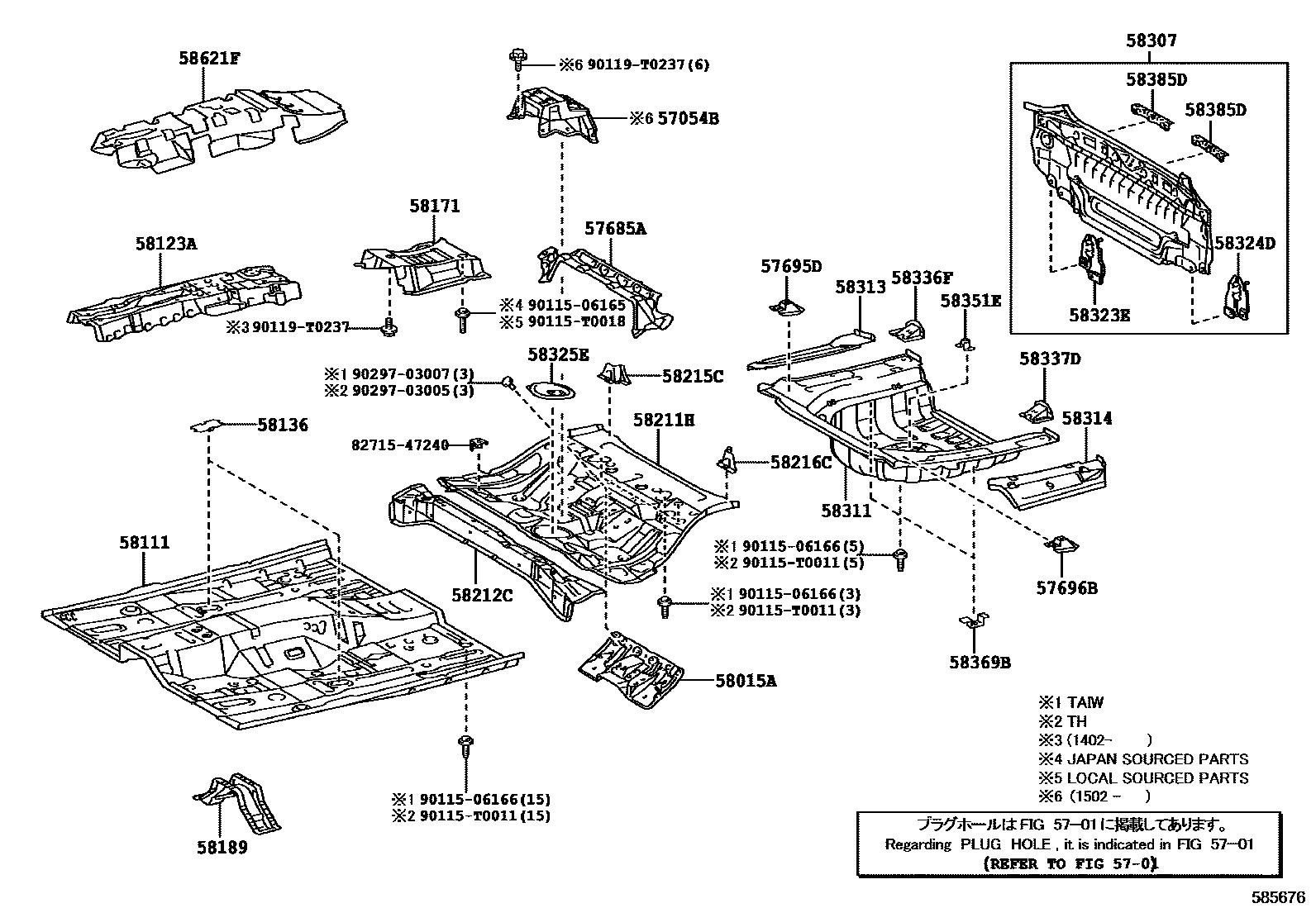

Toyota CAMRY 浅盘形地板和车身下背板 — Figure 5801
Toyota CAMRY EPC diagram 5801, 浅盘形地板和车身下背板, with 5 images and 36 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51454E | Front floor cover silencer | 51454-08010 |
| 52161P | Rear bumper insert | 52161-16010 |
| 57054B | Floor No. 4 beam reinforcement sub-assembly | 57054-06070 |
| 57685A | Rear floor No. 1 right mounting bracket | 57685-06020 · 57685-33010 |
| 57695D | Rear floor No. 2 right mounting bracket | 57695-06030 · 57695-33020 |
| 57696B | Rear floor No. 2 left mounting bracket | 57695-06030 · 57695-33020 |
| 58015A | Right No. 3 seat belt anchor reinforcement sub-assembly | 58015-06060 · 58015-06070 |
| 58111 | front floor pan | 58111-06100 · 58111-06915 |
| 58123A | shift lever bracket | 58013-06060 · 58013-06070 · 58013-06071 |
| 58136 | Front floor hole cover | 58136-33010 |
| 58165B | Front floor right cover | 58165-06020 |
| 58166 | Front floor left cover | 58166-06020 |
| 58167C | Front floor center right cover | 58167-06050 · 58167-06060 · 59407-33010 |
| 58168C | Front floor center left cover | 58168-06030 · 58168-06040 · 59408-33010 |
| 58171 | Parking brake base reinforcement | 58171-06050 · 58171-06051 · 58171-06060 · 58171-06061 |
| 58189 | Exhaust pipe clamp bracket reinforcement | 58189-06051 · 58189-06061 |
| 58211H | central floor base | 58211-06110 · 58211-06121 · 58211-06170 · 58211-06220 · 58211-06221 |
| 58212C | Center floor front floor | 58212-06070 · 58212-06080 |
| 58215C | Center floor No. 2 right reinforcement | 58215-33040 |
| 58216C | Center floor No. 2 left reinforcement | 58216-33030 |
| 58307 | Body lower back panel sub-assembly | 58307-06180 · 58307-06190 |
| 58311 | rear floor pan | 58311-06071 · 58311-06131 |
| 58313 | Rear floor right panel | 58313-06180 · 58313-06190 · 58313-06210 · 58313-06220 |
| 58314 | rear floor left panel | 58314-06160 · 58314-06170 |
| 58323E | Rear bumper arm right bracket reinforcement | 58323-06031 · 58323-06040 |
| 58324D | Rear bumper arm left bracket reinforcement | 58324-06030 · 58324-06040 |
| 58325E | Rear floor access hole cover | 58325-33050 |
| 58336F | Rear floor bottom panel right reinforcement | 58336-06020 · 58336-06040 |
| 58337D | Rear floor bottom left reinforcement | 58337-06020 · 58337-06030 |
| 58351E | Spare tire clip bracket | 58351-33010 |
| 58369B | No. 3 fuel pipe bracket | 58369-06040 · 58369-32010 |
| 58385D | Rear bumper cover bracket | 58385-06110 · 58385-06120 |
| 58398H | No. 1 floor under cover | 58398-06070 · 58398-06090 · 58398-06100 |
| 58399B | Floor No. 2 lower cover | 58399-06070 · 58399-06090 · 58399-06120 |
| 58415G | Rear floor panel No. 1 | 57628-06100 · 57628-06110 · 57628-06140 · 57628-06150 · 58415-06100 |
| 58621F | Center console silencer No. 1 | 58621-06080 · 58621-06100 · 58621-06210 |
