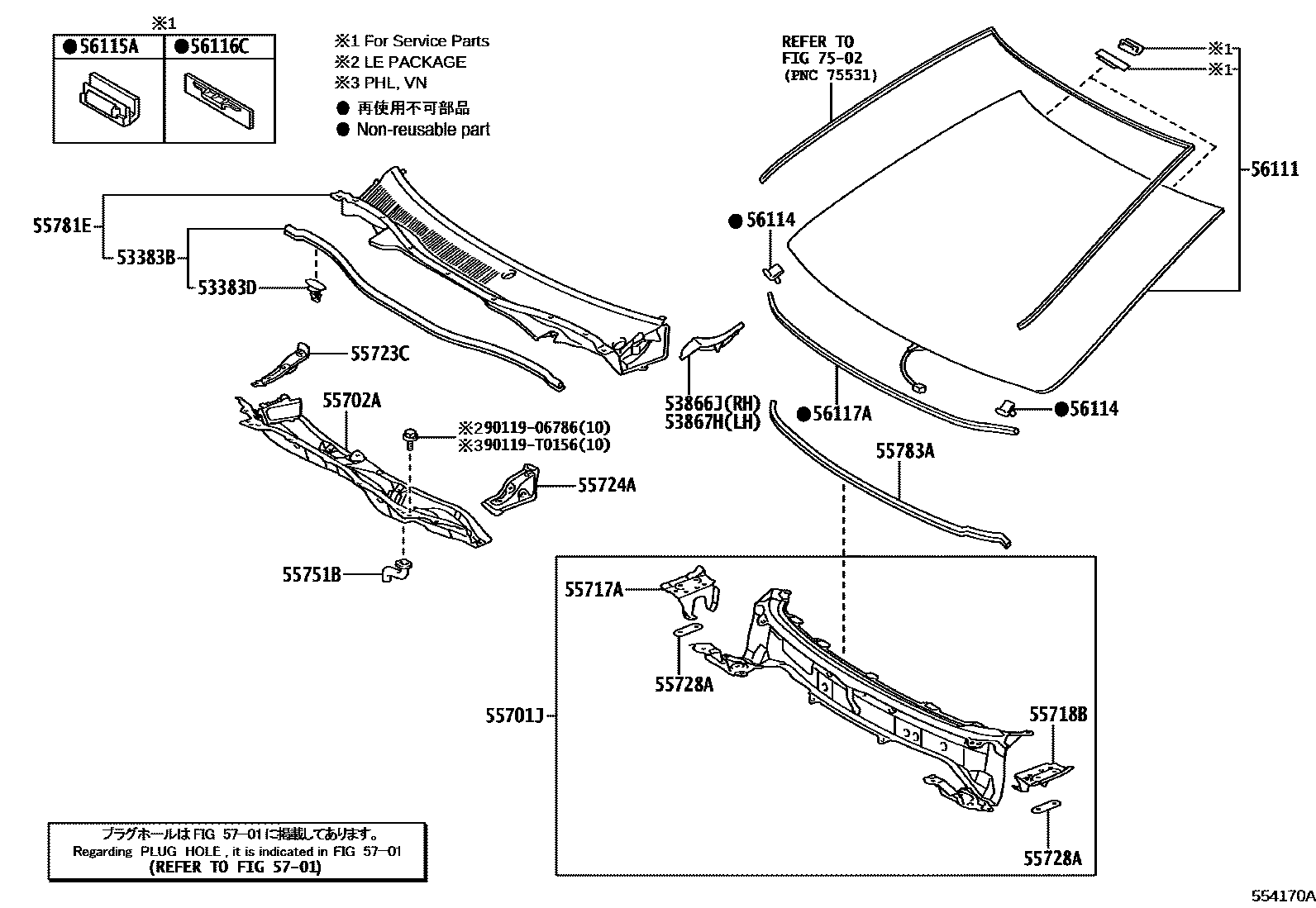

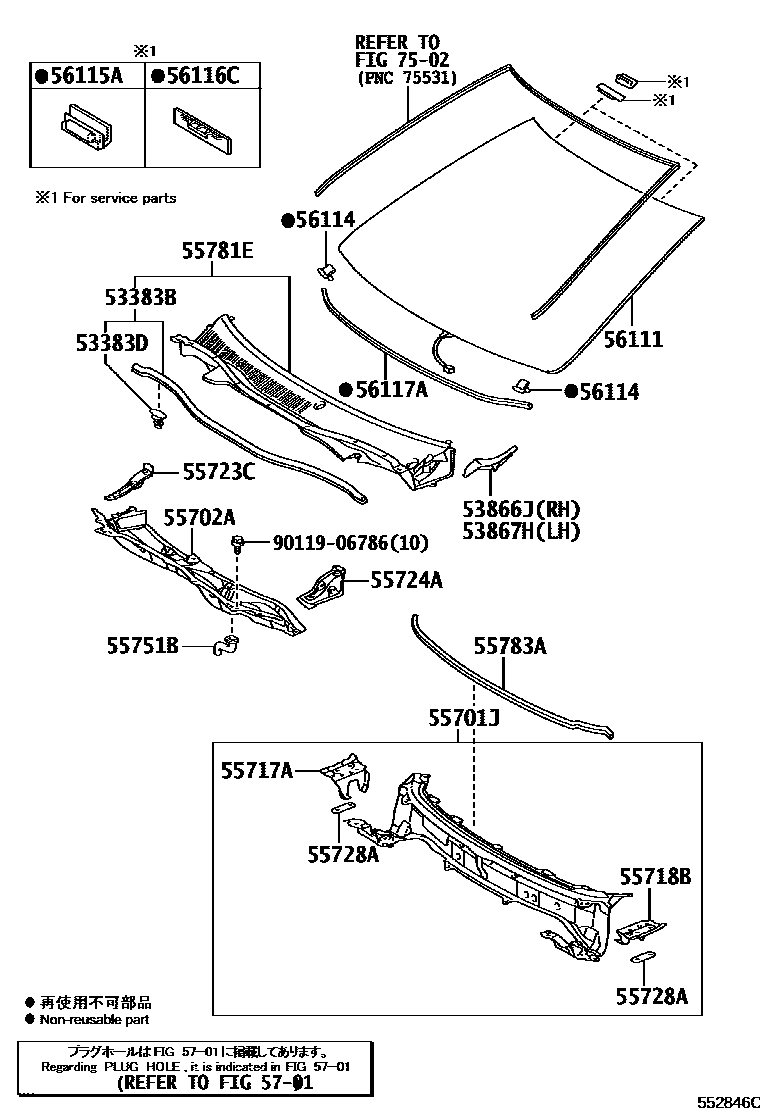

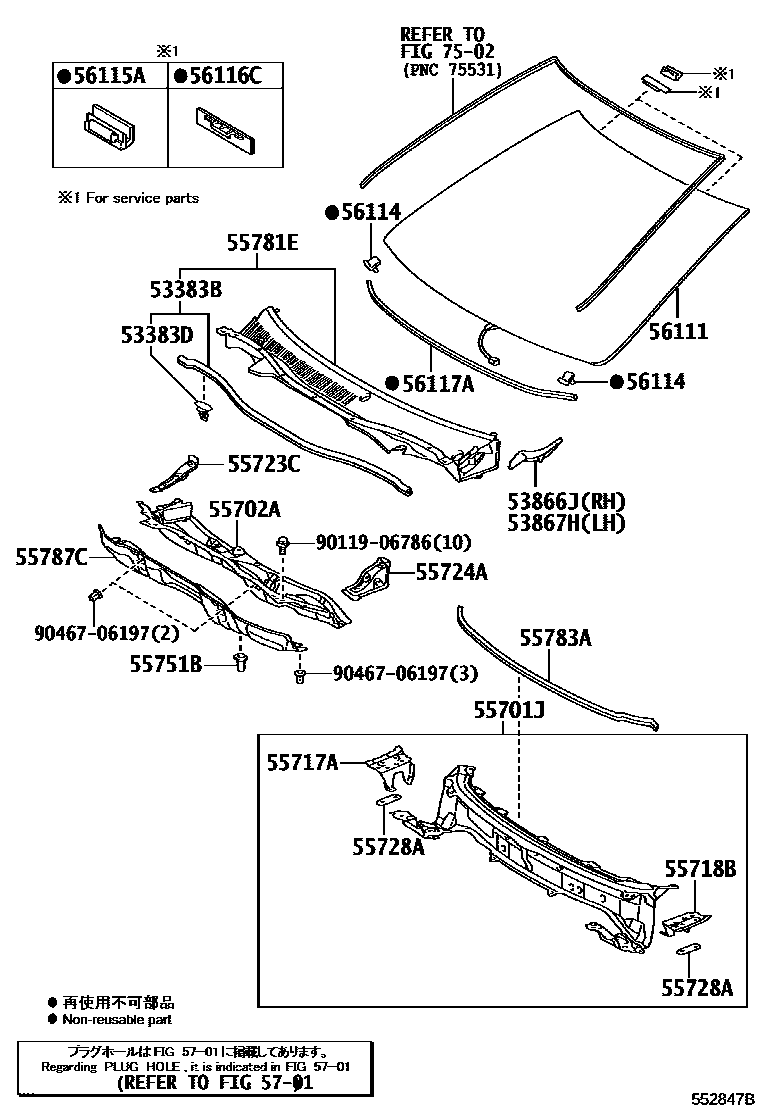

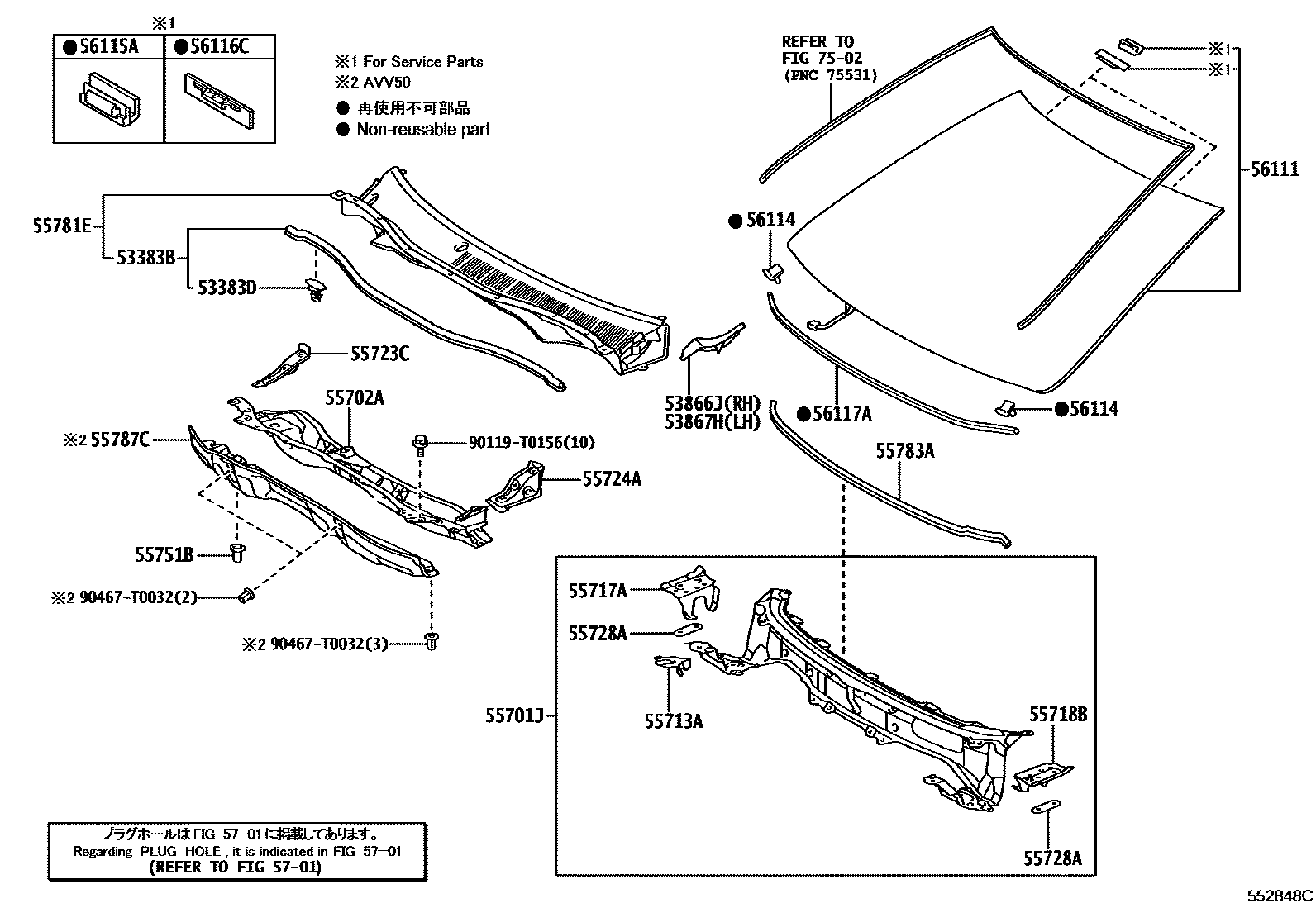

Toyota CAMRY 前围板和挡风玻璃 — Figure 5503
Toyota CAMRY EPC diagram 5503, 前围板和挡风玻璃, with 4 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53383B | Engine cover to cowl upper cover seal | 53383-06150 · 53383-06160 |
| 53383D | Clamp (for engine cover to cowl upper cover seal) | 67867-48030 |
| 53866J | Right front fender to cowl side seal | 53866-06090 · 53866-06100 |
| 53867H | Left front fender to cowl side seal | 53867-06090 · 53867-06100 |
| 55701J | Front wall upper outer panel sub-assembly | 55701-06230 · 55701-06240 · 55701-06250 · 55701-06280 |
| 55702A | Front cowl upper outer front panel sub-assembly | 55702-06180 · 55702-06181 · 55702-06182 · 55702-06190 · 55702-06191 · 55702-06192 · 55702-06200 · 55702-06201 · 55702-06210 · 55702-06211 |
| 55713A | Right front wall upper side panel | 55713-06100 |
| 55717A | Upper right inner panel of cowl | 55717-06150 · 55717-06160 |
| 55718B | Upper left inner panel of front wall | 55718-06150 · 55718-06160 |
| 55723C | Right front wall upper side reinforcement | 55723-06150 · 55723-06160 · 55723-06170 |
| 55724A | Left front wall upper side reinforcement | 55724-06160 · 55724-06170 · 55724-06180 |
| 55728A | Engine cover block reinforcement | 55728-06120 · 55728-06130 |
| 55751B | Front no. 1 water hose | 55751-06140 · 55751-06160 · 55751-06170 · 55751-33040 |
| 55781E | Ventilation grille sub-assembly on front apron | 55708-06180 · 55708-06190 |
| 55783A | Front cowl upper cover silencer pad | 55783-06120 · 55783-06130 |
| 55787C | No. 1 front wall upper cover thermal insulation pad | 55787-06060 · 55787-06070 |
| 56111 | windshield | 56101-06943 · 56101-06944 · 56101-06945 · 56101-06946 · 56101-06947 · 56101-06948 · 56101-06949 · 56101-06958 · 56101-06959 · 56101-06960 · 56101-06961 · 56101-06962 · 56101-06963 · 56101-06964 · 56101-06967 · 56101-06970 · 56101-06974 · 56101-06975 · 56101-06976 · 56101-06977 · 56101-06978 · 56101-06979 · 56101-06980 · 56101-06981 · 56101-33915 · 56101-33916 |
| 56114 | windshield stopper | 56114-33050 |
| 56115A | Windshield block No. 1 | 56115-30120 |
| 56116C | Windshield block 2 | 56116-22050 |
| 56117A | Window glass adhesive seals | 56117-06150 |
