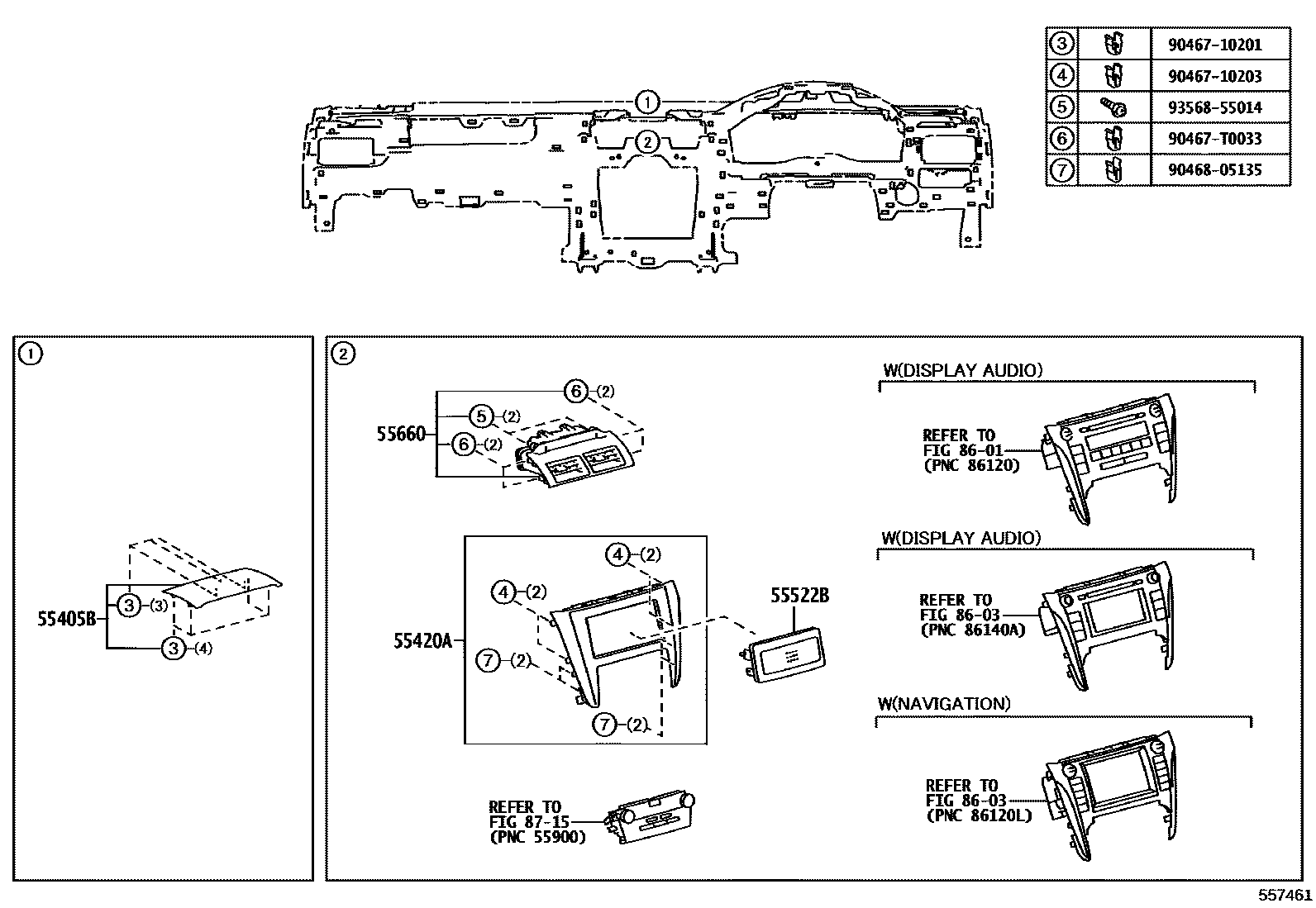

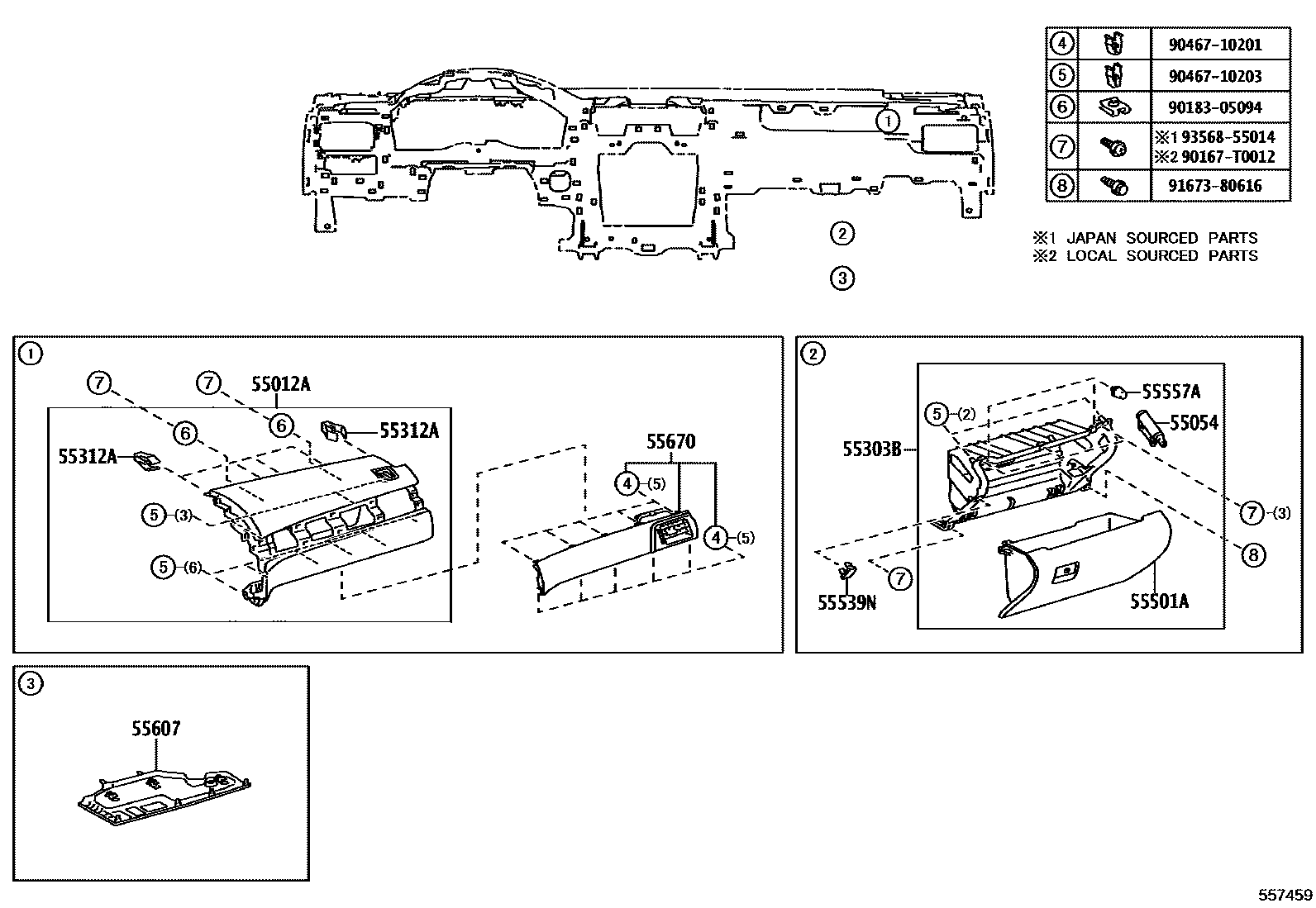

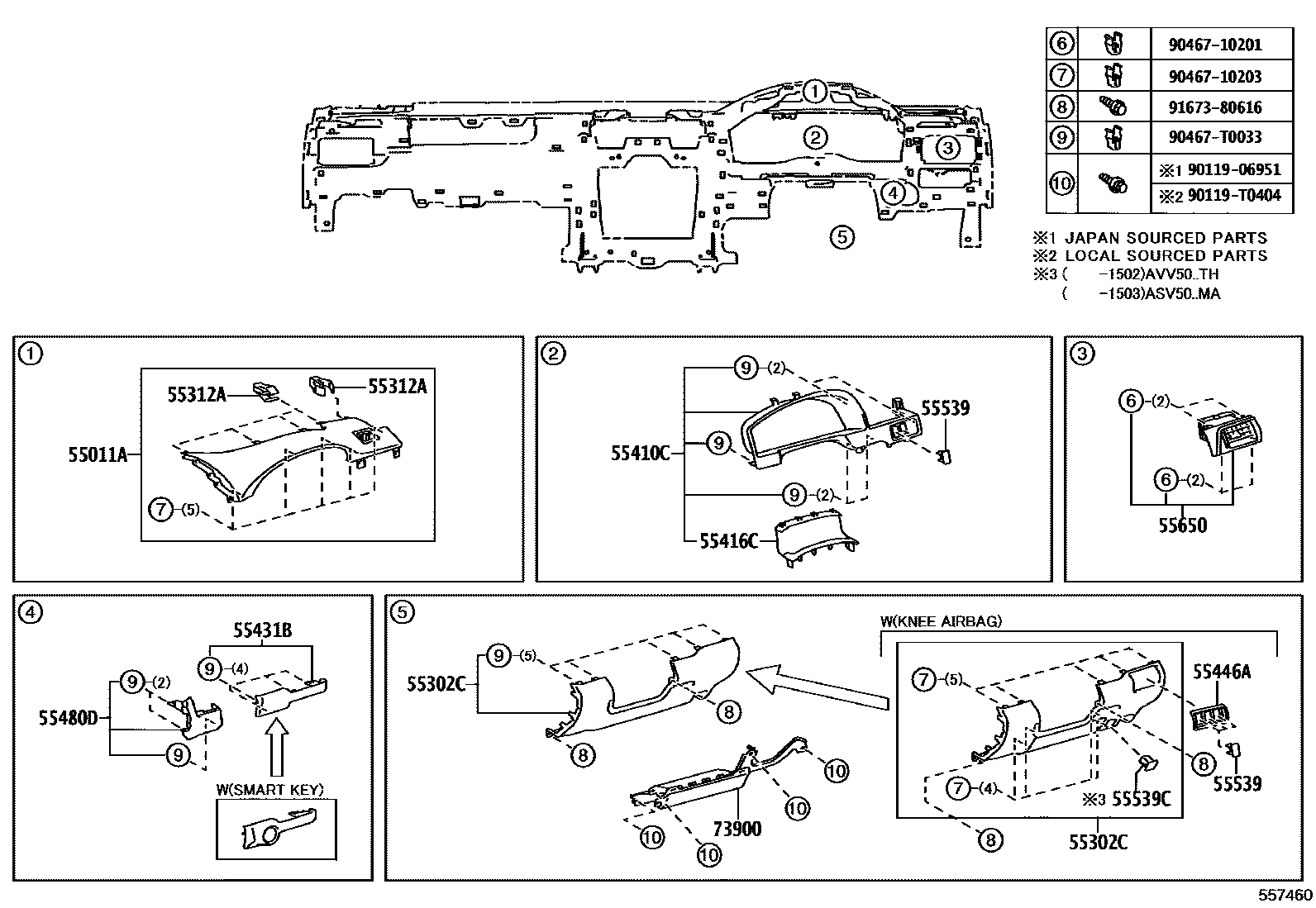

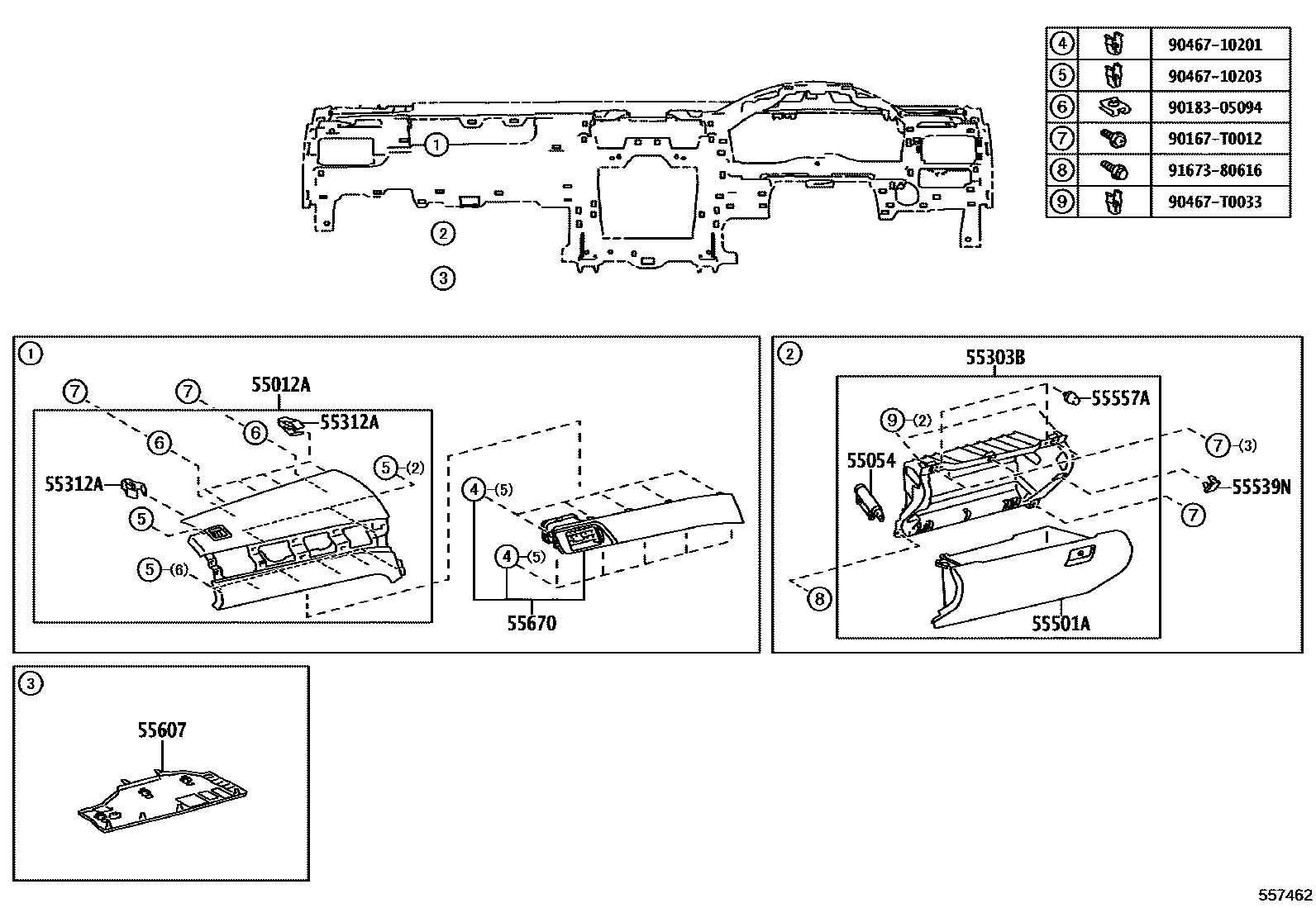

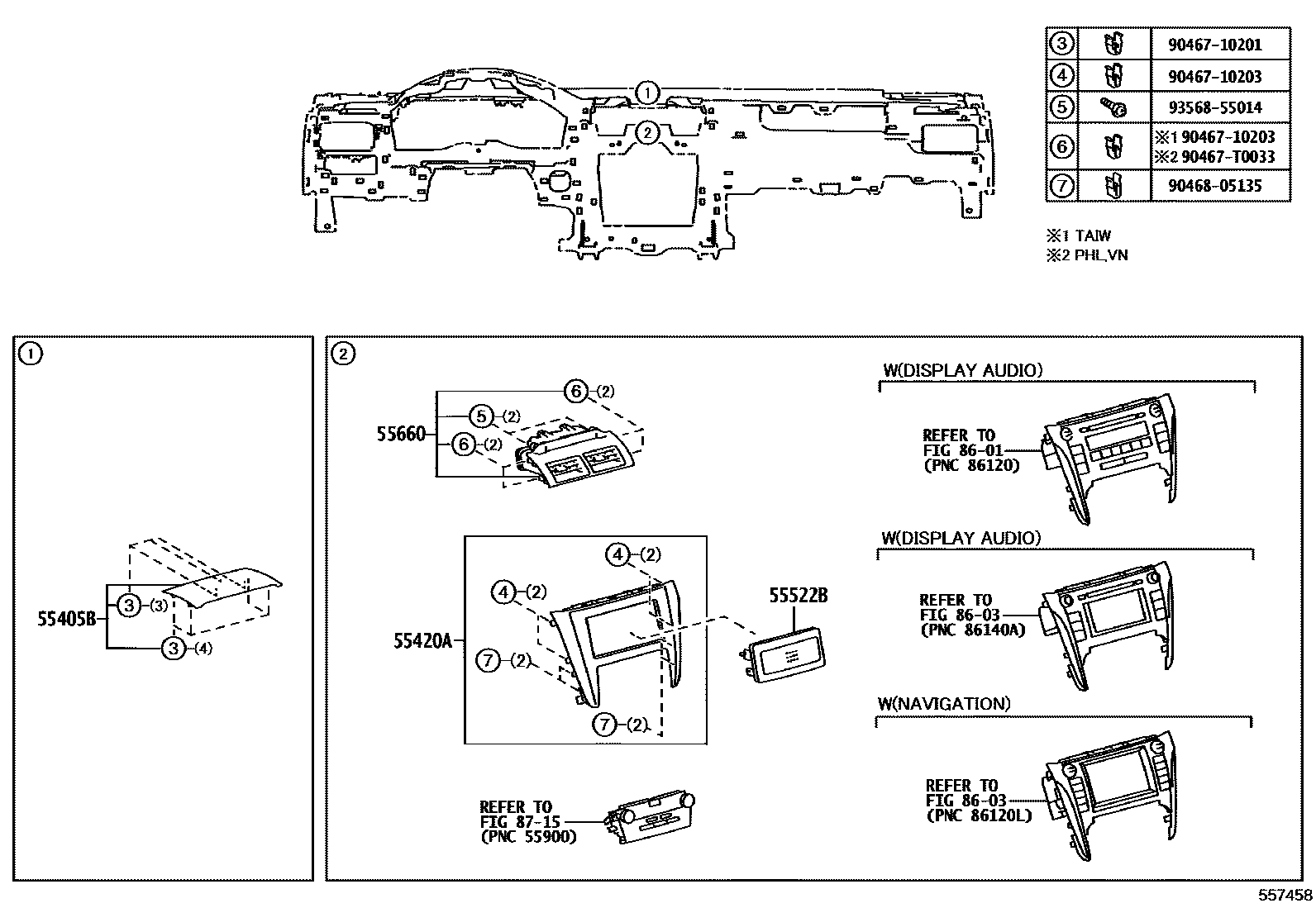

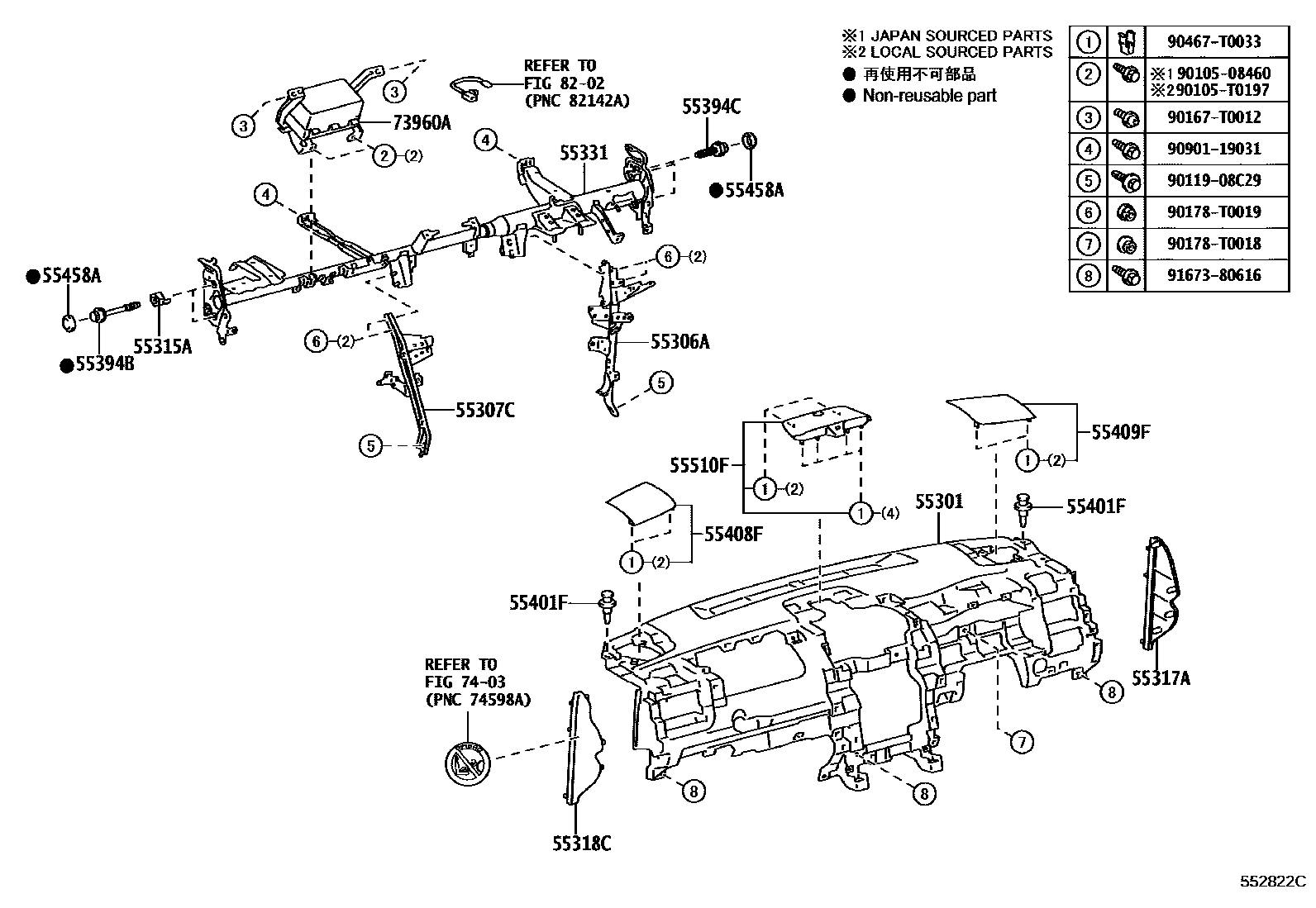

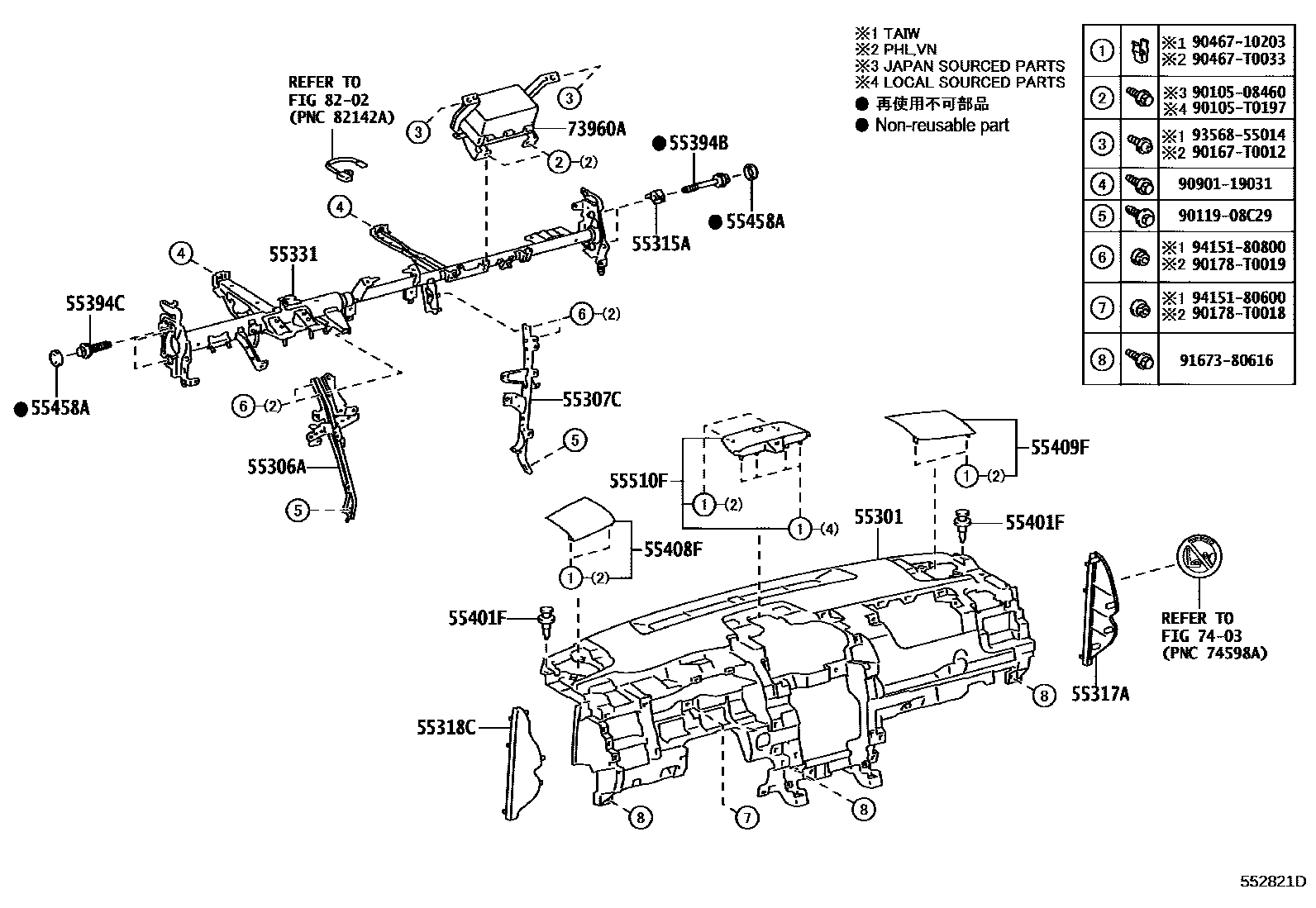

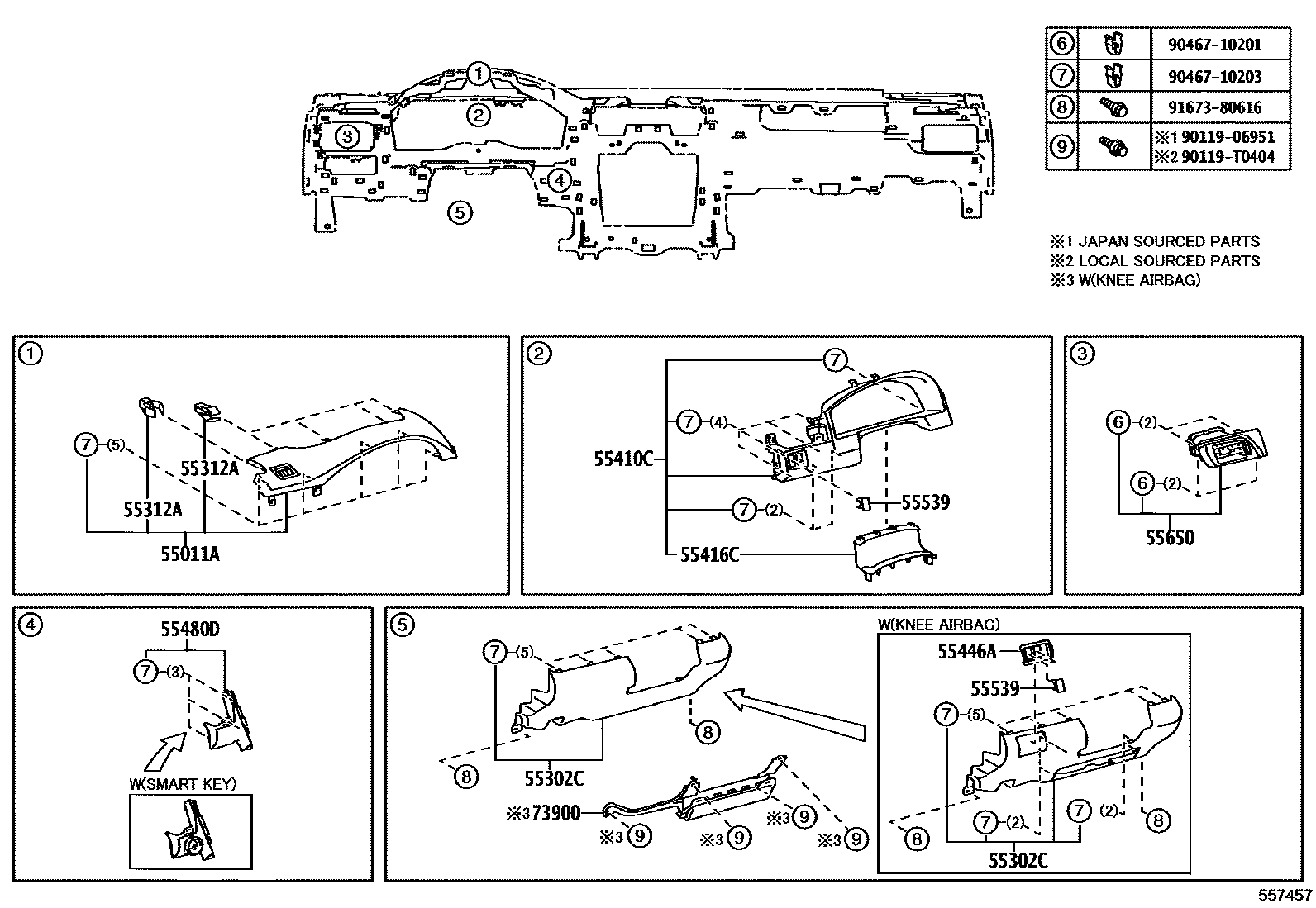

Toyota CAMRY 仪表板和手套箱 — Figure 5501
Toyota CAMRY EPC diagram 5501, 仪表板和手套箱, with 8 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55054 | Glove box cover stopper sub-assembly | 55054-20020 · 55054-47010 |
| 55306A | Instrument panel No. 1 bracket sub-assembly | 55306-06120 · 55306-06130 · 55306-06140 · 55306-06150 |
| 55307C | Instrument panel No. 2 bracket sub-assembly | 55307-06140 · 55307-06150 · 55307-06160 |
| 55315A | Instrument panel spacer No. 1 | 55315-48160 |
| 55331 | Dashboard reinforcement | 55330-06240 · 55330-06260 · 55330-06360 · 55330-06370 · 55330-06380 · 55330-06390 · 55330-06420 · 55330-06430 · 55330-06540 · 55330-06550 |
| 55394B | Dashboard bolts | 55394-08050 · 90119-T0358 |
| 55394C | Dashboard bolts | 55394-08030 · 90119-T0357 |
| 55401F | Clip (for safety mat) | 52161-0K040 · 52161-16010 |
| 55420A | Center instrument cluster decorative panel assembly | 55420-33030 |
| 55458A | Dashboard safety pad cover | 55458-22110 |
| 55522B | Radio tuner opening cover | 55522-52020 |
| 55539N | Spare switch hole cover | 55539-48020 |
| 55557A | Glove box cover limit pad | 55557-60050 |
| 55607 | Instrument panel No. 2 bottom cover sub-assembly | 55607-06190 · 55607-06200 · 55607-06210 · 55607-06270 |
| 73960A | Dashboard passenger air bag assembly without cover | 73960-06220 |
