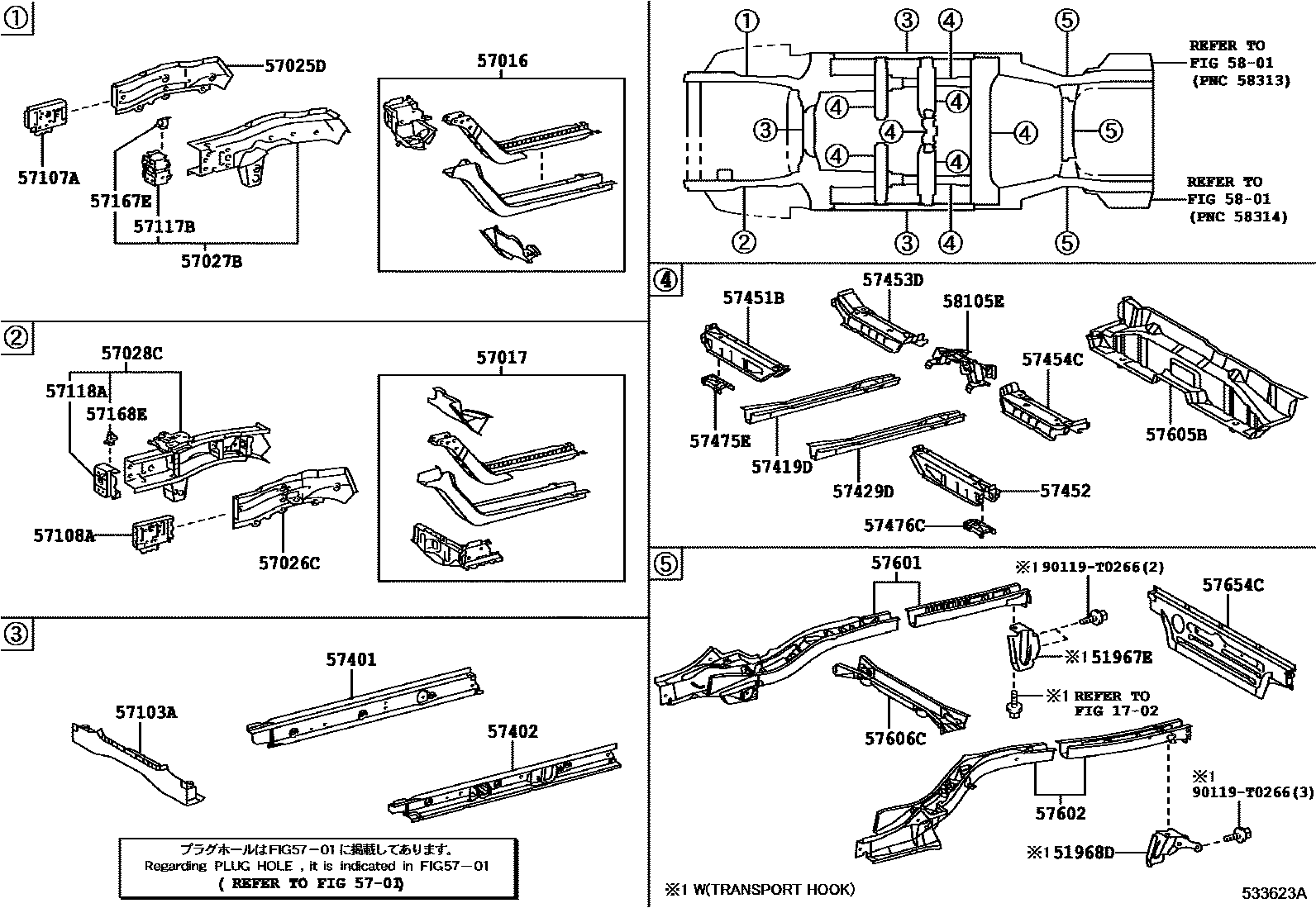

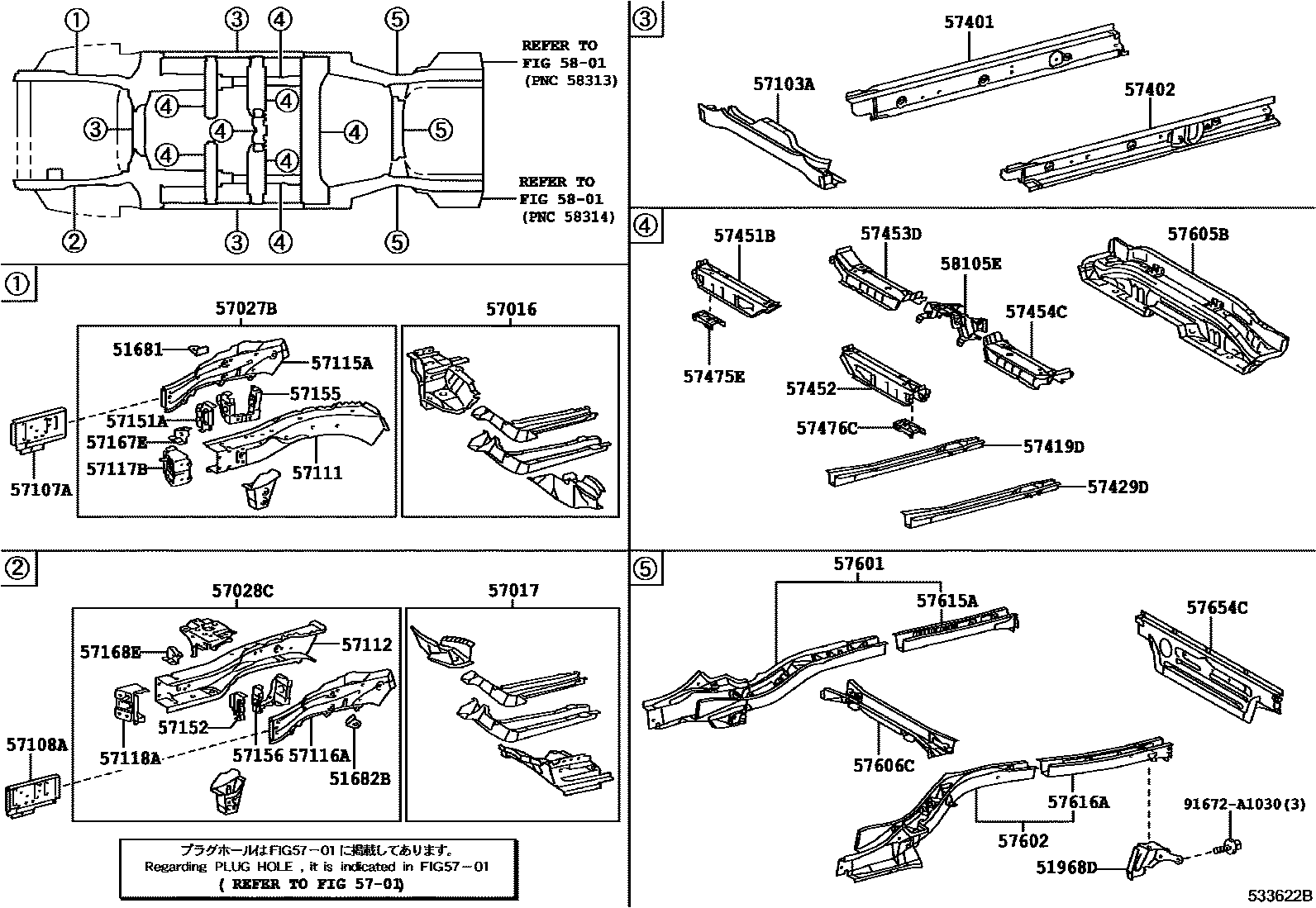

Toyota CAMRY Floor stringers — Figure 5305
Toyota CAMRY EPC diagram 5305, Floor stringers, with 2 images and 43 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51681 | Flexible hose bracket | 51681-06050 |
| 51682B | Left side flexible hose bracket | 51682-06050 |
| 51967E | right rear transport hook | 51967-06030 |
| 51968D | Left rear transport hook | 51968-06030 · 51968-06040 · 51968-06050 |
| 57016 | Right front longitudinal beam reinforcement sub-assembly | 57016-06100 · 57016-06120 · 57016-06130 |
| 57017 | Left front longitudinal beam reinforcement sub-assembly | 57017-06090 · 57017-06110 |
| 57025D | Right front outer longitudinal beam sub-assembly | 57025-06100 |
| 57026C | Left front outer longitudinal beam sub-assembly | 57026-06100 |
| 57027B | Right front inner longitudinal beam sub-assembly | 57027-06061 · 57027-06903 |
| 57028C | Left front inner longitudinal beam sub-assembly | 57028-06141 · 57028-06903 |
| 57103A | Floor No. 3 beam sub-assembly | 57103-06041 · 57103-06100 |
| 57107A | No. 2 right front longitudinal beam plate sub-assembly | 57107-06051 · 57107-06061 |
| 57108A | No. 2 left front longitudinal beam plate sub-assembly | 57108-06051 · 57108-06061 |
| 57111 | Right front longitudinal beam | 57111-33021 |
| 57112 | Left front longitudinal beam | 57112-33031 |
| 57115A | Right front longitudinal beam outer panel | 57115-33030 |
| 57116A | Left front longitudinal beam outer panel | 57116-33020 |
| 57117B | Install reinforcement on the right side of the front bumper | 57117-06070 · 57117-33050 |
| 57118A | Install reinforcement on the left side of the front bumper | 57118-06070 · 57118-33050 |
| 57151A | No. 1 right front longitudinal beam reinforcement | 57151-33020 |
| 57152 | No. 1 left front longitudinal beam reinforcement | 57152-33030 |
| 57155 | No. 3 right front longitudinal beam reinforcement | 57155-33030 |
| 57156 | No. 3 left front longitudinal beam reinforcement | 57156-33030 |
| 57167E | Front cross member right corner panel | 57167-33020 |
| 57168E | Front cross member left corner panel | 57168-33020 |
| 57401 | Main floor right longitudinal beam sub-assembly | 57401-06241 · 57401-06251 |
| 57402 | Main floor left longitudinal beam sub-assembly | 57402-06231 · 57402-06241 |
| 57419D | Front floor right rear lower reinforcement | 57419-06060 · 57419-06070 |
| 57429D | Left rear reinforcement under front floor | 57429-06030 · 57429-06040 |
| 57451B | Front floor right cross member | 57451-06090 · 57451-06100 |
| 57452 | Front floor left cross member | 57452-06061 · 57452-06071 |
| 57453D | Front floor right cross member | 57453-06090 · 57453-06100 |
| 57454C | Front floor left longitudinal beam | 57454-06090 · 57454-06100 |
| 57475E | Front floor right cross member panel | 57475-06050 · 57475-33010 |
| 57476C | Front floor left cross member panel | 57476-06040 · 57476-33010 |
| 57601 | Rear floor right longitudinal beam sub-assembly | 57601-06352 · 57601-06361 · 57601-06372 · 57601-06381 · 57601-06410 |
| 57602 | Rear floor left longitudinal beam sub-assembly | 57602-06160 · 57602-06170 |
| 57605B | Rear floor No. 1 cross member sub-assembly | 57605-06181 · 57605-06190 · 57605-06191 |
| 57606C | Rear floor No. 2 cross member sub-assembly | 57606-06130 · 57606-06160 |
| 57615A | Rear floor right rear longitudinal member | 57615-06928 · 57615-06929 · 57615-06930 |
| 57616A | Rear floor left rear longitudinal member | 57616-06920 |
| 57654C | Rear floor beam No. 3 | 57654-06030 · 57654-06040 |
| 58105E | Front floor and rear upper sub-panel sub-assembly | 58105-06020 · 58105-06030 · 58105-06031 |
