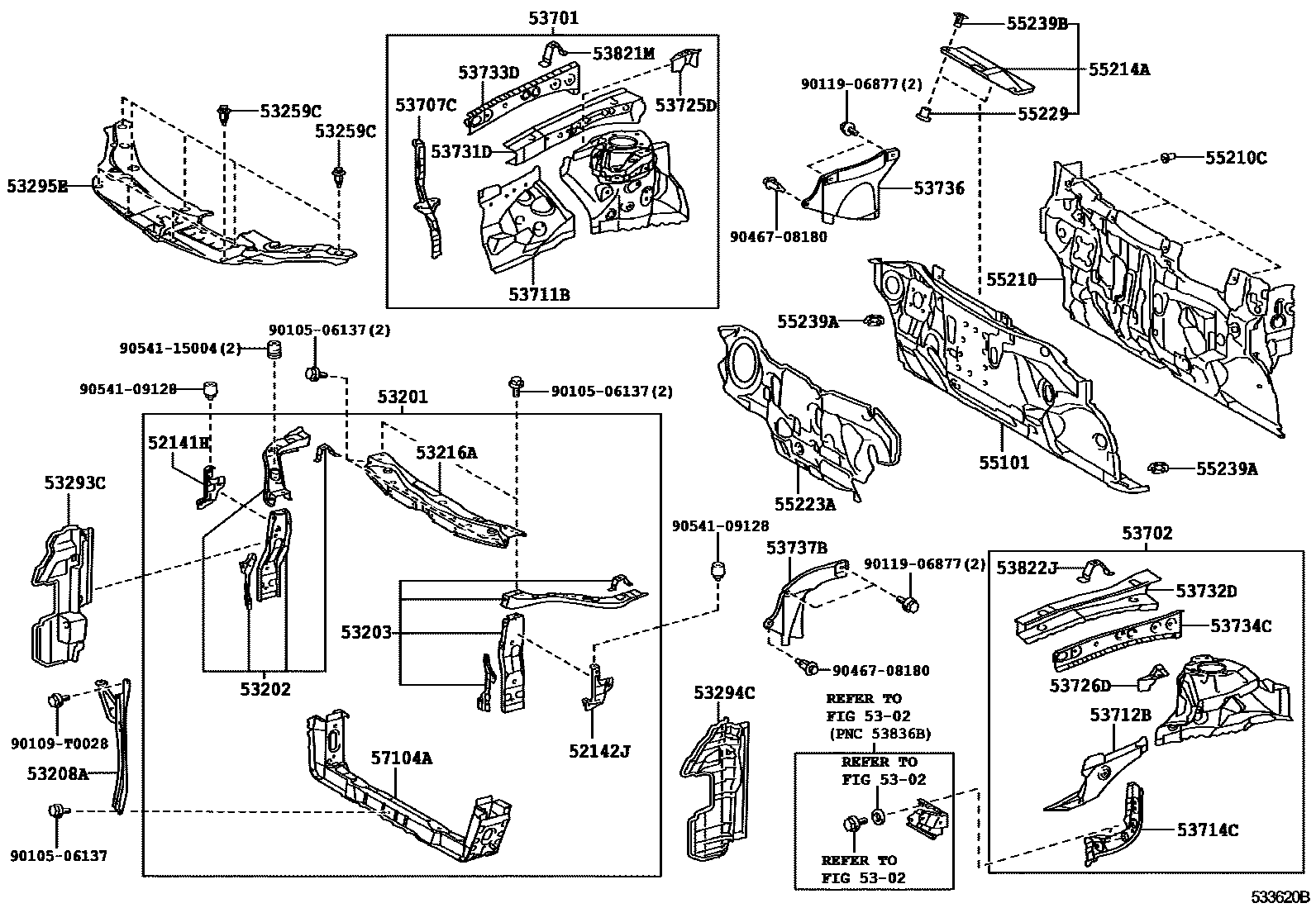

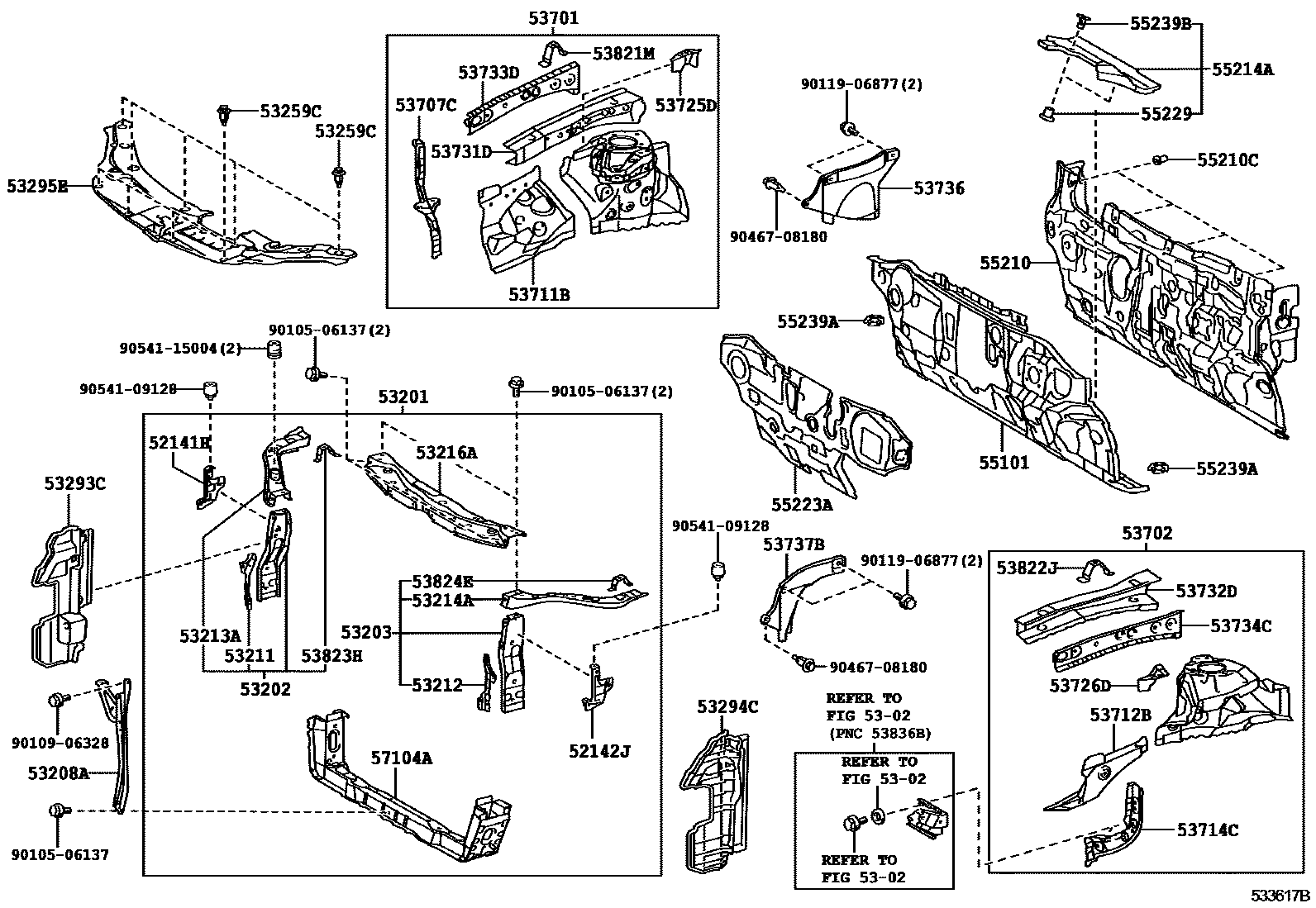

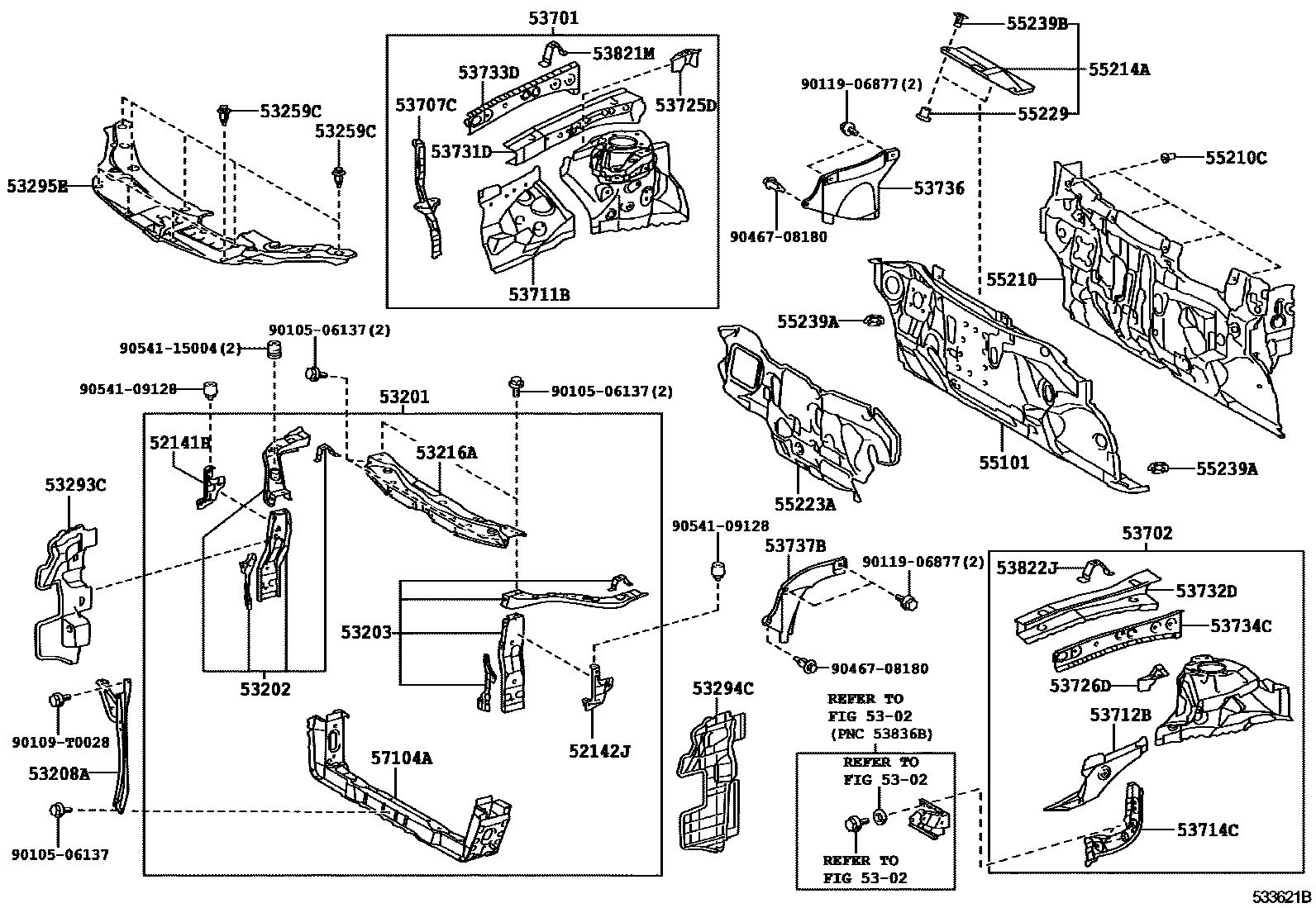

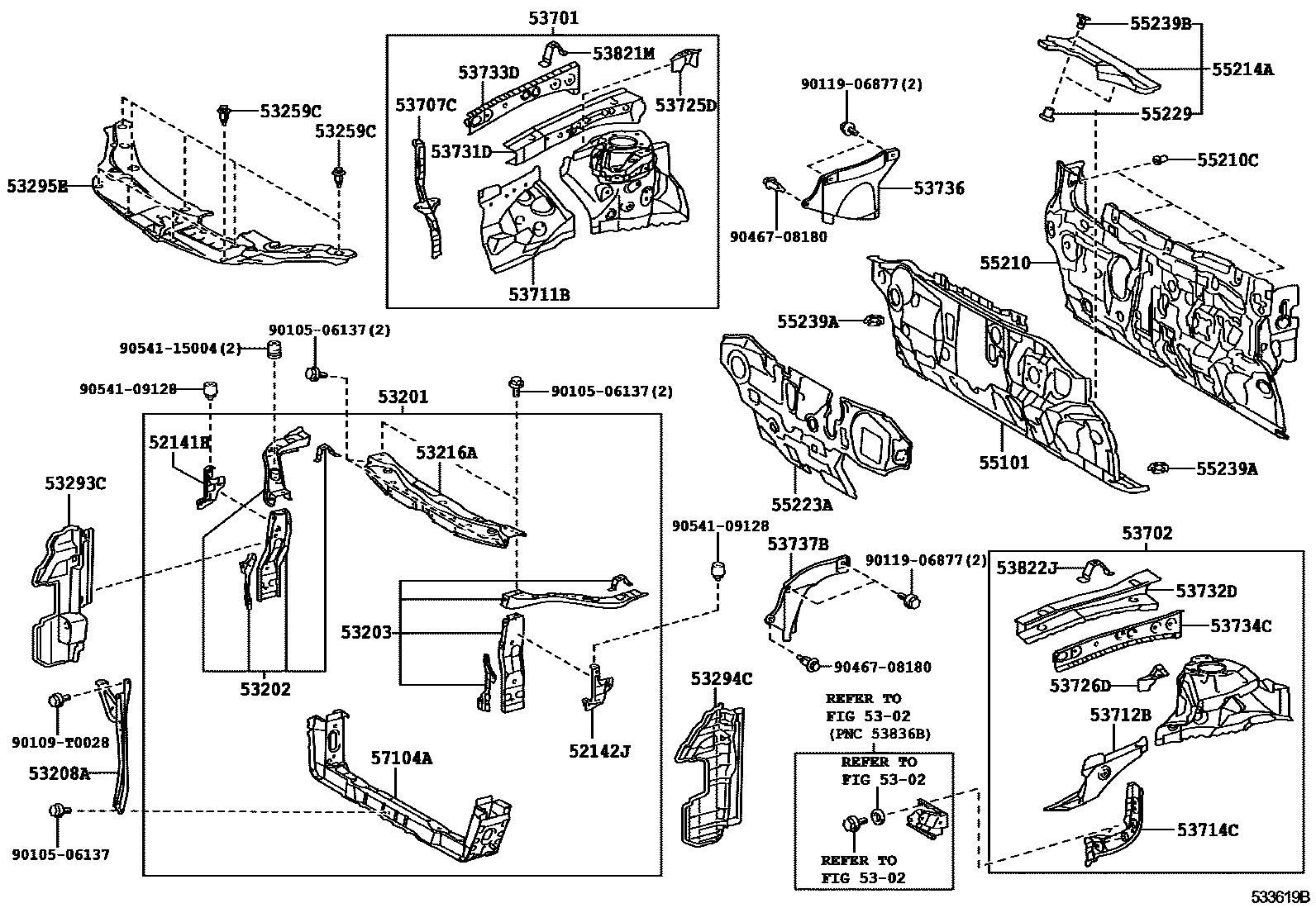

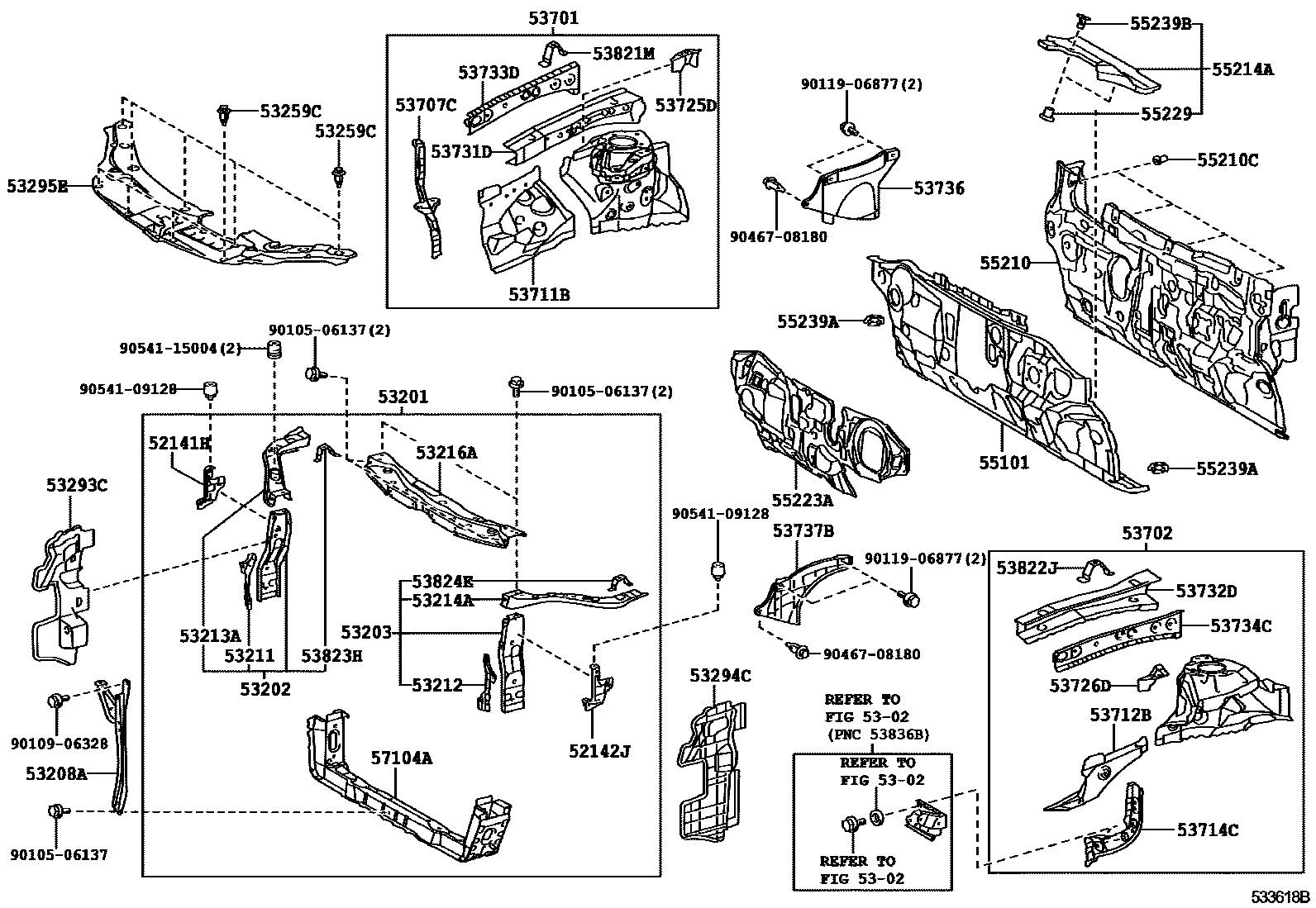

Toyota CAMRY 前翼子板挡泥板和前围板 — Figure 5304
Toyota CAMRY EPC diagram 5304, 前翼子板挡泥板和前围板, with 5 images and 42 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52141H | Front bumper right upper arm | 52141-06130 · 52141-06140 |
| 52142J | Front bumper left upper arm | 52142-06110 · 52142-06120 |
| 53201 | Radiator bracket sub-assembly | 53201-06252 · 53201-06262 |
| 53202 | Radiator right side bracket sub-assembly | 53202-06161 · 53202-06171 |
| 53203 | Radiator left bracket sub-assembly | 53203-06201 · 53203-06211 · 53203-06212 |
| 53208A | Engine cover lock bracket sub-assembly | 53208-06110 · 53208-06111 · 53208-06120 · 53208-06121 · 53208-06130 |
| 53211 | Radiator right side support | 53211-06061 |
| 53212 | Radiator left support | 53212-06061 |
| 53213A | Radiator upper right bracket | 53213-06130 |
| 53214A | Radiator upper left bracket | 53214-06150 |
| 53216A | Radiator upper bracket | 53216-06160 · 53216-06170 |
| 53259C | Clip (radiator bracket to frame seal) | 90467-07211 · 90467-07217 |
| 53293C | Radiator right baffle | 53293-06270 · 53293-06280 · 53293-06290 · 53293-06300 · 53293-06410 · 53293-06420 · 53293-06430 · 53293-06440 |
| 53294C | Radiator left baffle | 53294-06260 · 53294-06270 · 53294-06280 · 53294-06290 · 53294-06410 · 53294-06420 · 53294-06430 · 53294-06440 |
| 53295E | Cold air intake pipe seal | 53295-06090 · 53295-06100 · 53295-06150 · 53295-06160 |
| 53701 | Right front fender fender sub-assembly | 53701-06200 · 53701-06210 |
| 53702 | Left front fender fender sub-assembly | 53702-06180 · 53702-06190 |
| 53707C | Right front fender fender front extension sub-assembly | 53707-06030 · 53707-06040 |
| 53711B | Right front fender front fender | 53711-06150 · 53711-06160 |
| 53712B | Left front fender front fender | 53712-06110 · 53712-06120 |
| 53714C | Left front fender fender front extension | 53714-06120 · 53714-06130 |
| 53725D | No. 2 front spring bracket right side reinforcement | 53725-06060 · 53725-06070 |
| 53726D | No. 2 left front fender fender | 53726-06070 · 53726-06080 |
| 53731D | Right front fender to cowl side upper beam | 53731-06160 · 53731-06170 |
| 53732D | Left front fender to cowl side upper beam | 53732-06150 · 53732-06160 |
| 53733D | Right front fender to cowl side front lower beam | 53733-06120 · 53733-06130 |
| 53734C | Left front fender to cowl side front lower beam | 53734-06120 · 53734-06130 |
| 53736 | Right front fender fender seal | 53736-06080 · 53736-06090 |
| 53737B | Left front fender fender seal | 53737-06090 · 53737-06100 · 53737-06110 · 53737-06120 |
| 53821M | No. 1 right front fender rear bracket | 53821-06090 · 53821-06100 |
| 53822J | No. 1 left front fender rear bracket | 53822-06090 · 53822-06100 |
| 53823H | Right front fender corner panel | 53823-06090 |
| 53824E | Left front fender corner panel | 53824-06090 |
| 55101 | Front apron sub-assembly | 55101-06520 · 55101-06530 · 55101-06540 |
| 55210 | Front wall insulation pad assembly | 55210-06330 · 55210-06340 · 55210-06350 · 55210-06361 · 55210-06371 |
| 55210C | clip | 90467-06197 · 90467-T0032 |
| 55214A | No. 2 insulation pad for front wall panel | 55214-06051 · 55214-06110 |
| 55223A | Front wall outer heat insulation pad | 55223-06370 · 55223-06380 · 55223-06381 · 55223-06390 · 55223-06400 · 55223-06410 |
| 55229 | No. 4 heat insulation pad for front wall | 55229-48020 |
| 55239A | No. 3 insulation pad for front wall panel | 55239-06040 · 55239-33020 |
| 55239B | Footrest No. 2, front floor | 55239-48020 |
| 57104A | Front cross member sub-assembly | 57104-06021 · 57104-06031 |
