Toyota CAMRY 发动机盖锁和铰链 — Figure 5303

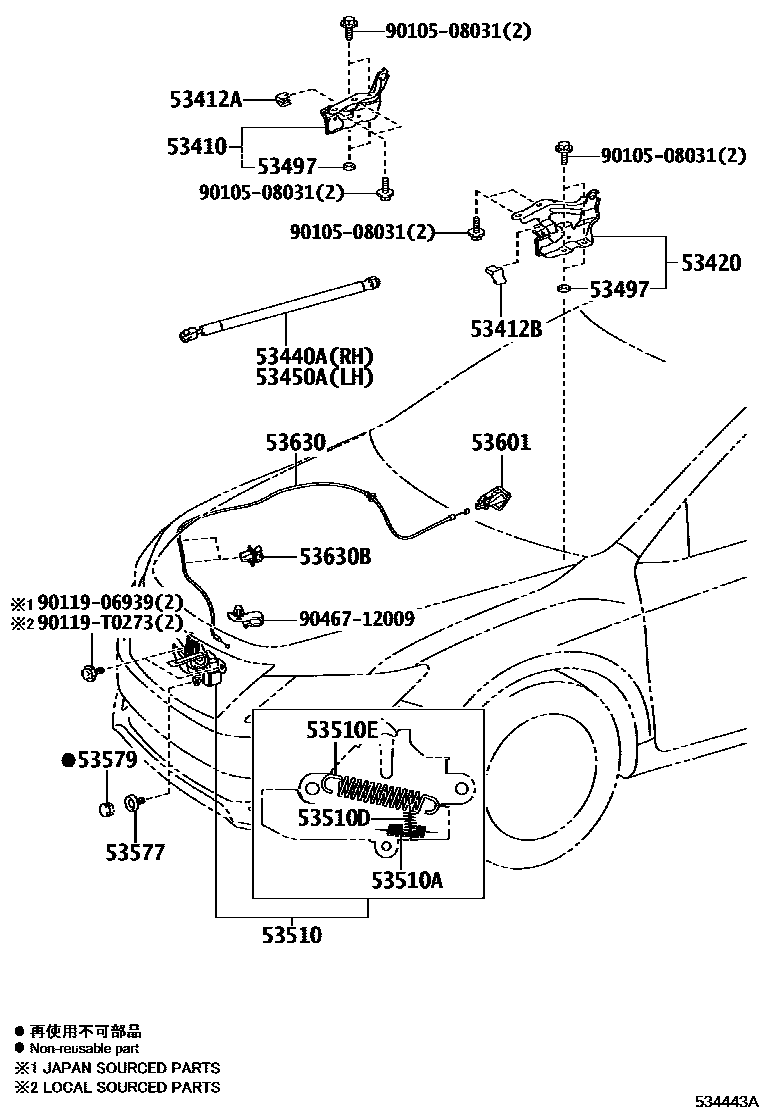

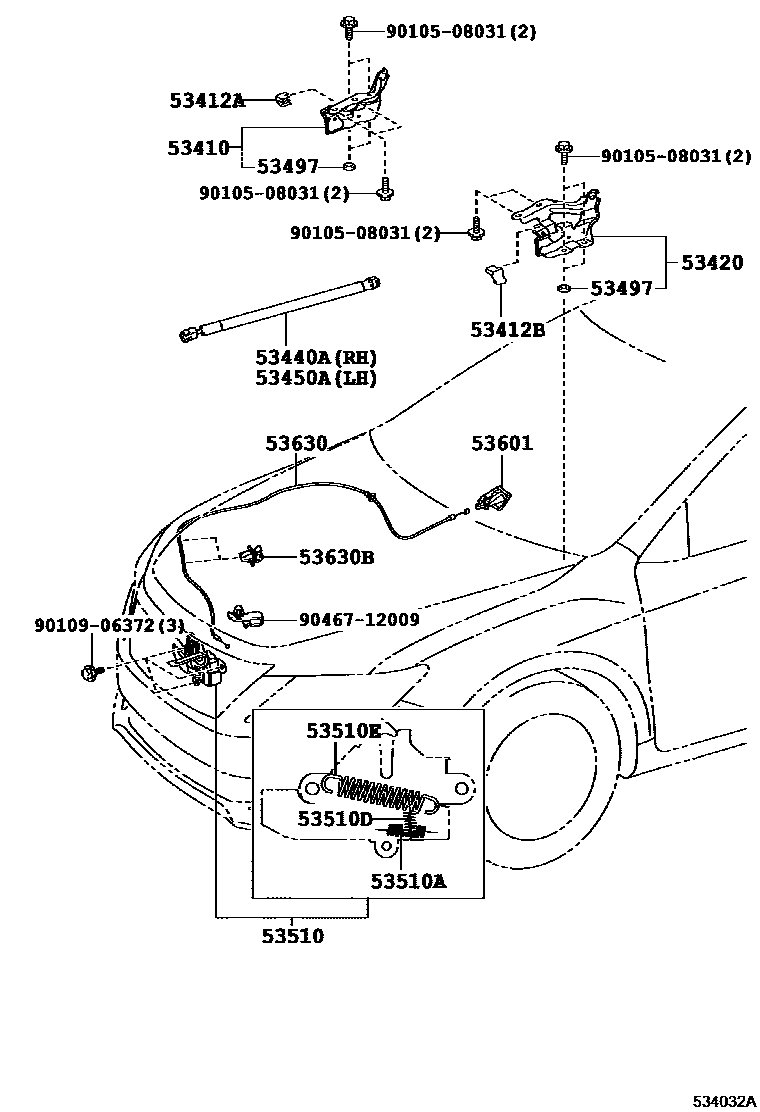

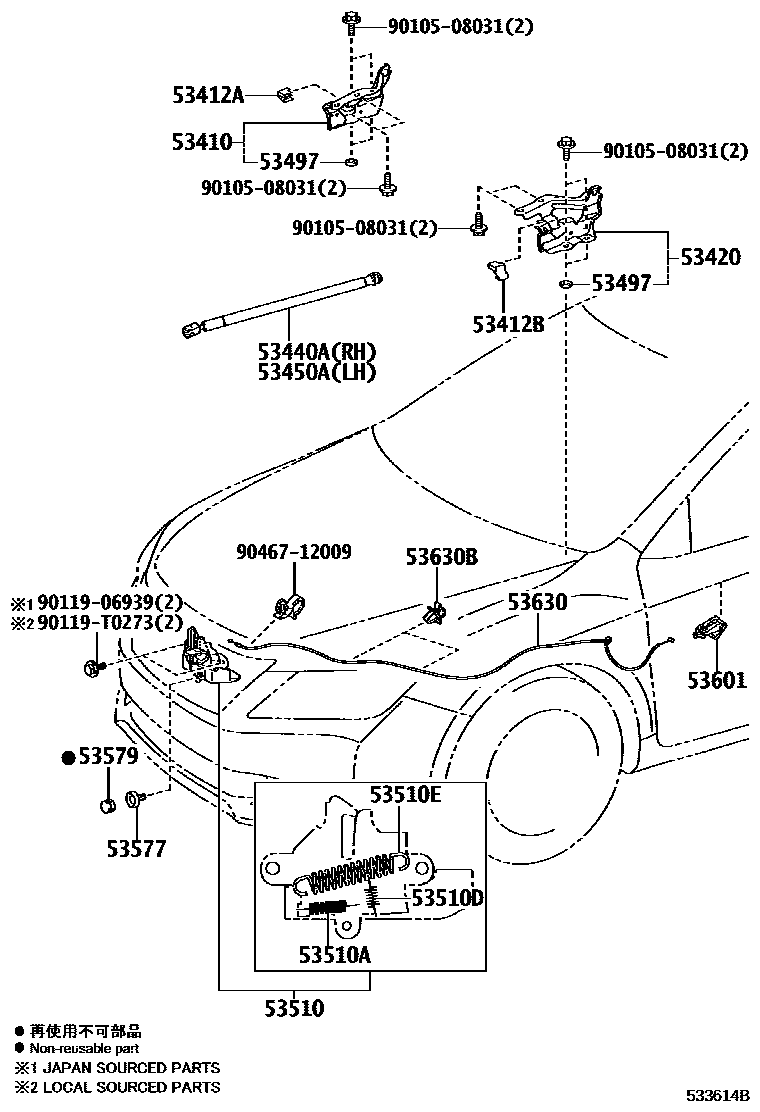

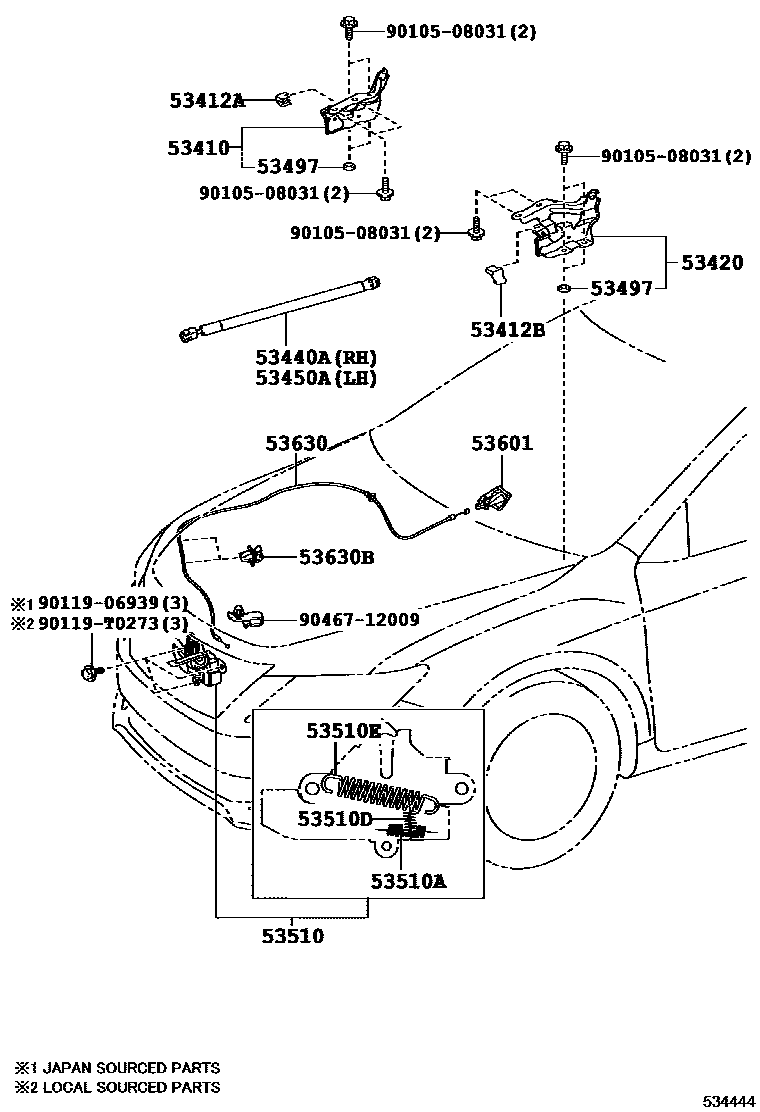

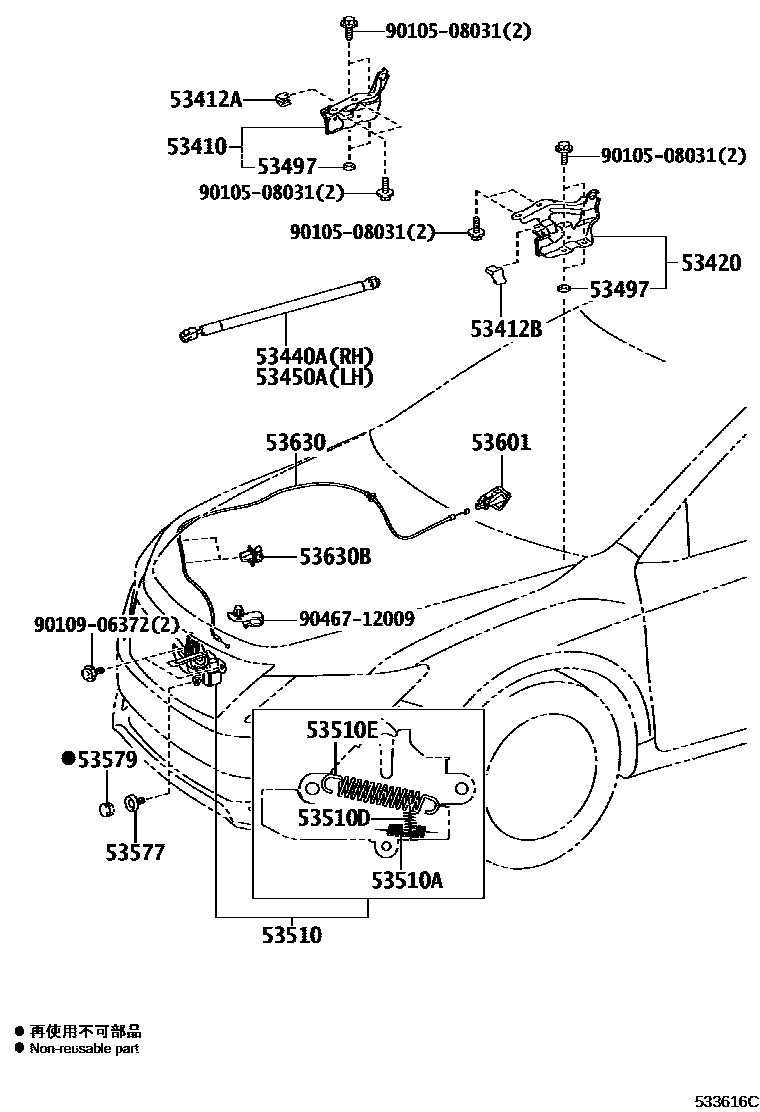

Toyota CAMRY EPC diagram 5303, 发动机盖锁和铰链, with 5 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53410 | Engine cover right hinge assembly | 53410-06260 · 53410-06310 |
| 53412A | Engine cover right hinge plate cushion pad | 53412-33090 |
| 53412B | Engine cover left hinge plate buffer pad | 53412-33100 |
| 53420 | Engine cover left hinge assembly | 53420-06260 · 53420-06310 |
| 53440A | Engine cover right support rod assembly | 53440-06130 |
| 53450A | Engine cover left support rod assembly | 53450-06120 |
| 53497 | No. 1 engine cover hinge gasket | 53497-20070 · 53497-42010 |
| 53510 | Engine cover lock assembly | 53510-06240 · 53510-06241 · 53510-06250 · 53510-06251 · 53510-06252 · 53510-33370 · 53510-33470 |
| 53510A | Tension spring (for hood lock) | 90506-09055 · 90506-T0005 |
| 53510D | Tension spring (for hood lock) | 90506-12063 · 90506-T0004 |
| 53510E | Tension spring (for hood lock) | 90506-18067 · 90506-T0003 |
| 53577 | engine cover lock bolt | 53577-33010 |
| 53579 | Engine hood lock nut cover | 53579-50010 |
| 53630 | Engine hood lock control cable assembly | 53630-06200 · 53630-06210 |
| 53630B | Clip (for hood lock control cable) | 90469-06005 · 90469-T0003 |
