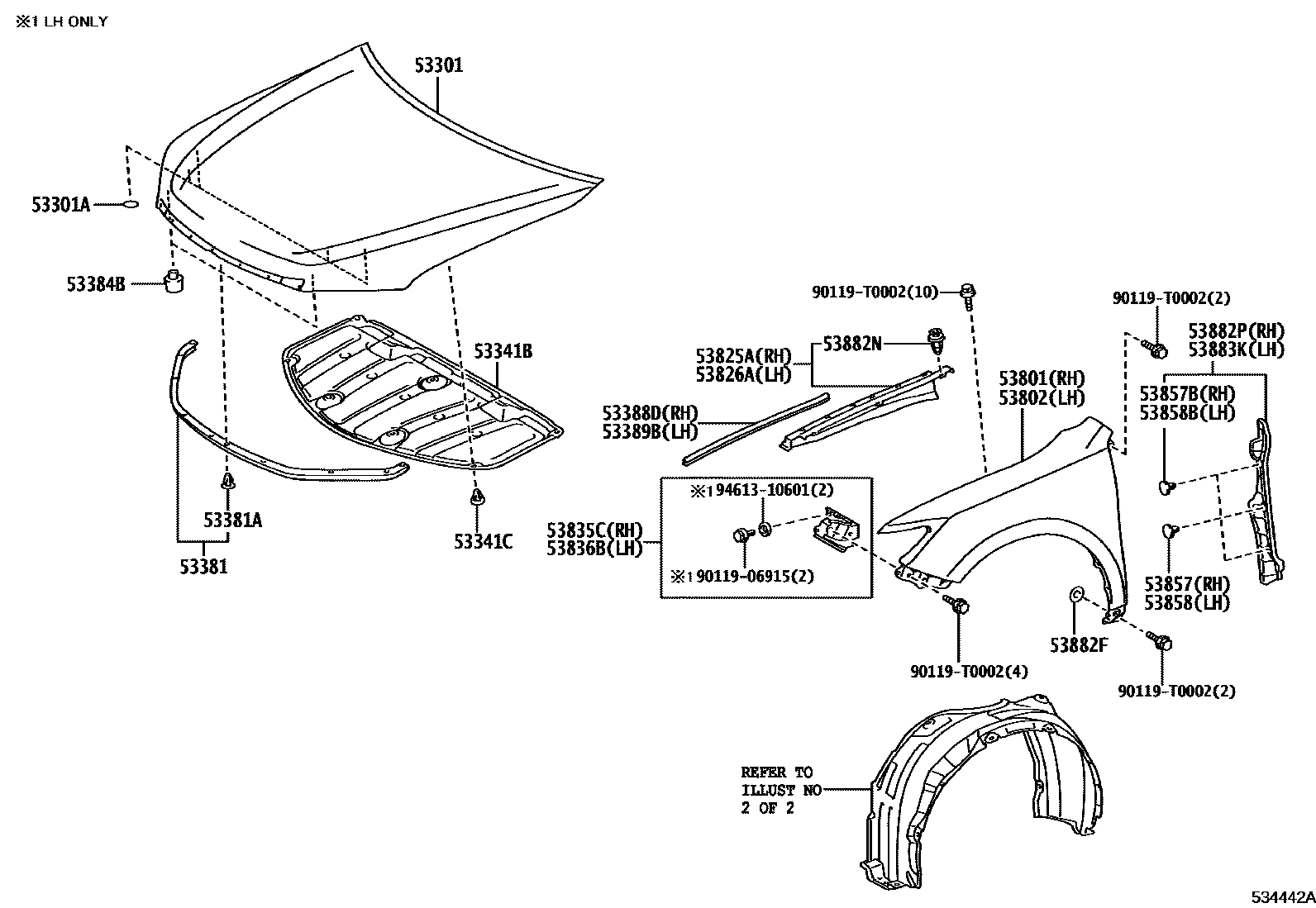

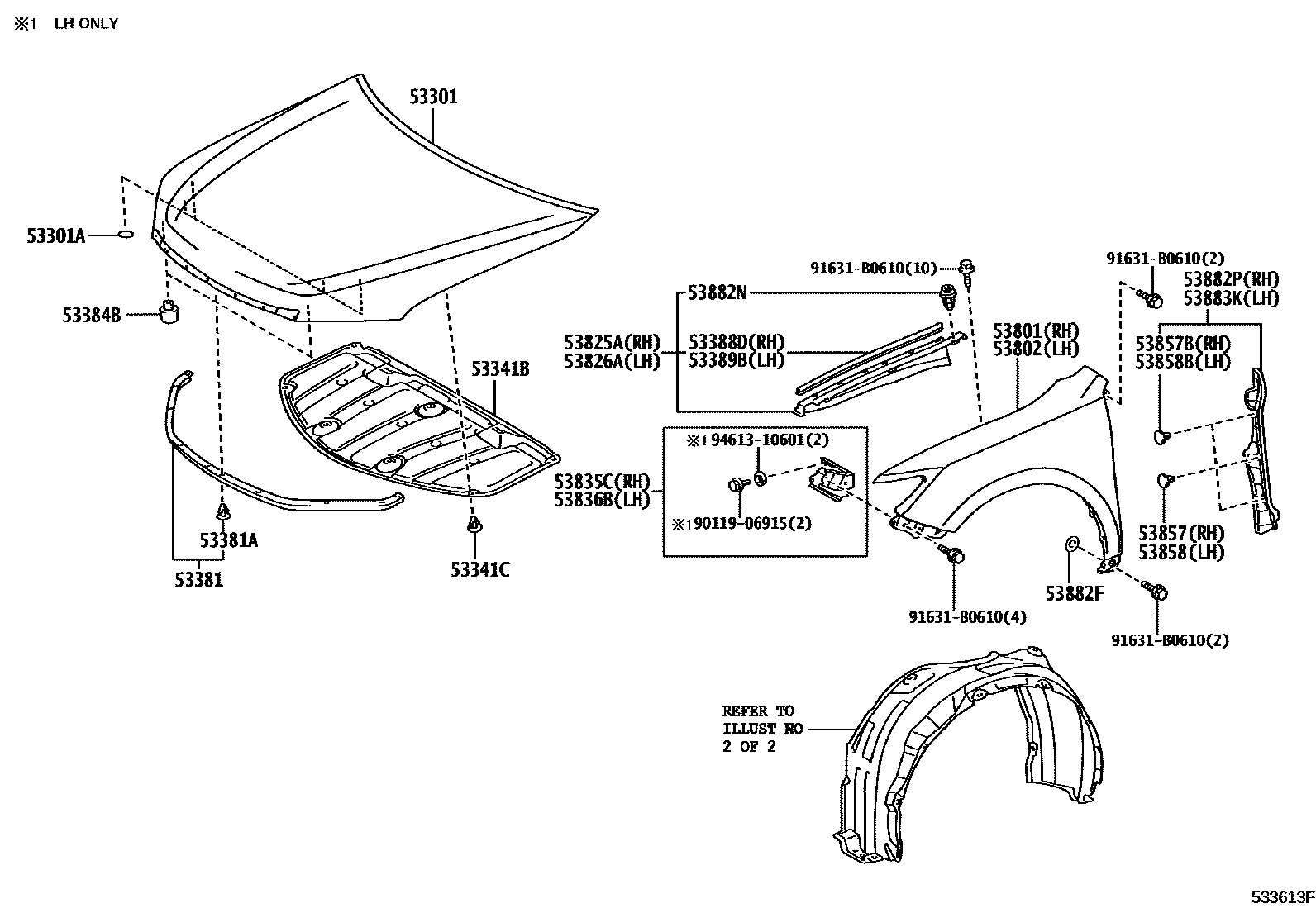

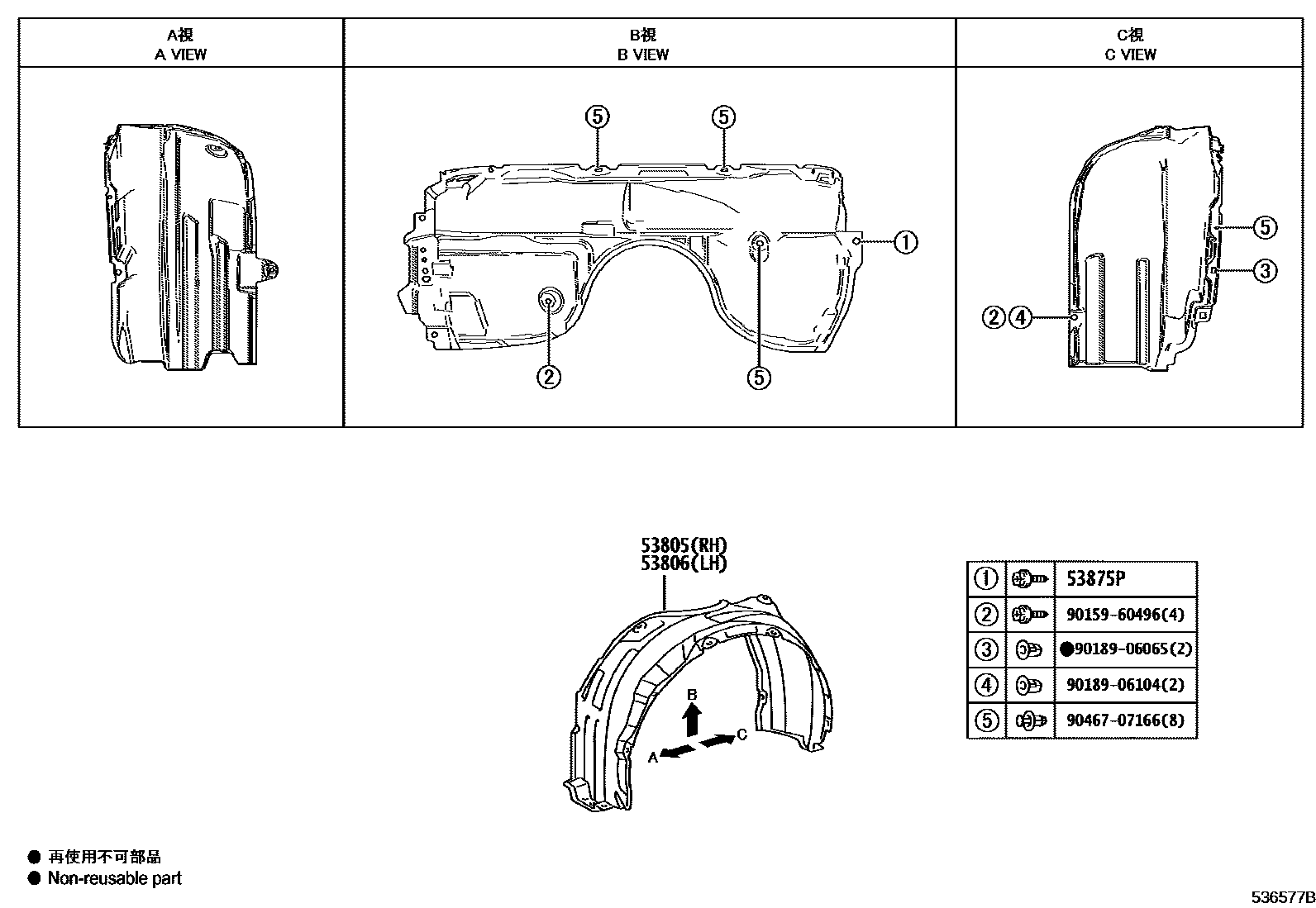

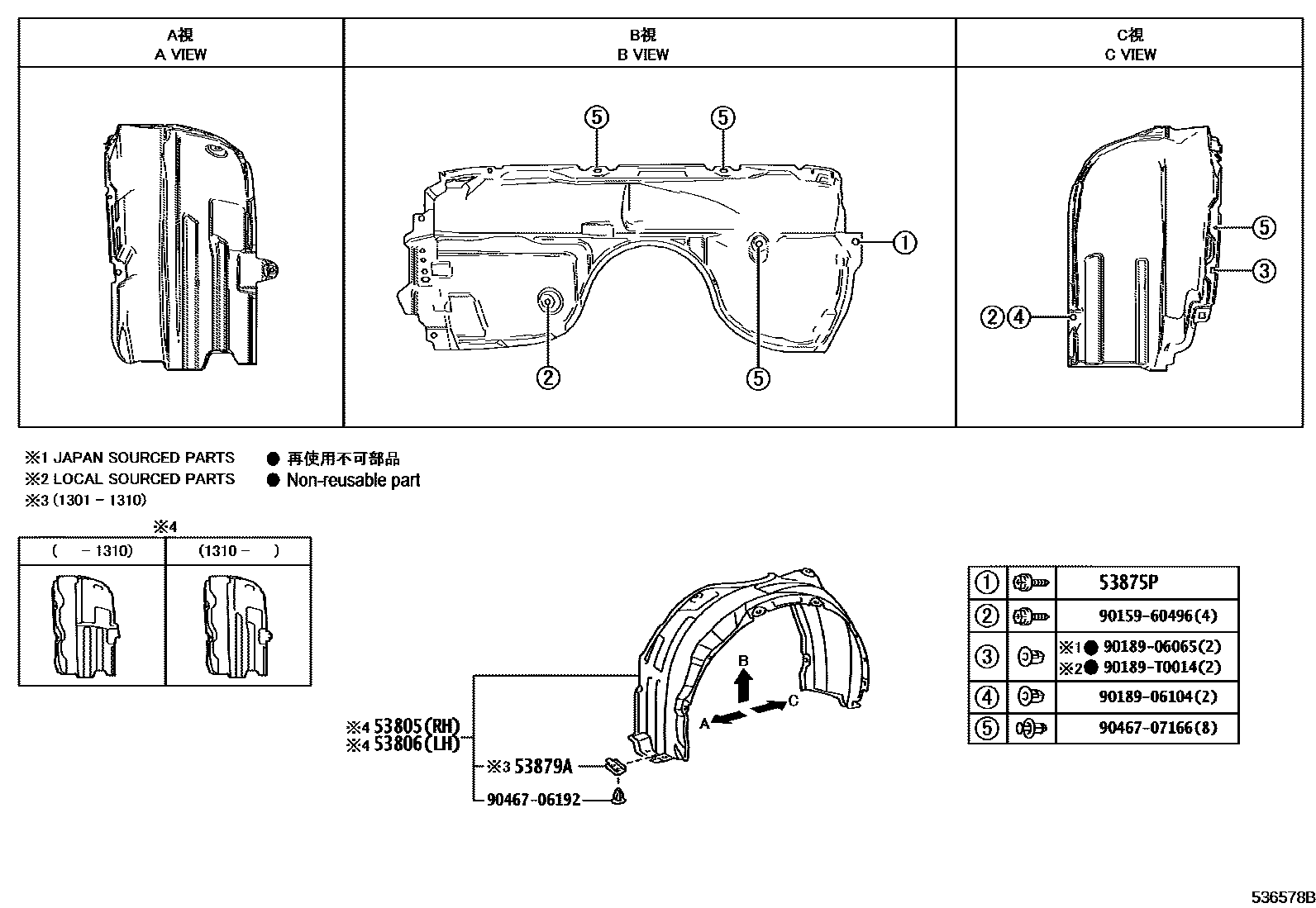

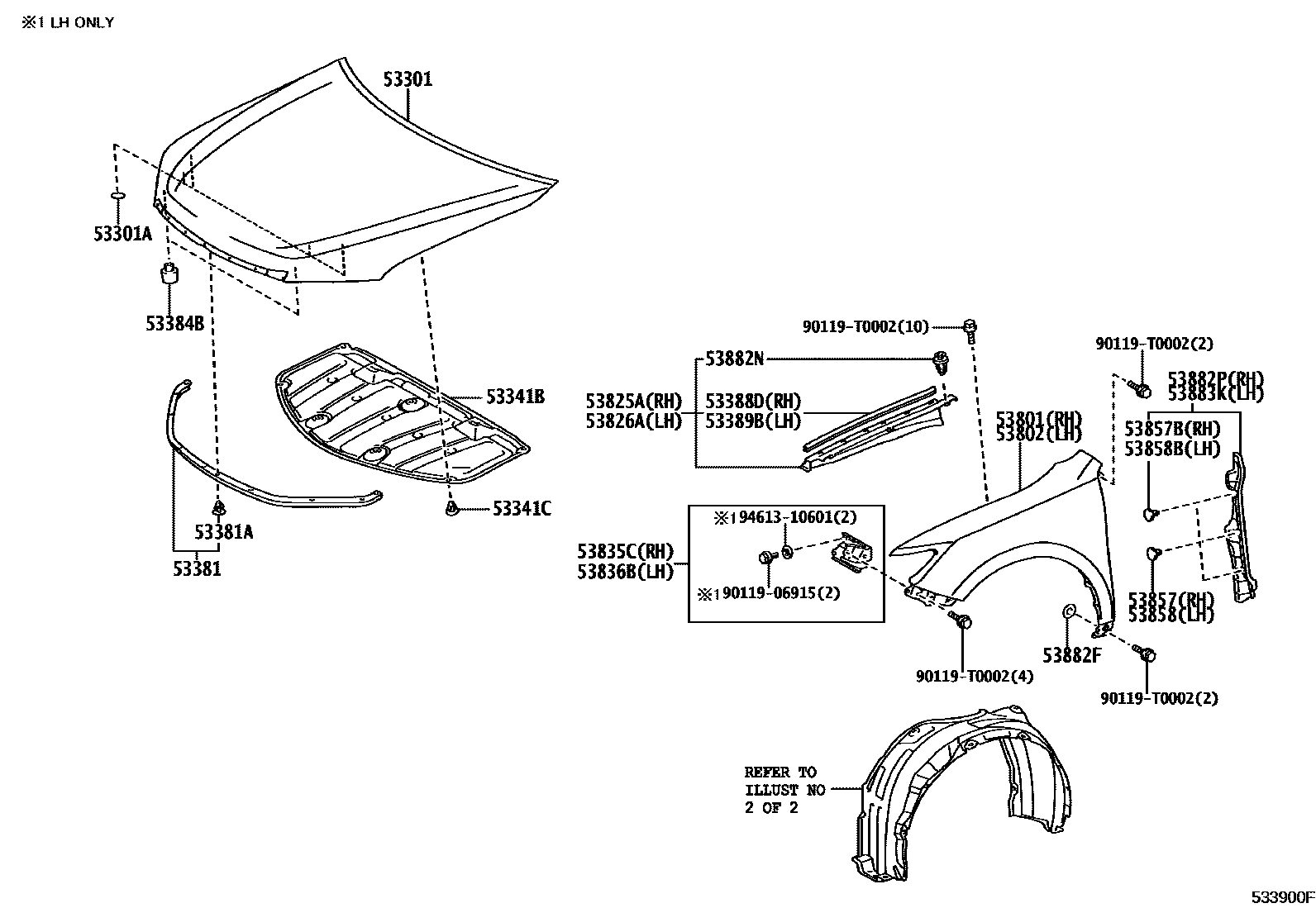

Toyota CAMRY 发动机盖和前翼子板 — Figure 5302
Toyota CAMRY EPC diagram 5302, 发动机盖和前翼子板, with 5 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53301 | Engine cover sub-assembly | 53301-06190 · 53301-06191 · 53301-06200 · 53301-06201 · 53301-06280 · 53301-06290 |
| 53301A | Hole plug (for engine cover) | 90950-06096 · 90950-06124 · 90950-T6002 |
| 53341B | engine cover gasket | 53341-06320 · 53341-06330 · 53341-06340 · 53341-06350 |
| 53341C | Clip (for engine cover gasket) | 90467-09050 · 90467-T0014 |
| 53381 | Engine cover to radiator bracket seal | 53381-06130 · 53381-06140 · 53381-06150 |
| 53381A | Clip (for engine cover to radiator bracket seal) | 90467-08011 · 90467-T0013 |
| 53384B | Engine cover center cushion | 53384-22080 |
| 53388D | Engine cover to right front fender seal | 53388-06100 · 53388-06110 · 53388-06120 |
| 53389B | Engine cover to left front fender seal | 53388-06100 · 53388-06110 · 53388-06120 |
| 53801 | Right front fender sub-assembly | 53811-06170 · 53811-06180 |
| 53802 | Left front fender sub-assembly | 53812-06180 · 53812-06190 |
| 53805 | Right front fender splash guard sub-assembly | 53805-06050 · 53805-06070 · 53805-06080 · 53805-06081 · 53805-06150 · 53805-06160 |
| 53806 | Left front fender splash guard sub-assembly | 53806-06060 · 53806-06080 · 53806-06090 · 53806-06091 · 53806-06150 · 53806-06160 |
| 53825A | Right front fender protection piece | 53825-06100 · 53825-06110 · 53825-06120 |
| 53826A | Protection piece on left front fender | 53826-06100 · 53826-06110 · 53826-06120 |
| 53835C | Right front side panel bracket | 53835-06100 · 53835-06110 |
| 53836B | Left front side panel bracket | 53804-33030 |
| 53857 | Right front fender external panel fixing piece | 53857-47011 |
| 53857B | Right front fender external panel fixing piece | 53857-47011 |
| 53858 | Left front fender external panel fixing piece | 53857-47011 |
| 53858B | Left front fender external panel fixing piece | 53857-47011 |
| 53875P | Screw No. 1 | 90159-60488 · 90159-T0033 |
| 53879A | Front fender lining fixing parts | 53879-28040 |
| 53882F | front fender seal | 53882-0K020 · 53882-30030 |
| 53882N | Clip (for front fender seal) | 90467-09219 · 90467-T0011 |
| 53882P | Right front fender seal | 53882-06130 · 53882-06140 |
| 53883K | Left front fender seal | 53883-06120 · 53883-06130 |
