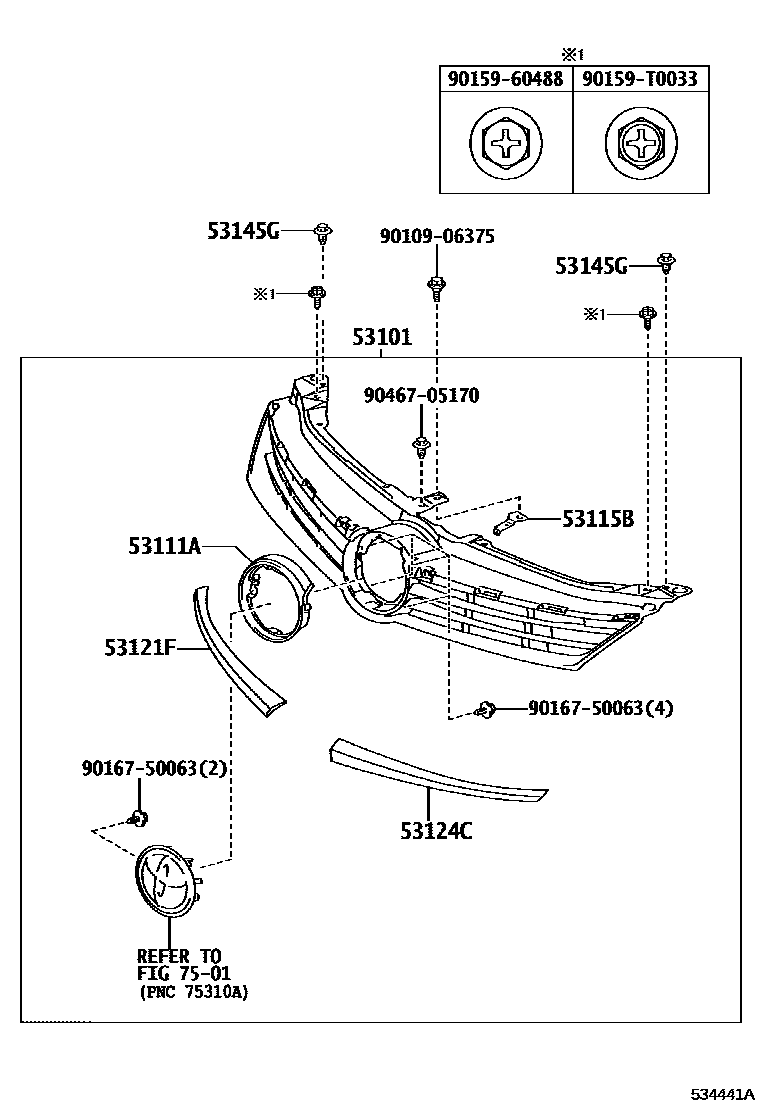

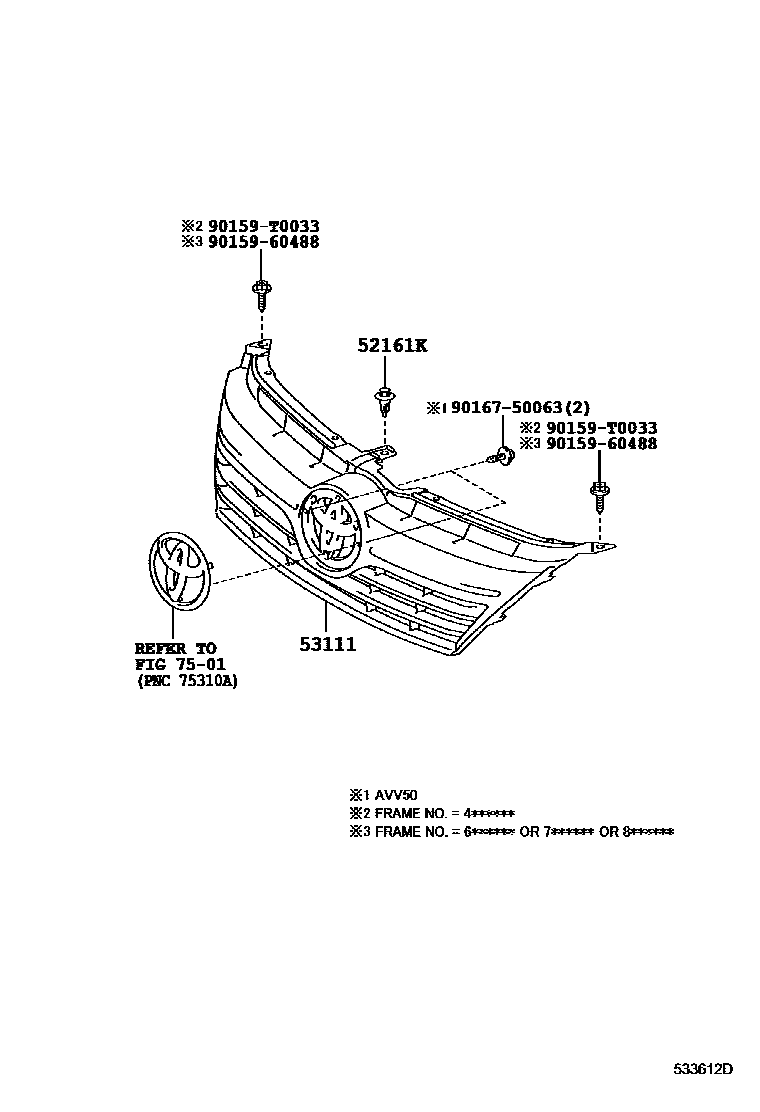

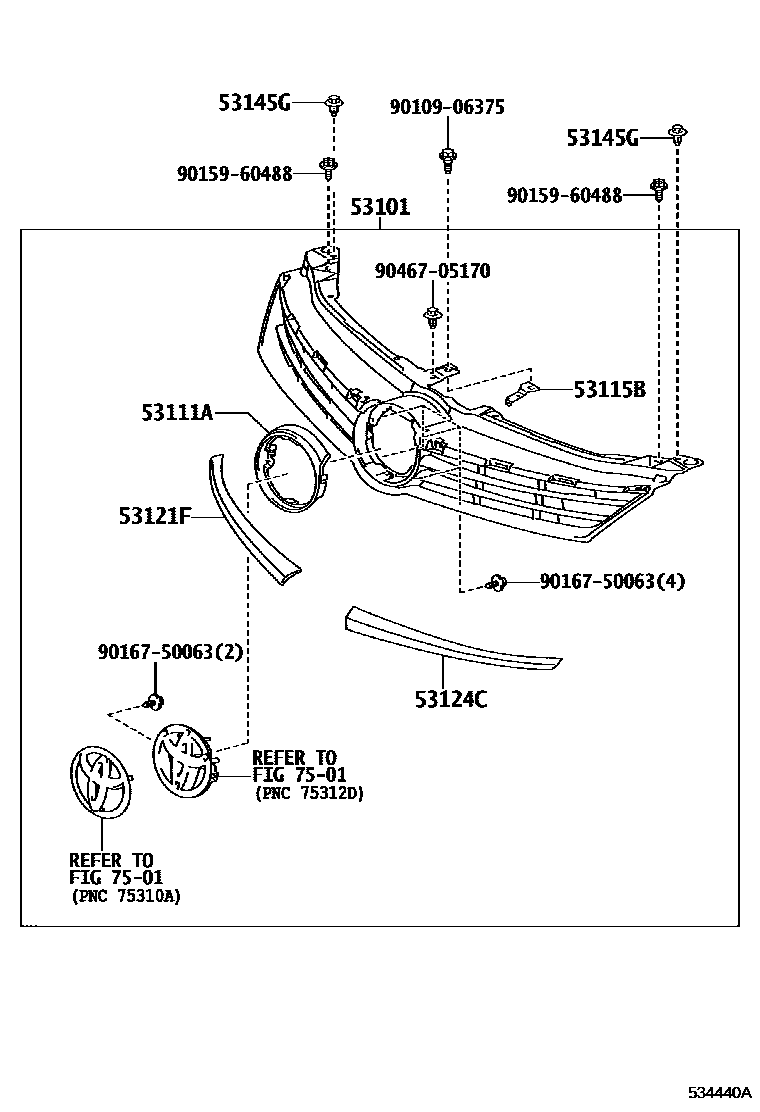

Toyota CAMRY radiator grille — Figure 5301
Toyota CAMRY EPC diagram 5301, radiator grille, with 3 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52161K | front bumper insert | 52161-0K040 · 52161-16010 |
| 53101 | Radiator grille sub-assembly | 53101-06820 · 53101-06830 · 53101-06860 · 53101-06870 · 53101-06907 · 53101-06908 · 53101-06909 · 53101-06910 · 53101-06D40 · 53101-06D50 · 53101-06D70 · 53101-06D80 |
| 53111 | radiator grille | 53111-06560 · 53111-06570 · 53111-06580 · 53111-06590 |
| 53111A | Radiator grille outside | 53111-06740 · 53111-06750 |
| 53115B | Radiator grille bracket | 53115-06040 · 53115-06050 |
| 53121F | Radiator grille upper right protective strip | 53121-06020 · 53121-06060 |
| 53124C | Radiator grille upper left protective strip | 53124-06020 · 53124-06030 |
