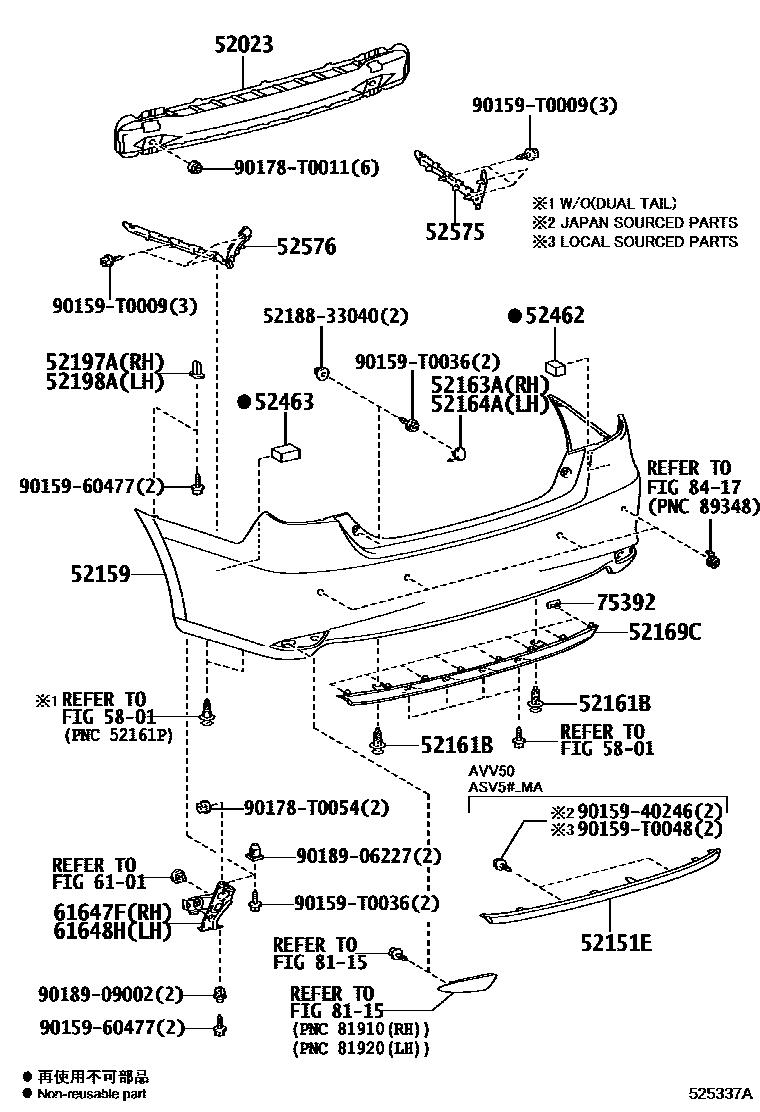

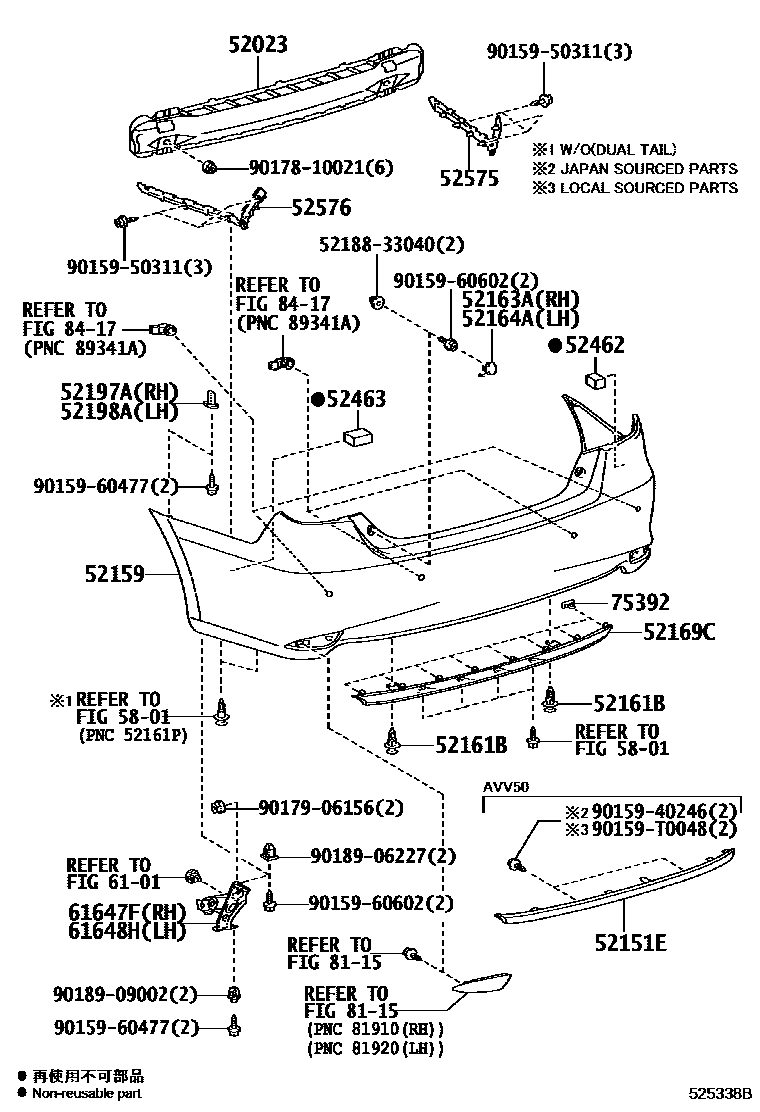

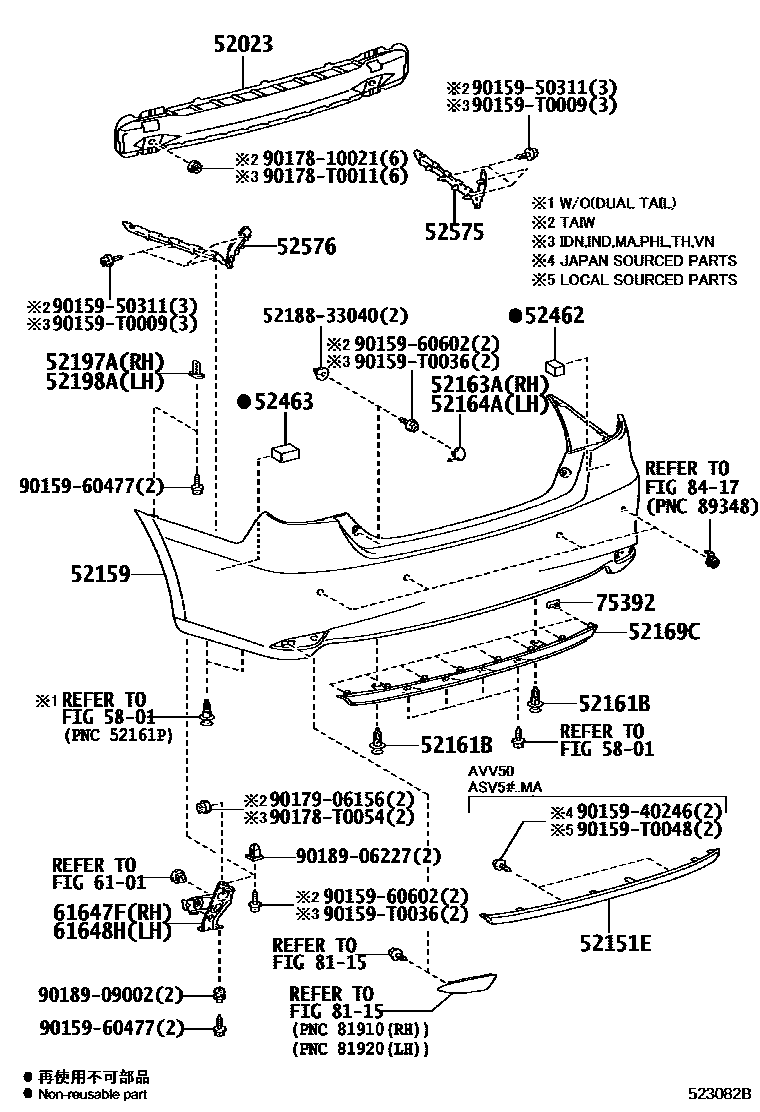

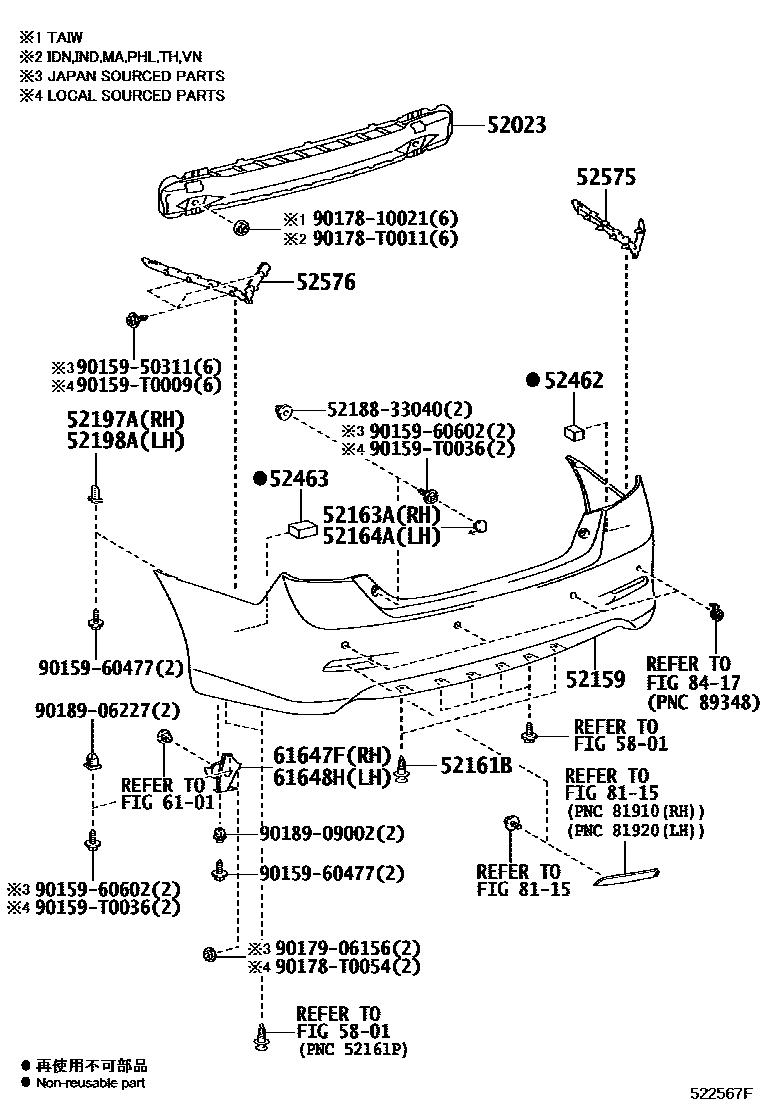

Toyota CAMRY 后保险杠及附件 — Figure 5202
Toyota CAMRY EPC diagram 5202, 后保险杠及附件, with 4 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52023 | Rear bumper reinforcement sub-assembly | 52023-06070 · 52023-06081 · 52023-06121 · 52023-06210 |
| 52151E | rear bumper | 52151-06020 · 52151-06030 |
| 52159 | rear bumper cover | 52159-06974 · 52159-06977 · 52159-06981 · 52159-06983 · 52159-06984 · 52159-06986 · 52159-06994 · 52159-06995 · 52159-0X902 · 52159-0X903 · 52159-0X911 · 52159-0X912 |
| 52161B | Rear bumper insert | 52161-0K040 · 52161-0K060 · 52161-16010 |
| 52163A | Rear bumper right side fender | 52163-06914 · 52163-06915 |
| 52164A | Rear bumper left fender | 52164-06914 · 52164-06915 |
| 52169C | Rear bumper lower cover | 52169-06070 · 52169-06080 · 52169-06090 · 52169-06130 · 52169-06140 |
| 52197A | Rear bumper right seal support | 52197-22020 |
| 52198A | Rear bumper left seal support | 52197-22020 |
| 52462 | Rear bumper right side lining | 52462-06120 · 52462-06130 · 52462-06160 · 52462-06170 |
| 52463 | Rear bumper left lining | 52463-06040 · 52463-06050 · 52463-06090 · 52463-06100 |
| 52575 | Rear bumper right side fixing bracket | 52575-06120 · 52575-06121 · 52575-06130 · 52575-06131 |
| 52576 | Rear bumper left side fixing bracket | 52576-06120 · 52576-06121 · 52576-06130 · 52576-06131 |
| 61647F | Right wheel arch reinforcement | 61647-06120 · 61647-06130 · 61647-06140 · 61647-06150 |
| 61648H | Left wheel arch reinforcement | 61648-06120 · 61648-06130 · 61648-06140 · 61648-06150 |
| 75392 | External protective strip fixings | 75392-33030 |
