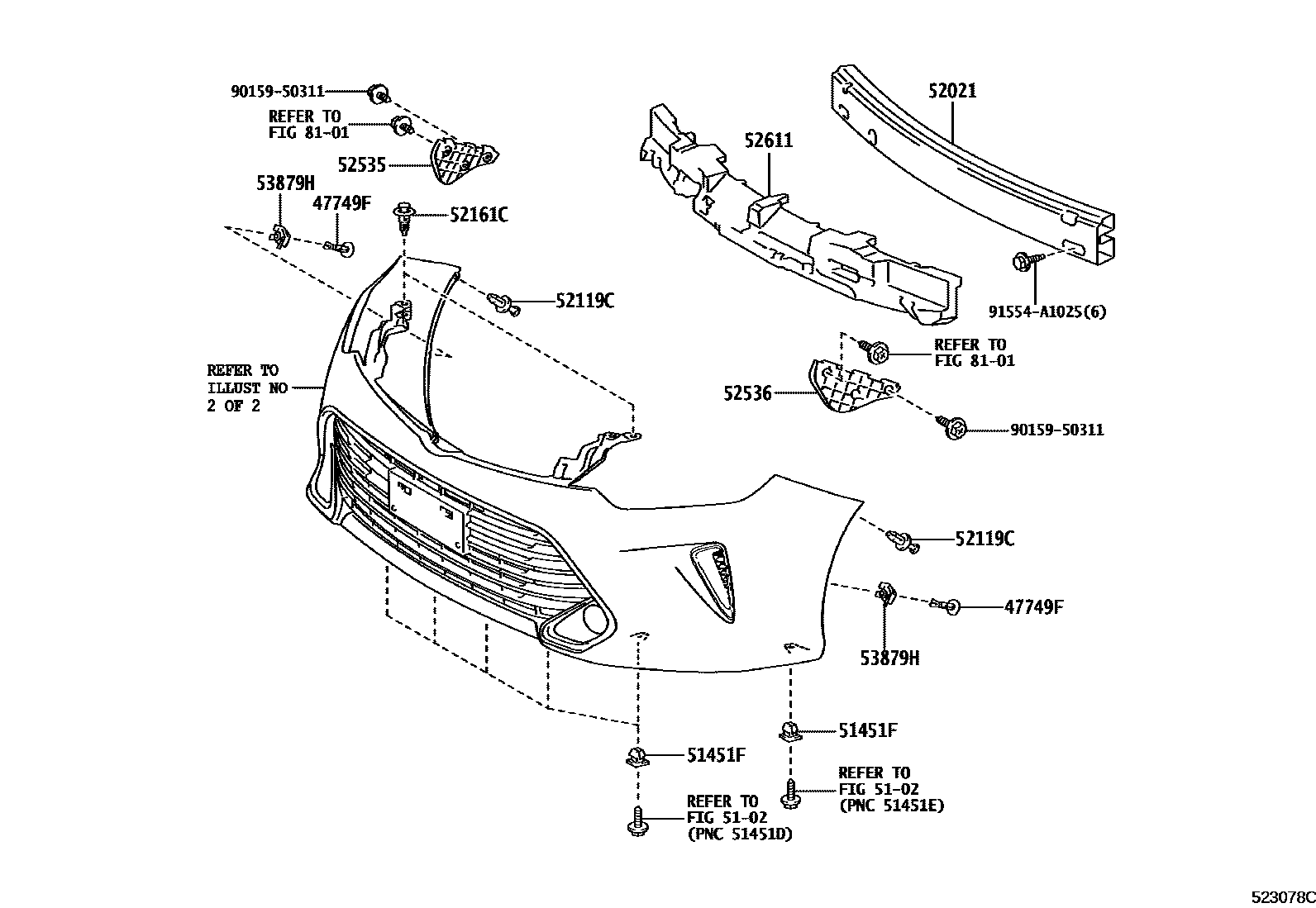

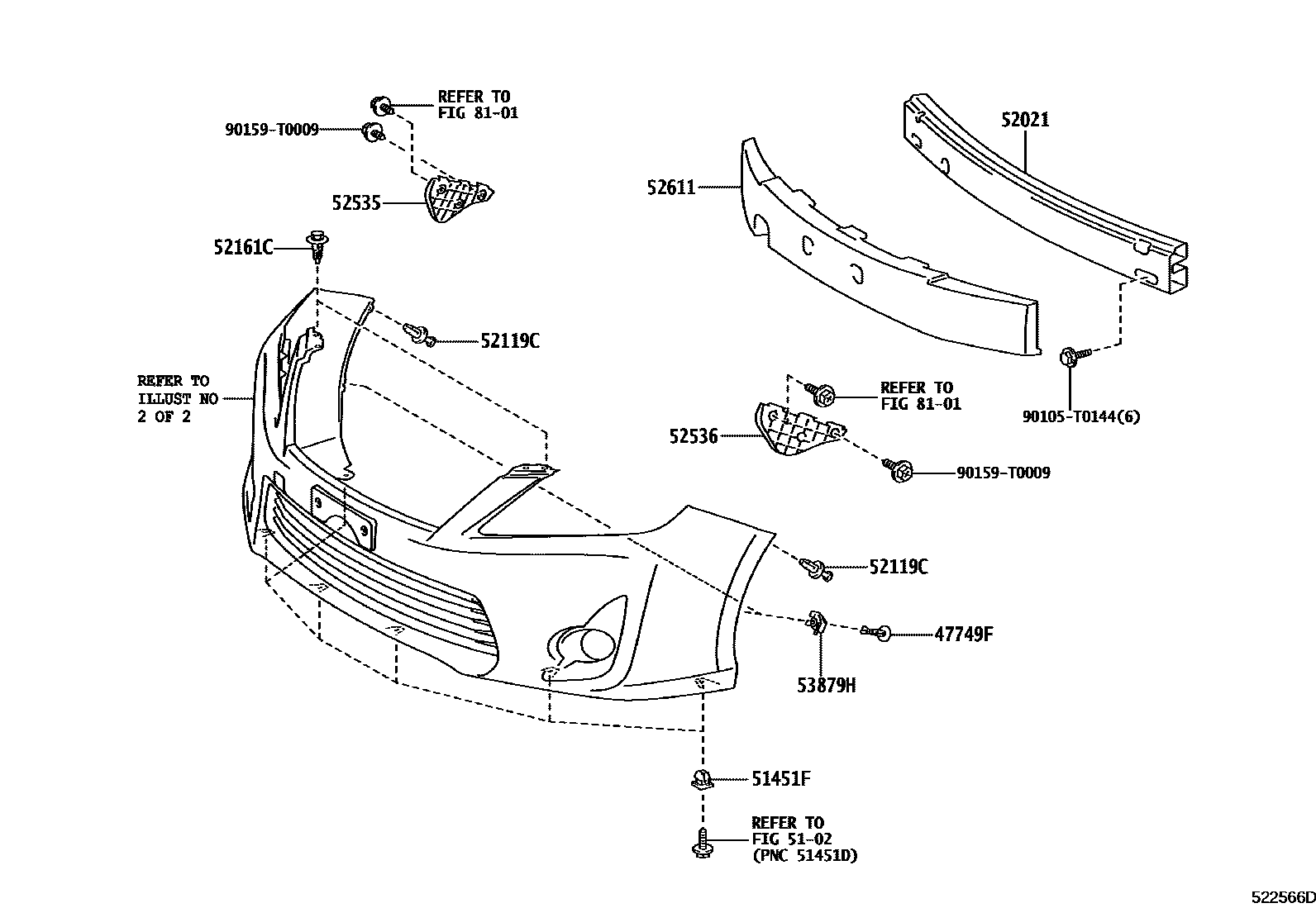

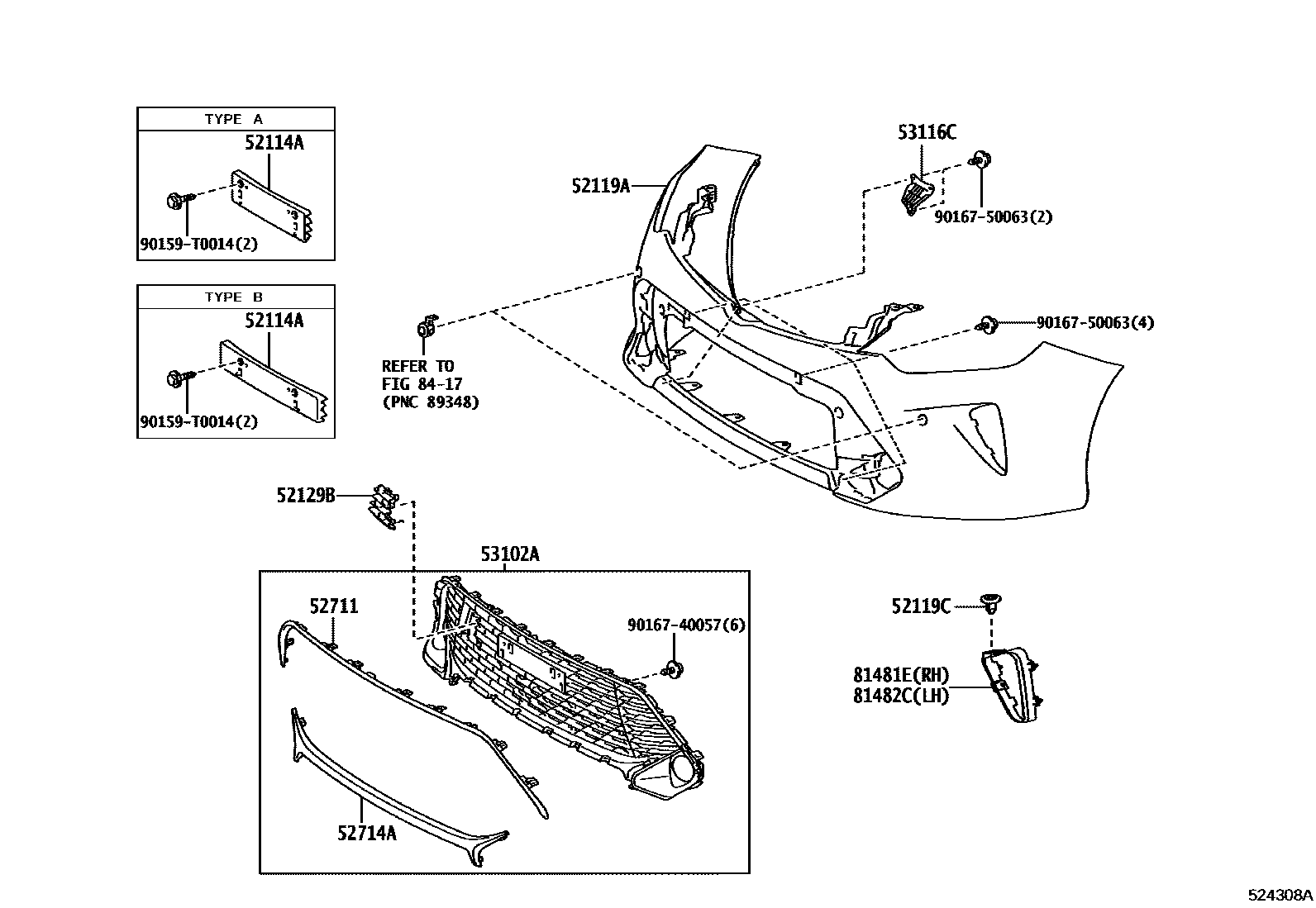

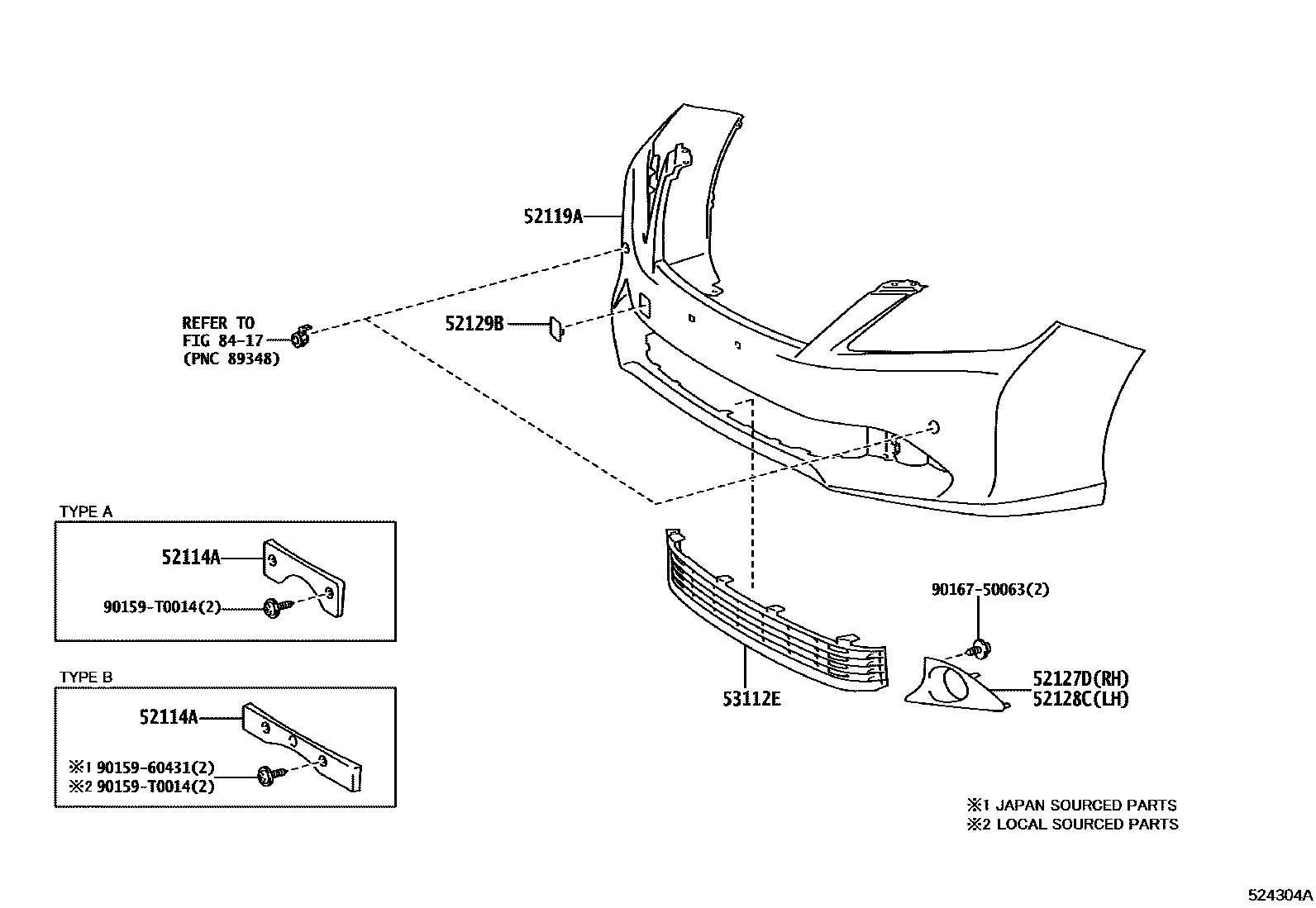

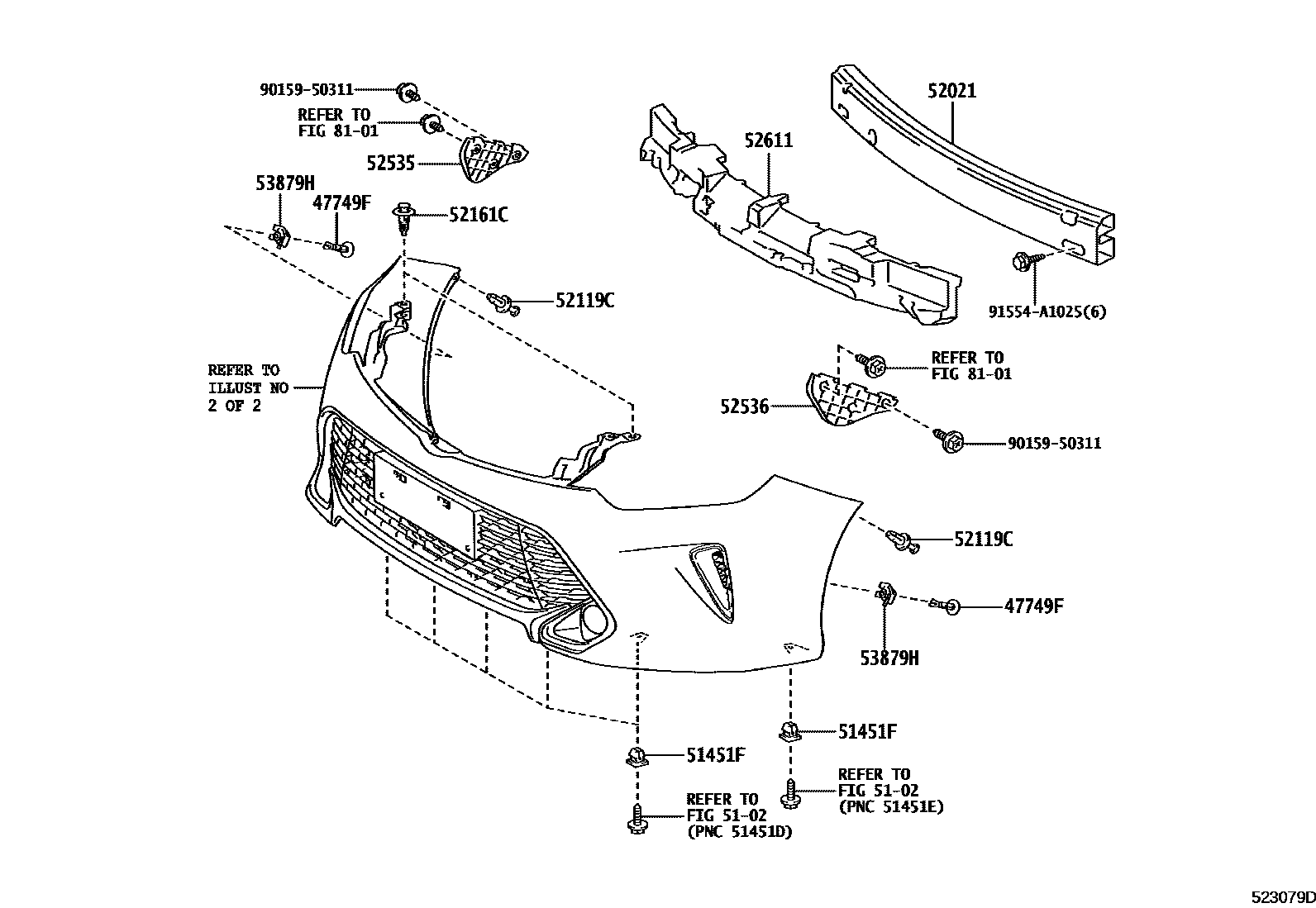

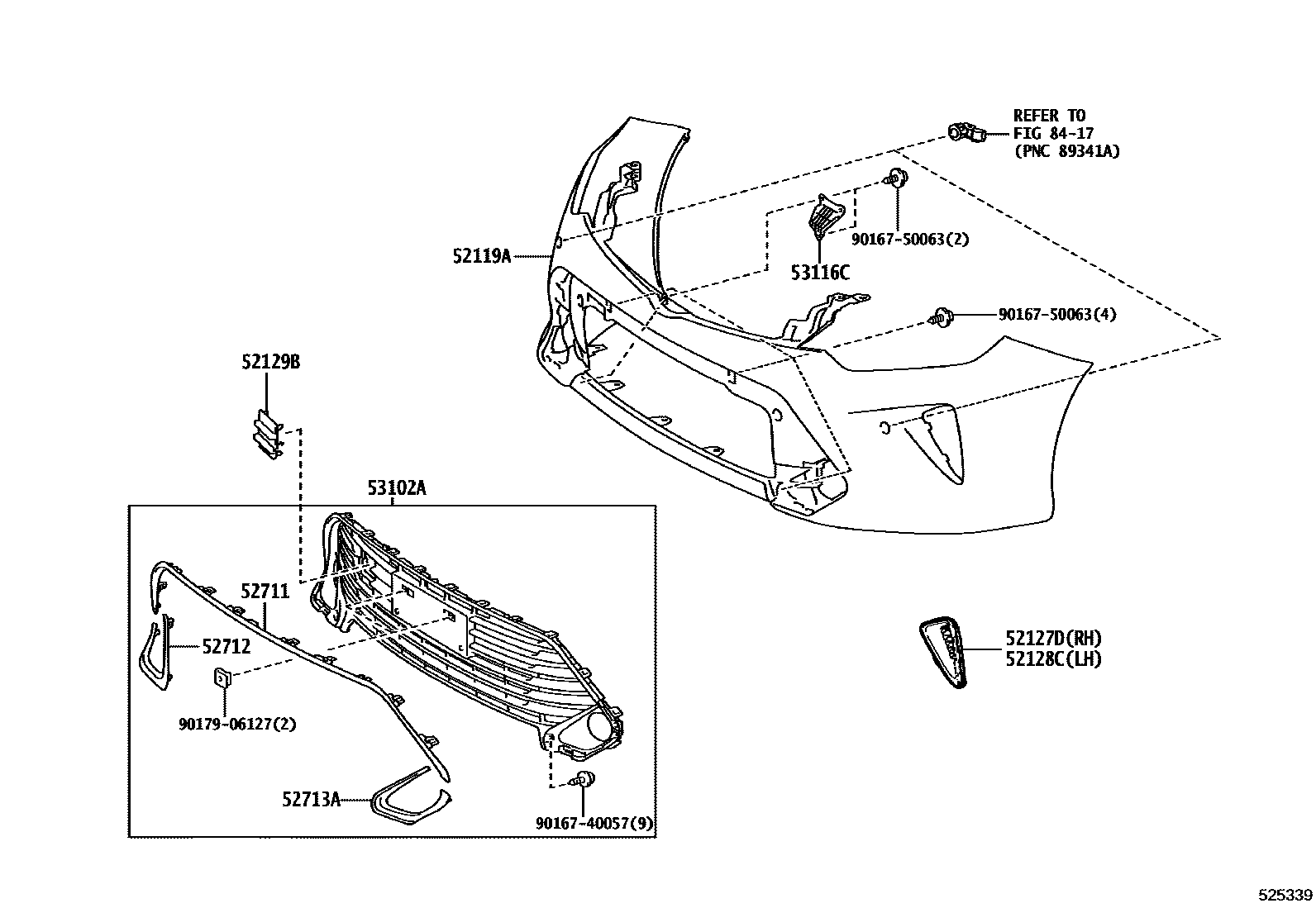

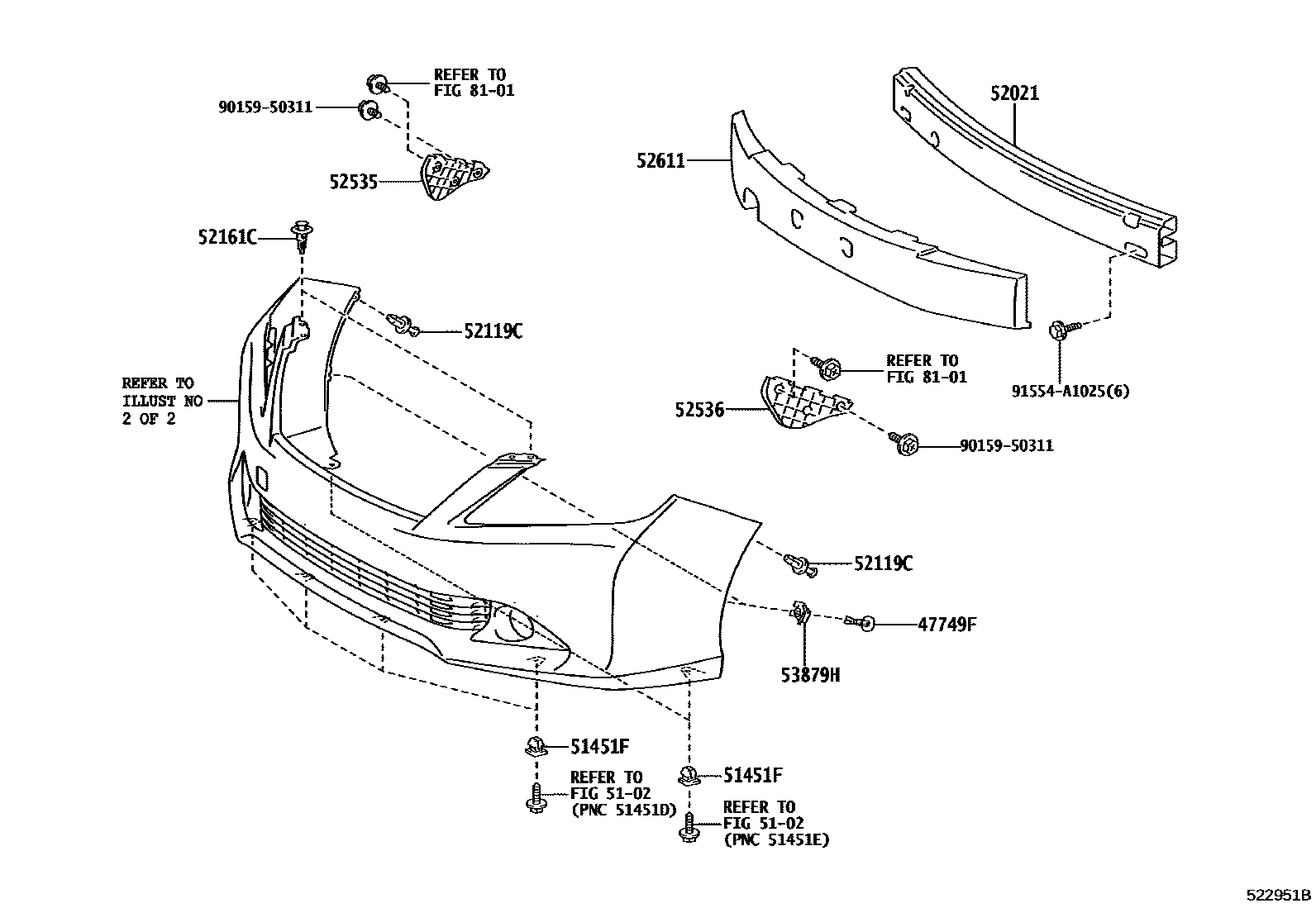

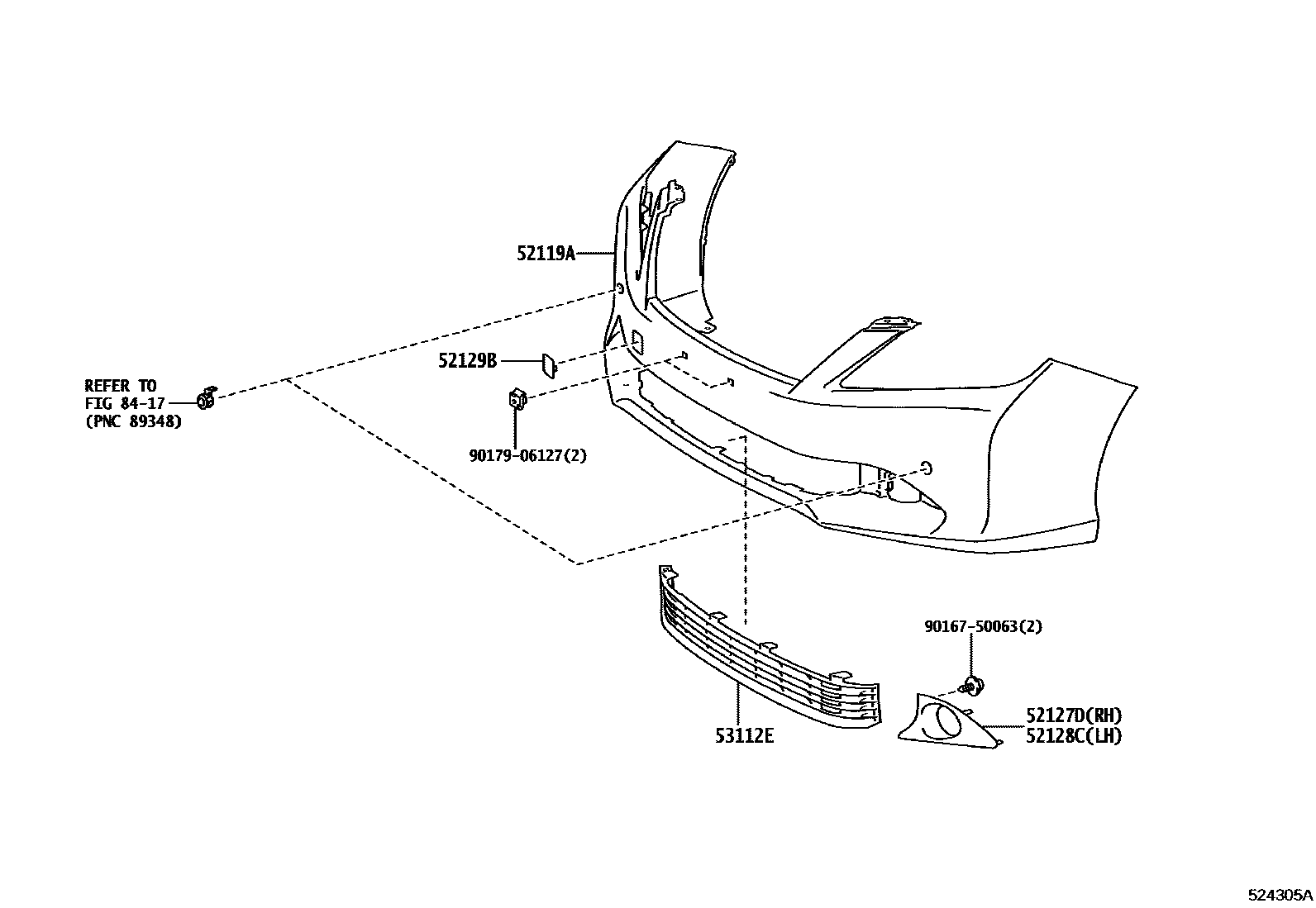

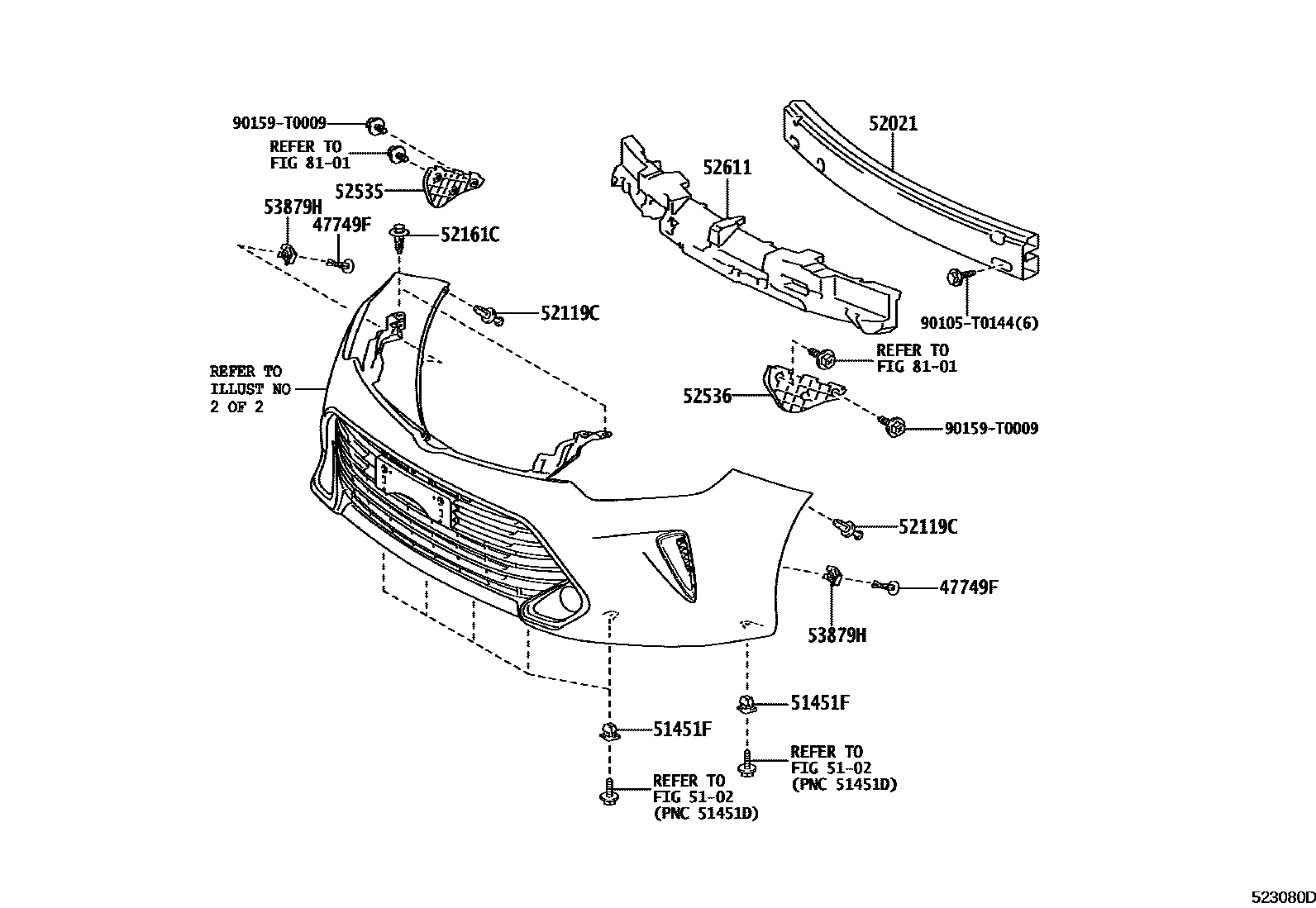

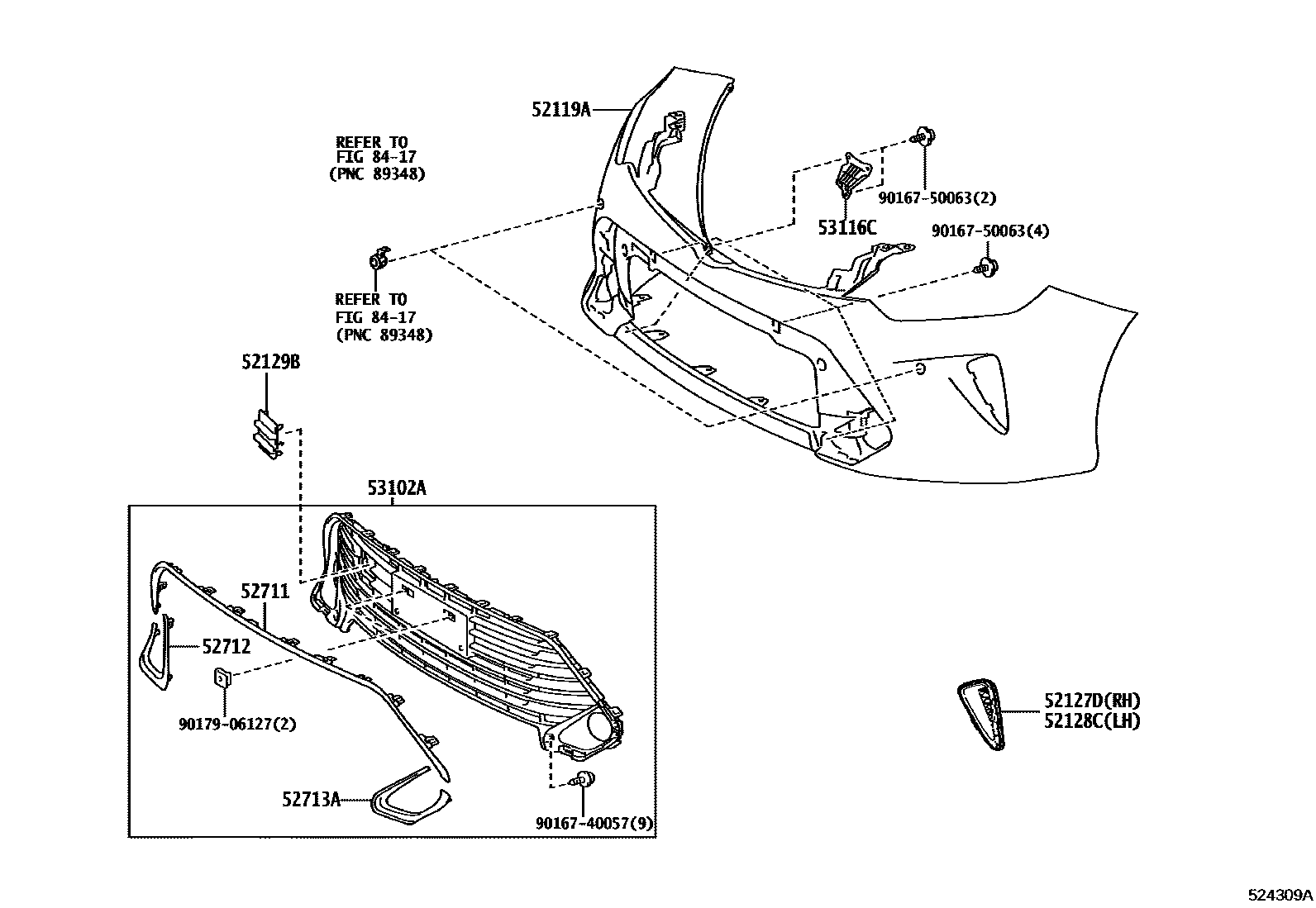

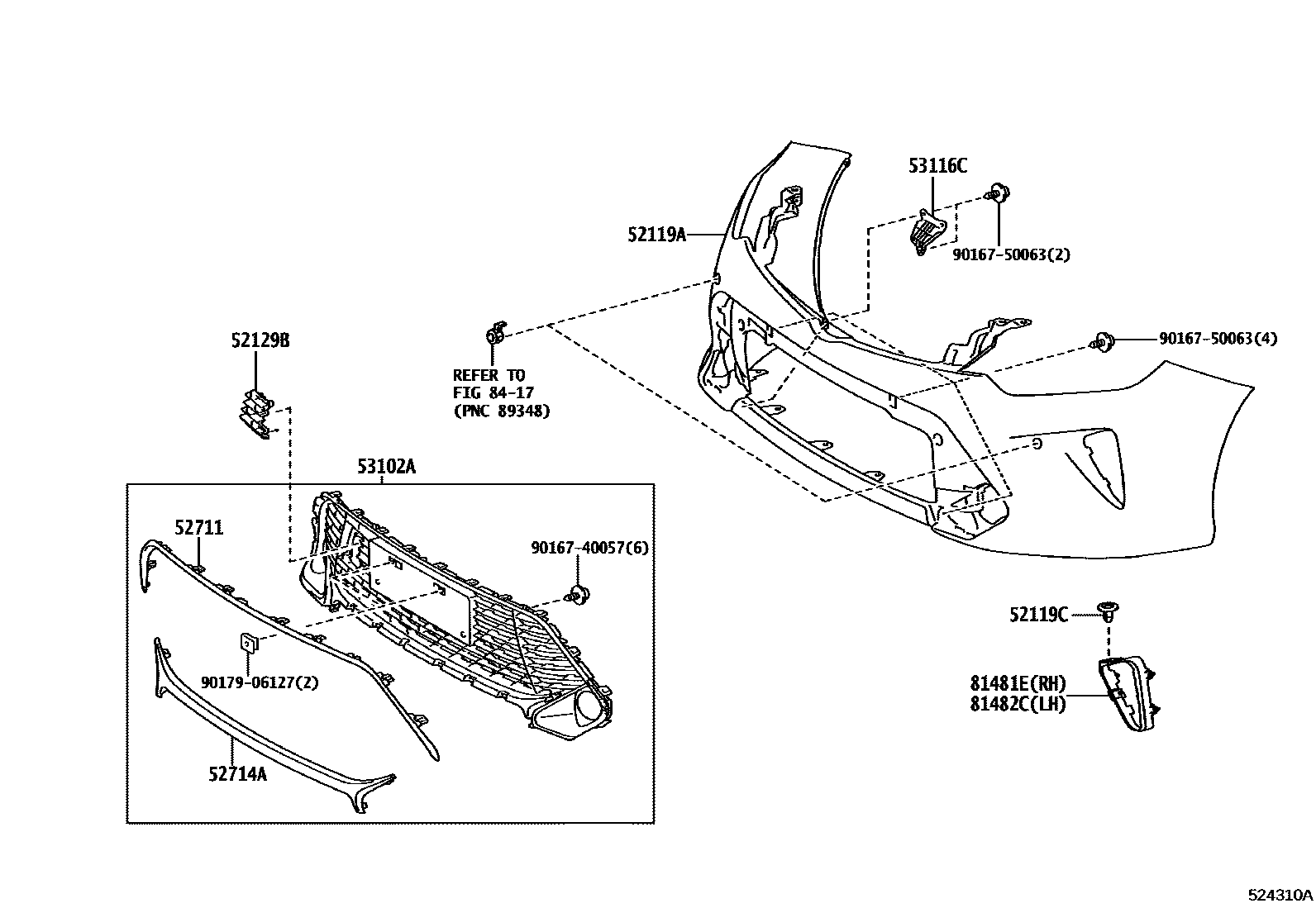

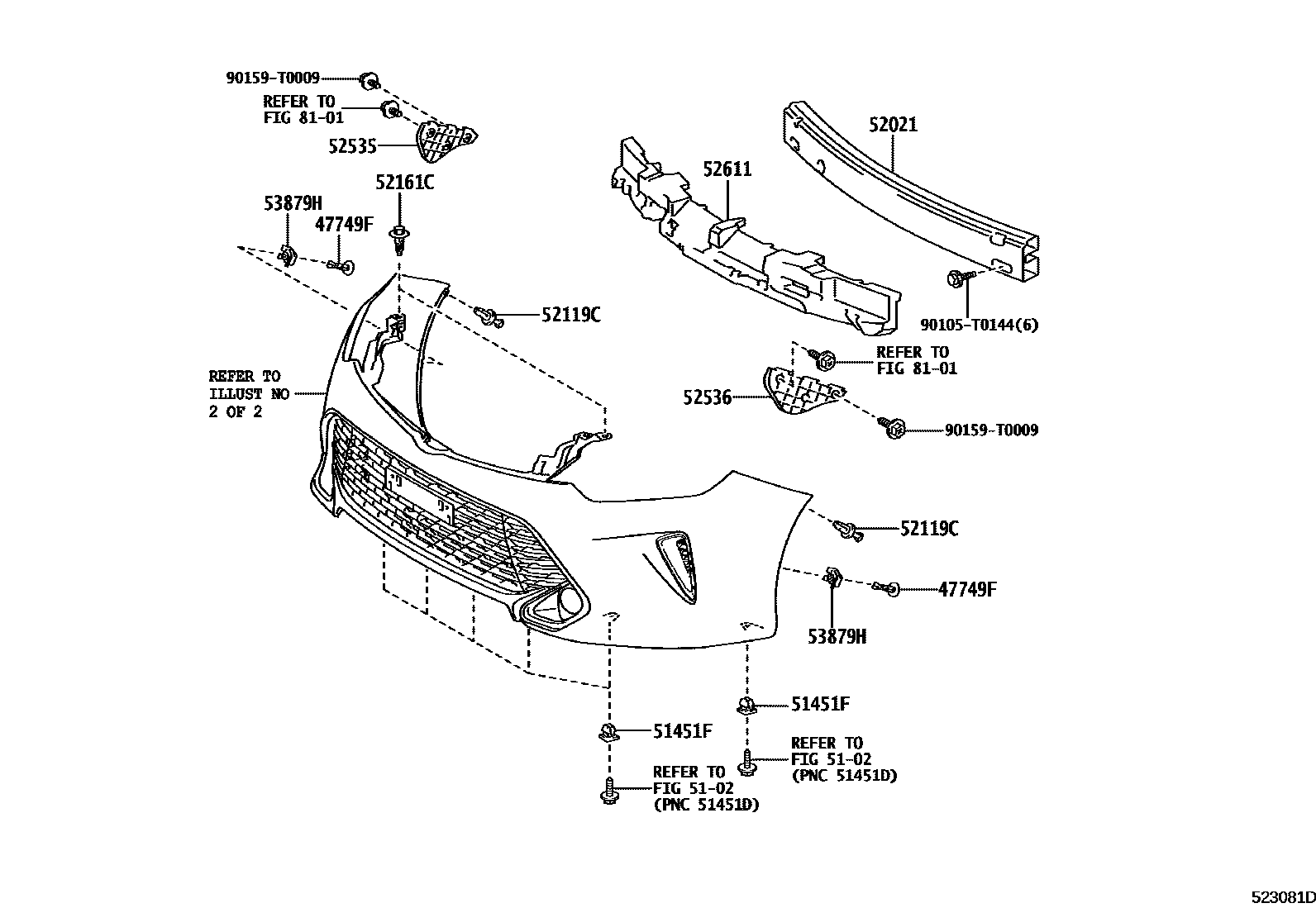

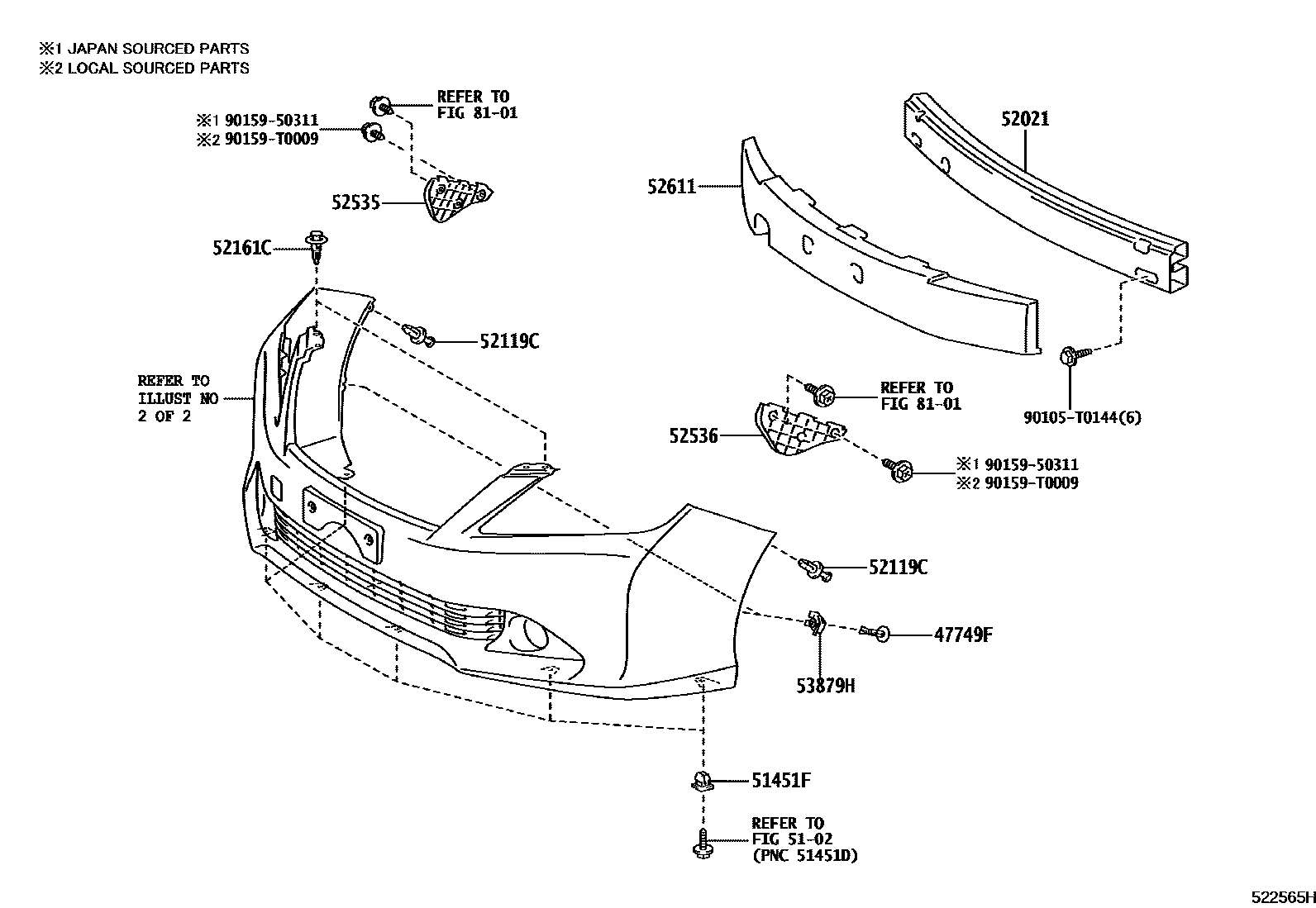

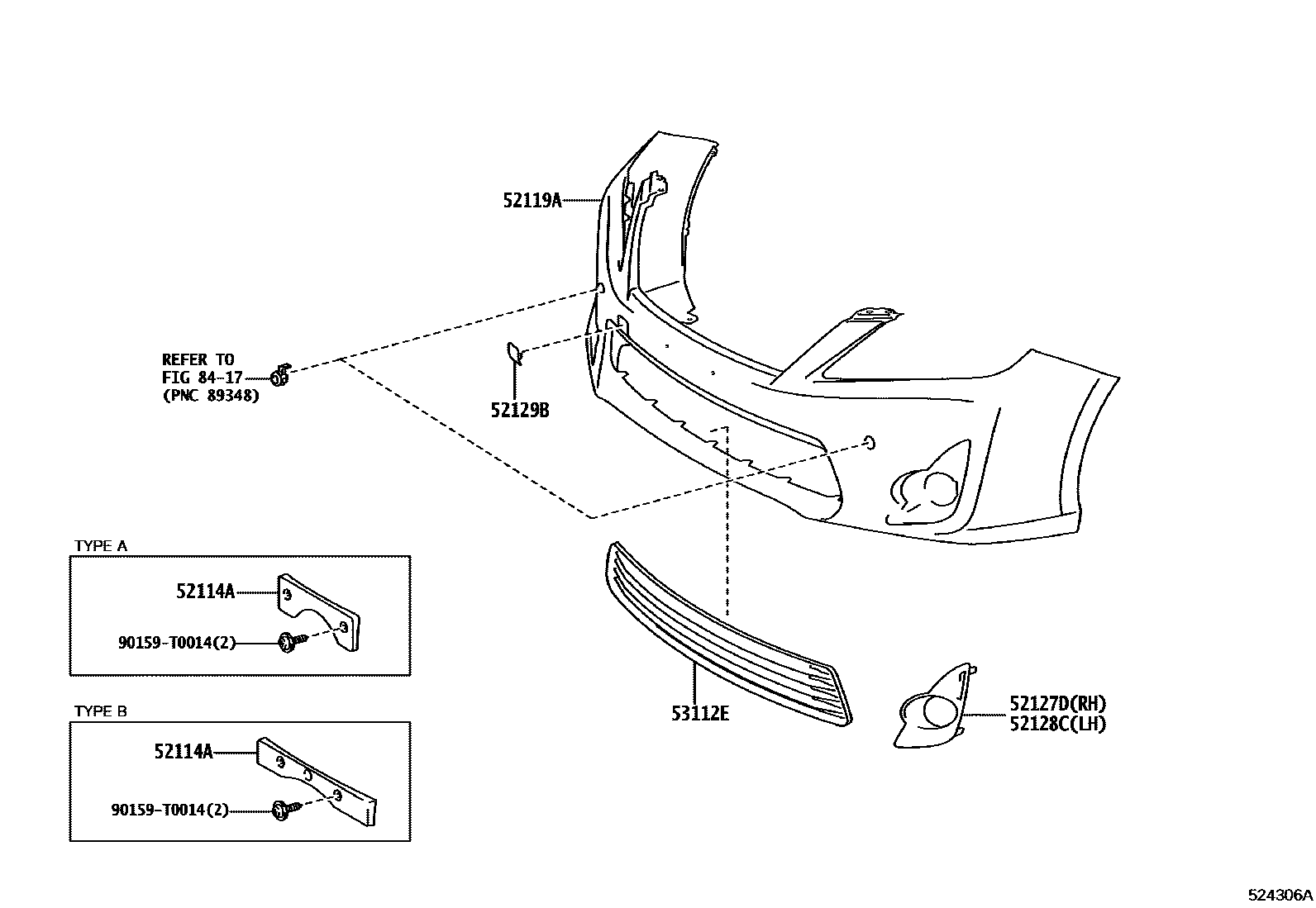

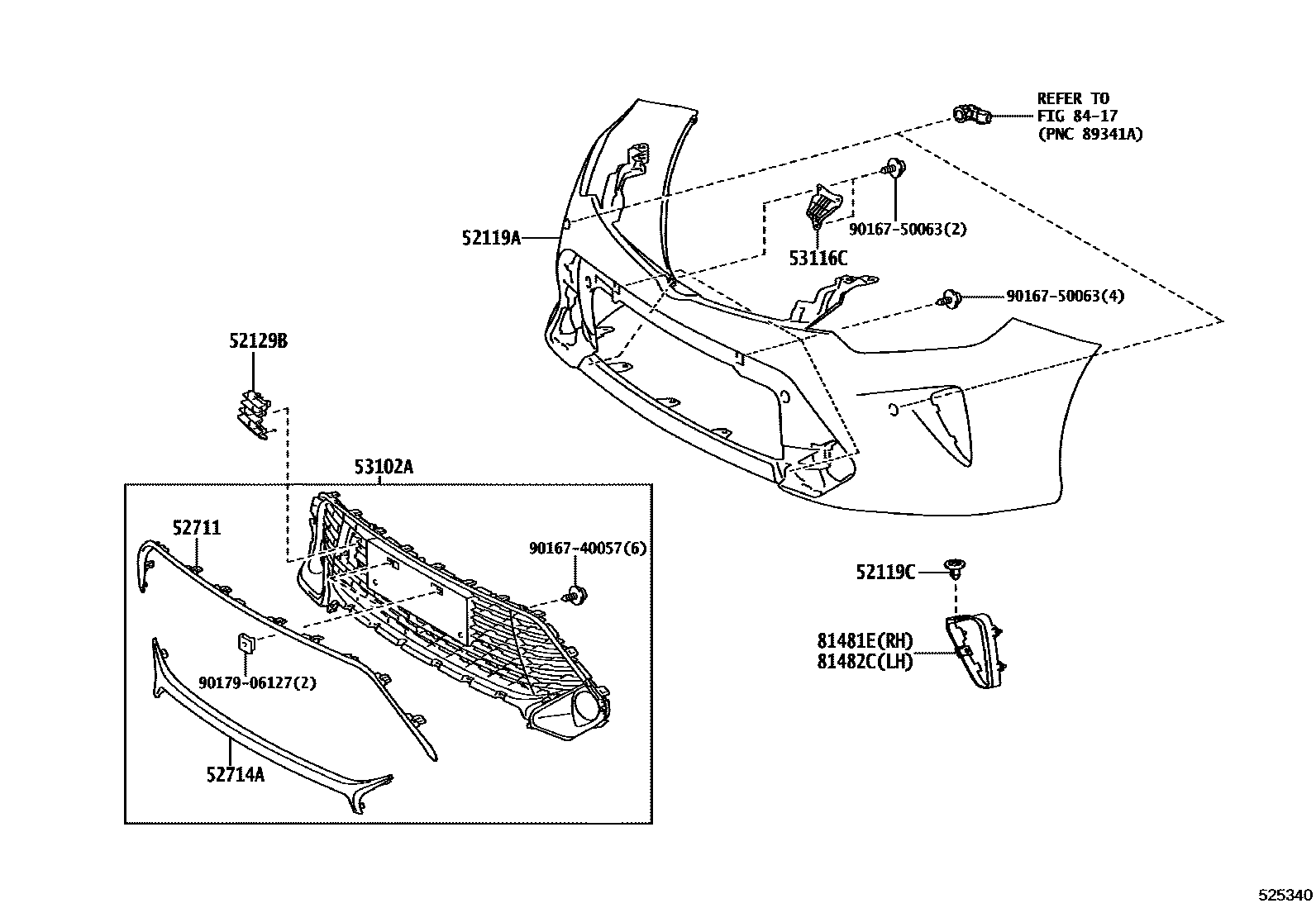

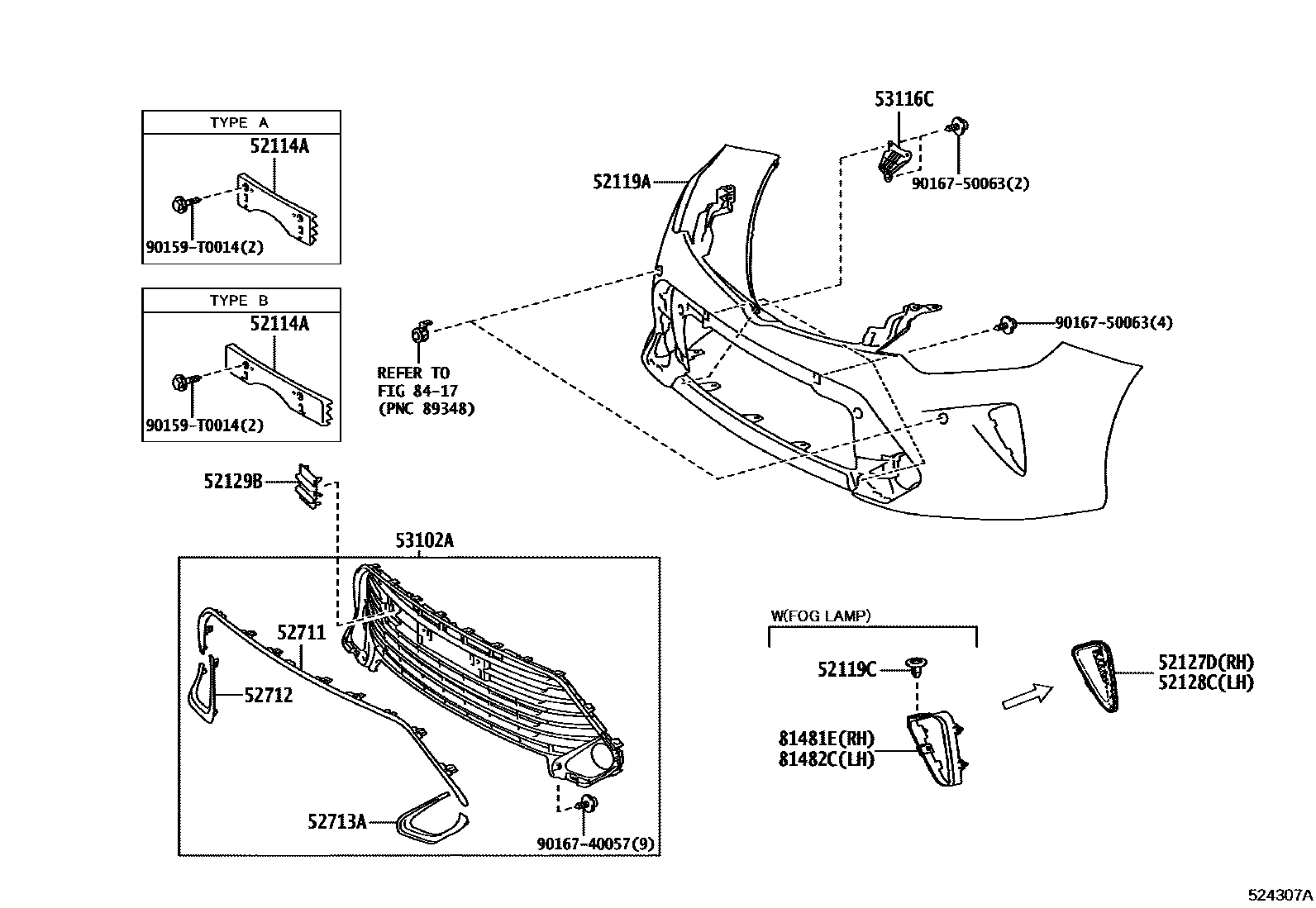

Toyota CAMRY 前保险杠及附件 — Figure 5201
Toyota CAMRY EPC diagram 5201, 前保险杠及附件, with 16 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47749F | pin fixing clip | 47749-50090 |
| 51451F | Gasket No. 1 | 90189-06193 |
| 52021 | Front bumper reinforcement sub-assembly | 52021-06090 · 52021-06091 · 52021-06100 · 52021-06101 |
| 52114A | Front bumper extension mounting bracket | 52114-06220 · 52114-06230 · 52114-06260 · 52114-06270 · 52114-06330 · 52114-06350 · 52114-06360 · 52114-06370 |
| 52119A | front bumper cover | 52119-06986 · 52119-06987 · 52119-06988 · 52119-06993 · 52119-06997 · 52119-0X901 · 52119-0X902 · 52119-0X903 · 52119-0X906 · 52119-0X914 · 52119-0X916 · 52119-0X918 · 52119-0X919 · 52119-0X923 · 52119-0X927 · 52119-0X933 |
| 52127D | Front bumper right hole cover | 52127-06400 · 52127-06420 · 52127-06430 · 52127-06460 · 52127-06510 · 52127-06530 · 52127-33140 |
| 52128C | Front bumper left hole cover | 52128-06400 · 52128-06420 · 52128-06430 · 52128-06460 · 52128-06510 · 52128-06530 · 52128-33140 |
| 52129B | Front bumper lower cover | 52129-06400 · 52129-06410 · 52129-06470 · 52129-06480 · 52129-06938 · 52129-06943 · 52129-06944 · 52129-06945 · 52129-06948 · 52129-06949 · 52129-06950 · 52129-06951 |
| 52161C | front bumper insert | 52161-0K040 · 52161-0K060 · 52161-16010 |
| 52535 | Front bumper right side fixing bracket | 52535-06160 · 52535-06170 |
| 52536 | Front bumper left fixed bracket | 52536-06150 · 52536-06160 |
| 52611 | front bumper energy absorber | 52611-06310 · 52611-06320 · 52611-06340 · 52611-06410 · 52611-06420 |
| 52711 | Front bumper protection strip | 52711-06330 · 52711-06360 · 52711-06410 |
| 52712 | Front bumper right side protective strip | 52712-06070 · 52712-06080 · 52712-06160 |
| 52713A | Front bumper left protective strip | 52713-06070 · 52713-06080 · 52713-06160 |
| 52714A | Front bumper No. 2 protective strip | 52714-06020 · 52714-06030 |
| 53102A | Radiator lower grille sub-assembly | 53102-06040 · 53102-06050 · 53102-06070 · 53102-06090 · 53102-06120 · 53102-06130 · 53102-06440 · 53102-06450 · 53102-06470 · 53102-06480 · 53102-06490 · 53102-06500 · 53102-06600 |
| 53112E | No. 1 radiator lower grille | 53112-06330 · 53112-06340 · 53112-06360 · 53112-33120 |
| 53116C | Radiator grille bracket No. 2 | 53115-06020 · 53115-06030 |
| 53879H | Front fender lining fixing parts | 53879-30040 · 53879-30050 |
| 81481E | Right fog light cover | 81481-06150 · 81481-06160 |
| 81482C | Left fog light cover | 81482-06150 · 81482-06160 |
