Toyota CAMRY Rear Spring & Shock Absorber — Figure 4804

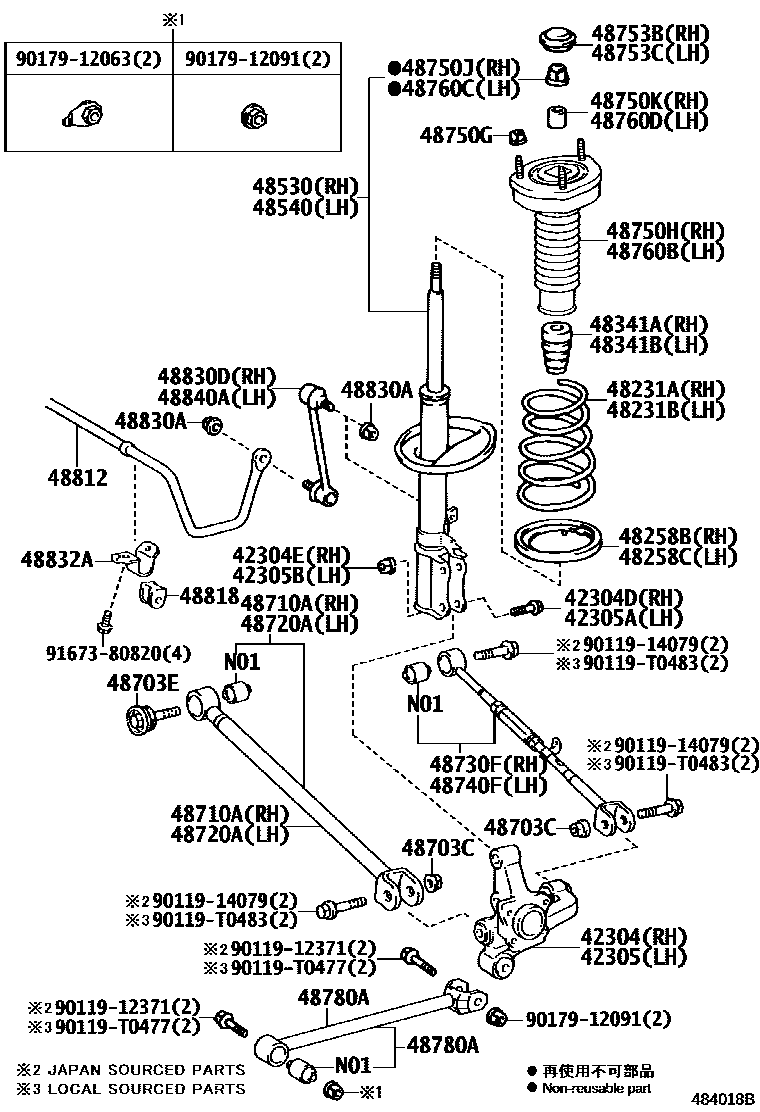

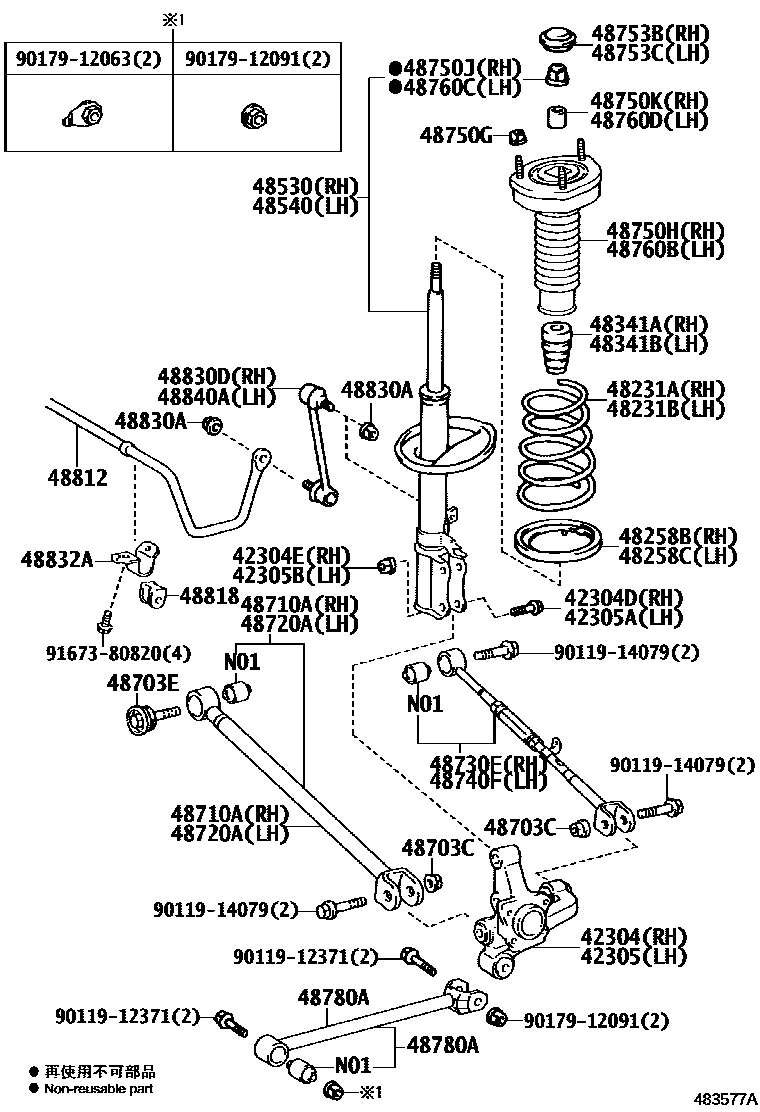

Toyota CAMRY EPC diagram 4804, Rear Spring & Shock Absorber, with 2 images and 36 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42304 | Rear axle right bracket sub-assembly | 42304-06110 · 42304-06130 |
| 42304D | Bolt (for rear axle right bracket) | 90901-05001 |
| 42304E | Nut (for rear axle right bracket) | 90178-15002 |
| 42305 | Rear axle left bracket sub-assembly | 42305-06110 · 42305-06120 |
| 42305A | Bolt (for left rear axle bracket) | 90901-05001 |
| 42305B | Nut (for left rear axle bracket) | 90178-15002 |
| 48231A | Right rear coil spring | 48231-06640 · 48231-06650 · 48231-06660 · 48231-06670 · 48231-06690 · 48231-06700 · 48231-06710 · 48231-06780 · 48231-06790 · 48231-06830 |
| 48231B | Left rear coil spring | 48231-06640 · 48231-06650 · 48231-06660 · 48231-06670 · 48231-06690 · 48231-06700 · 48231-06710 · 48231-06780 · 48231-06790 · 48231-06830 |
| 48258B | Right rear coil spring lower vibration isolation pad | 48258-06140 · 48258-06141 · 48258-06150 · 48258-06151 · 48258-06180 |
| 48258C | Left rear coil spring lower vibration isolation pad | 48258-06160 · 48258-06161 · 48258-06170 · 48258-06171 · 48258-06190 |
| 48341A | No. 1 right rear spring buffer block | 48341-32053 · 48341-32054 |
| 48341B | No. 1 left rear spring buffer block | 48341-32053 · 48341-32054 |
| 48530 | Right rear shock absorber assembly | 48530-09U70 · 48530-09V20 · 48530-09V30 · 48530-09V31 · 48530-09V40 · 48530-09V41 · 48530-09Y60 · 48530-80618 · 48530-80619 · 48530-80727 · 48530-80728 · 48530-8Z007 · 48530-8Z008 · 48530-8Z009 · 48530-8Z010 |
| 48540 | Left rear shock absorber assembly | 48540-09A90 · 48540-09B10 · 48540-09B20 · 48540-09B21 · 48540-09B30 · 48540-09B31 · 48540-09C00 · 48540-09C60 · 48540-09C70 · 48540-09C80 · 48540-09C90 · 48540-80014 · 48540-80015 · 48540-80022 · 48540-80023 |
| 48703C | Nut (for rear suspension arm) | 90178-T0048 · 90179-14068 |
| 48703E | Bolts (for rear suspension arms) | 90119-T0494 · 90901-19045 |
| 48710A | Right rear suspension No. 1 arm assembly | 48710-06070 · 48710-06100 |
| 48720A | Left rear suspension No. 1 arm assembly | 48710-06070 · 48710-06100 |
| 48730F | Right rear suspension No. 2 arm assembly | 48730-06090 · 48730-33150 |
| 48740F | Left rear suspension No. 2 arm assembly | 48740-06080 · 48740-33100 |
| 48750G | Nut (for rear suspension mount) | 90178-08007 · 90178-T0103 |
| 48750H | Right rear suspension support assembly | 48750-06250 · 48750-06260 · 48750-06320 |
| 48750J | Nut (for rear mount to right rear shock absorber) | 90177-T0018 · 90179-14015 |
| 48750K | Collar (for rear mount to right rear shock absorber) | 90387-15027 |
| 48753B | Right rear suspension support cover No. 1 | 48753-06040 · 48753-33010 |
| 48753C | Left rear suspension support cover No. 1 | 48753-06040 · 48753-33010 |
| 48760B | Left rear suspension support assembly | 48760-06250 · 48760-06260 · 48760-06300 |
| 48760C | Nut (for rear mount to left rear shock absorber) | 90177-T0018 · 90179-14015 |
| 48760D | Collar (for rear mount to left rear shock absorber) | 90387-15027 |
| 48780A | Rear support rod assembly | 48780-06040 · 48780-06050 |
| 48812 | rear stabilizer bar | 48812-06100 · 48812-06110 |
| 48818 | Rear stabilizer bar bushing | 48818-06211 · 48818-06220 · 48818-06320 |
| 48830A | Nut (for rear stabilizer link) | 90178-T0119 · 90179-10183 |
| 48830D | Right rear stabilizer bar link assembly | 48830-06070 · 48830-06080 · 48830-33040 |
| 48832A | Rear stabilizer bar No. 1 bracket | 48832-06070 · 48832-06080 |
| 48840A | Left rear stabilizer bar link assembly | 48830-06070 · 48830-06080 · 48830-33040 |
