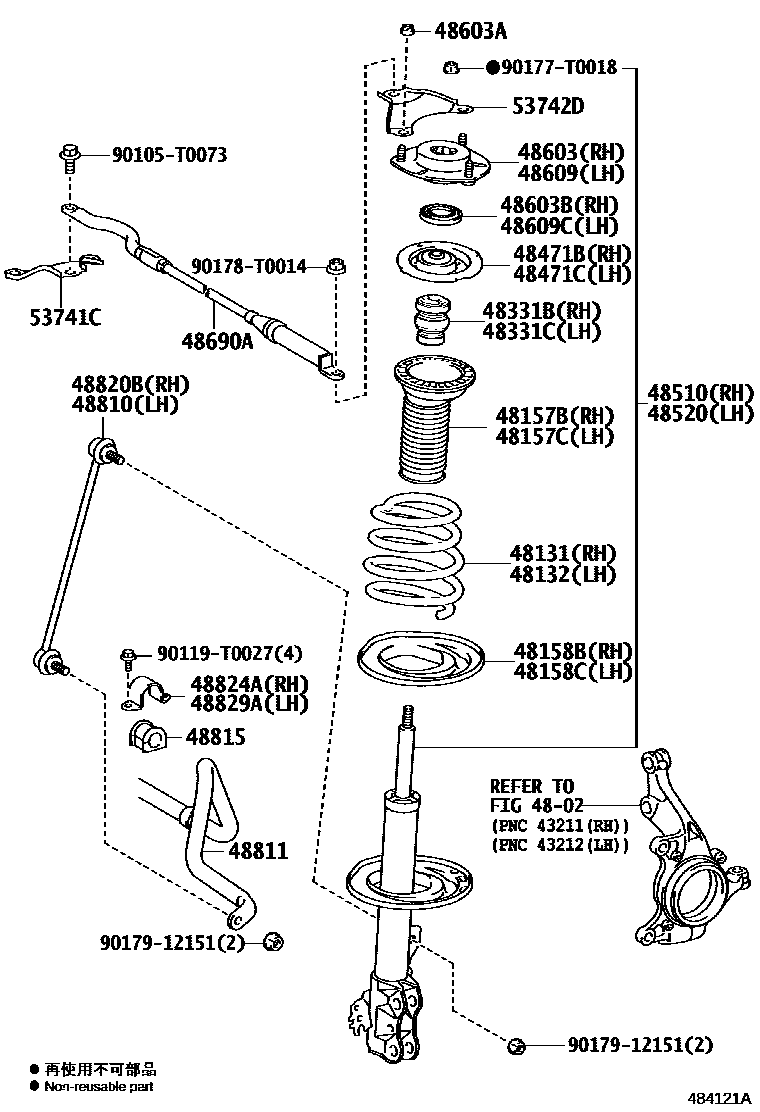

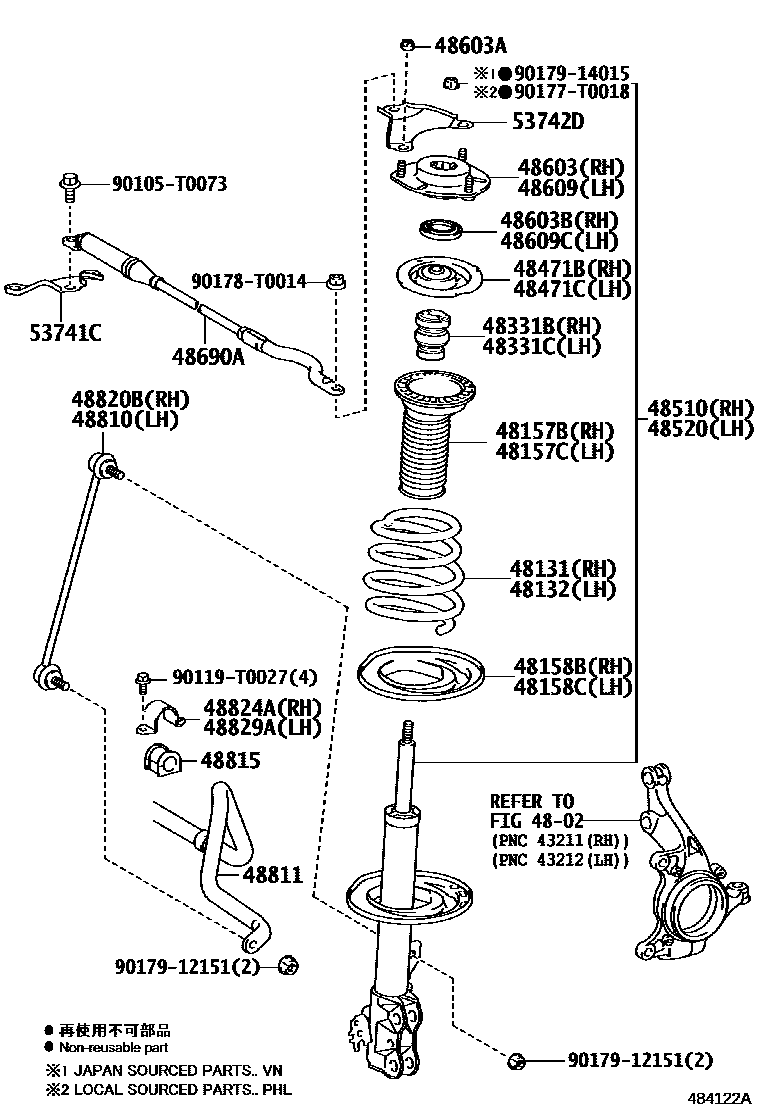

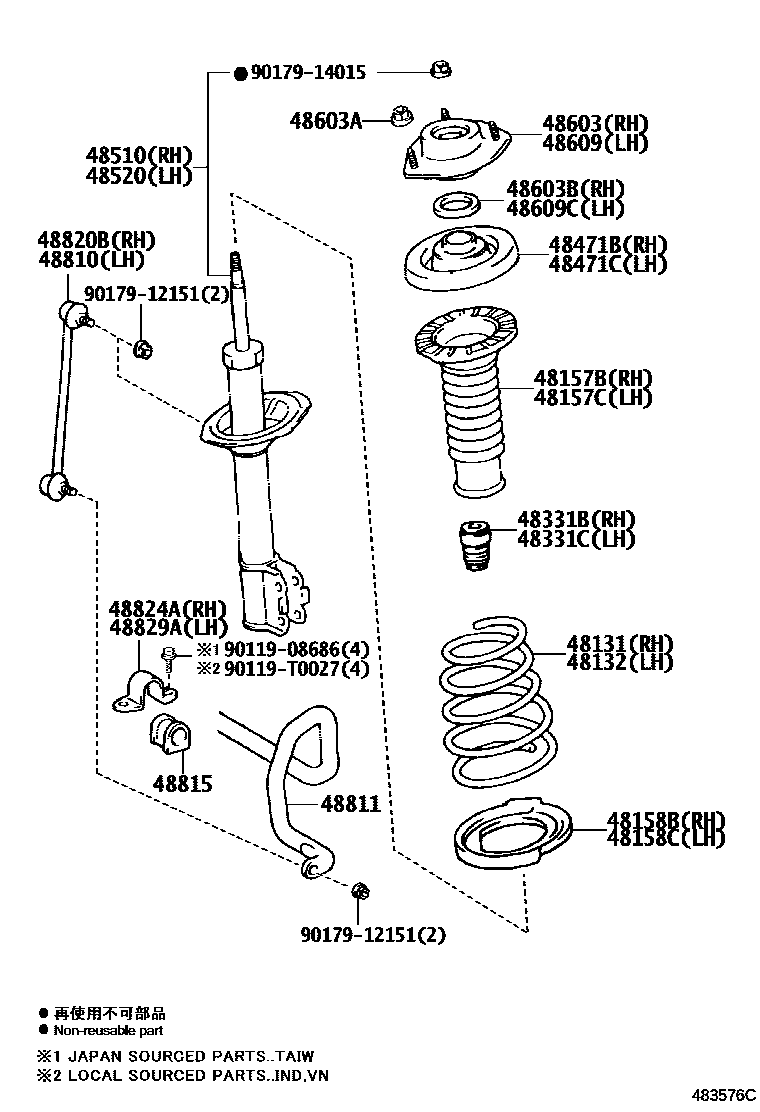

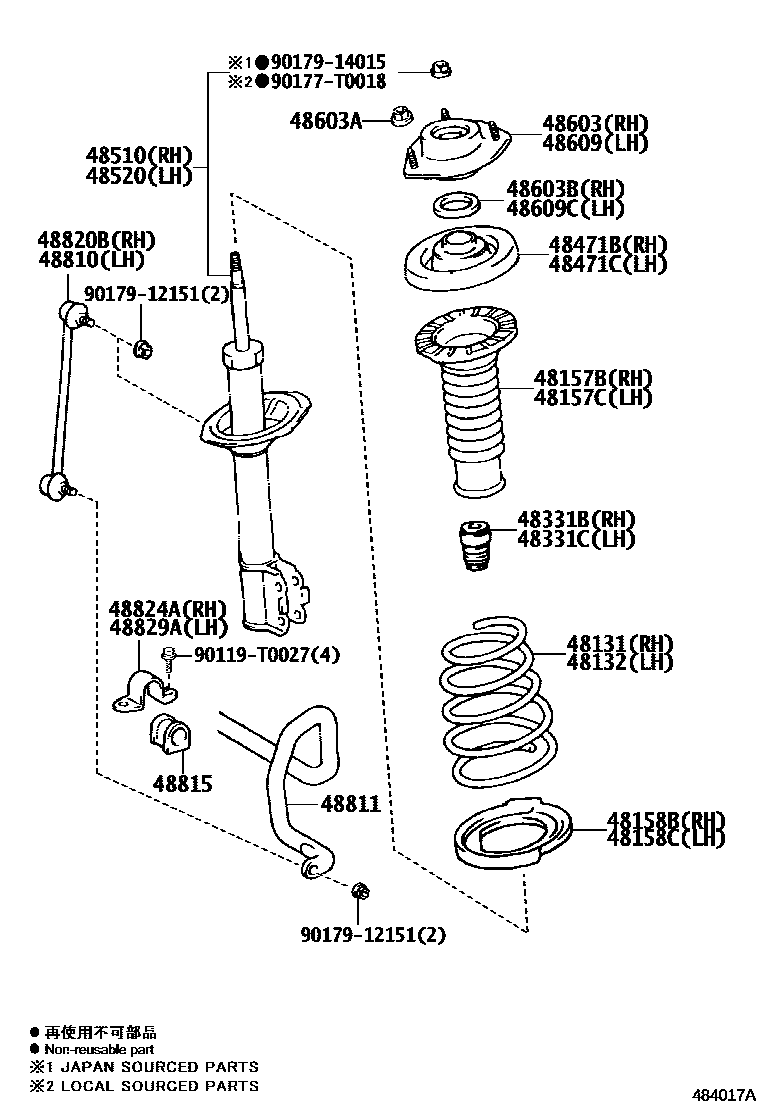

Toyota CAMRY Front Spring & Shock Absorber — Figure 4803
Toyota CAMRY EPC diagram 4803, Front Spring & Shock Absorber, with 4 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 48131 | Right front coil spring | 48131-06D70 · 48131-06D80 · 48131-06D81 · 48131-06D90 · 48131-06E00 · 48131-06E50 · 48131-06F20 · 48131-06F30 · 48131-06F40 · 48131-06G10 · 48131-06G20 · 48131-33B60 · 48131-33B90 |
| 48132 | Left front coil spring | 48131-06D70 · 48131-06D80 · 48131-06D81 · 48131-06D90 · 48131-06E00 · 48131-06E50 · 48131-06F20 · 48131-06F30 · 48131-06F40 · 48131-06G10 · 48131-06G20 · 48131-33B60 · 48131-33B90 |
| 48157B | Front coil spring upper right vibration isolation pad | 48157-06110 · 48157-06111 · 48157-06120 · 48157-06140 · 48157-06150 · 48157-06201 · 48157-06210 · 48157-06260 |
| 48157C | Front coil spring upper left vibration isolation pad | 48157-06110 · 48157-06111 · 48157-06120 · 48157-06140 · 48157-06150 · 48157-06201 · 48157-06210 · 48157-06260 |
| 48158B | Front coil spring lower right vibration isolation pad | 48158-06140 · 48158-06150 · 48158-06170 · 48158-06190 · 48158-06200 · 48158-06240 · 48158-06250 · 48158-06300 |
| 48158C | Front coil spring lower left vibration isolation pad | 48158-06140 · 48158-06150 · 48158-06170 · 48158-06190 · 48158-06200 · 48158-06240 · 48158-06250 · 48158-06300 |
| 48331B | Right front spring buffer block | 48331-33070 · 48331-33071 |
| 48331C | Left front spring buffer block | 48331-33070 · 48331-33071 |
| 48471B | Front coil spring upper right seat | 48471-06040 · 48471-41010 |
| 48471C | Front coil spring upper left seat | 48471-06040 · 48471-41010 |
| 48510 | Right front shock absorber assembly | 48510-80559 · 48510-80560 · 48510-80702 · 48510-80704 · 48510-8Z039 · 48510-8Z045 · 48510-8Z046 · 48510-8Z047 · 48510-8Z091 · 48510-8Z211 · 48510-8Z212 · 48510-8Z217 · 48510-8Z218 |
| 48520 | Left front shock absorber assembly | 48520-09W30 · 48520-09W90 · 48520-09X10 · 48520-09X20 · 48520-80281 · 48520-80282 · 48520-80396 · 48520-80398 · 48520-8Z002 · 48520-8Z076 · 48520-8Z077 · 48520-8Z081 · 48520-8Z082 |
| 48603 | Right front suspension bearing sub-assembly | 48609-06230 · 48609-06330 · 48609-06340 · 48609-06350 · 48609-06360 |
| 48603A | Nut (for front suspension mount) | 90178-10017 |
| 48603B | Bearing (for right front suspension mount) | 90903-63014 |
| 48609 | Left front suspension bearing sub-assembly | 48609-06230 · 48609-06330 · 48609-06340 · 48609-06350 · 48609-06360 |
| 48609C | Bearing (for left front suspension mount) | 90903-63014 |
| 48690A | Suspension support cover damper assembly | 48690-33010 · 48690-33020 |
| 48810 | Left front stabilizer bar link assembly | 48820-06070 · 48820-06080 · 48820-33070 |
| 48811 | front stabilizer bar | 48811-06160 · 48811-06180 · 48811-06230 |
| 48815 | Front stabilizer bar bushing No. 1 | 48815-06111 · 48815-06200 · 48815-06220 · 48815-06230 |
| 48820B | Right front stabilizer bar link assembly | 48820-06070 · 48820-06080 · 48820-33070 |
| 48824A | Right front stabilizer bar bracket No. 1 | 48824-02070 · 48824-26210 |
| 48829A | Left front stabilizer bar bracket No. 1 | 48824-02070 · 48824-26210 |
| 53741C | Right fender fender reinforcement panel | 53741-06020 |
| 53742D | Left fender fender reinforcement plate | 53742-06020 |
