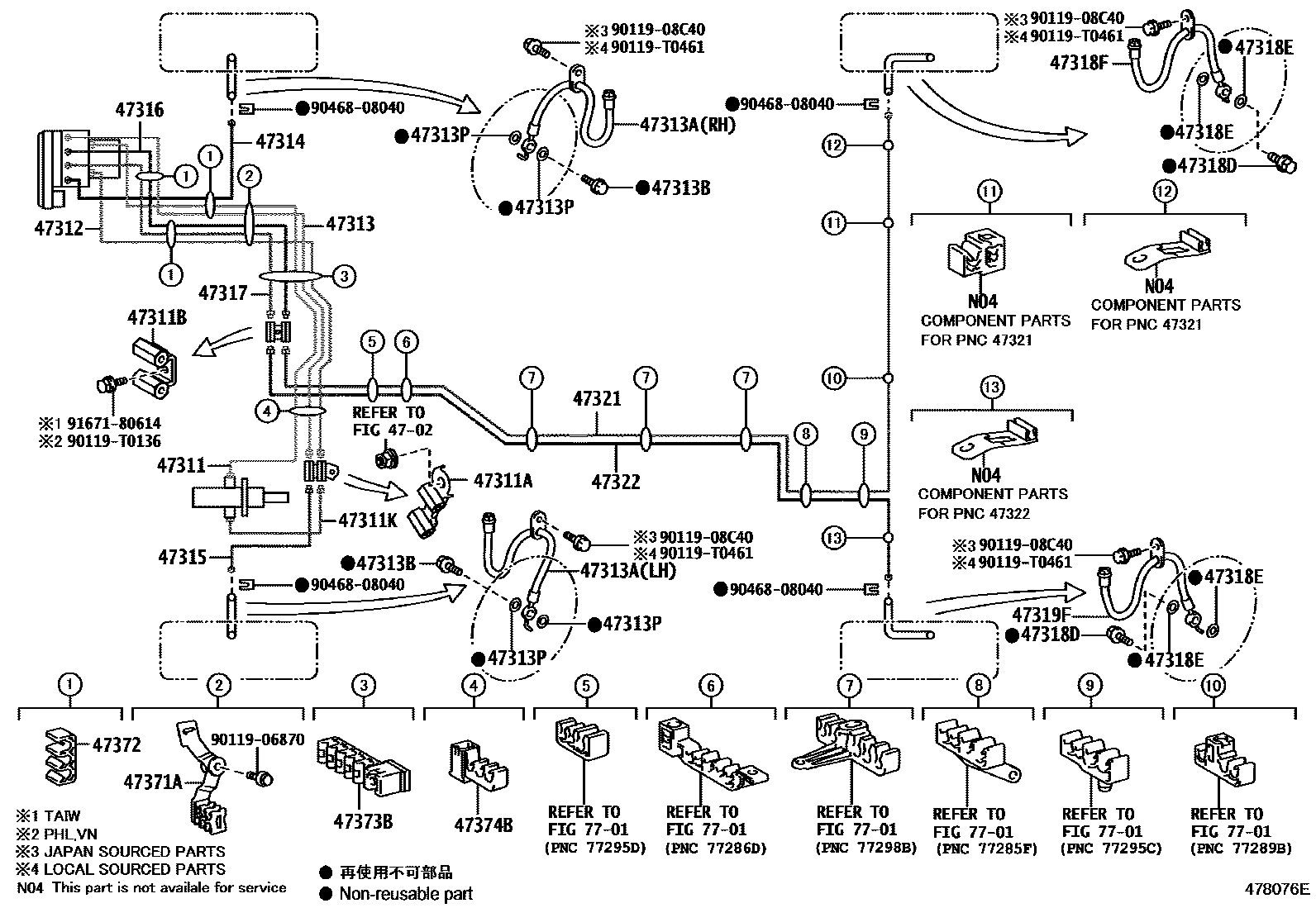

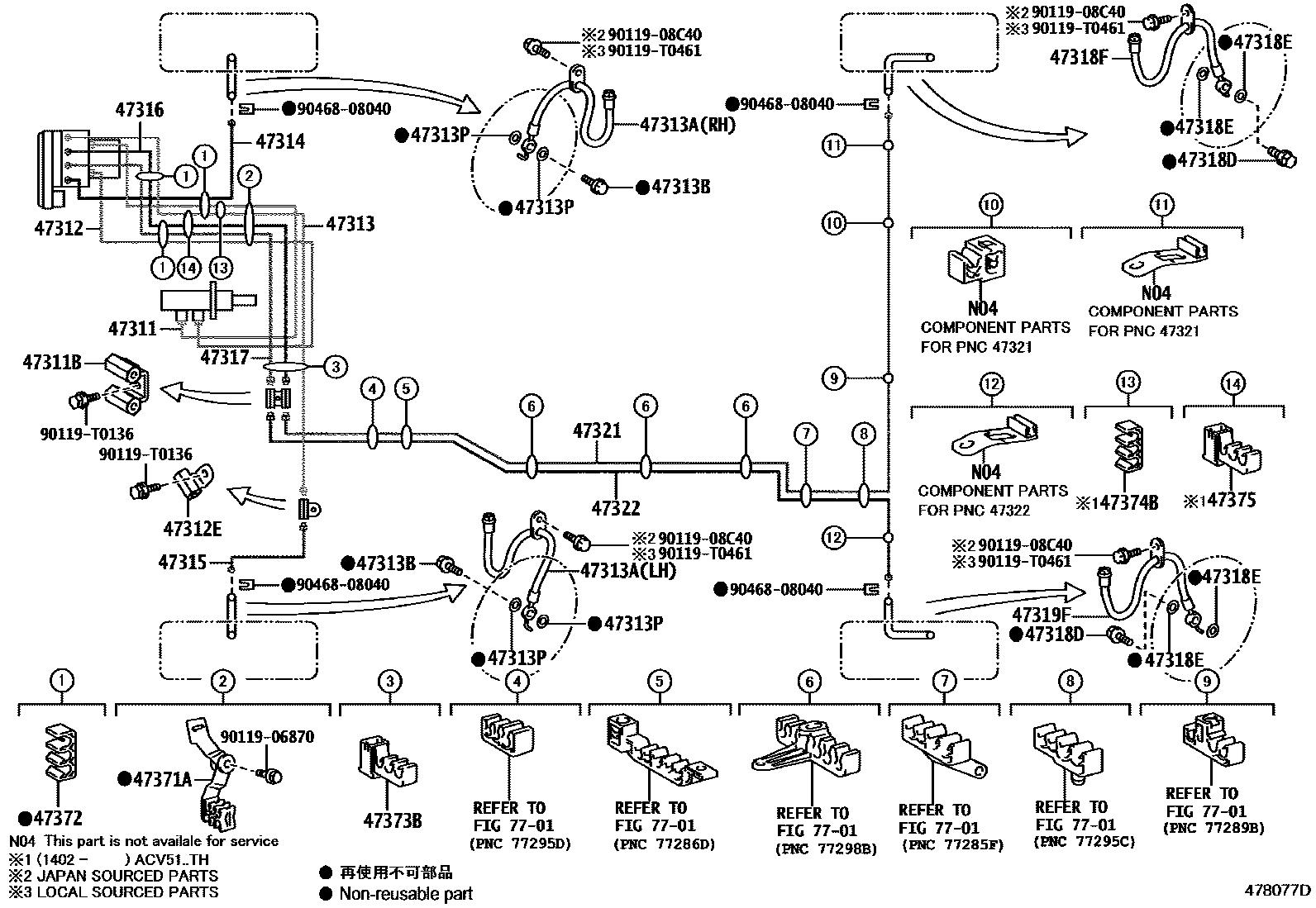

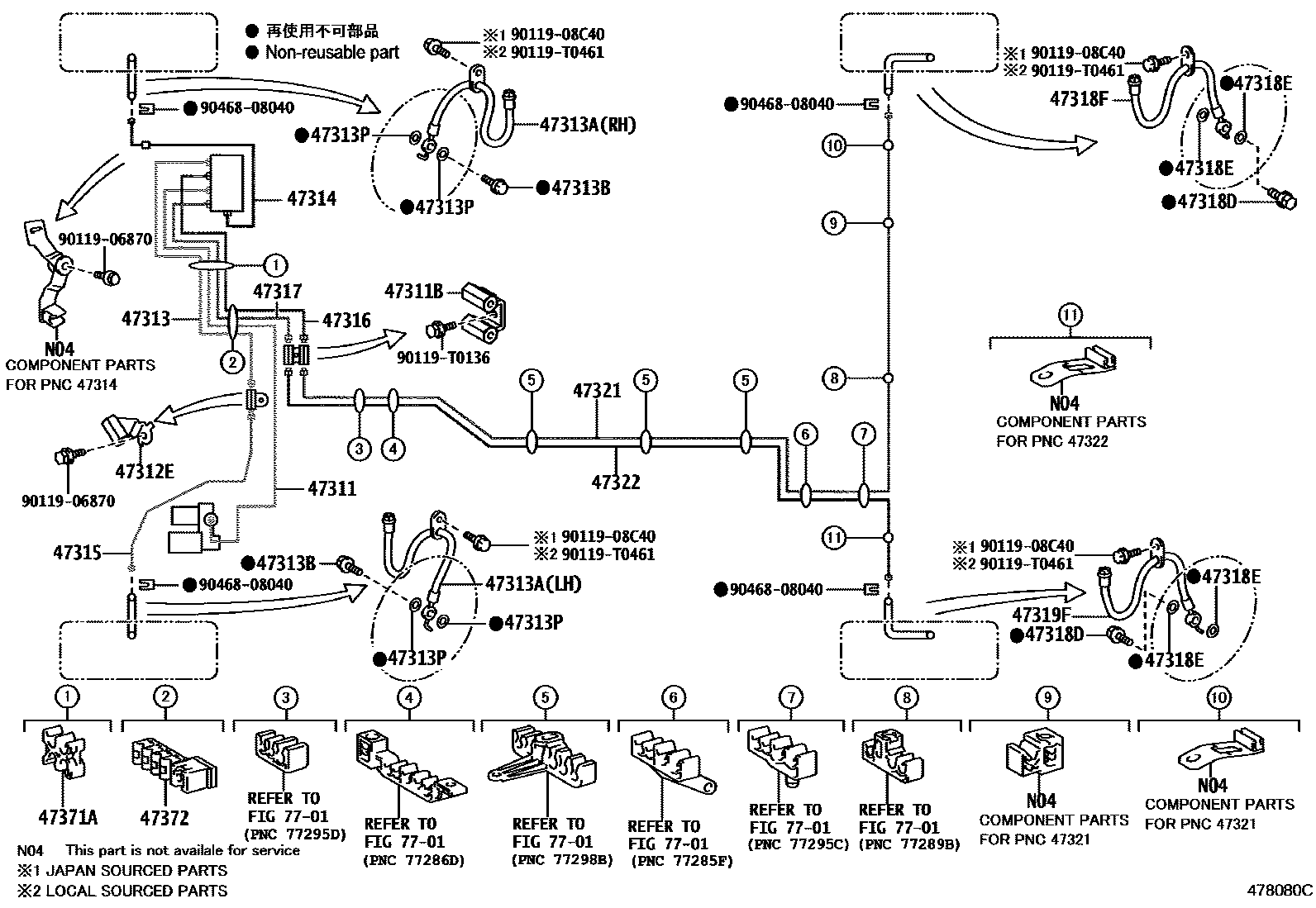

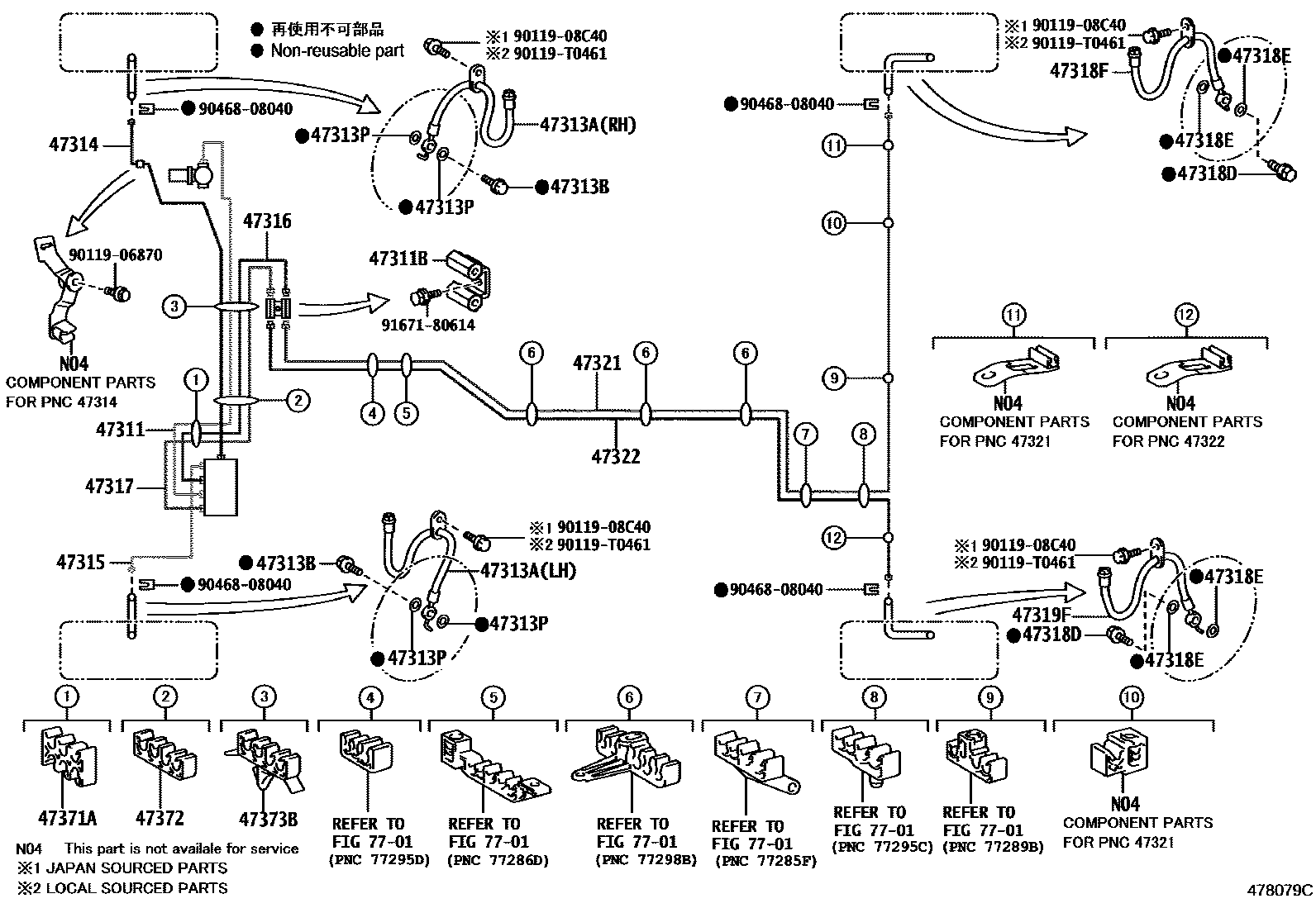

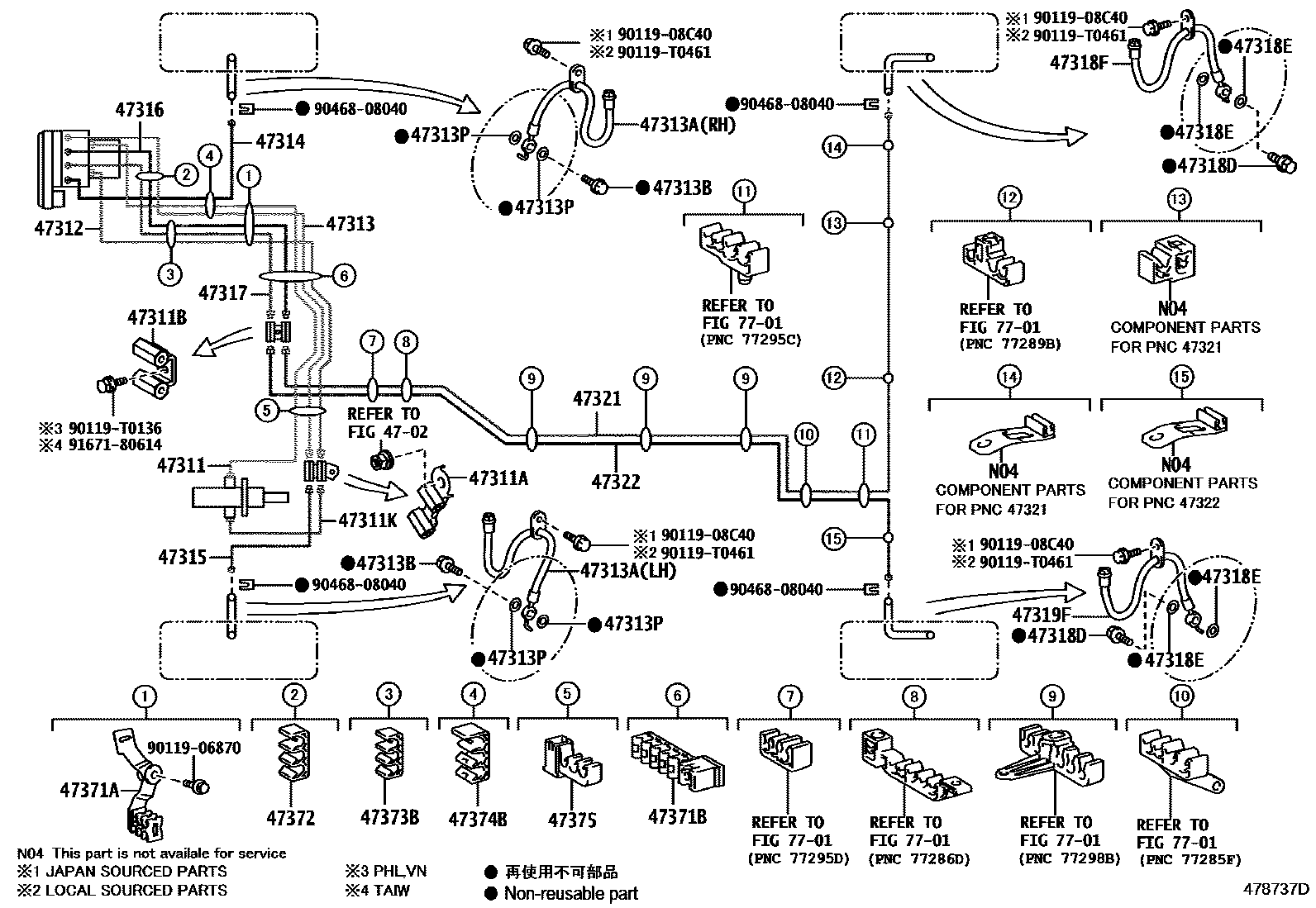

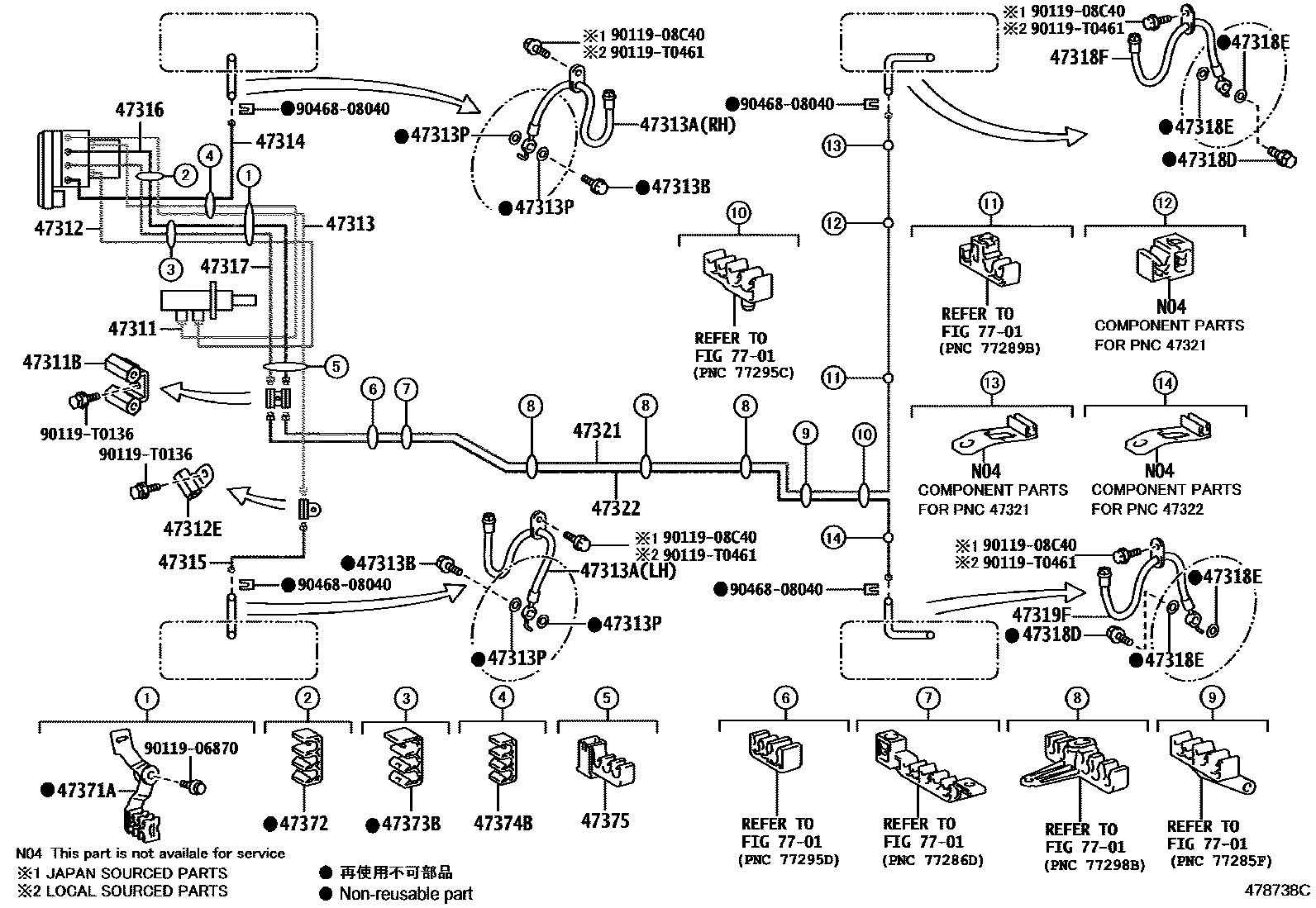

Toyota CAMRY 制动配管和卡箍 — Figure 4708
Toyota CAMRY EPC diagram 4708, 制动配管和卡箍, with 9 images and 33 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

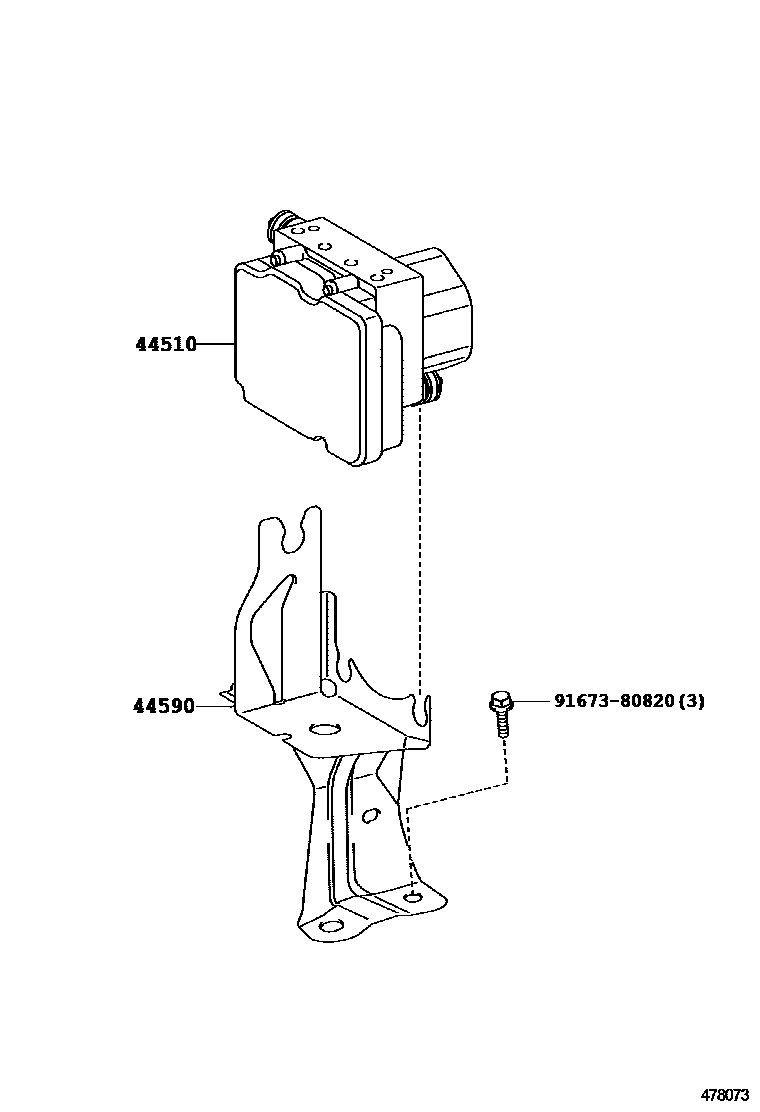

| 44510 | brake actuator assembly | 44050-33270 · 44050-33400 · 44050-33470 · 44050-33610 · 44050-33620 · 44050-33630 |
| 44547B | brake actuator bracket cushion | 47131-47070 |
| 44590 | Brake actuator bracket assembly | 44590-06280 · 44590-06290 · 47940-06060 · 47940-33010 |

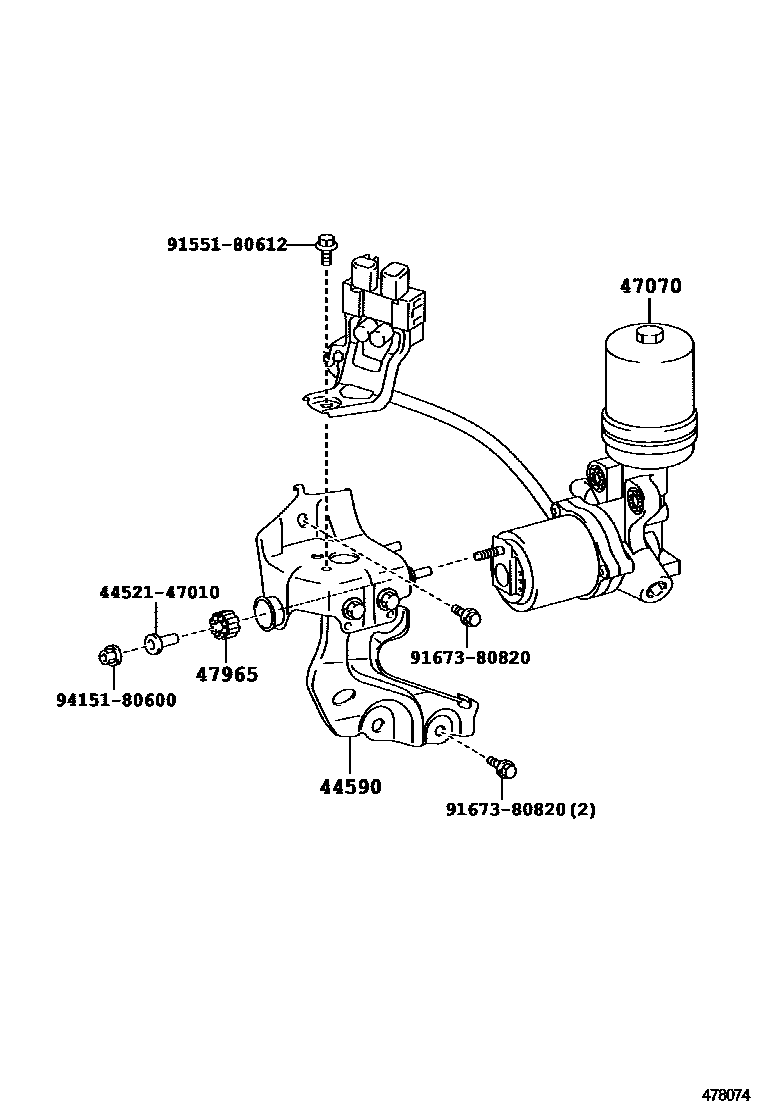

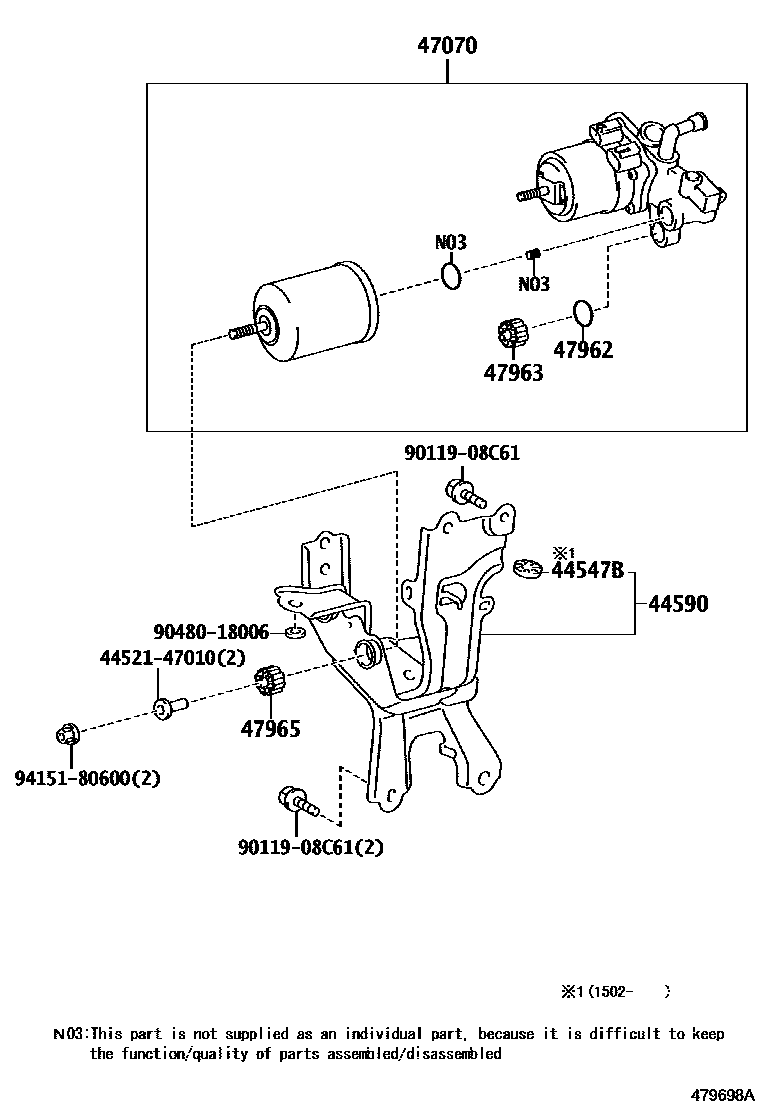

| 47070 | Brake booster pump assembly | 47070-33020 · 47070-33040 |
| 47311 | No. 1 front brake pipe | 47311-06510 · 47311-06520 · 47311-06521 · 47311-06530 · 47311-06540 · 47311-06550 · 47311-06551 · 47311-06570 · 47311-06580 · 47311-06590 · 47311-06600 · 47311-06610 · 47311-06640 |
| 47311A | Pipe fitting (for front brake pipe) | 90412-10287 · 90412-12066 |
| 47311B | No. 1 pipe joint (for front brake pipe) | 90412-10260 · 90412-10285 |
| 47311K | Pipe (brake master cylinder to pipe joint) | 47311-33240 · 47311-33250 |
| 47312 | No. 2 front brake pipe | 47312-06290 · 47312-06390 · 47312-06400 · 47312-06410 · 47312-06420 · 47312-06430 · 47312-06440 · 47312-06460 |
| 47312E | No. 2 pipe joint (for front brake pipe) | 90412-10272 · 90412-10280 |
| 47313 | No. 3 front brake pipe | 47313-06360 · 47313-06370 · 47313-06380 · 47313-06390 · 47313-06400 · 47313-06410 · 47313-06420 · 47313-06430 · 47313-06450 · 47313-06470 |
| 47313A | No. 1 front flexible hose | 90947-T2071 · 90947-T2072 · 90947-T2073 · 90947-T2074 |
| 47313B | Connector bolt (for front flex hose) | 90401-10058 |
| 47313P | Gasket (for front flex hose) | 47389-50021 |
| 47314 | No. 4 front brake pipe | 47314-06350 · 47314-06360 · 47314-06370 · 47314-06380 · 47314-06390 · 47314-06420 |
| 47315 | No. 5 front brake pipe | 47315-06360 · 47315-06361 · 47315-06370 · 47315-06380 · 47315-06381 · 47315-06390 · 47315-06400 · 47315-06410 · 47315-06440 |
| 47316 | No. 6 front brake pipe | 47316-06440 · 47316-06450 · 47316-06460 · 47316-06470 · 47316-06480 · 47316-06490 · 47316-06500 · 47316-06510 · 47316-06520 · 47316-06540 · 47316-06560 |
| 47317 | No. 7 front brake pipe | 47317-06420 · 47317-06430 · 47317-06440 · 47317-06450 · 47317-06460 · 47317-06470 · 47317-06480 · 47317-06490 · 47317-06500 · 47317-06520 · 47317-06540 |
| 47318D | Connector bolt (for rear flex hose) | 90401-10058 |
| 47318E | Gasket (for rear flex hose) | 47389-50021 |
| 47318F | Right rear flexible hose | 90947-T2067 · 90947-T2069 |
| 47319F | Left rear flexible hose | 90947-T2068 · 90947-T2070 |
| 47321 | No. 1 rear brake pipe | 47321-06180 · 47321-06190 · 47321-06200 · 47321-06240 · 47321-06250 · 47321-06260 |
| 47322 | No. 2 rear brake pipe | 47322-06180 · 47322-06190 · 47322-06200 · 47322-06240 · 47322-06250 · 47322-06260 |
| 47371A | No. 1 brake pipe clamp | 47371-33280 · 47371-33290 · 90464-00876 · 90464-00880 |
| 47371B | No. 6 brake pipe clamp | 90949-01D51 |
| 47372 | No. 2 brake pipe clamp | 90464-00857 · 90949-01540 · 90949-01D87 |
| 47373B | No. 3 brake pipe clamp | 90464-00894 · 90949-01D06 · 90949-01D08 · 90949-01D16 |
| 47374B | No. 4 brake pipe clamp | 90464-00919 · 90949-01D08 |
| 47375 | No. 5 brake pipe clamp | 90949-01D08 · 90949-01D50 |
| 47962 | brake booster pump collar | 47962-60090 |
| 47963 | brake booster pump shaft | 47965-30010 |
| 47965 | brake booster pump bushing | 47965-30010 |
