Toyota CAMRY 制动助力器和真空管 — Figure 4703

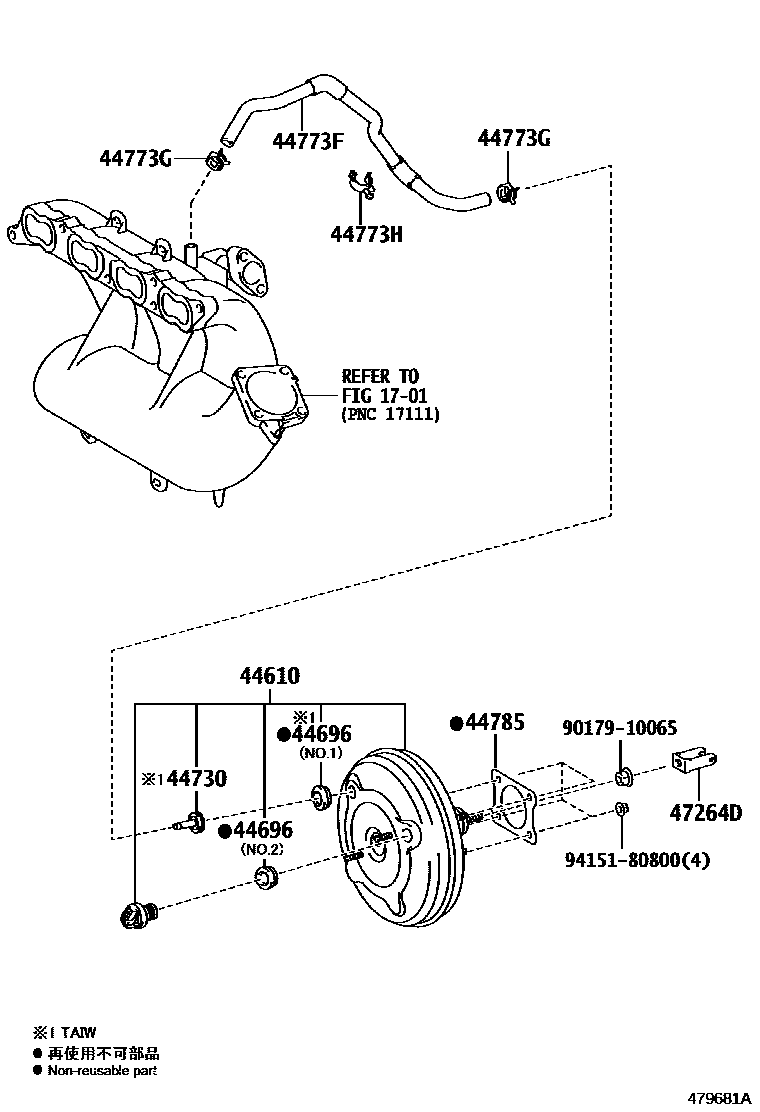

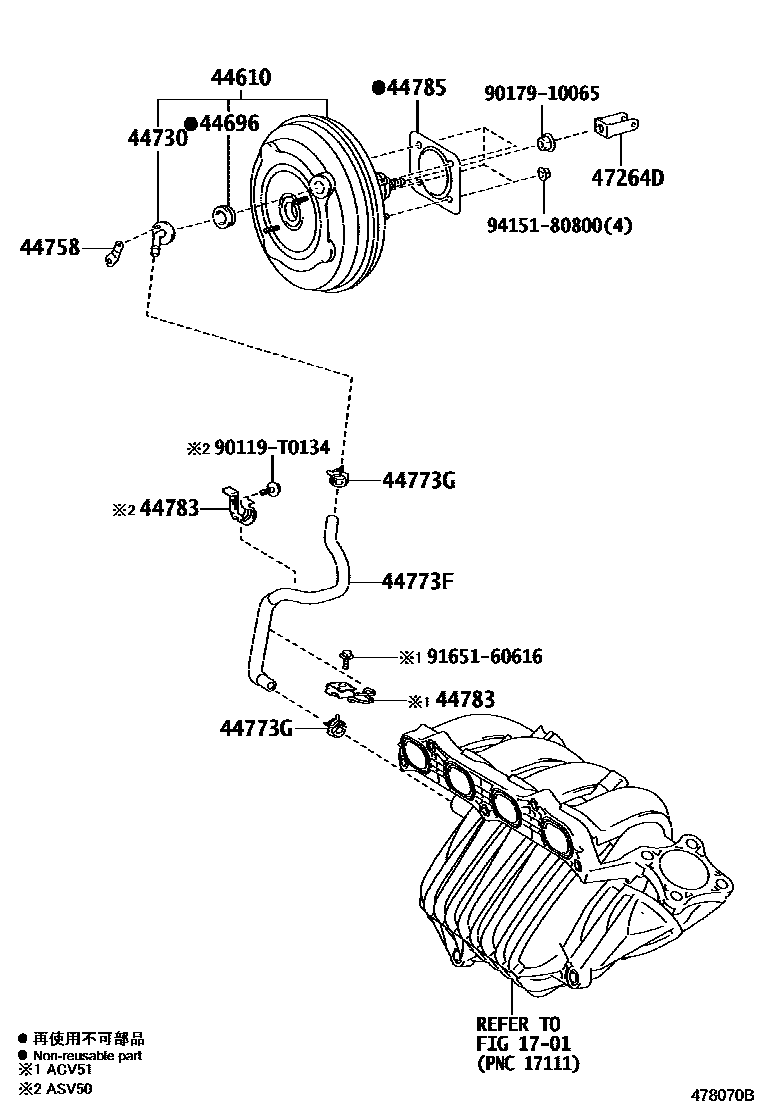

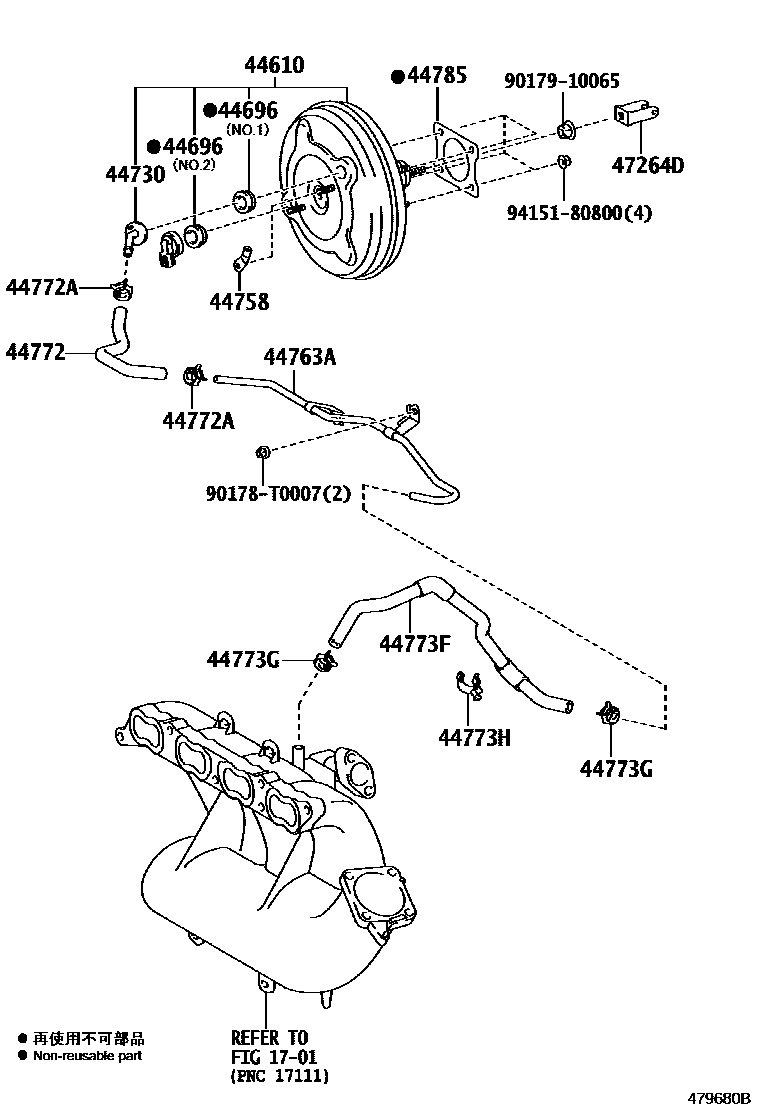

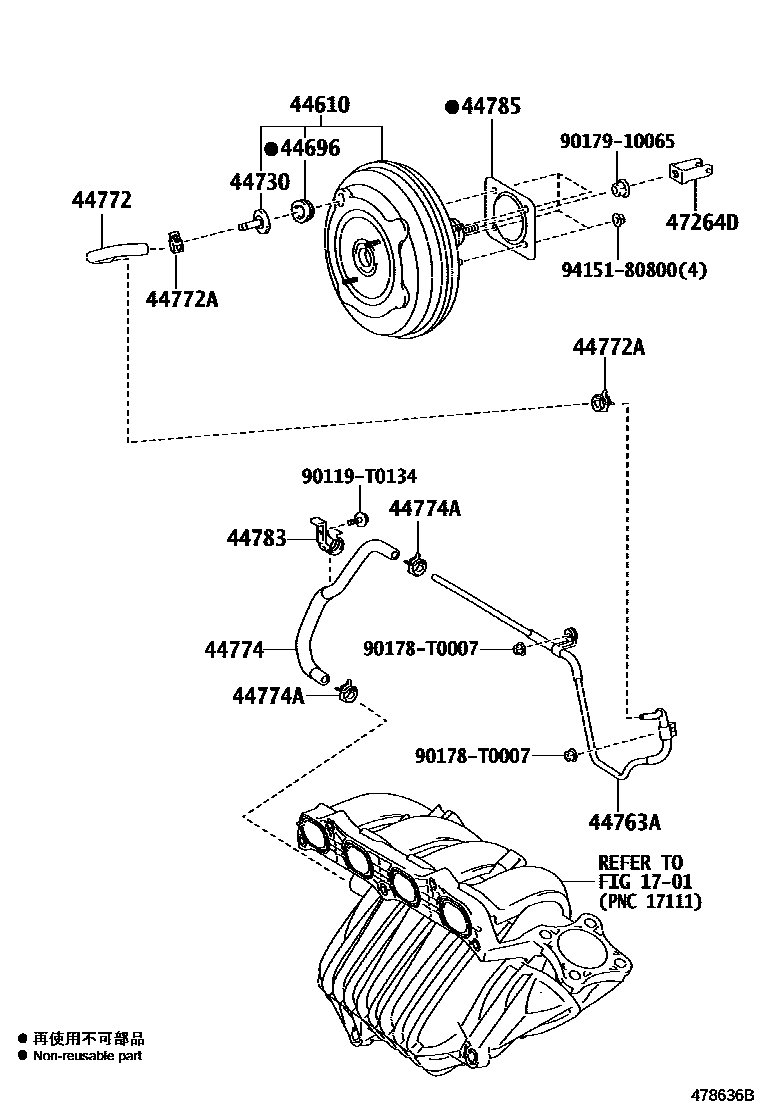

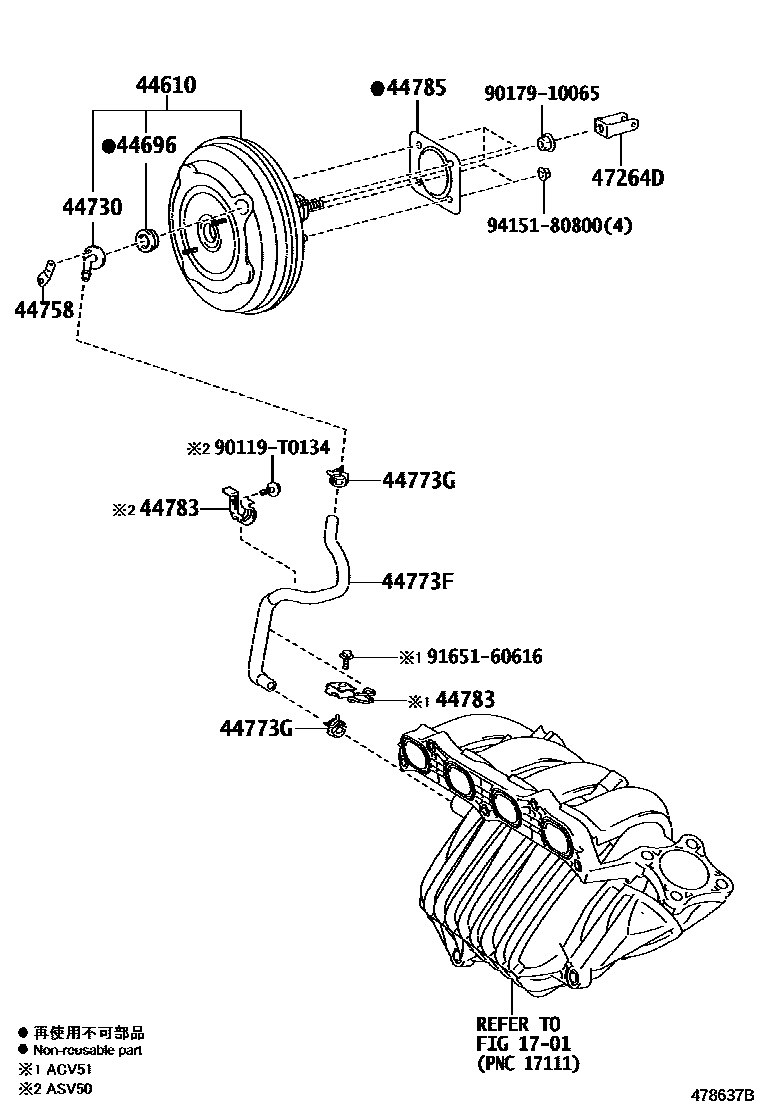

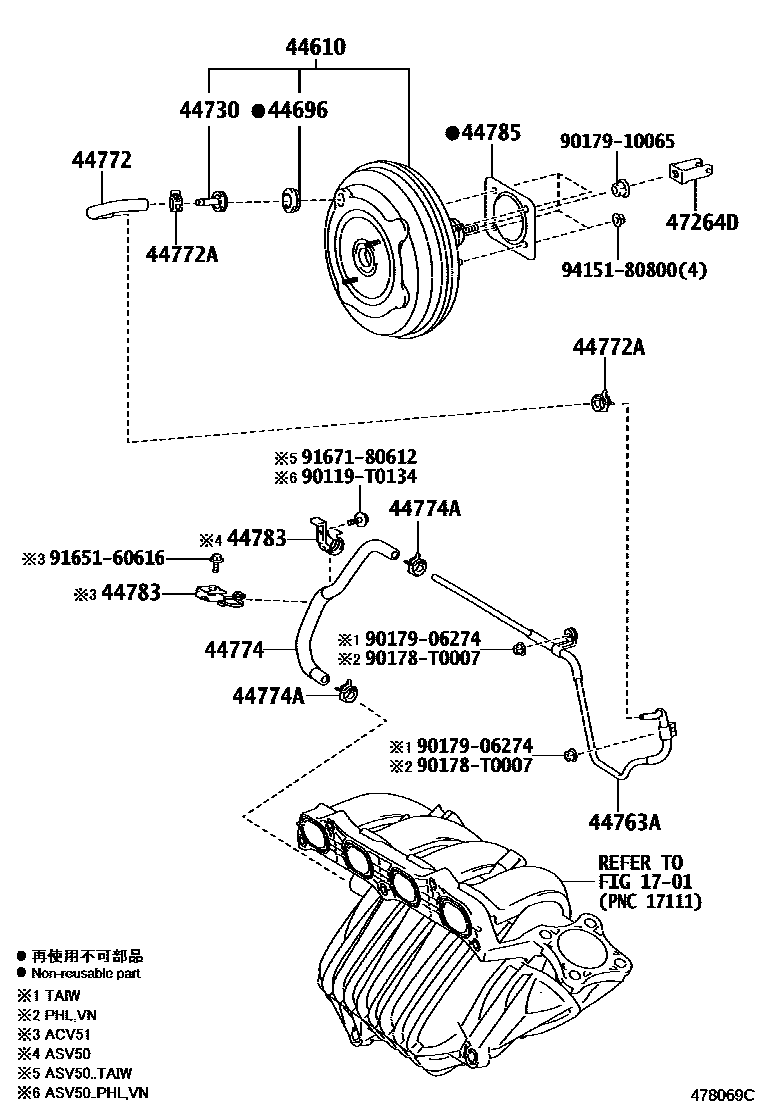

Toyota CAMRY EPC diagram 4703, 制动助力器和真空管, with 6 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44610 | brake booster assembly | 44610-06510 · 44610-06520 · 44610-06590 · 44610-06600 · 44610-06640 · 44610-06650 · 44610-06660 · 44610-33A00 · 44610-33A60 · 44610-33A70 |
| 44696 | One-way valve seal | 90480-24015 · 90480-24439 |
| 44730 | Vacuum check valve assembly (for brake) | 44730-10020 · 44730-28030 |
| 44758 | Vacuum check valve bracket | 44758-32070 |
| 44763A | Pipe No. 1 (hose to hose) | 44763-06090 · 44763-06100 · 44763-33070 · 44763-33100 |
| 44772 | Hoses (check valve to connector tube) | 44772-06350 · 44772-06360 · 44772-06370 |
| 44772A | Clip (for check valve to connector tube) | 90467-16014 |
| 44773F | Hoses (connector to check valve) | 44773-06110 · 44773-06120 · 44773-06140 · 44773-06150 · 44773-06160 |
| 44773G | Clamp (for connector to one-way valve hose) | 90467-16014 |
| 44773H | Clamp (for connector to check valve hose) | 90469-17003 |
| 44774 | Hoses (joints to connector tubes) | 44774-06120 · 44774-06130 · 44774-06140 · 44774-06170 |
| 44774A | Clip (for fitting to connector tube hose) | 90467-16014 |
| 44783 | Vacuum hose clamp | 44783-42030 · 44783-44010 |
| 44785 | brake booster pad | 44785-0D040 · 44785-12040 |
| 47264D | Brake master cylinder push rod U-shaped clamp | 47264-22040 · 47264-52050 |
