Toyota CAMRY 制动总泵 — Figure 4702

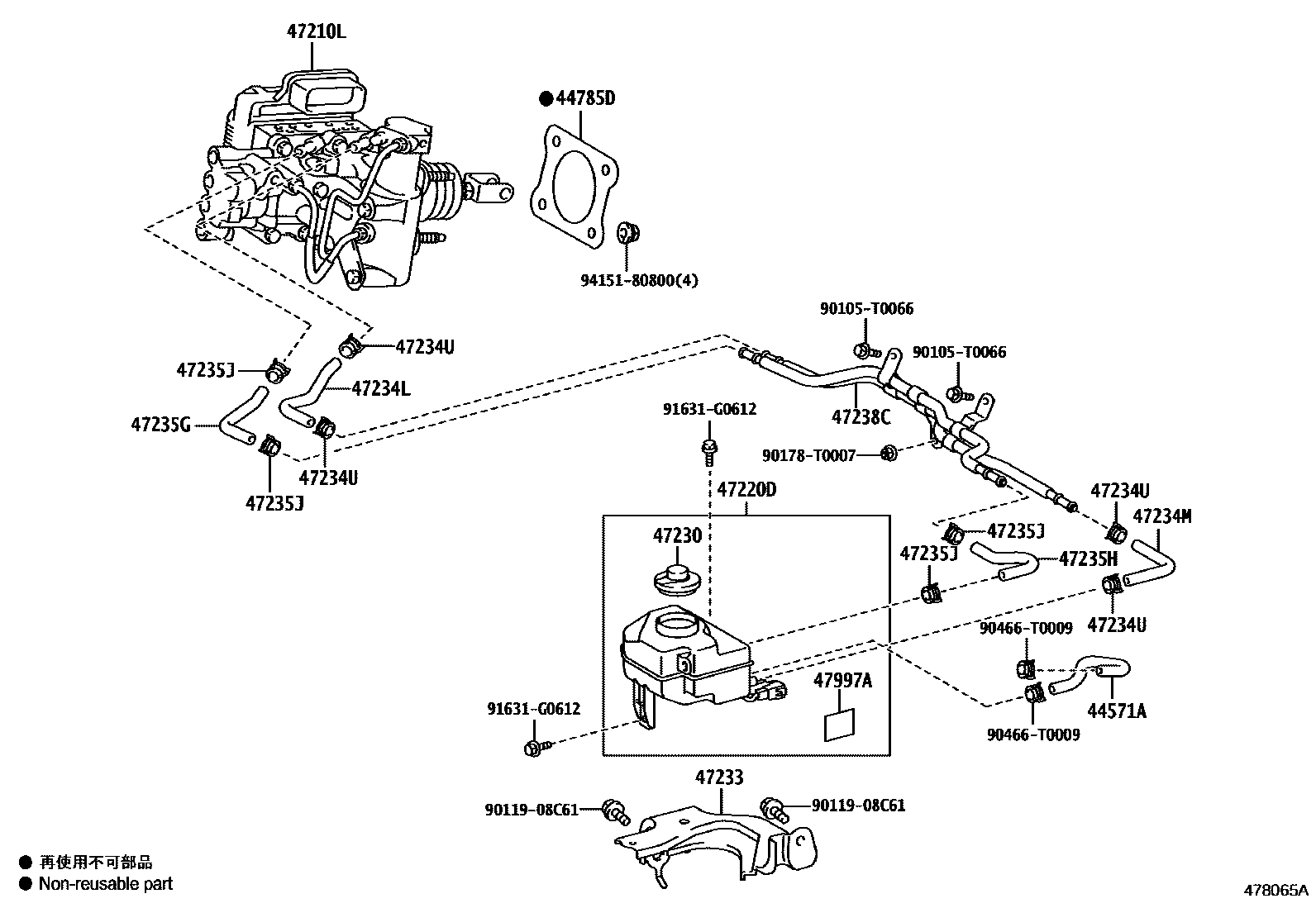

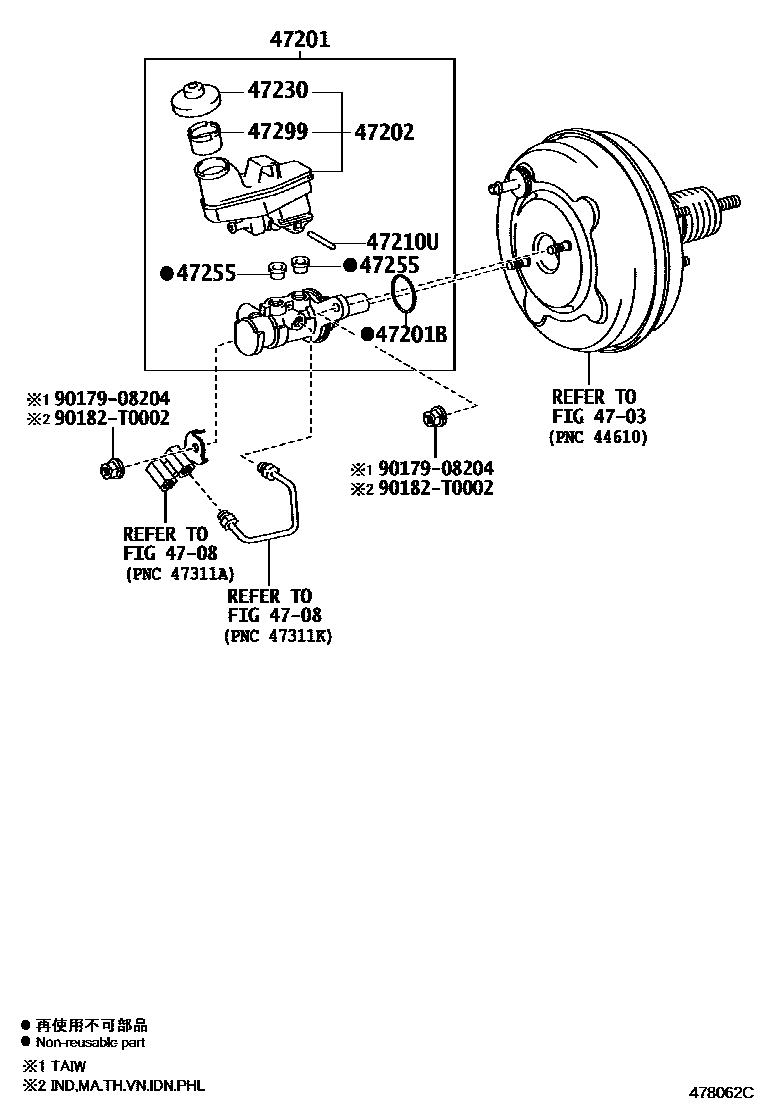

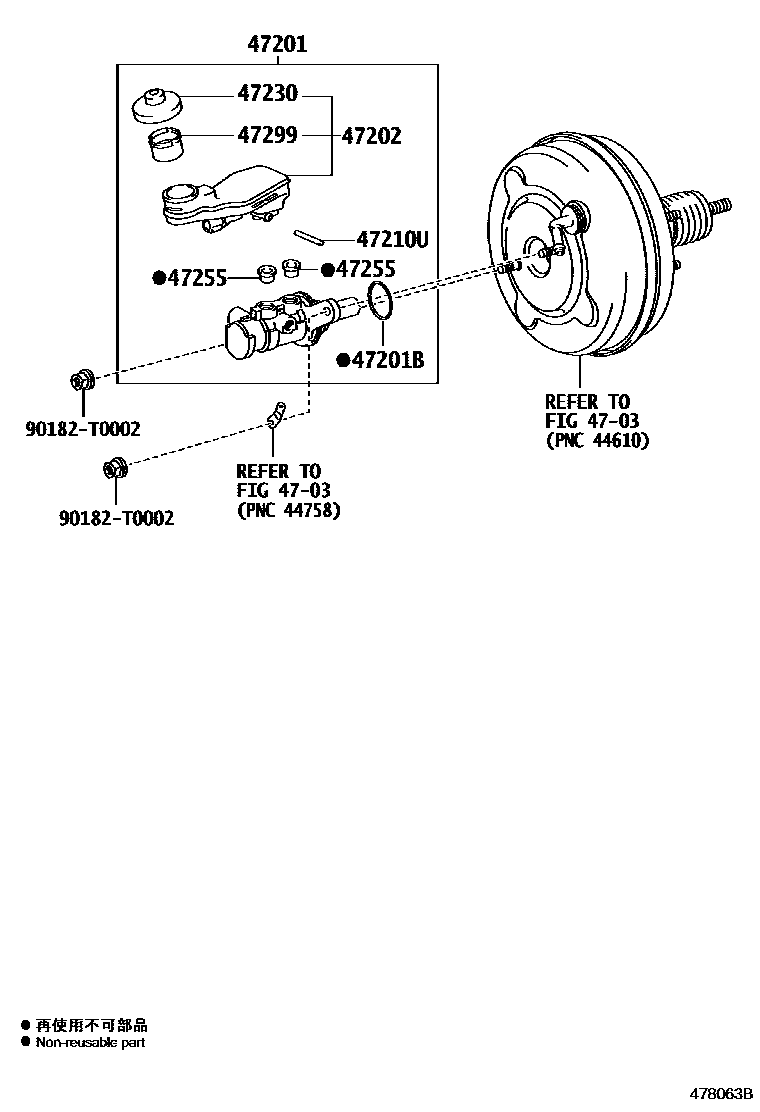

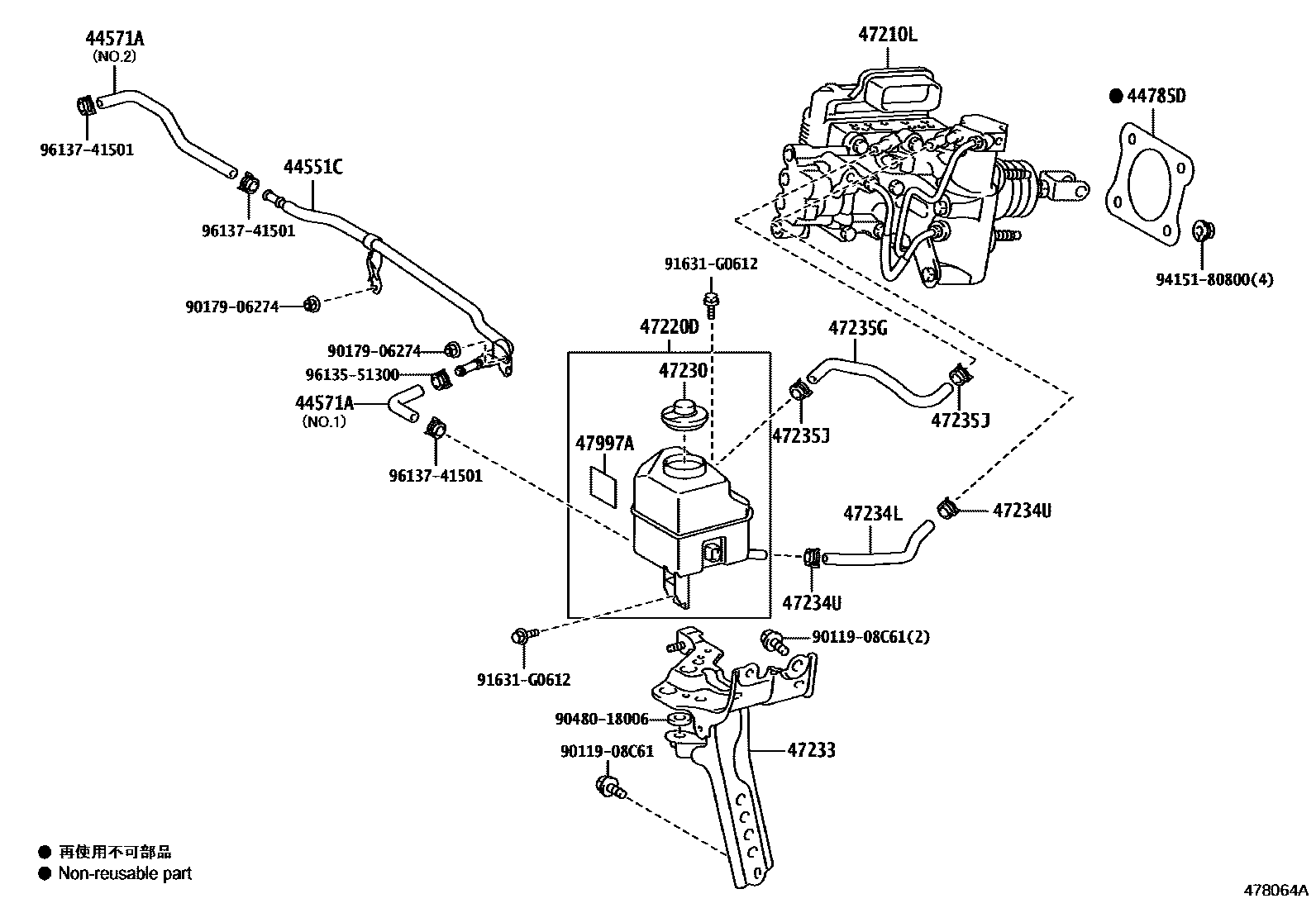

Toyota CAMRY EPC diagram 4702, 制动总泵, with 4 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44551C | No. 1 brake actuator pipe | 44551-06050 |
| 44571A | No. 1 brake actuator hose | 44571-33120 · 44571-33130 · 44571-33140 |
| 44785D | brake master cylinder gasket | 44785-0D040 · 44785-12040 |
| 47201 | Brake master cylinder sub-assembly | 47201-06470 · 47201-06471 · 47201-06480 · 47201-06481 · 47201-06482 · 47201-06490 · 47201-06491 · 47201-06500 · 47201-06501 · 47201-06502 · 47201-33621 · 47201-33622 · 47201-33630 · 47201-33631 · 47201-33632 |
| 47201B | O-ring (for brake master cylinder) | 90015-AH001 |
| 47202 | Brake master cylinder reservoir sub-assembly | 47220-06290 · 47220-06291 · 47220-06300 · 47220-06301 · 47220-33300 |
| 47210L | Brake booster assembly with master cylinder | 47050-33031 · 47050-33032 · 47050-33033 · 47050-33071 · 47050-33072 · 47050-33200 · 47050-33210 |
| 47210U | Direct sales (for brake master cylinder) | 90015-AE401 |
| 47220D | Brake master cylinder fluid reservoir assembly | 47220-33120 · 47220-33260 |
| 47230 | Brake master cylinder fluid reservoir filler cap assembly | 47230-20140 · 47230-33071 · 47230-33072 · 47230-BZ080 |
| 47233 | Reservoir tank bracket | 47233-06030 · 47233-06060 |
| 47234L | Reservoir Tank No. 1 Hose | 47234-33040 · 47234-33060 |
| 47234M | Reservoir Tank No. 1 Hose | 47234-33050 |
| 47234U | Clamp (for reservoir tank No. 1 hose) | 90466-T0009 · 96137-41501 |
| 47235G | Reservoir tank No. 2 hose | 47235-33030 · 47235-33050 |
| 47235H | Reservoir tank No. 2 hose | 47235-33040 |
| 47235J | Clamp (for reservoir tank No. 2 hose) | 90466-T0009 · 96137-41501 |
| 47238C | Reservoir tube | 47238-06040 |
| 47255 | Master pump reservoir seal | 90015-AT001 |
| 47299 | Brake master cylinder reservoir filter | 47299-52110 |
| 47997A | Accumulator No. 1 Warning Label | 47997-76010 |
