Toyota CAMRY Front Drive Shaft — Figure 4302

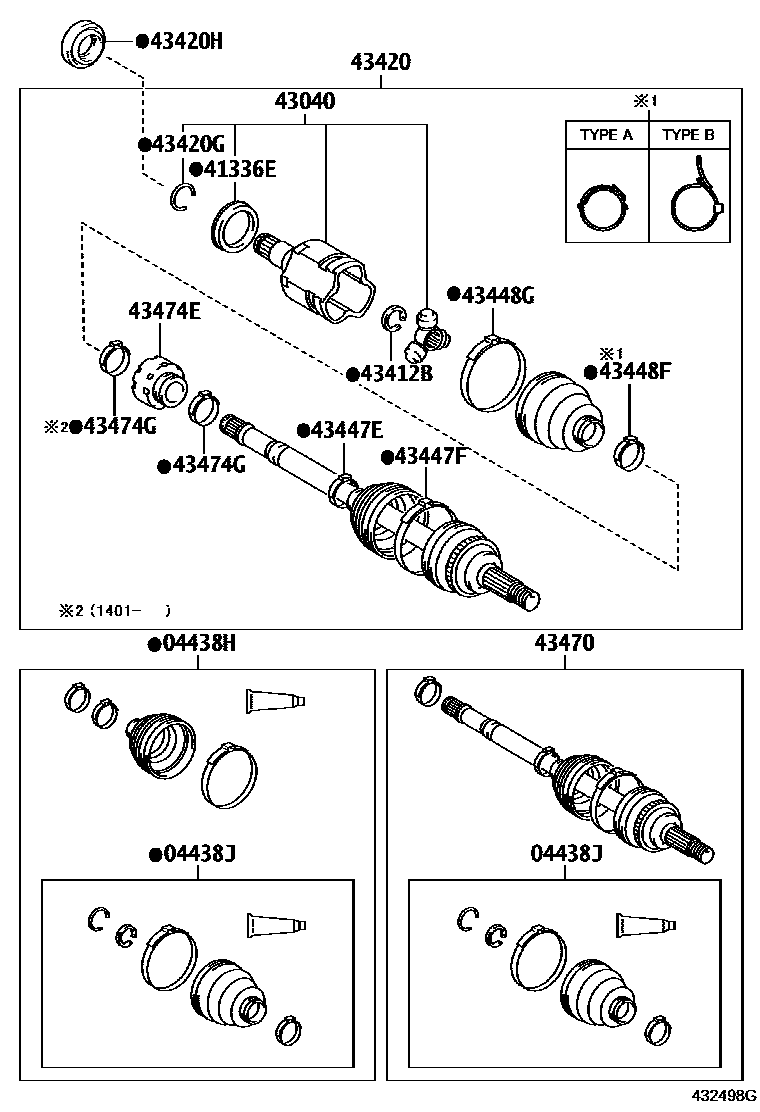

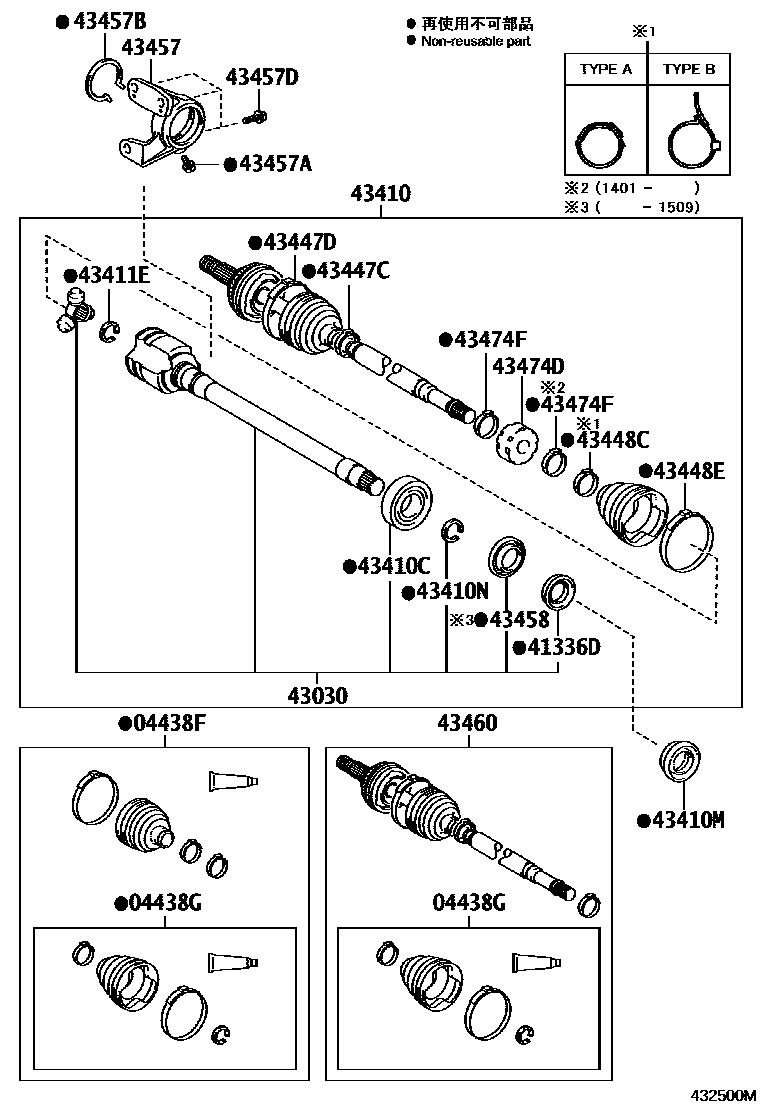

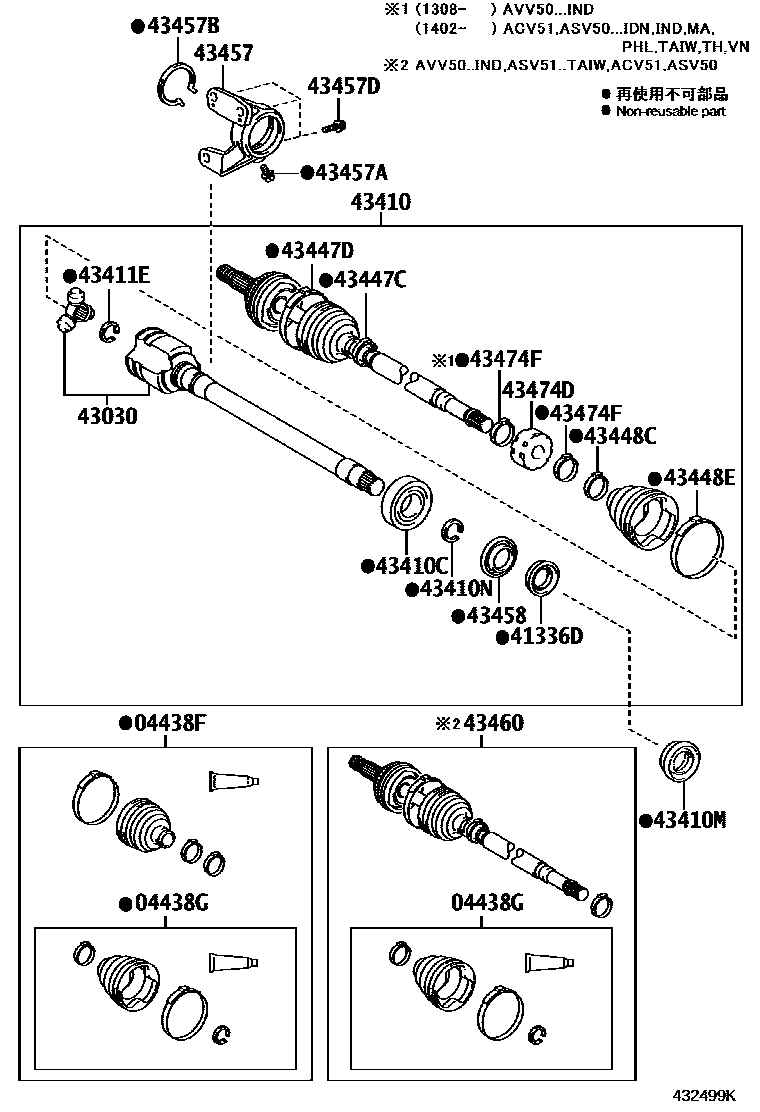

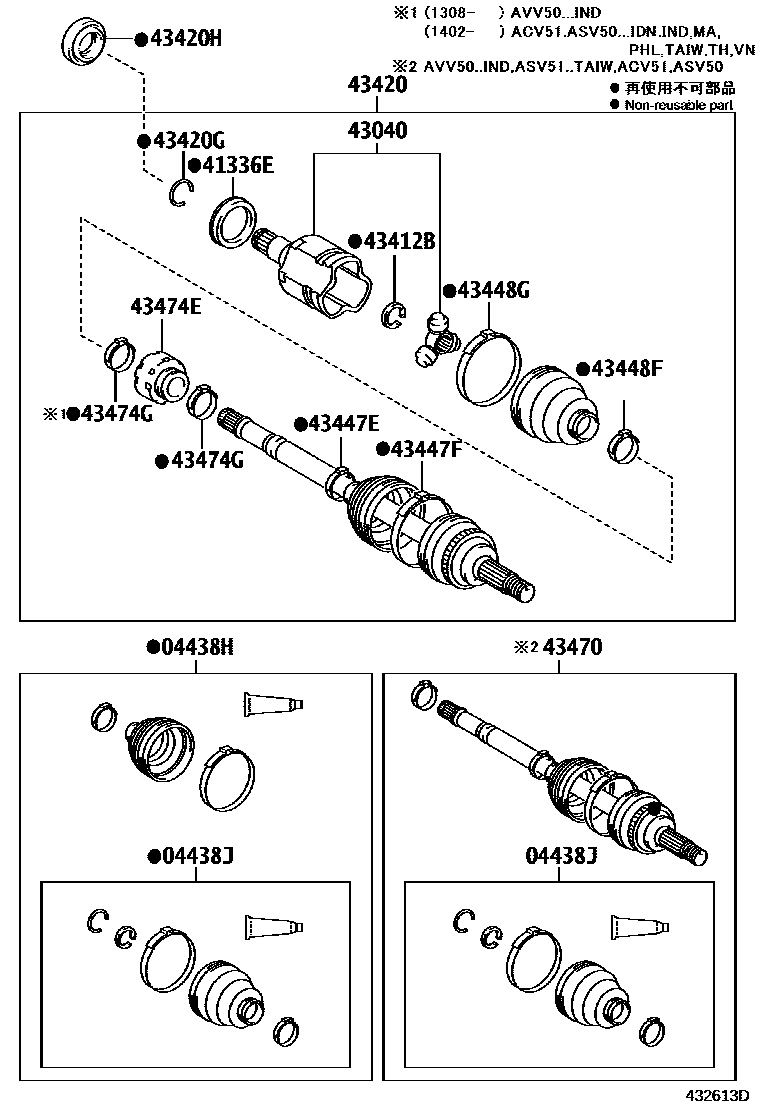

Toyota CAMRY EPC diagram 4302, Front Drive Shaft, with 4 images and 36 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04438F | Right front driveshaft inboard and outboard dust boot assembly | 04427-06440 · 04427-06441 · 04427-06450 · 04427-06451 · 04427-06520 · 04427-06521 · 04427-06561 · 04427-33100 · 04427-33101 · 04427-33102 |
| 04438G | Right front drive shaft inner universal joint dust boot assembly | 04437-06210 · 04437-06220 · 04437-06290 · 04437-06300 · 04437-33070 · 04437-44041 |
| 04438H | Left front driveshaft inboard and outboard dust boot assembly | 04427-06520 · 04427-06521 · 04428-06520 · 04428-06521 · 04428-06530 · 04428-06531 · 04428-06561 · 04428-06591 · 04428-33100 · 04428-33101 · 04428-42151 |
| 04438J | Left front drive shaft inner universal joint dust boot assembly | 04437-06290 · 04438-06610 · 04438-06620 · 04438-06650 · 04438-33140 · 04438-42181 |
| 41336D | Right front driveshaft dust cover | 41336-06190 · 41336-06230 · 41336-06240 · 41336-06260 · 41336-12020 |
| 41336E | Left front driveshaft dust cover | 41336-06200 · 41336-06210 · 41336-06250 · 41336-06270 · 41336-07040 · 41336-28030 |
| 43030 | Right front drive shaft inner universal joint assembly | 43030-06260 · 43030-06360 · 43030-06380 · 43030-06410 · 43030-06420 · 43030-06430 · 43030-33041 · 43030-33080 |
| 43040 | Left front drive shaft inner universal joint assembly | 43040-06250 · 43040-06320 · 43040-06330 · 43040-06340 · 43040-28021 · 43040-28040 |
| 43410 | Right front driveshaft assembly | 43410-06720 · 43410-06721 · 43410-06840 · 43410-06841 · 43410-06850 · 43410-06851 · 43410-06880 · 43410-06890 · 43410-06A60 · 43410-33340 · 43410-33341 |
| 43410C | Bearings (for front driveshaft) | 90363-41003 · 90363-A0004 · 90363-T0029 · 90363-T0040 |
| 43410M | Front drive shaft right oil seal | 90311-40029 · 90311-40031 · 90311-40038 · 90311-40039 |
| 43410N | Hole snap ring (for right front driveshaft) | 43425-06140 · 43425-06330 · 43425-06370 · 43425-06410 · 90520-38015 |
| 43411E | Inner shaft snap ring (for right front axle inner drive shaft) | 43425-06300 · 43425-06340 · 43425-06380 · 43425-06420 · 43425-28010 |
| 43412B | Inner shaft snap ring (for left front axle inner drive shaft) | 43425-06300 · 43425-06340 · 43425-06380 · 43425-06440 · 43425-28010 |
| 43420 | Left front drive shaft assembly | 43420-06800 · 43420-06801 · 43420-06A20 · 43420-06A21 · 43420-06A30 · 43420-06A31 · 43420-06A40 · 43420-06A50 · 43420-06B10 · 43420-33320 · 43420-33321 |
| 43420G | Hole snap ring (for left front driveshaft) | 43425-06320 · 43425-06360 · 43425-06400 · 43425-06420 · 90521-33002 |
| 43420H | Front drive shaft left oil seal | 90311-50031 · 90311-50045 · 90311-50053 · 90311-50064 |
| 43447C | Clamp (for the outer universal joint dust cover of the right front axle) | 42345-06730 · 42345-06780 · 42345-06830 · 42345-42120 |
| 43447D | No. 2 clip (for the universal joint dust cover on the outside of the right front axle) | 42345-06720 · 42345-06770 · 42345-06840 · 42345-42110 |
| 43447E | Clamp (for left front axle outer universal joint dust cover) | 42345-06730 · 42345-06780 · 42345-06830 · 42345-42120 |
| 43447F | No. 2 clip (for left front axle outer universal joint dust cover) | 42345-06720 · 42345-06770 · 42345-06840 · 42345-42110 |
| 43448C | Clamp (for the universal joint dust cover inside the right front axle) | 42345-06710 · 42345-06760 · 42345-06820 · 42345-33120 · 42345-42010 · 90949-01559 |
| 43448E | No. 2 clip (for the universal joint dust cover inside the right front axle) | 42345-06590 · 42345-06750 · 42345-06810 · 42345-12160 · 42345-33140 |
| 43448F | Clamp (for left front axle inner universal joint dust cover) | 42345-06710 · 42345-06760 · 42345-06820 · 42345-33120 · 42345-42010 · 90949-01559 |
| 43448G | Clamp No. 2 (for the universal joint dust cover inside the left front axle) | 42345-06590 · 42345-06750 · 42345-06810 · 42345-12160 · 42345-33140 |
| 43457 | drive shaft bearing bracket | 43457-06050 · 43457-06060 · 43457-06080 · 43457-06120 · 43457-06130 · 43457-06140 |
| 43457A | Bolts (for securing the No. 1 drive shaft bearing bracket) | 90119-10461 |
| 43457B | Hole snap ring (for drive shaft bearing bracket) | 90521-78002 |
| 43457D | Bolts (for securing the No. 2 drive shaft bearing bracket) | 90105-10381 |
| 43458 | Front drive shaft dust cover | 43458-06070 · 43458-06090 · 43458-06100 · 43458-06110 · 43458-12010 |
| 43460 | Right front outer drive universal joint shaft assembly | 43470-39575 · 43470-39576 · 43470-39577 · 43470-8Z015 · 43470-8Z018 · 43470-8Z113 · 43470-8Z222 · 43470-8Z248 · 43470-8Z249 · 43470-8Z253 · 43470-8Z255 · 43470-8Z256 |
| 43470 | Left front outer drive universal joint shaft assembly | 43470-39465 · 43470-39486 · 43470-39487 · 43470-8Z016 · 43470-8Z017 · 43470-8Z021 · 43470-8Z022 · 43470-8Z114 · 43470-8Z223 · 43470-8Z250 · 43470-8Z251 · 43470-8Z254 · 43470-8Z257 · 43470-8Z258 · 43470-8Z259 · 43470-8Z260 |
| 43474D | Right front driveshaft shock absorber | 43474-06220 · 43474-06280 · 43474-06350 · 43474-06420 · 43474-06440 · 43474-06460 · 43474-07010 · 43474-48020 · 43474-48080 |
| 43474E | Left front driveshaft shock absorber | 43474-06200 · 43474-06230 · 43474-06290 · 43474-06360 · 43474-06410 · 43474-06430 · 43474-06450 · 43474-06470 · 43474-06480 · 43474-07030 · 43474-48030 · 43474-48090 |
| 43474F | Clamp (for right front driveshaft shock absorber) | 42345-06580 · 42345-06740 · 42345-06850 · 42345-12090 · 42345-14010 |
| 43474G | Clamp (for left front driveshaft shock absorber) | 42345-06580 · 42345-06740 · 42345-06850 · 42345-12090 · 42345-14010 |
