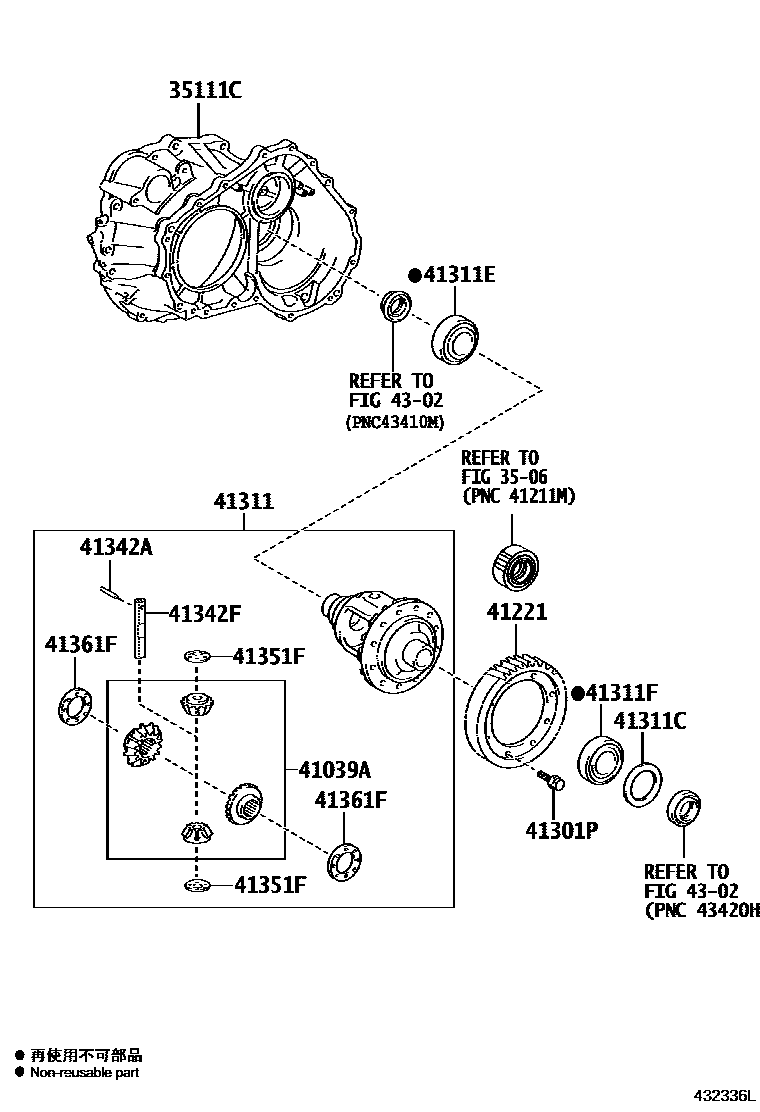

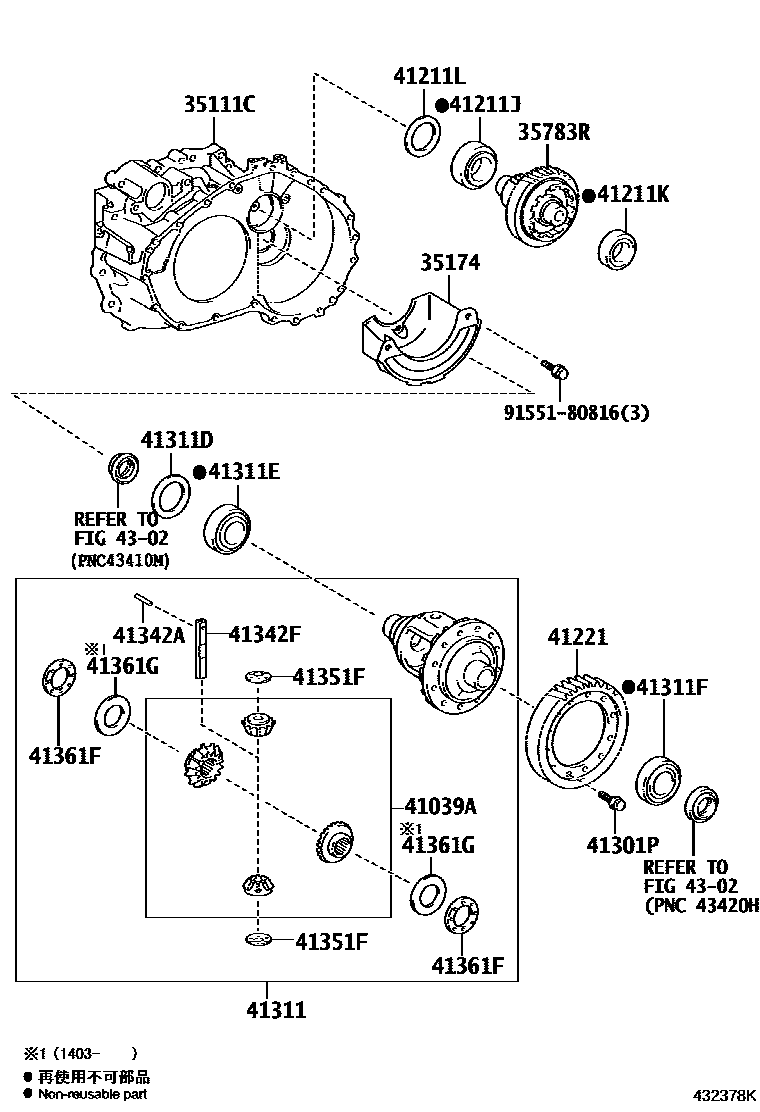

Toyota CAMRY 前桥壳和差速器 — Figure 4301
Toyota CAMRY EPC diagram 4301, 前桥壳和差速器, with 2 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35111C | Transmission axle housing | 35105-33020 · 35105-33021 · 35105-33022 · 35105-44061 · 35105-73030 · 35105-73031 |
| 35174 | Transmission axle housing oil separator | 35174-73010 |
| 35783R | countershaft driven gear | 35705-33030 · 35705-33040 · 35705-33090 · 35705-33120 |
| 41039A | Differential gear assembly | 41039-28020 · 41039-28030 · 41039-33080 |
| 41211J | Right-hand tapered bearing (for differential drive pinion) | 90366-35167 |
| 41211K | Left side roller bearing (for differential drive pinion) | 90366-32034 |
| 41211L | Spacer (for differential drive pinion) | 90564-61022 · 90564-61023 · 90564-61024 · 90564-61025 · 90564-61026 · 90564-61027 · 90564-61028 · 90564-61029 · 90564-61030 · 90564-61031 · 90564-61032 · 90564-61033 · 90564-61034 · 90564-61035 · 90564-61036 · 90564-61037 · 90564-61038 · 90564-61039 · 90564-61040 · 90564-61041 · 90564-61042 · 90564-61043 · 90564-61044 · 90564-61045 · 90564-61046 · 90564-61047 · 90564-61048 · 90564-61049 · 90564-61050 · 90564-61051 · 90564-61052 · 90564-61053 · 90564-61054 · 90564-61055 · 90564-61056 · 90564-61057 · 90564-61058 · 90564-61059 · 90564-61060 · 90564-61061 · 90564-61062 |
| 41221 | Front differential ring gear | 41221-33180 · 41221-33190 · 41221-33260 · 41221-44010 |
| 41301P | Screw (for front differential case) | 90105-12303 |
| 41311 | front differential case | 41301-33100 · 41301-33101 · 41301-33110 · 41301-73010 · 41301-73011 |
| 41311C | Rear gasket (for front differential case) | 90564-68006 · 90564-68007 · 90564-68008 · 90564-68009 · 90564-68010 · 90564-68011 · 90564-68012 · 90564-68013 · 90564-68014 · 90564-68015 · 90564-68016 · 90564-68017 · 90564-68018 · 90564-68019 · 90564-68020 · 90564-68021 · 90564-68022 · 90564-68023 · 90564-68024 |
| 41311D | Front gasket (for front differential case) | 90564-69001 · 90564-69002 · 90564-69003 · 90564-69004 · 90564-69005 · 90564-69006 · 90564-69007 · 90564-69008 · 90564-69009 · 90564-69010 · 90564-69011 · 90564-69012 · 90564-69013 · 90564-69014 · 90564-69015 · 90564-69016 · 90564-69017 · 90564-69020 · 90564-69021 · 90564-69022 · 90564-69023 · 90564-69024 · 90564-69025 · 90564-69026 · 90564-69027 · 90564-69028 · 90564-69029 · 90564-69030 · 90564-69031 · 90564-69032 · 90564-69033 · 90564-69034 · 90564-69035 · 90564-69036 · 90564-69037 · 90564-69038 |
| 41311E | Roller cone bearing (for front differential housing) | 90366-50084 · 90366-50118 |
| 41311F | Rear tapered bearing (for front differential housing) | 90366-50078 · 90366-55071 |
| 41342A | Direct sales (for front differential planetary gear shaft) | 90250-06058 |
| 41342F | No. 1 front differential planetary gear shaft | 41342-33040 · 41342-33060 · 41342-33061 · 41342-73010 · 41342-73011 |
| 41351F | Front differential planetary gear thrust washer | 41351-28010 · 41351-73010 |
| 41361F | No. 1 front differential side gear thrust washer | 41361-28230 · 41361-28240 · 41361-28250 · 41361-28260 · 41361-28270 · 41361-28280 · 41361-28290 · 41361-28300 · 41361-28310 · 41361-33300 · 41361-33310 · 41361-33320 · 41361-33330 · 41361-33340 · 41361-33350 · 41361-33360 · 41361-33370 · 41361-33380 · 41361-33390 · 41361-33400 · 41361-33410 · 41361-73010 · 41361-73020 · 41361-73030 · 41361-73050 |
| 41361G | Conical spring washer (for center differential side gears) | 90208-40003 |
