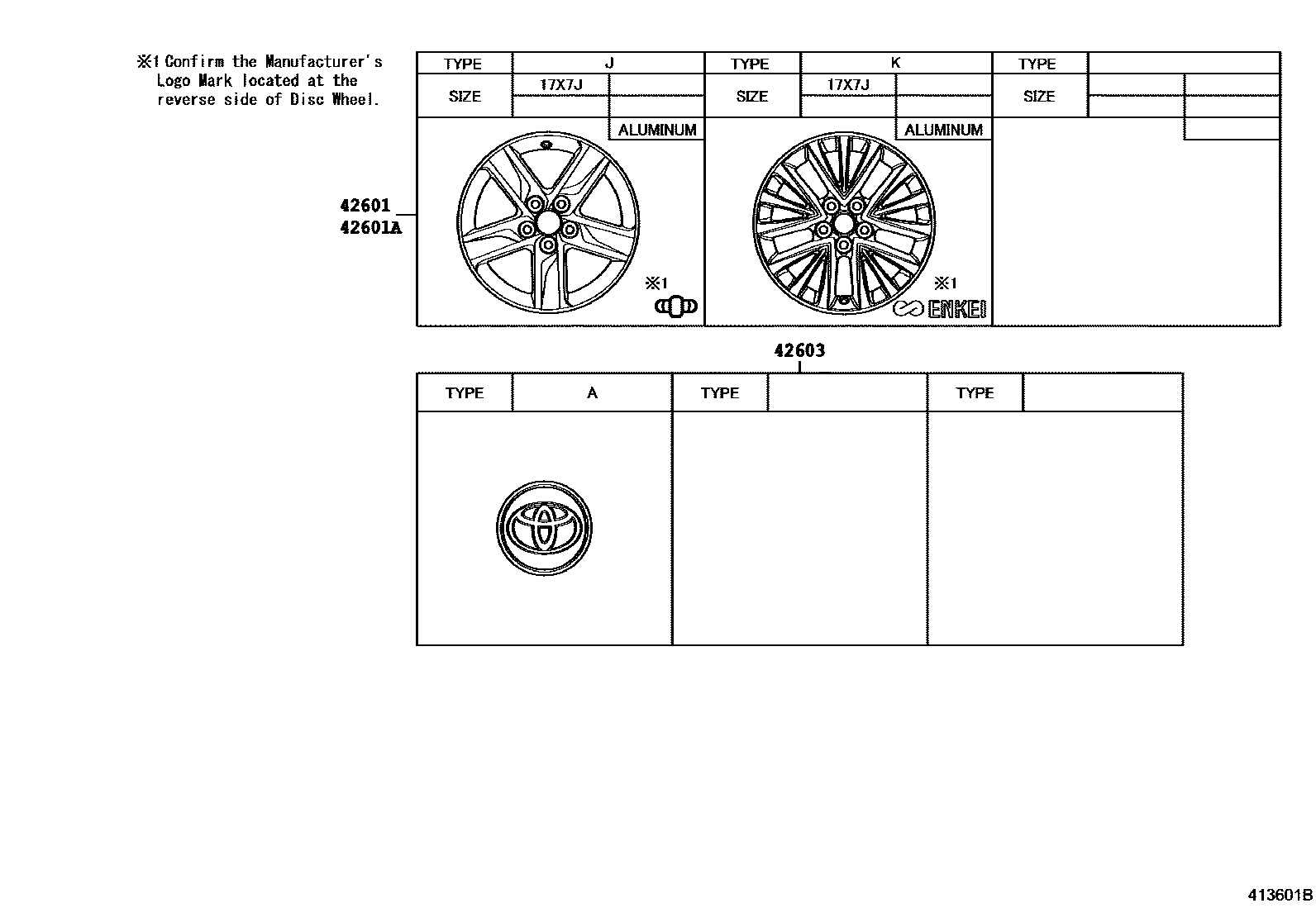

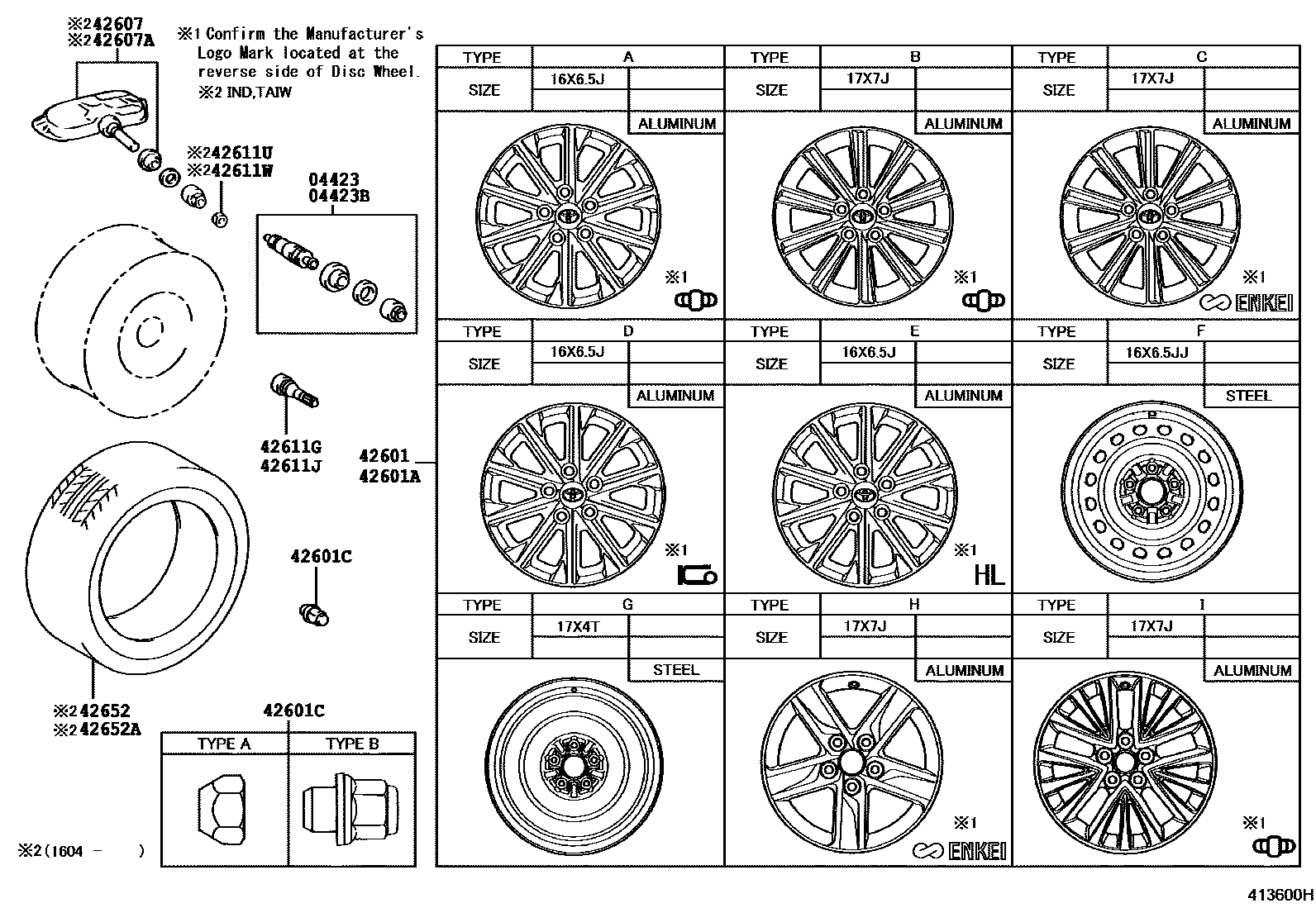

Toyota CAMRY 车轮和车轮盖 — Figure 4103
Toyota CAMRY EPC diagram 4103, 车轮和车轮盖, with 3 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04423 | Tire pressure monitoring valve or balancer valve mounting assembly | 04423-0N010 · 04423-33060 |
| 04423B | Tire pressure monitoring valve or balancer valve mounting assembly (spare) | 04423-33060 |
| 42601 | spoke wheel | 42611-06410 · 42611-06880 · 42611-06881 · 42611-06890 · 42611-06A00 · 42611-06A01 · 42611-06A10 · 42611-06A12 · 42611-06A13 · 42611-06A14 · 42611-06A20 · 42611-06A21 · 42611-06A30 · 42611-06A50 · 42611-06A60 · 42611-06B90 · 42611-06C00 · 42611-06D20 · 42611-06G60 |
| 42601A | Spoke wheel (for spare tire) | 42611-06400 · 42611-06410 · 42611-06A00 · 42611-06A01 · 42611-06A10 · 42611-06A12 · 42611-06A13 · 42611-06A14 · 42611-06A20 · 42611-06A21 · 42611-06A30 · 42611-06A60 · 42611-06B90 · 42611-06G60 |
| 42601C | Hub nut (for axle) | 90942-01007 · 90942-01033 |
| 42603 | Wheel hub decorative parts sub-assembly | 42603-06090 · 42603-06100 · 42603-0K280 |
| 42607 | Tire pressure monitoring valve sub-assembly | 42607-06040 · 42607-33050 · 42607-52020 · 42607-60010 |
| 42607A | Tire pressure monitoring valve sub-assembly (for spare tire) | 42607-33050 · 42607-60010 |
| 42611G | Valve (for tubeless tires) | 90080-94031 · 90942-05009 |
| 42611J | Valve (for tubeless spare tire) | 90080-94031 · 90083-45001 · 90942-05009 |
| 42611U | tire valve cover | 90942-05039 · 90942-C5001 |
| 42611W | Tire valve cap (for spare tire) | 90942-05039 |
| 42652 | tires | 42652-06A00 · 42652-06A10 · 42652-06A20 · 42652-06A21 · 42652-06A30 · 42652-33770 · 42652-33780 |
| 42652A | Tire (for Spare Wheel) | 42652-06830 · 42652-33770 · 42652-33780 |
