Toyota CAMRY 传动桥总成(HEV 或 BEV 或 FCEV) — Figure 3901

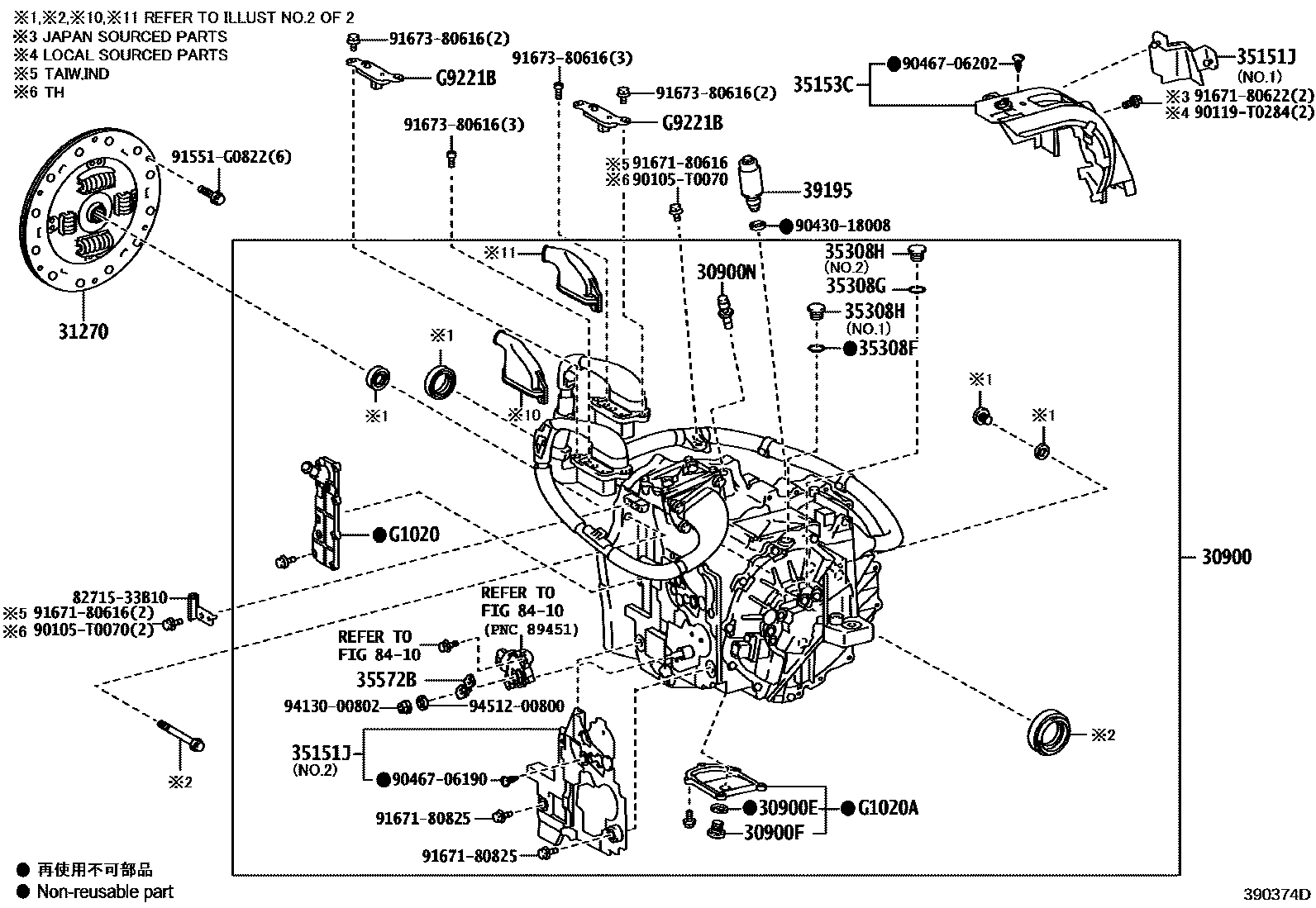

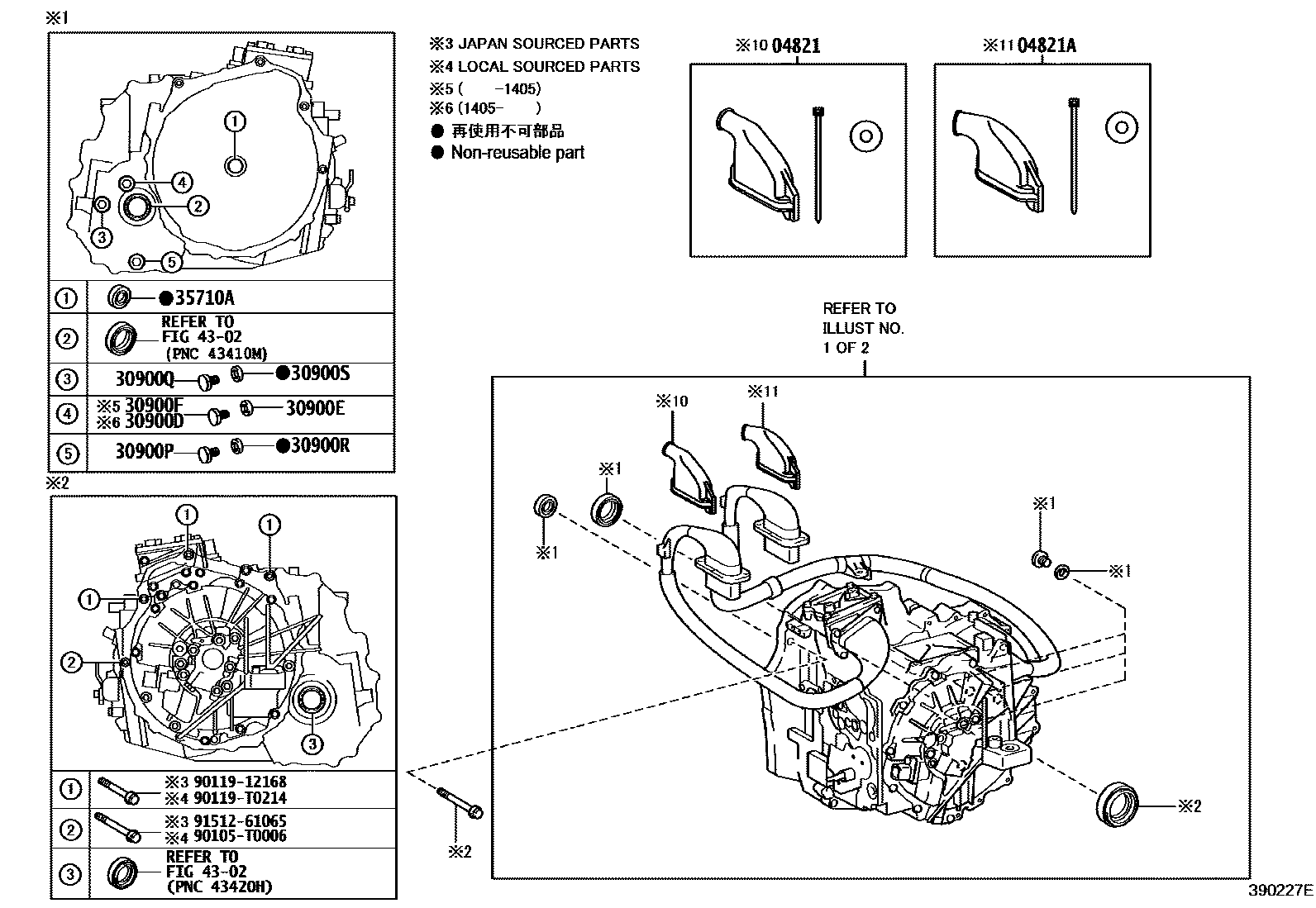

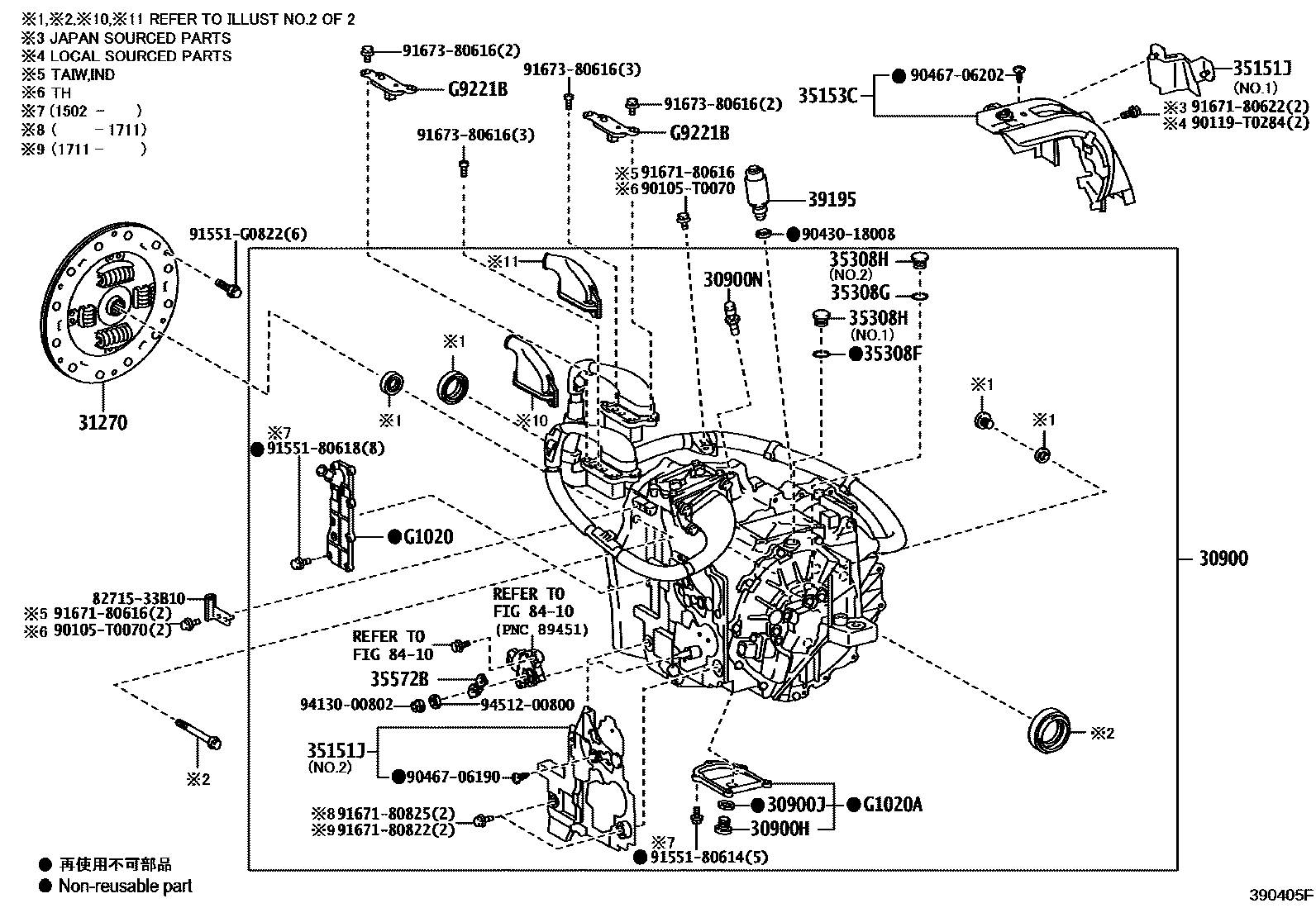

Toyota CAMRY EPC diagram 3901, 传动桥总成(HEV 或 BEV 或 FCEV), with 3 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04821 | Wiring harness dust jacket assembly | 04821-33010 |
| 04821A | Wiring harness dust jacket assembly | 04821-33020 |
| 30900 | Hybrid vehicle transmission axle assembly | 30900-33030 · 30900-33040 · 30900-33053 |
| 30900D | Headed straight thread plug (for transaxle housing and transaxle housing) | 90341-18016 · 90341-18078 |
| 30900E | Gasket (for transaxle housing and transaxle housing) | 90430-18008 |
| 30900F | No. 2 headed straight thread plug (for transaxle housing and transaxle housing) | 90341-18016 |
| 30900H | No. 3 headed straight thread plug (for transaxle housing and transaxle housing) | 90341-18016 |
| 30900J | No. 3 gasket (for transaxle housing and transaxle housing) | 90430-18008 |
| 30900N | Breather plug (for transaxle) | 90930-03201 |
| 30900P | Drain plug (HEV) | 90341-18016 |
| 30900Q | Oil filling plug (HEV) | 90341-18016 |
| 30900R | Drain plug gasket (HEV) | 90430-18008 |
| 30900S | Oil filling plug gasket (HEV) | 90430-18008 |
| 31270 | Transmission input damper assembly | 31270-30010 · 31270-33020 |
| 35151J | automatic transmission cover | 35151-33090 · 35151-33100 |
| 35153C | No. 3 automatic transmission cover | 35153-33030 |
| 35308F | No. 1 O-ring (for transmission oil pump cover) | 90301-13013 |
| 35308G | No. 2 O-ring (for transmission oil pump cover) | 90301-06196 |
| 35308H | Screw plug (for transmission oil pump cover) | 90341-08001 · 90341-16023 |
| 35572B | Transmission outer lever | 35572-33030 |
| 35710A | T-type oil seal (for input shaft) | 90311-25027 |
| 39195 | HV transaxle mass damper | 39195-33020 |
| G1020 | No. 1 motor water jacket cover assembly | G1020-33010 |
| G1020A | No. 2 motor water jacket cover assembly | G1020-48030 |
| G9221B | Inverter top cover | G9221-33010 |
