Toyota CAMRY 变速器壳和油底壳(ATM) — Figure 3503

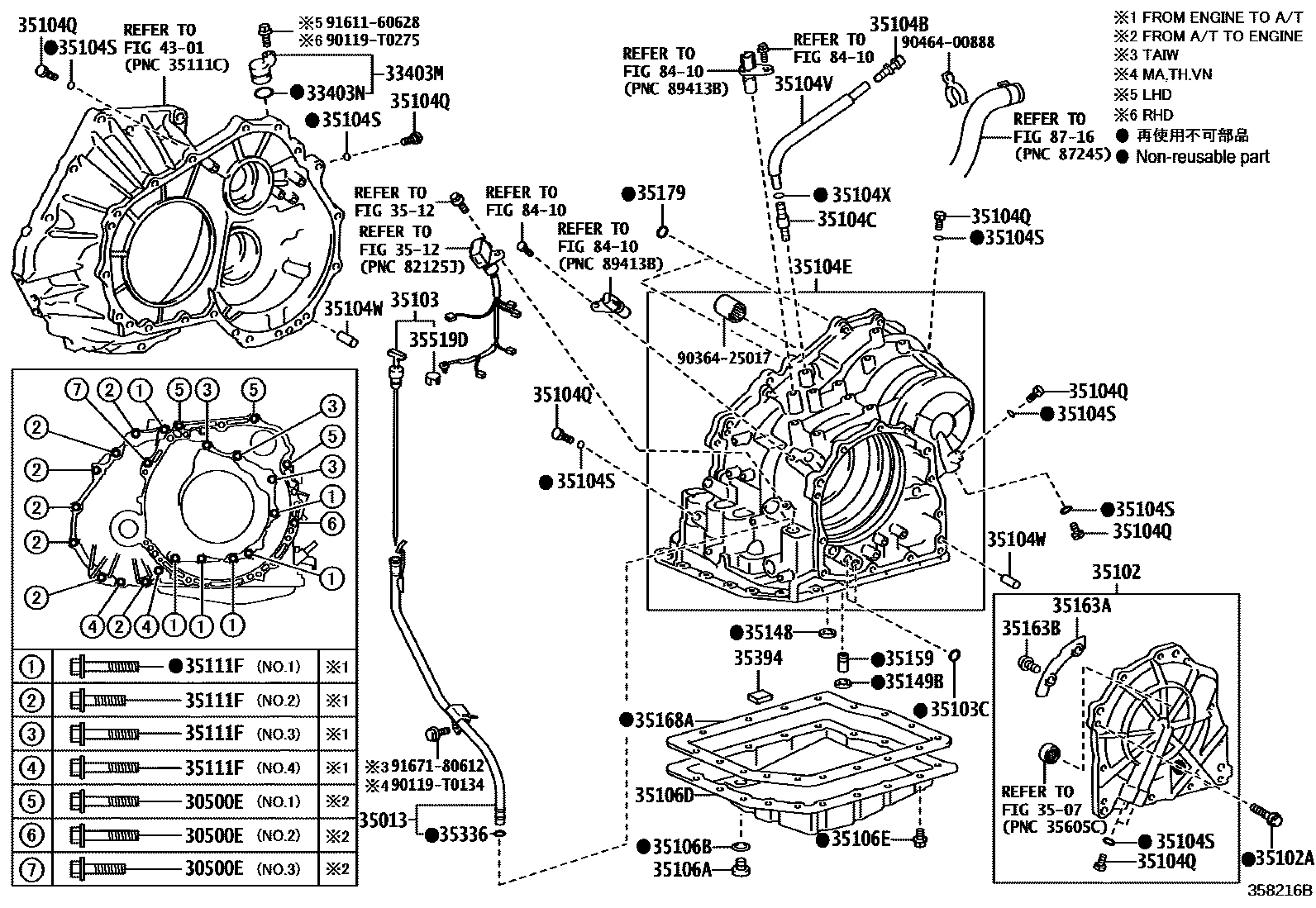

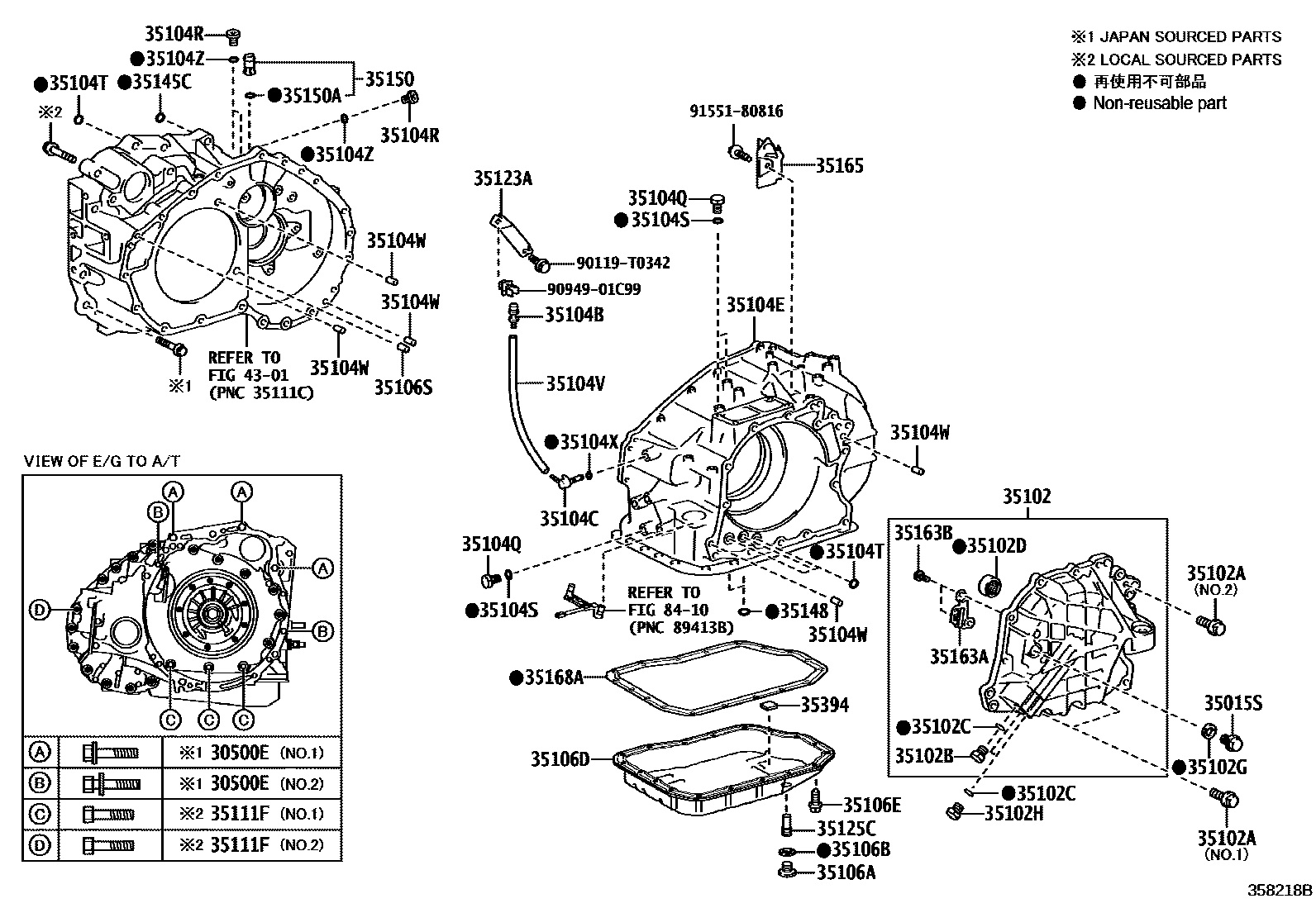

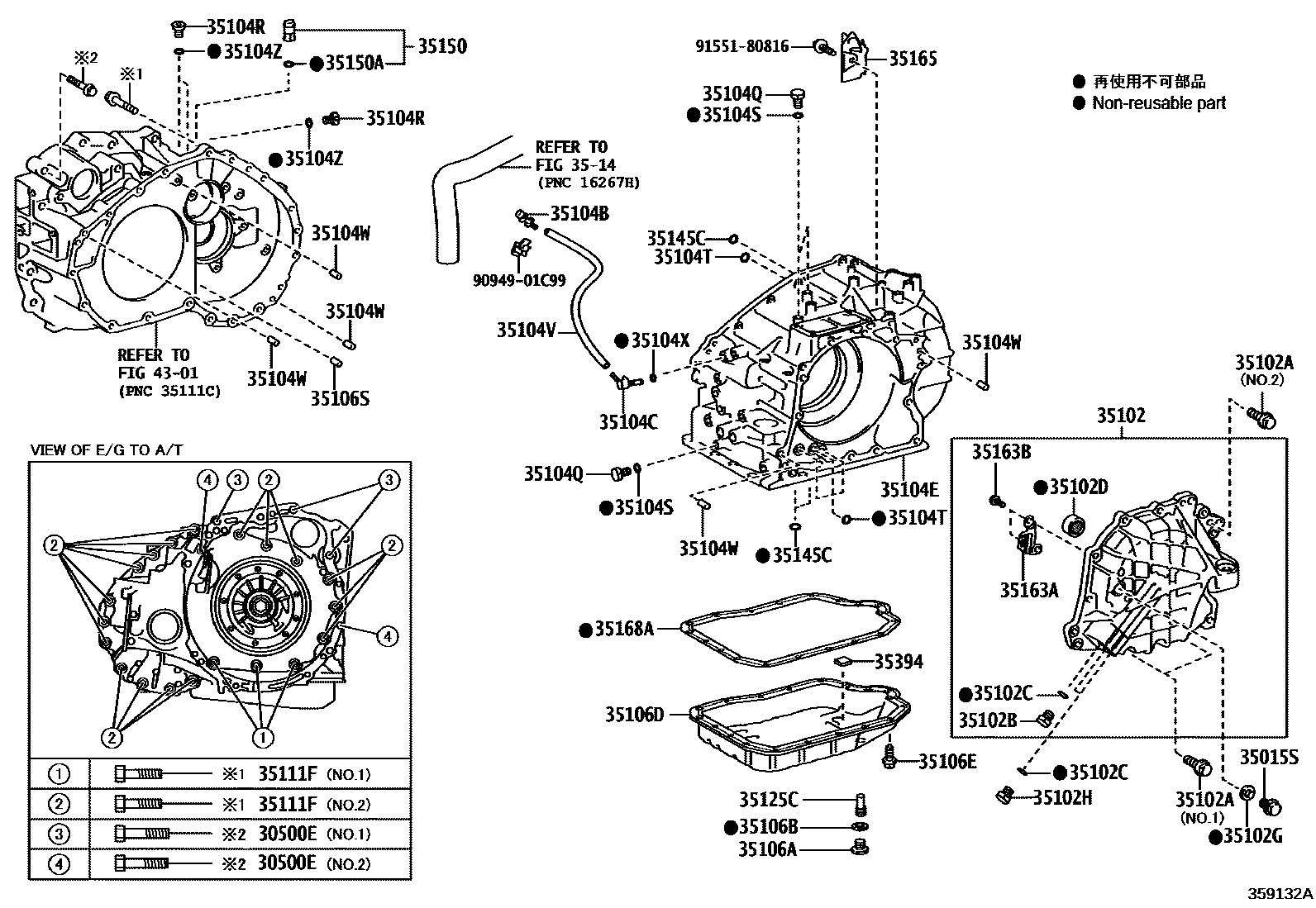

Toyota CAMRY EPC diagram 3503, 变速器壳和油底壳(ATM), with 3 images and 47 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 30500E | Bolts (for securing transaxle and engine) | 90105-T0006 · 90105-T0311 · 90119-12168 · 90119-T0214 · 91512-61050 · 91512-61065 |
| 33403M | Speedometer driven gear hole cover sub-assembly (ATM) | 33403-0D010 · 33403-20230 |
| 33403N | O-ring (for automatic transmission speedometer driven gear hole cover) | 90301-T0044 · 96711-24018 |
| 35013 | Transmission oil pipe sub-assembly | 35013-06140 · 35013-06150 |
| 35015S | Straight thread plug (for transmission coupling) | 90341-18064 |
| 35102 | Transmission axle rear cover sub-assembly | 35102-33020 · 35102-33090 · 35102-33091 · 35102-73010 · 35102-73011 |
| 35102A | Bolts (for fixing the transmission axle rear cover) | 90105-08071 · 90105-08431 · 91551-00828 |
| 35102B | Screw plug (for transmission axle rear cover) | 90341-08001 |
| 35102C | O-ring (for transmission axle rear cover screw plug) | 90301-06196 |
| 35102D | Needle roller bearing (for transmission axle rear cover) | 90364-18010 |
| 35102G | Gasket (for transaxle rear cover) | 90430-18008 |
| 35102H | No. 2 screw plug (for transmission axle rear cover) | 90341-08001 |
| 35103 | Transmission oil level scoring assembly | 35103-06070 · 35103-06080 |
| 35103C | O-ring | 90301-10018 · 90301-10189 |
| 35104B | Ventilation plug No. 1 (ATM) | 90930-03149 |
| 35104C | Ventilation plug No. 2 (ATM) | 90930-03157 · 90930-03187 |
| 35104E | Automatic transmission axle housing sub-assembly | 35104-33092 · 35141-33140 · 35141-33141 · 35141-33170 · 35141-73010 · 35141-73011 |
| 35104Q | No. 1 screw plug (for transmission axle housing) | 90341-08001 |
| 35104R | No. 2 screw plug (for transmission axle housing) | 90341-14015 |
| 35104S | O-ring (for transmission axle housing plug No. 1) | 90301-06196 |
| 35104T | O-ring (for transmission axle housing plug No. 2) | 90301-10018 |
| 35104V | Hoses (for breather plug) | 35121-21020 · 35121-33050 · 35121-33051 · 35121-73010 · 35121-73011 |
| 35104W | Direct sales (for transmission axle housing) | 90250-10017 · 90250-10036 · 90250-10232 |
| 35104X | O-ring (for breather plug) | 90301-06005 · 90301-06021 |
| 35104Z | Gasket (for transaxle housing) | 90430-14008 |
| 35106A | Drain plug sub-assembly (ATM) | 90341-12034 · 90341-18016 |
| 35106B | Drain plug gasket (ATM) | 90430-12008 · 90430-18008 |
| 35106D | Automatic transmission axle oil pan sub-assembly | 35106-33030 · 35106-33070 · 35106-73010 · 35106-73021 |
| 35106E | Bolts (for transaxle oil pan) | 90119-06173 |
| 35106S | Ring pin (for transaxle housing) | 90253-11007 |
| 35111F | Bolts (for securing transaxle housing and transaxle housing) | 90105-06320 · 90105-08233 · 90105-08353 · 90105-08432 · 91551-10845 |
| 35123A | Transmission breather skirt | 35123-21010 |
| 35125C | No. 1 transmission oil pipe | 35125-33100 · 35125-73010 |
| 35145C | Transmission axle housing gasket | 35145-33010 |
| 35148 | Governor oil supply pipe No. 1 gasket | 35145-21010 · 35145-33010 |
| 35149B | Transaxle housing second gear brake pad | 35149-21010 |
| 35150 | gearbox plug assembly | 35150-44010 |
| 35150A | O-ring (for automatic transmission plug) | 90301-09173 |
| 35159 | brake drum gasket | 35159-21010 |
| 35163A | Transmission axle rear cover | 35163-28010 · 35163-33010 |
| 35163B | Hexalobular screws (for transaxle rear cover) | 90148-60055 |
| 35165 | No. 1 gearbox block | 35165-73010 |
| 35168A | Automatic transaxle oil pan gasket | 35168-21020 · 35168-73010 |
| 35179 | overdrive brake pad | 90301-06008 · 90301-06024 |
| 35336 | O-ring (for transmission filler pipe) | 90301-09173 |
| 35394 | Oil filter magnet (for transmission) | 35394-30011 |
| 35519D | Automatic transmission information label | 35519-41010 |
