Toyota CAMRY Alternator — Figure 1903

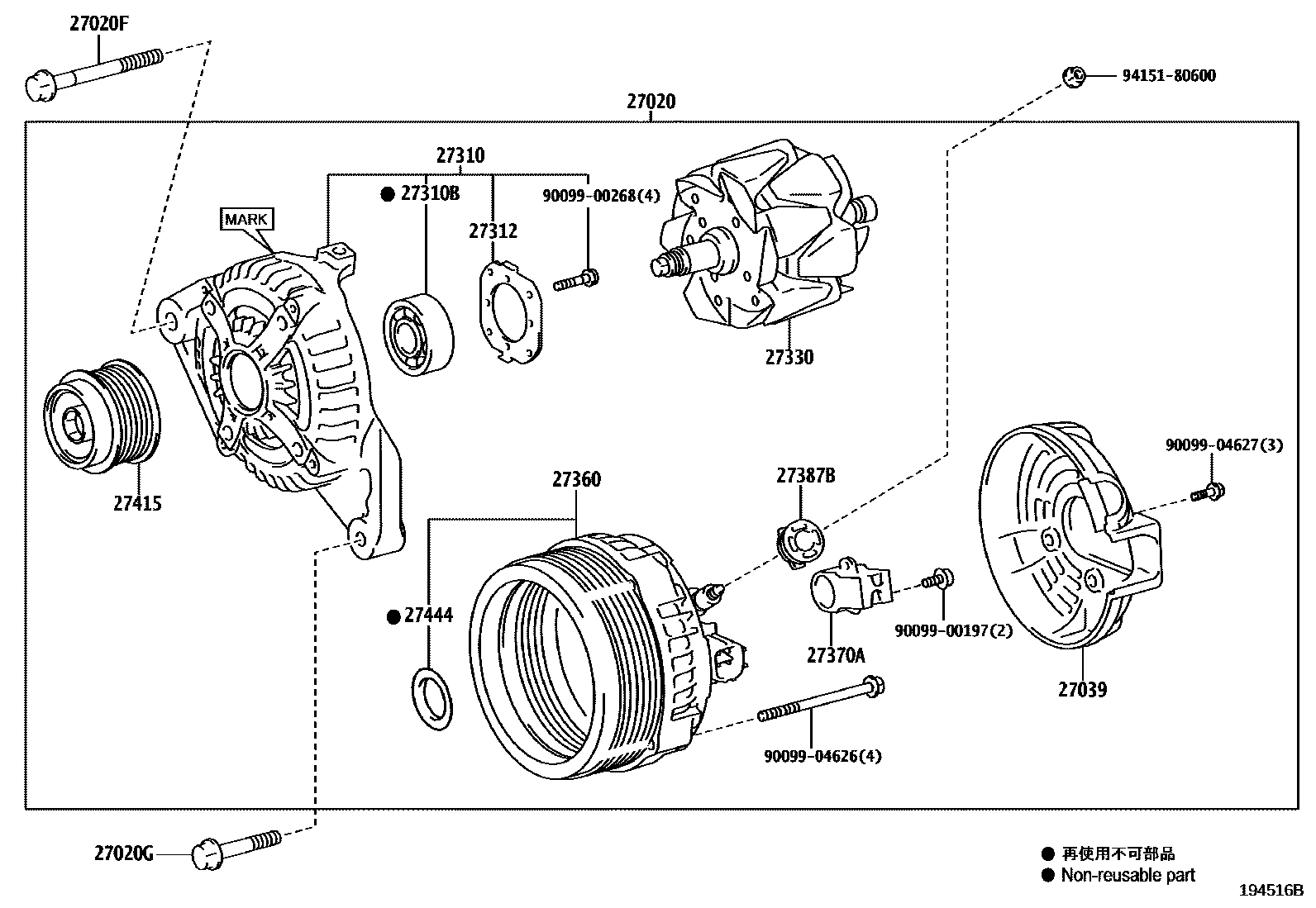

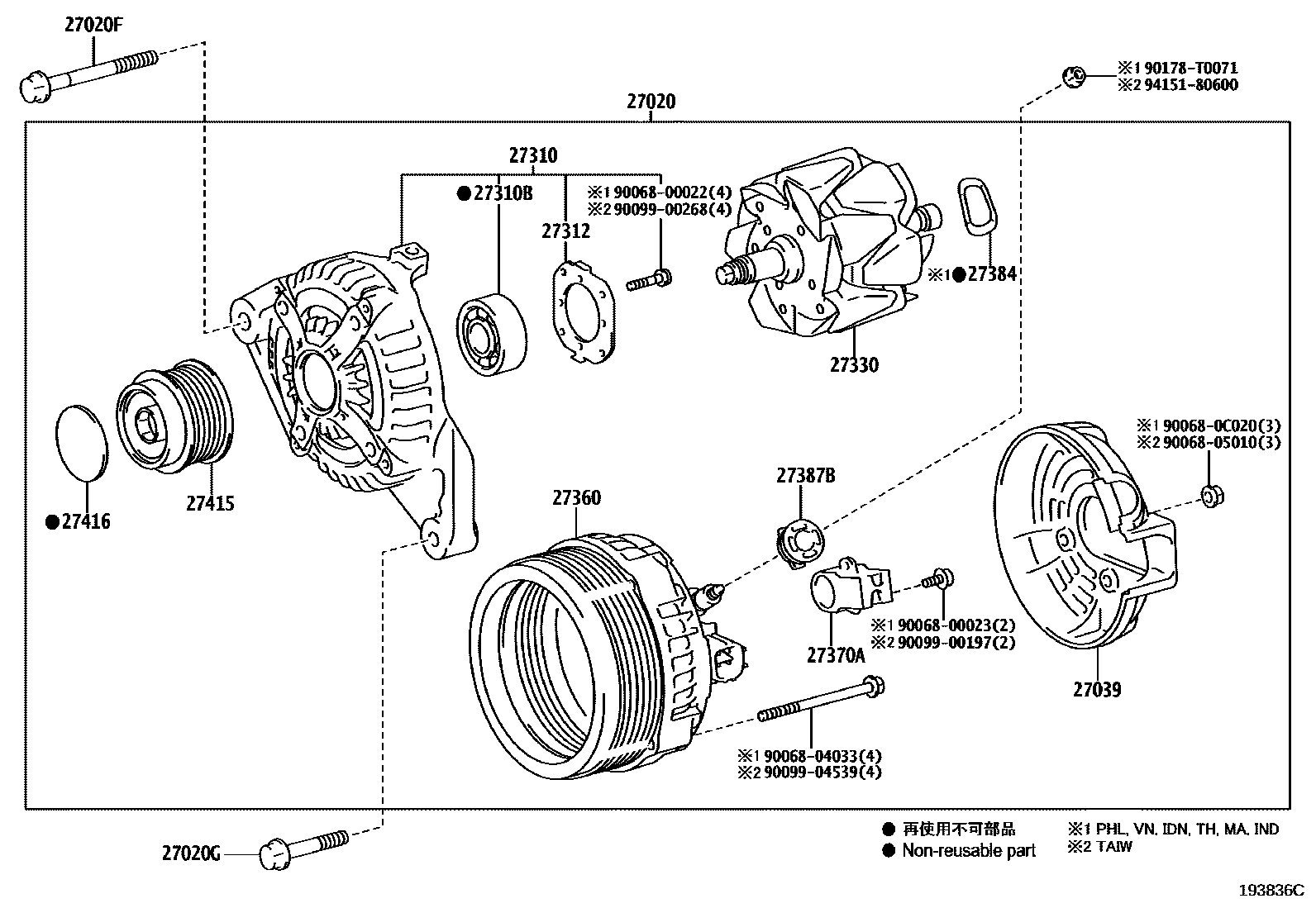

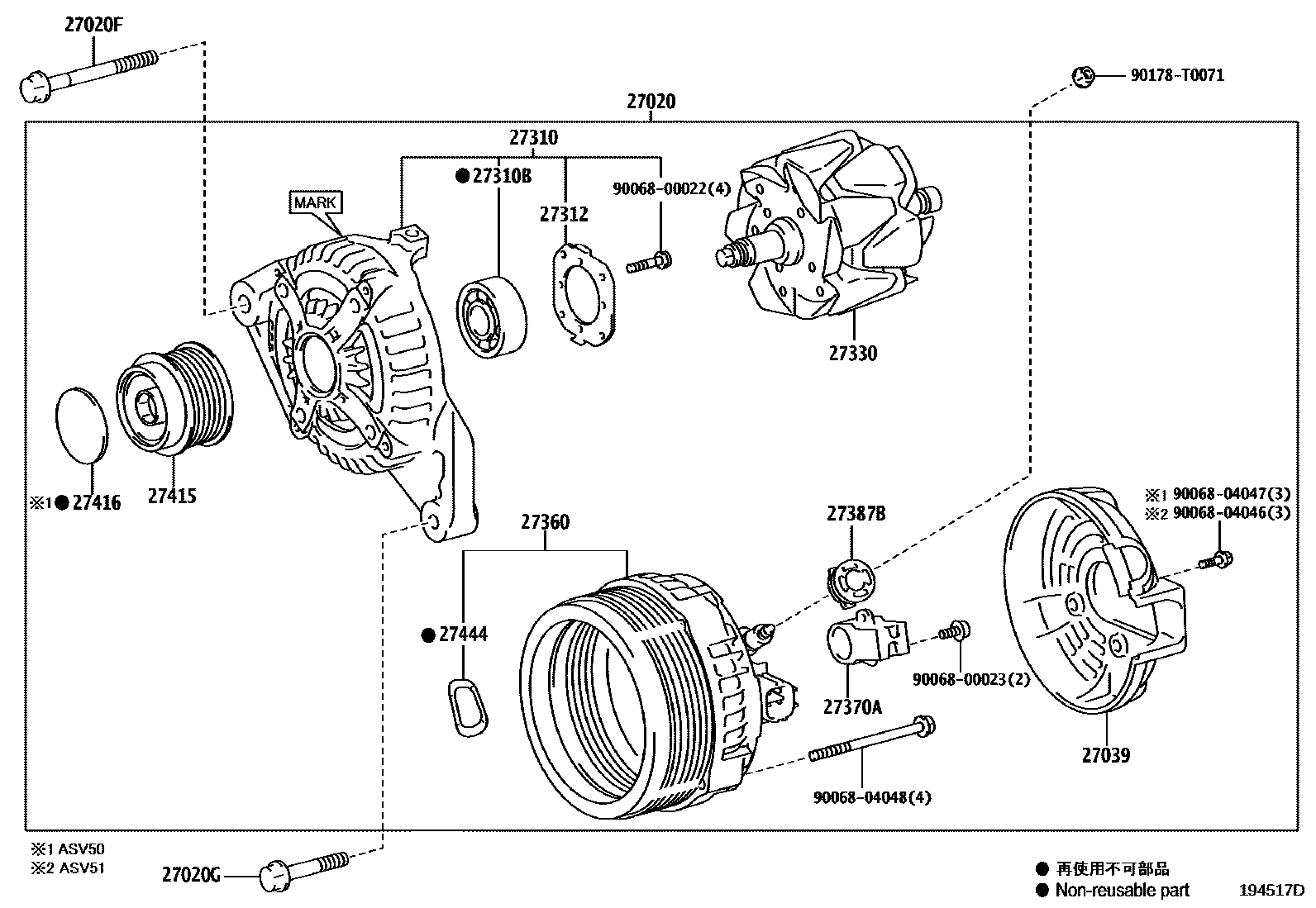

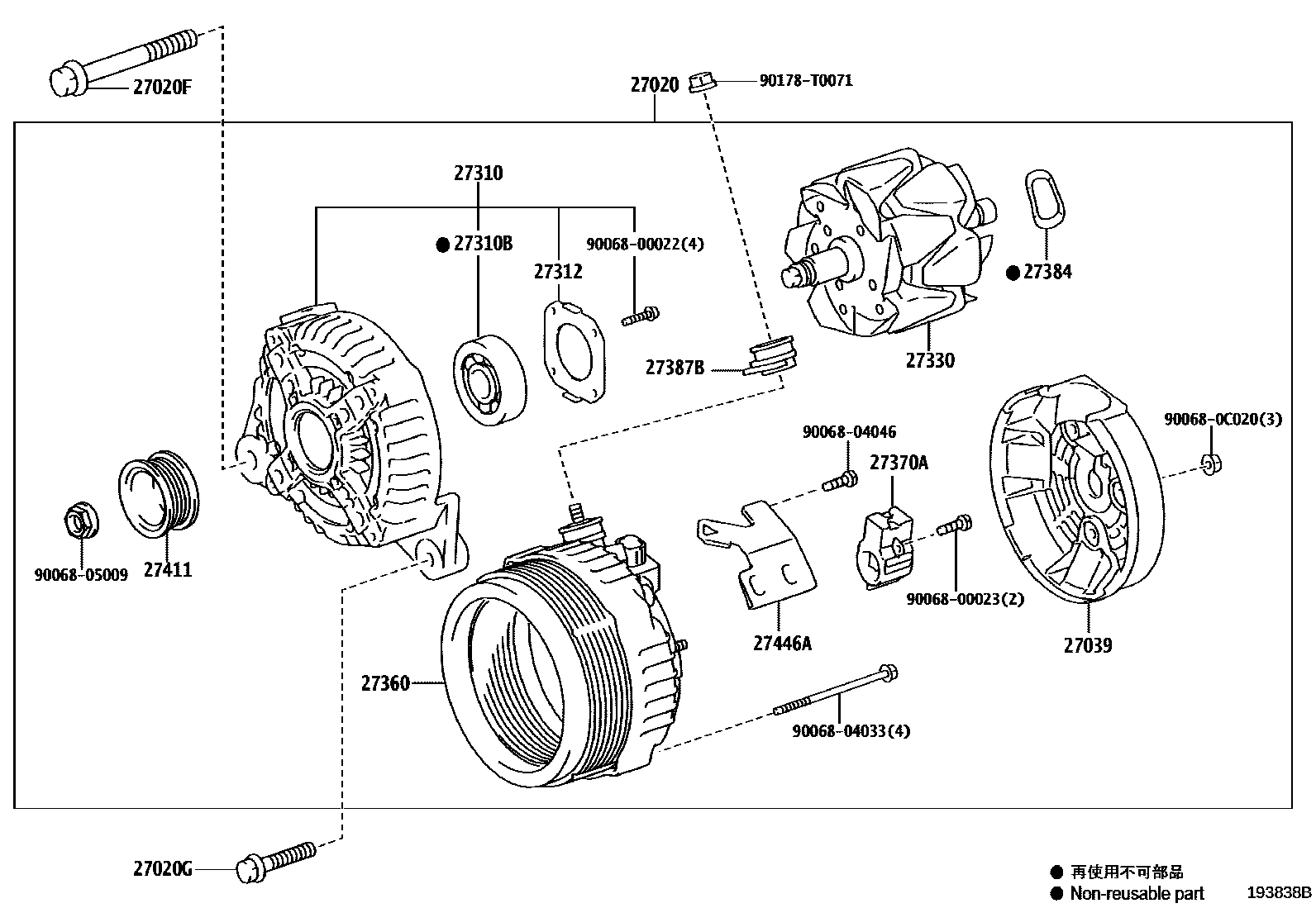

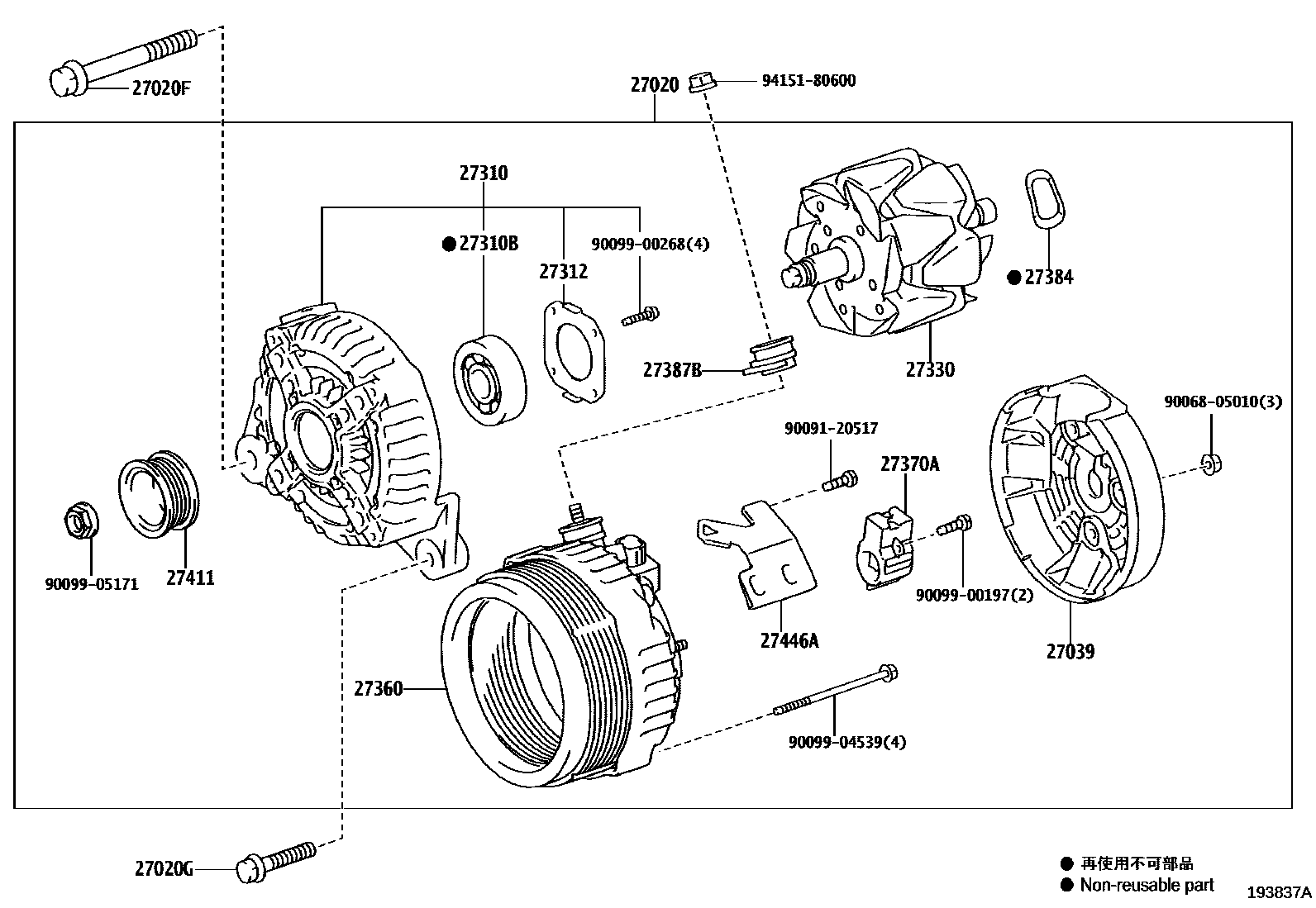

Toyota CAMRY EPC diagram 1903, Alternator, with 5 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 27020 | Alternator Assembly | 27060-0H091 · 27060-0H121 · 27060-0V120 · 27060-0V130 · 27060-0V220 · 27060-0V221 · 27060-0V230 · 27060-0V240 · 27060-0V370 |
| 27020F | Bolt No. 1 (for generator) | 90105-10562 · 90105-T0295 · 91512-81085 |
| 27020G | Bolt No. 2 (for generator) | 90105-T0079 · 91551-80840 · 91552-81045 |
| 27039 | Alternator Rear End Cover | 27039-0C020 · 27039-0M100 · 27039-0T260 · 27039-0V220 |
| 27310 | Alternator Drive End Frame Assembly | 27310-0H080 · 27310-0H100 · 27310-0V120 · 27310-0V130 · 27310-0V140 · 27310-0V200 · 27310-0V220 · 27310-0V230 · 27310-0V240 |
| 27310B | Bearing (for Alternator Drive End Frame) | 90068-10029 · 90068-10036 · 90068-10040 · 90068-10042 · 90068-10050 |
| 27312 | Retainer Plate | 27312-0C020 · 27312-0M070 |
| 27330 | Alternator Rotor Assembly | 27330-0H080 · 27330-0H090 · 27330-0M040 · 27330-0M100 · 27330-0T260 · 27330-0V220 |
| 27360 | Alternator Stator Coil Assembly | 27360-0H081 · 27360-0H091 · 27360-0V120 · 27360-0V130 · 27360-0V210 · 27360-0V220 · 27360-0V230 · 27360-0V340 |
| 27370A | Alternator Brush Holder Assembly | 27370-0C020 · 27370-0M040 · 27370-0T030 · 27370-31220 · 27370-58460 |
| 27384 | Washer | 27384-0C020 · 27384-16380 |
| 27387B | Generator terminal insulation pad | 27387-0C020 · 27387-0H110 |
| 27411 | Alternator Pulley | 27411-0H080 · 27411-0H090 |
| 27415 | PULLEY, ALTERNATOR W/CLUTCH | 27415-0V010 · 27415-0V011 · 27415-36020 |
| 27416 | Generator pulley cover | 27416-0W050 |
| 27444 | Generator bearing cap seals | 27444-0Y180 |
| 27446A | card holder | 27446-0H080 · 27446-0H090 |
