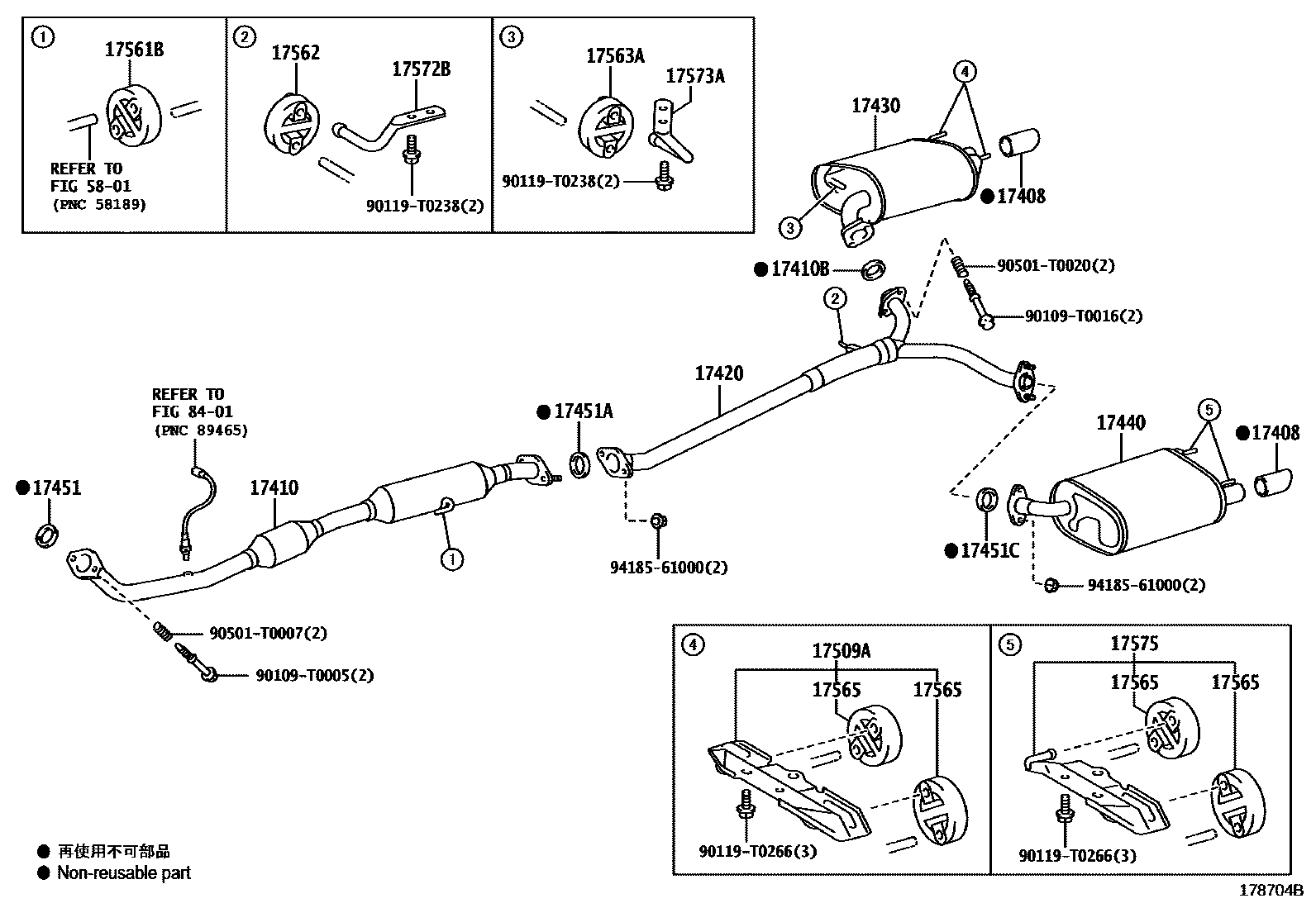

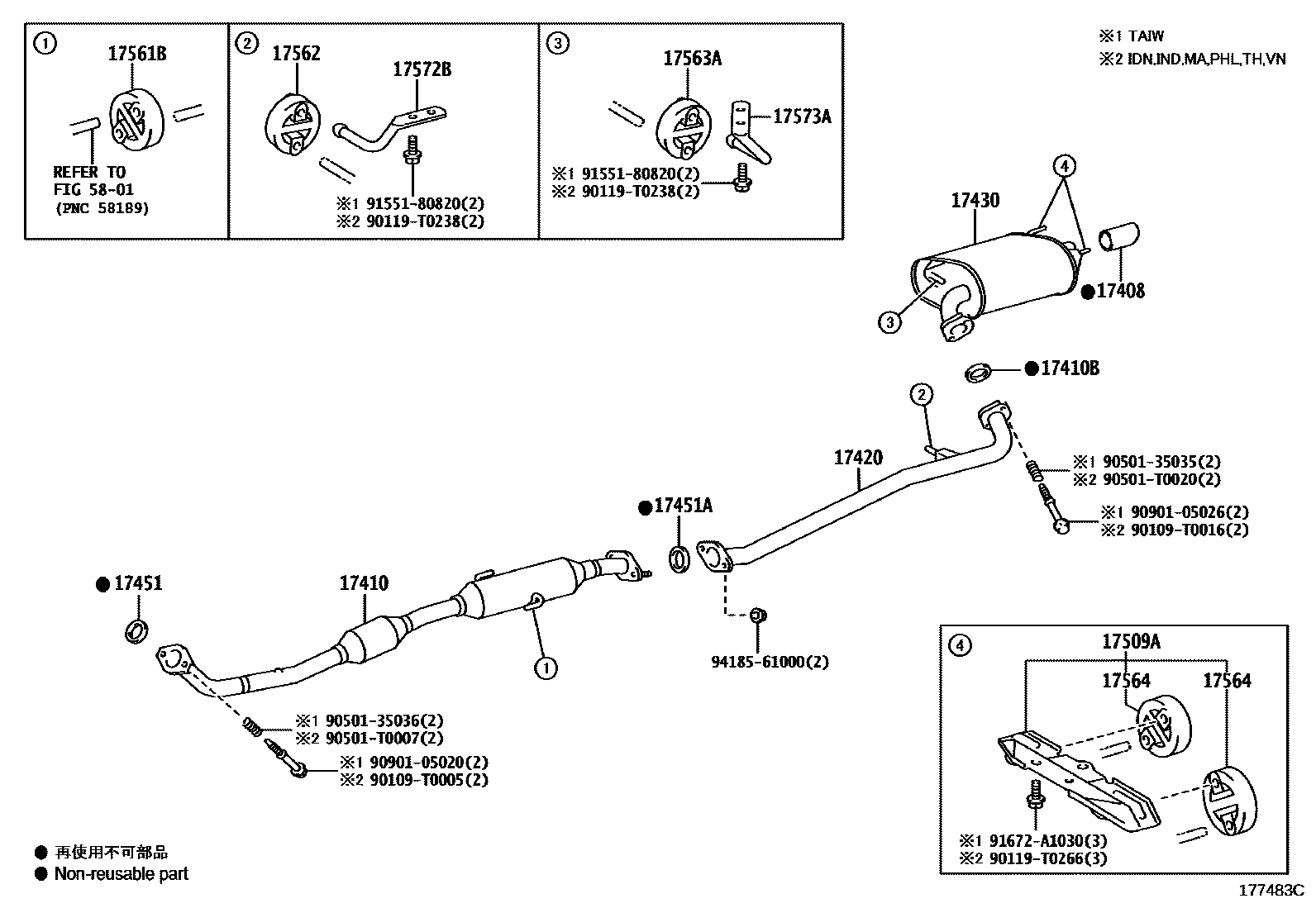

Toyota CAMRY Exhaust Pipe — Figure 1702
Toyota CAMRY EPC diagram 1702, Exhaust Pipe, with 2 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17408 | Exhaust pipe tail throat sub-assembly | 17408-0V020 · 17408-0V030 · 17408-31080 |
| 17410 | Front exhaust pipe assembly | 17410-0H400 · 17410-0H410 · 17410-0H440 · 17410-0V070 · 17410-0V170 · 17410-0V180 · 17410-0V200 · 17410-0V210 · 17410-0V230 · 17410-0V250 · 17410-0V280 · 17410-0V300 · 17410-0V350 · 17410-0V410 · 17410-0V420 · 17410-0V430 · 17410-0V440 · 17410-0V590 |
| 17410B | Exhaust pipe gasket | 17451-0V050 · 17451-28022 · 17451-28032 |
| 17420 | Central exhaust pipe assembly | 17420-0H270 · 17420-0H280 · 17420-0H290 · 17420-0V140 · 17420-0V170 · 17420-0V360 |
| 17430 | Exhaust tailpipe assembly | 17430-0H270 · 17430-0H280 · 17430-0H290 · 17430-0V050 · 17430-0V191 · 17430-0V200 · 17430-0V360 · 17430-0V490 |
| 17440 | Left exhaust tailpipe | 17440-0V021 · 17440-0V060 |
| 17451 | Exhaust pipe gasket | 17451-28070 · 17451-36010 · 17451-75010 |
| 17451A | No. 2 exhaust pipe gasket | 90917-06078 |
| 17451C | No. 3 exhaust pipe gasket | 90917-06045 |
| 17509A | No. 4 exhaust pipe bracket sub-assembly | 17508-0V060 · 17508-0V170 · 17508-0V180 |
| 17561B | No. 1 exhaust pipe lifting lug | 17565-0P090 · 17565-31040 |
| 17562 | No. 2 exhaust pipe lifting lug | 17565-0D110 · 17565-0P100 · 17565-22030 |
| 17563A | No. 3 exhaust pipe lifting lug | 17565-0D120 · 17565-0P110 · 17565-22040 |
| 17564 | No. 4 exhaust pipe lifting lug | 17565-0D110 · 17565-0P100 · 17565-22030 |
| 17565 | No. 5 exhaust pipe lifting lug | 17565-0P100 |
| 17572B | No. 2 exhaust pipe bracket | 17573-0P030 · 17573-0P060 |
| 17573A | No. 3 exhaust pipe bracket | 17576-0P030 · 17576-0P060 |
| 17575 | No. 5 exhaust pipe bracket | 17509-0V050 |
