Toyota CAMRY Water Pump — Figure 1601

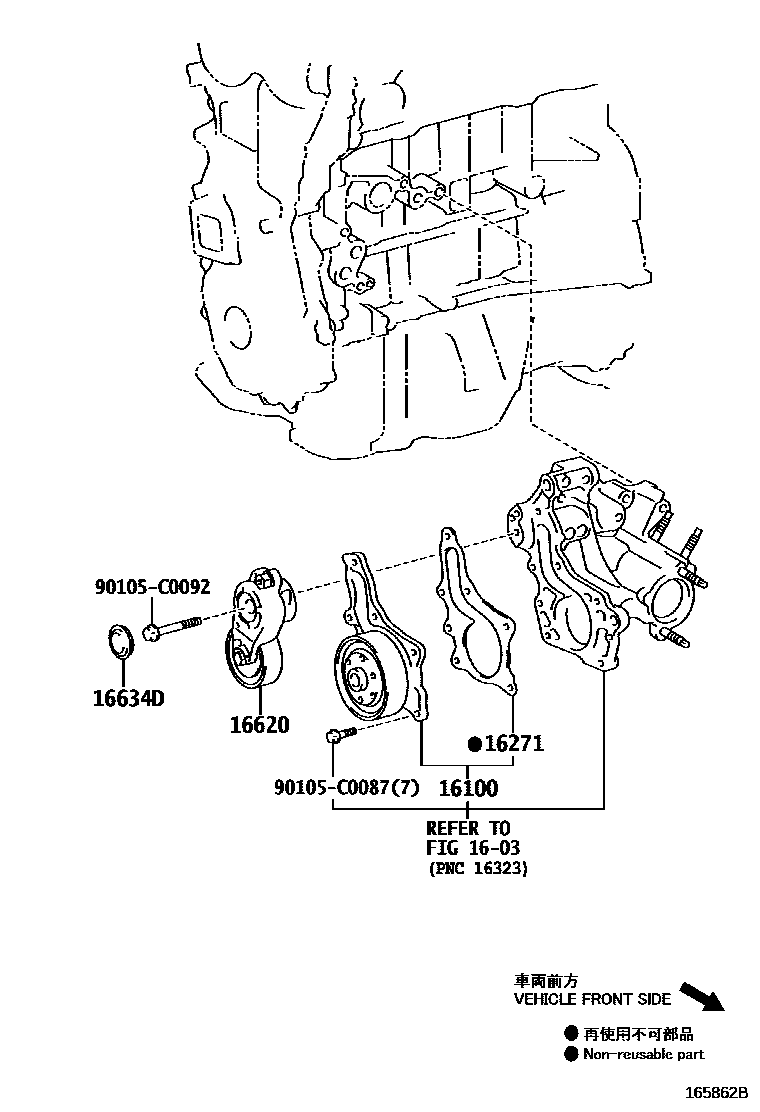

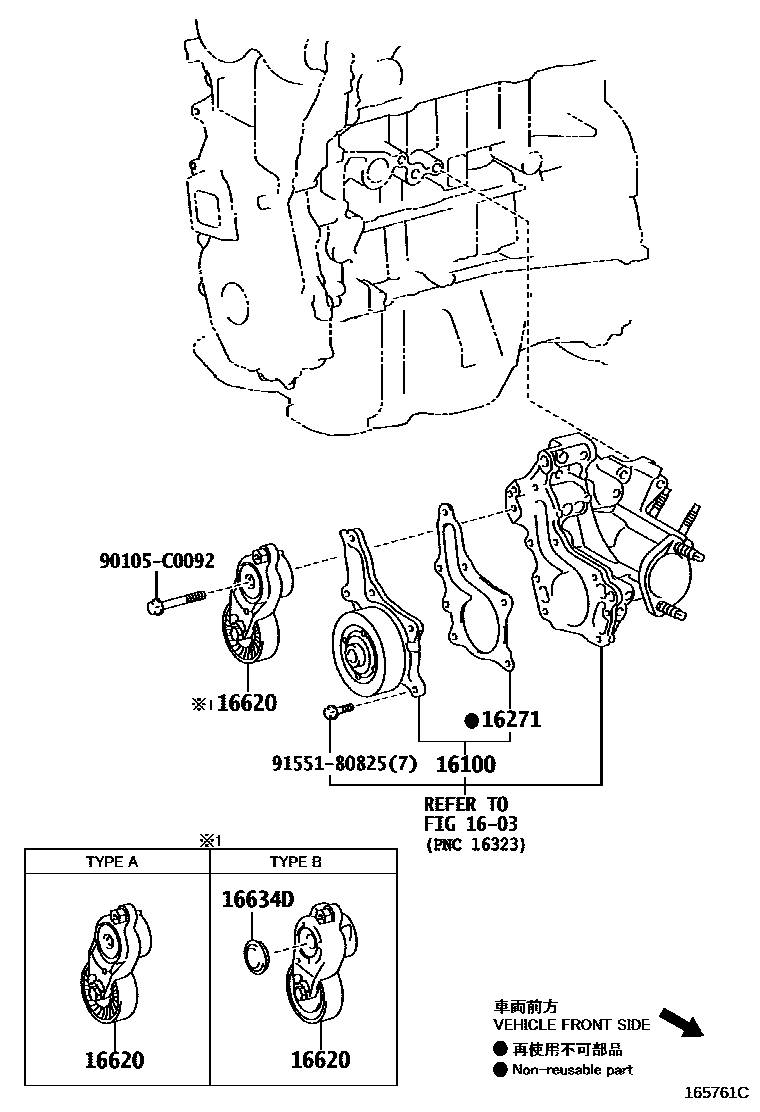

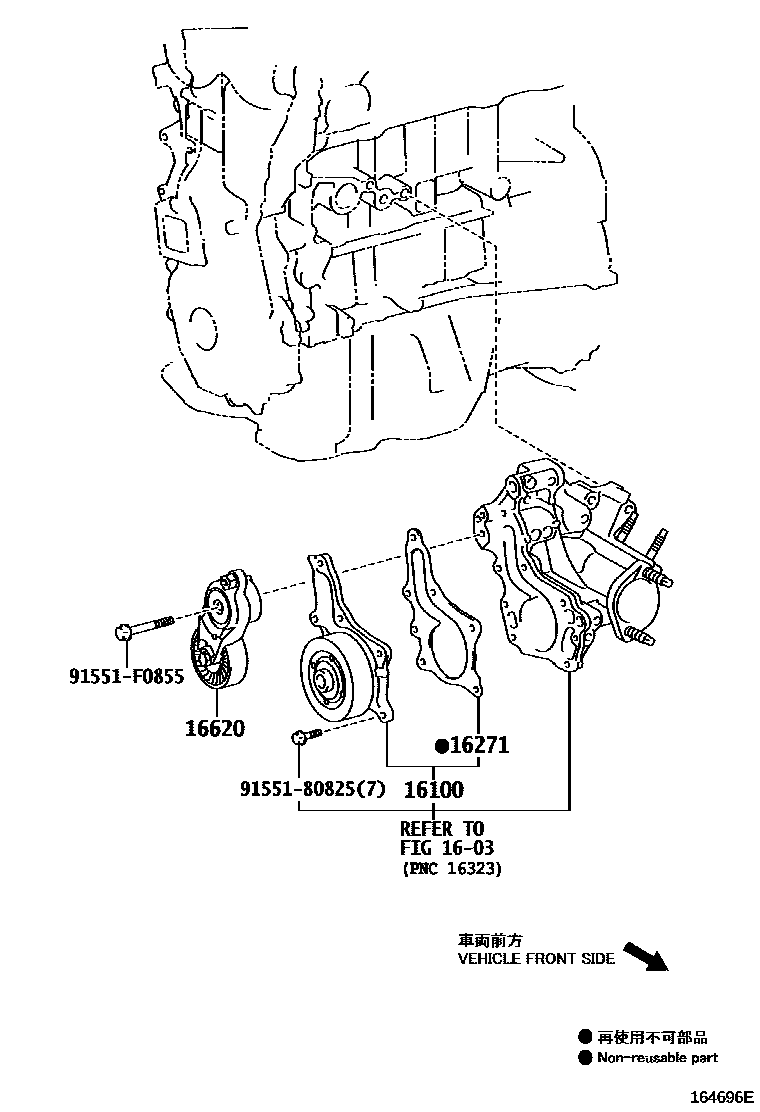

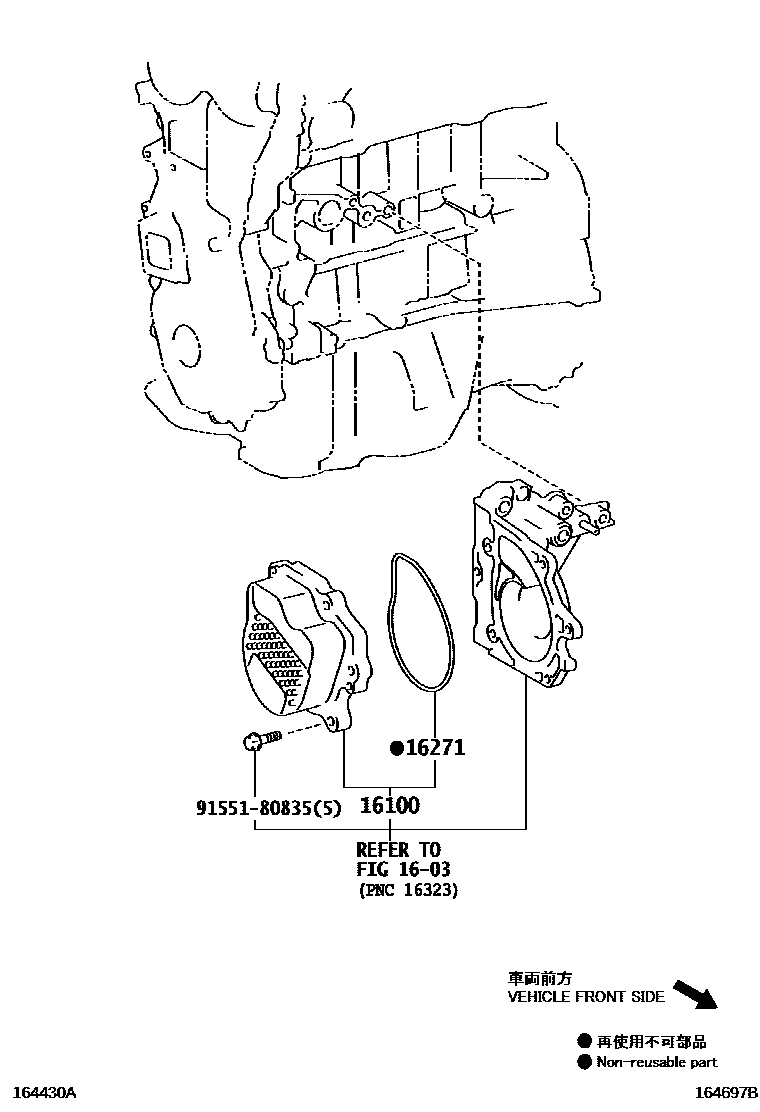

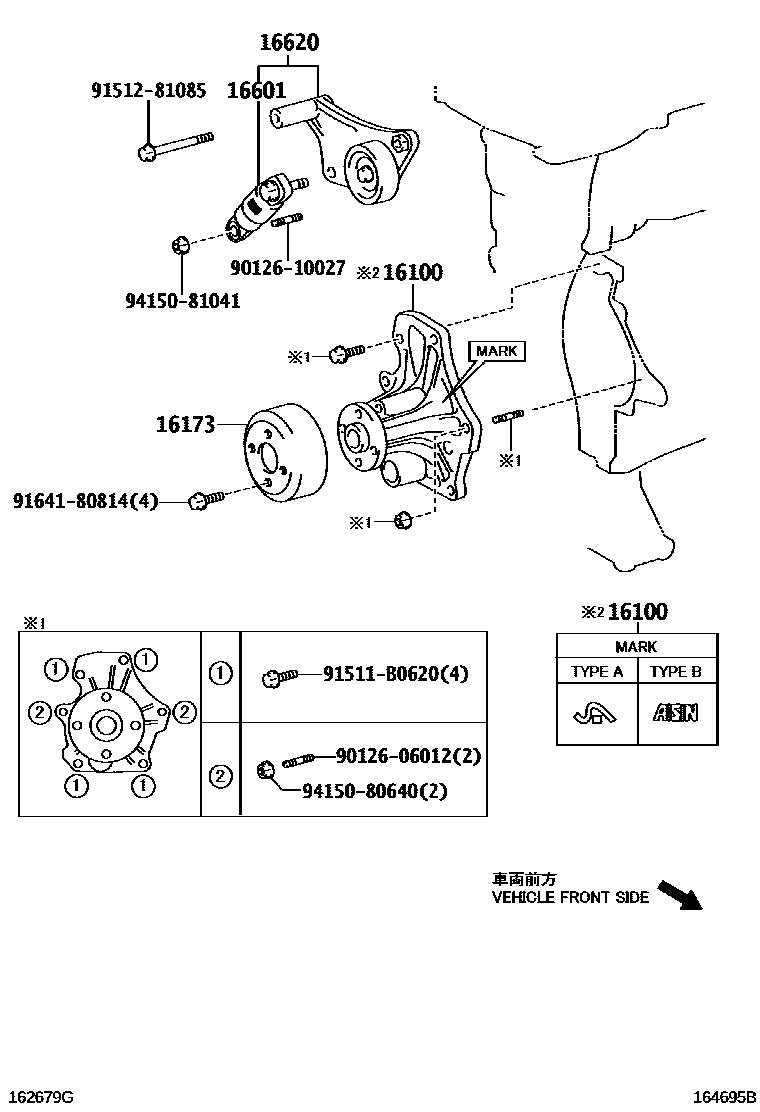

Toyota CAMRY EPC diagram 1601, Water Pump, with 5 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16100 | Engine water pump assembly | 16100-09600 · 16100-09700 · 16100-0H040 · 16100-0H050 · 16100-0H060 · 16100-39515 · 161A0-39025 |
| 16173 | water pump pulley | 16173-0H010 |
| 16271 | water pump gasket | 16271-0V010 · 16271-36010 · 16271-36020 |
| 16601 | Poly V-belt tensioner sub-assembly | 16601-28050 |
| 16620 | Poly V-belt tensioner assembly | 16620-0V020 · 16620-0V021 · 16620-0V022 · 16620-0V040 · 16620-0V041 · 16620-0V042 · 16620-0V050 · 16620-0V051 · 16620-28090 · 16620-36010 · 16620-36011 · 16620-36012 · 16620-36013 |
| 16634D | dust cover | 16628-0V010 |
