Toyota CAMRY Engine Mounting — Figure 1107

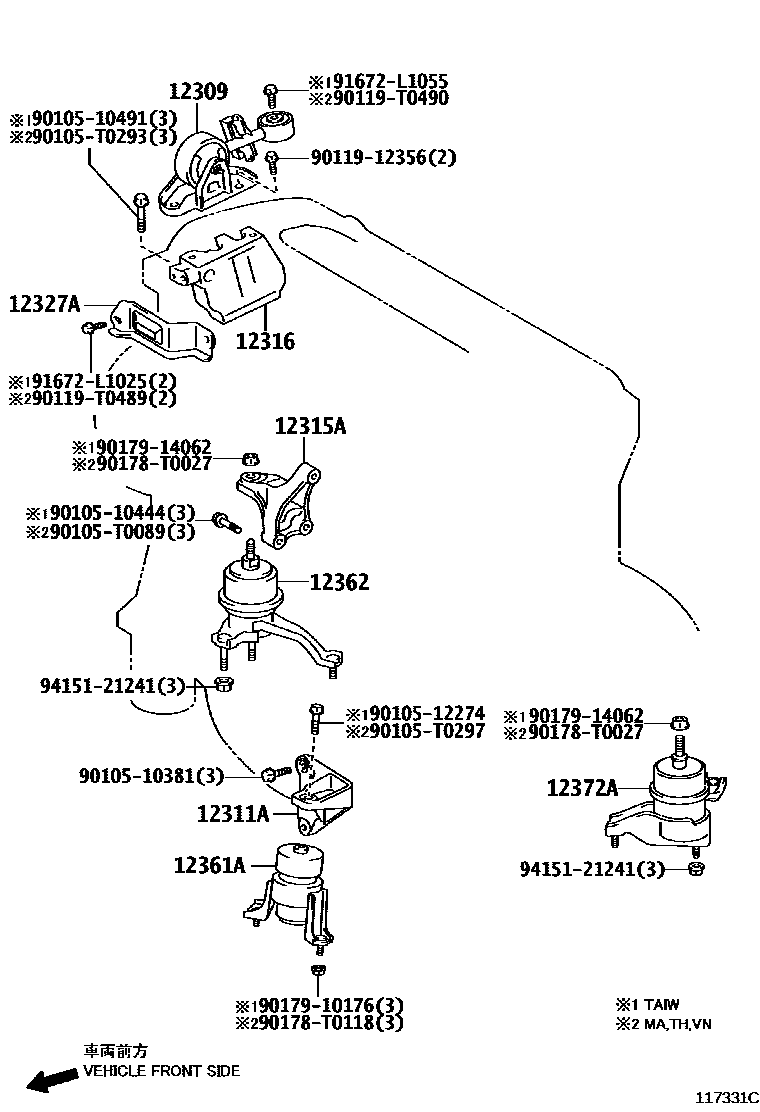

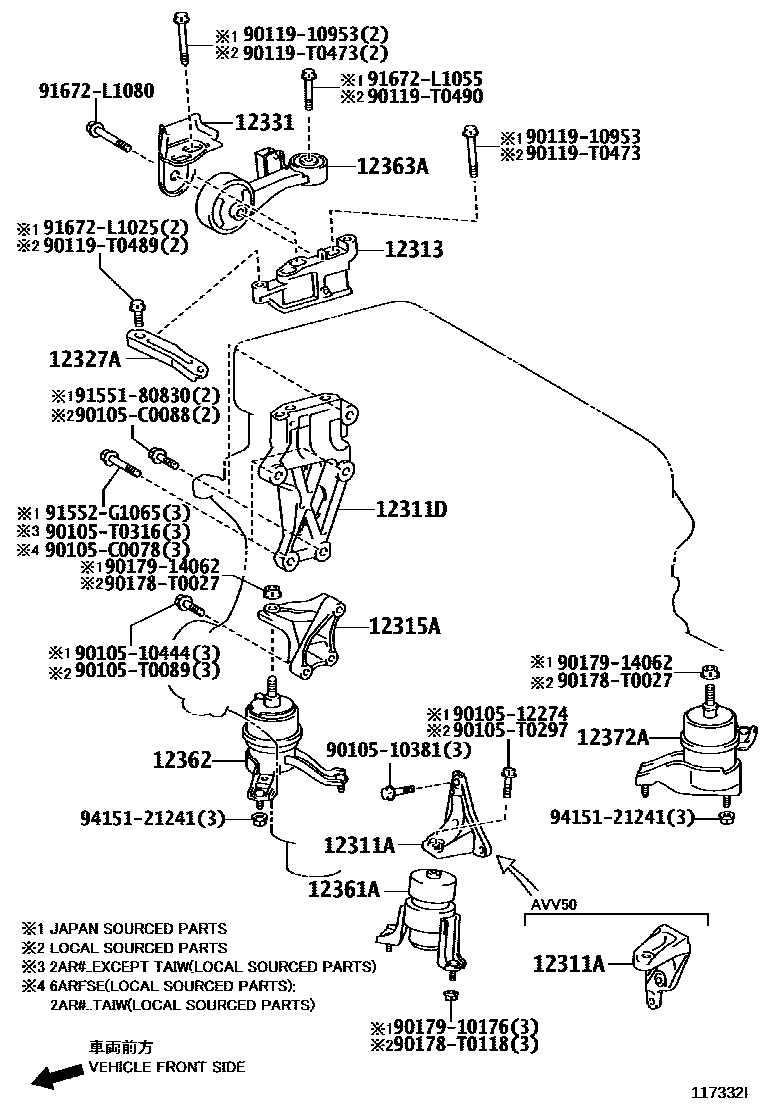

Toyota CAMRY EPC diagram 1107, Engine Mounting, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12309 | Engine motion control lever sub-assembly | 12309-0H071 |
| 12311A | Engine front mounting bracket (for transverse engine) | 12311-0H110 · 12311-0V090 · 12311-0V100 · 12311-0V110 · 12311-0V120 · 12311-28210 |
| 12311D | engine mounting bracket | 12313-0V080 · 12313-36010 |
| 12313 | Engine mount control bracket (for transversely mounted engines) | 12313-0V100 |
| 12315A | Engine right side mounting bracket (for transversely mounted engine) | 12315-0H050 · 12315-0H090 · 12319-0V090 · 12319-0V100 · 12319-0V110 · 12319-0V120 |
| 12316 | Engine No. 2 right side suspension bracket | 12316-0H020 · 12316-0H030 · 12316-28061 |
| 12327A | Engine No. 2 right side mounting bracket | 12327-0H020 · 12327-0H030 · 12327-0V080 · 12327-0V090 |
| 12331 | Engine No. 3 right side mounting bracket | 12331-0V060 |
| 12361A | Engine front mounting vibration isolation pad (for transversely mounted engine) | 12361-0V100 · 12361-0V130 · 12361-0V170 · 12361-36080 · 12361-36090 · 12361-36091 |
| 12362 | Engine right side mounting vibration isolation pad (for transversely mounted engine) | 12362-0V090 · 12362-0V091 · 12362-36050 · 12362-36051 · 12362-36052 |
| 12363A | Engine movement control lever | 12363-0V140 · 12363-0V150 |
| 12372A | Engine left-side mounting vibration isolation pad (for transversely mounted engines) | 12372-0H040 · 12372-0H170 · 12372-28020 · 12372-28250 · 12372-36040 |
