Toyota CAMRY Cylinder Head — Figure 1104

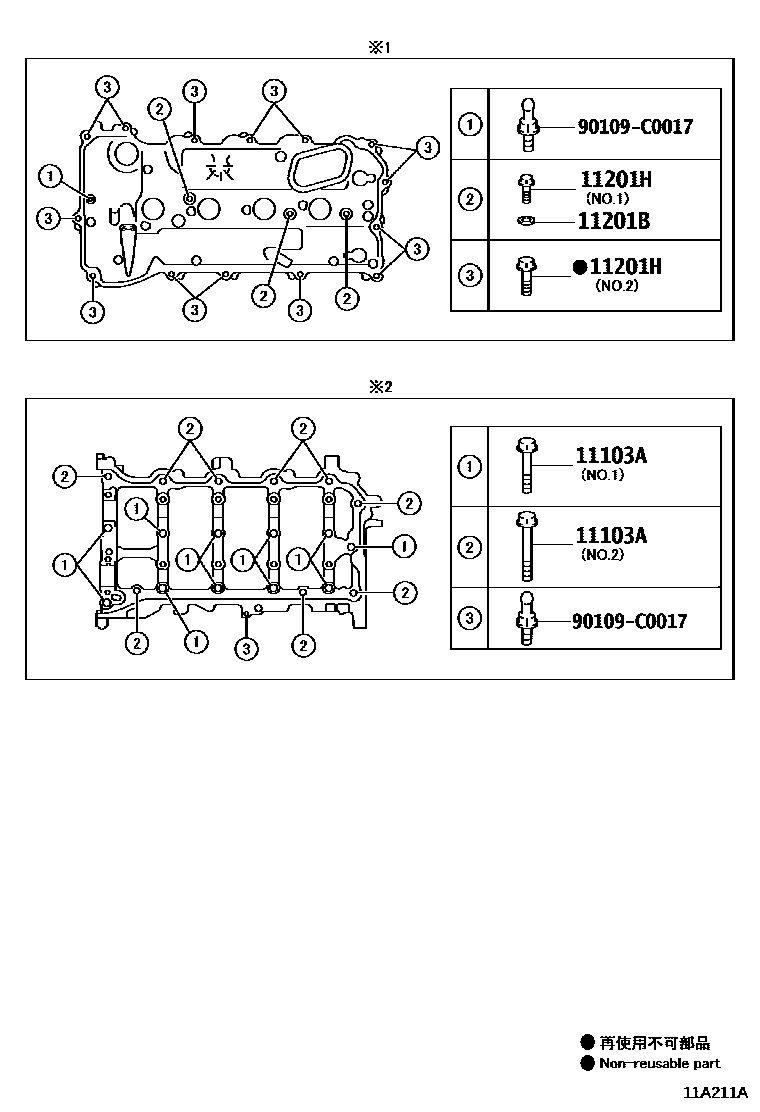

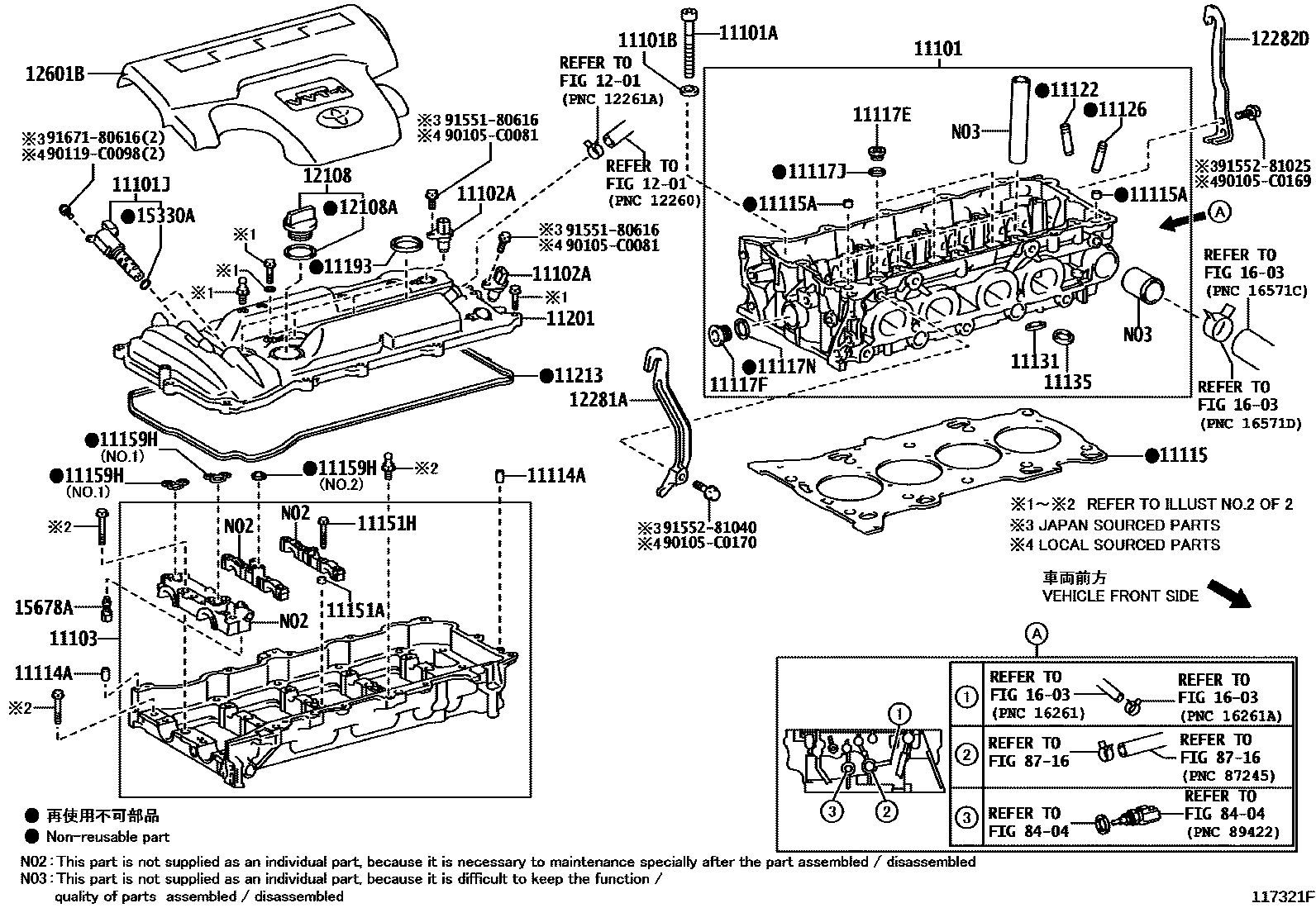

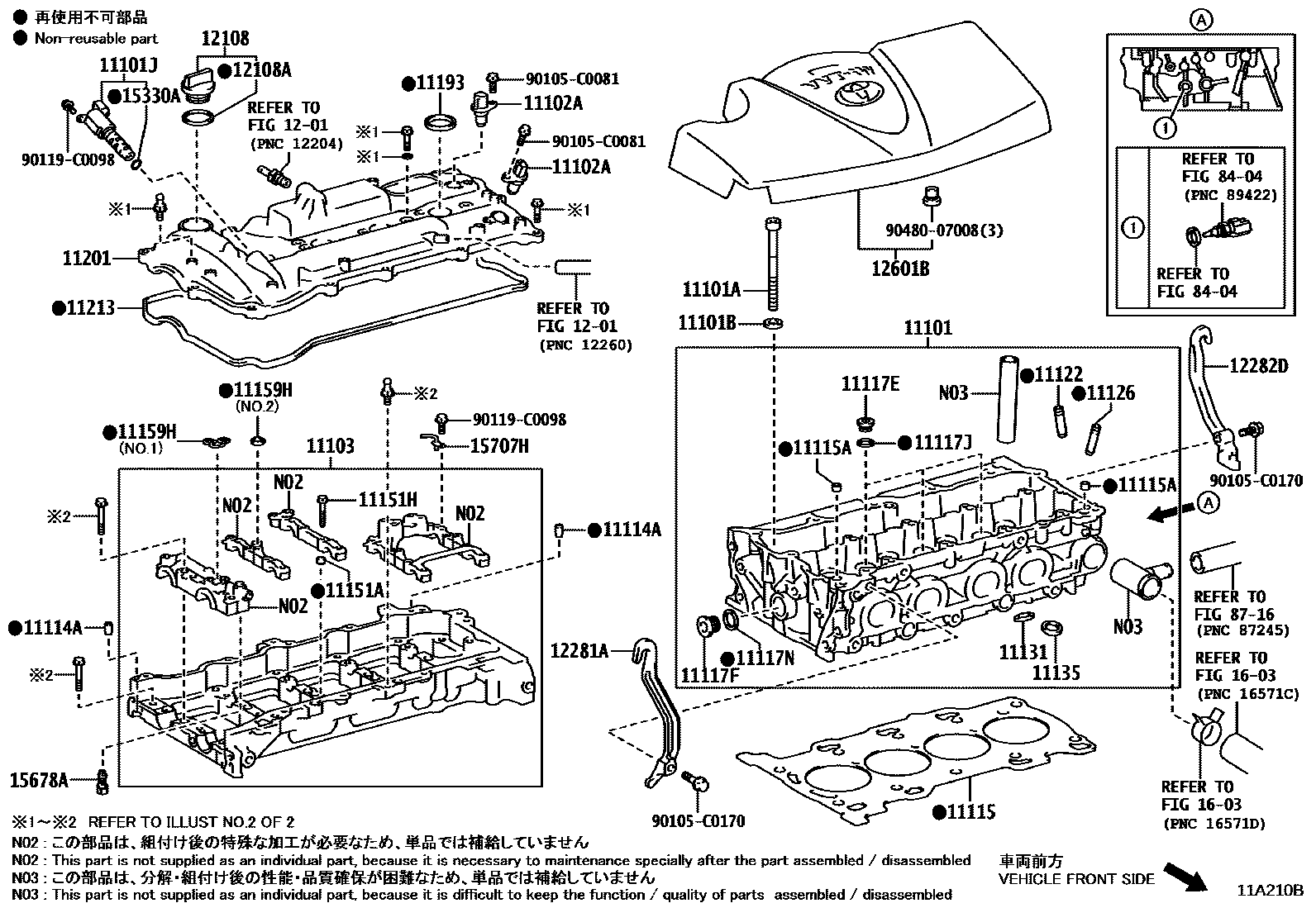

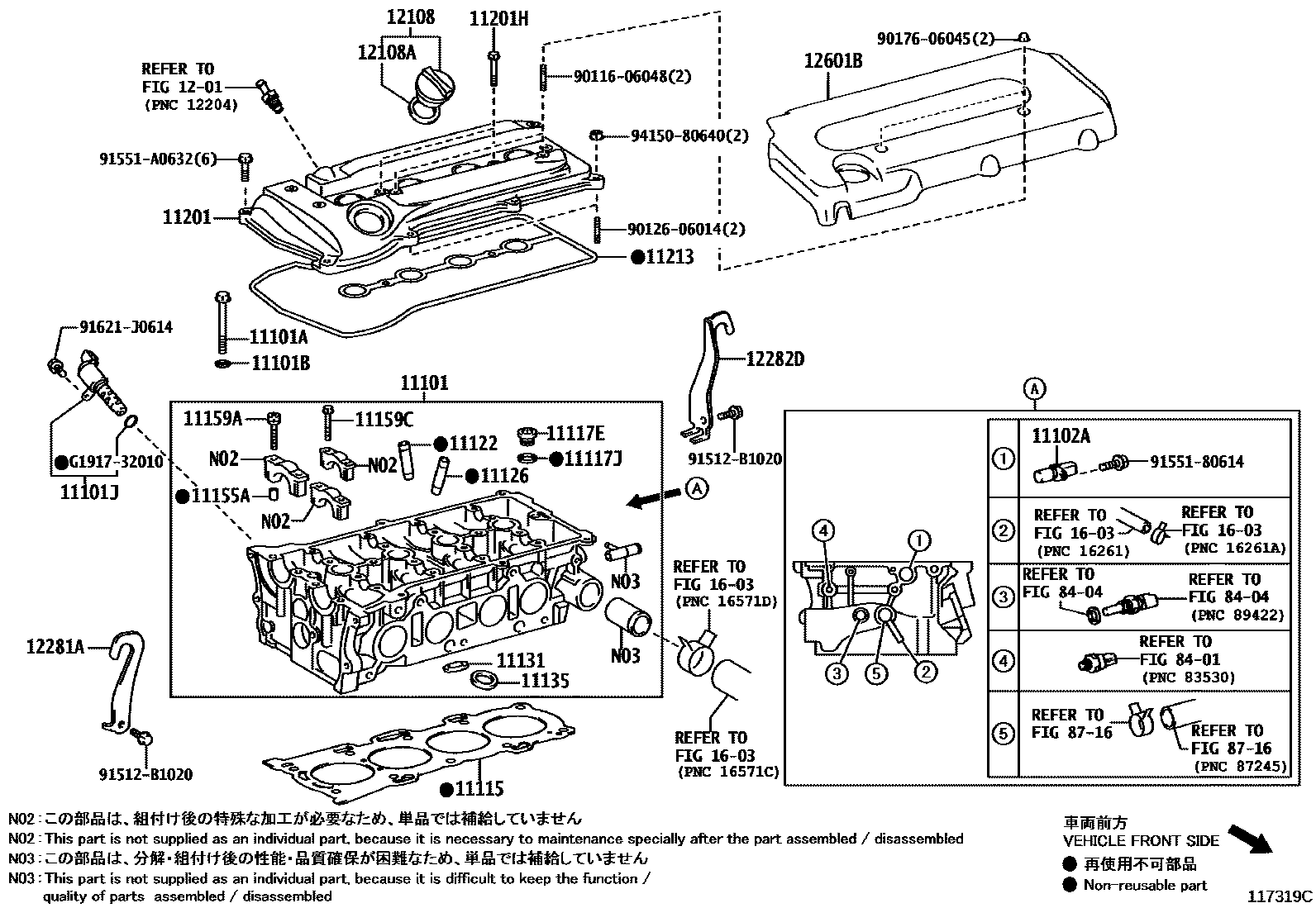

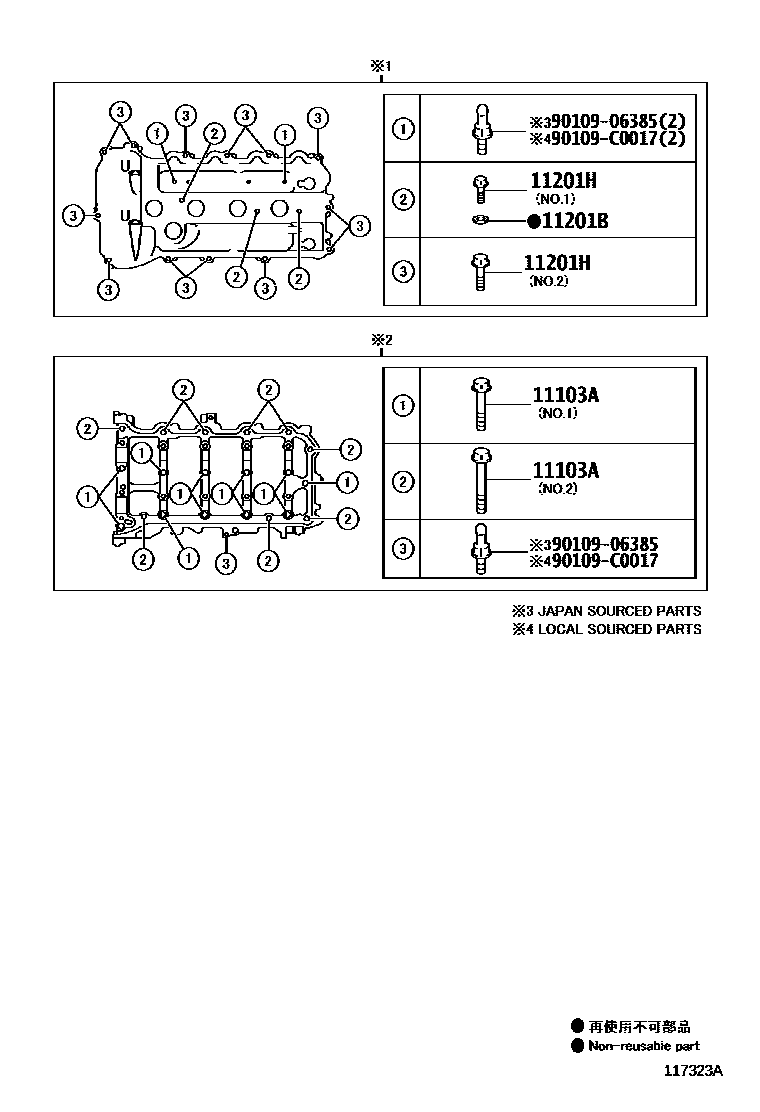

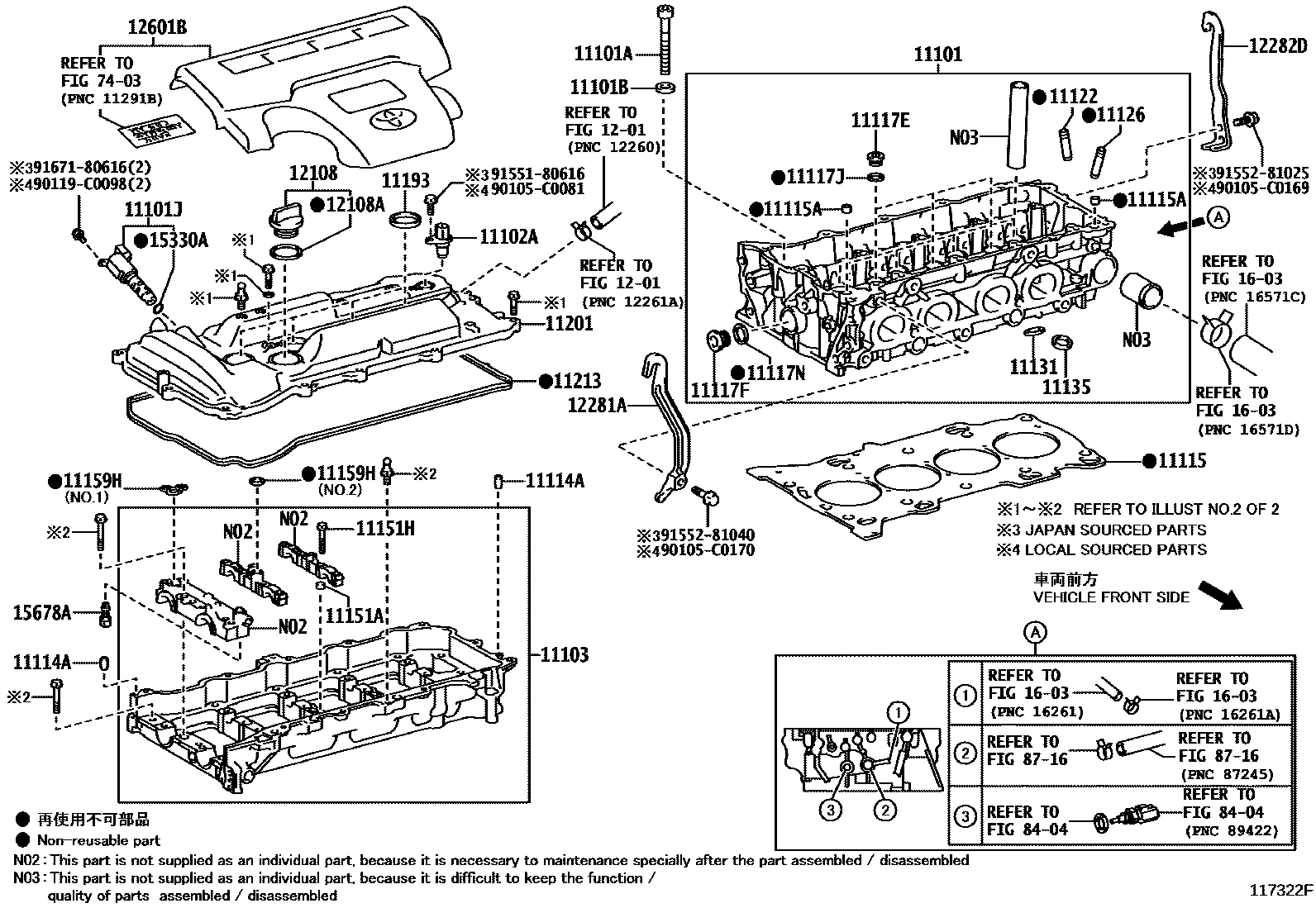

Toyota CAMRY EPC diagram 1104, Cylinder Head, with 6 images and 37 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11101 | CYLINDER HEAD SUB-ASSY | 11101-09450 · 11101-09451 · 11101-09560 · 11101-0H040 · 11101-39776 |
| 11101A | BOLT (FOR CYLINDER HEAD) | 90910-02162 · 90910-02164 · 90910-C2006 |
| 11101B | Flat Washer (for cylinder head assembly) | 90201-11034 · 90201-C0005 |
| 11101J | Camshaft timing oil control valve assembly | 15330-0T030 · 15330-28020 · 15330-37010 |
| 11102A | Camshaft position sensor | 90919-05026 · 90919-05060 · 90919-C5001 |
| 11103 | Camshaft housing sub-assembly | 11103-0V021 · 11103-0V031 · 11103-0V070 · 11103-36011 · 11103-36021 |
| 11103A | Bolts (for camshaft housing assembly) | 90105-08455 · 90105-C0074 · 90105-C0167 · 91551-G0845 |
| 11114A | direct selling | 90250-06003 · 90250-C0010 |
| 11115 | GASKET, CYLINDER HEAD | 11115-0V020 · 11115-0V030 · 11115-0V031 · 11115-28050 · 11115-36030 · 11115-36031 · 11115-36040 · 11115-36041 |
| 11115A | PIN, RING | 90253-12002 · 90253-C0002 |
| 11117E | PLUG, STRAIGHT SCREW W/HEAD, NO.1 | 90341-20002 · 90341-27006 |
| 11117F | No. 2 headed straight thread plug | 90341-24011 |
| 11117J | Gasket (for cylinder head thread plug) | 90430-20004 · 90430-27005 · 90430-C0001 |
| 11117N | Gasket (for No. 2 cylinder head threaded plug) | 90430-24246 |
| 11122 | BUSH, INTAKE VALVE GUIDE | 11122-28010 · 11122-31050 · 11122-31090 · 11123-28010 · 11123-31050 · 11123-31090 |
| 11126 | BUSH, EXHAUST VALVE GUIDE | 11126-20020 · 11126-31030 · 11126-31040 · 11127-20020 · 11127-31030 · 11127-31040 |
| 11131 | intake valve seat | 11131-0H010 · 11131-0V020 · 11131-0V030 · 11131-0V040 · 11131-36030 · 11132-0V010 · 11132-0V030 · 11132-0V040 · 11132-28030 · 11132-28040 · 11132-36030 |
| 11135 | Exhaust valve seat | 11135-0H010 · 11135-0V020 · 11135-0V040 · 11135-36010 · 11136-0V040 · 11136-28050 · 11136-36010 |
| 11151A | Ring pin (for securing camshaft bearing cap) | 90253-13005 · 90253-C0004 |
| 11151H | Bolts (for mounting camshaft bearing cap to camshaft housing) | 90119-07009 · 90119-C0469 |
| 11155A | PIN, RING W/HEAD | 90253-11021 |
| 11159A | BOLT (FOR CYLINDER HEAD TO CAMSHAFT BEARING CAP) | 90105-C0069 |
| 11159C | BOLT (FOR CYLINDER HEAD TO CAMSHAFT BEARING CAP) | 90119-C0121 |
| 11159H | Camshaft bearing cover oil hole gasket | 11159-0V020 · 11159-36011 · 90430-10024 · 90430-C0006 |
| 11193 | spark plug bushing gasket | 11193-0V020 · 11193-36010 |
| 11201 | CYLINDER HEAD COVER SUB-ASSY | 11201-0H060 · 11201-0H061 · 11201-0H070 · 11201-0V020 · 11201-0V030 · 11201-0V040 · 11201-0V050 · 11201-0V060 · 11201-36010 · 11201-36020 |
| 11201B | Gasket (for cylinder head cover) | 90210-05008 · 90210-C0003 |
| 11201H | Bolts (for cylinder head cover) | 90105-C0072 · 90105-C0084 · 90119-06903 · 91551-80635 · 91551-A0625 |
| 11213 | GASKET, CYLINDER HEAD COVER | 11213-0H020 · 11213-0H030 · 11213-0V010 · 11213-0V020 · 11213-28021 · 11213-36020 |
| 12108 | OIL FILLER CAP SUB-ASSY | 12180-0H020 · 12180-0V010 · 12180-38010 |
| 12108A | GASKET (FOR OIL FILLER CAP) | 90080-43027 · 90430-35001 |
| 12281A | Engine No. 1 hanger | 12281-0V010 · 12281-28010 · 12281-36020 |
| 12282D | ENGINE HANGER, NO.2 | 12282-0V010 · 12282-0V030 · 12282-28010 · 12282-36021 |
| 12601B | No. 1 engine hood sub-assembly | 12601-0H040 · 12601-0V110 · 12601-0V130 · 12601-0V190 · 12601-0V210 · 12601-0V260 · 12601-36140 |
| 15330A | O-ring (for camshaft timing oil control valve) | 90068-14030 · 90068-14032 · 90099-14137 |
| 15678A | Oil control valve filter | 15678-0T020 · 15678-37010 |
| 15707H | Oil pipe sub-assembly | 15707-0V010 |
