Toyota CAMRY Heating & Air Conditioning - Compressor — Figure 8719
Toyota CAMRY EPC diagram 8719, Heating & Air Conditioning - Compressor, with 3 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

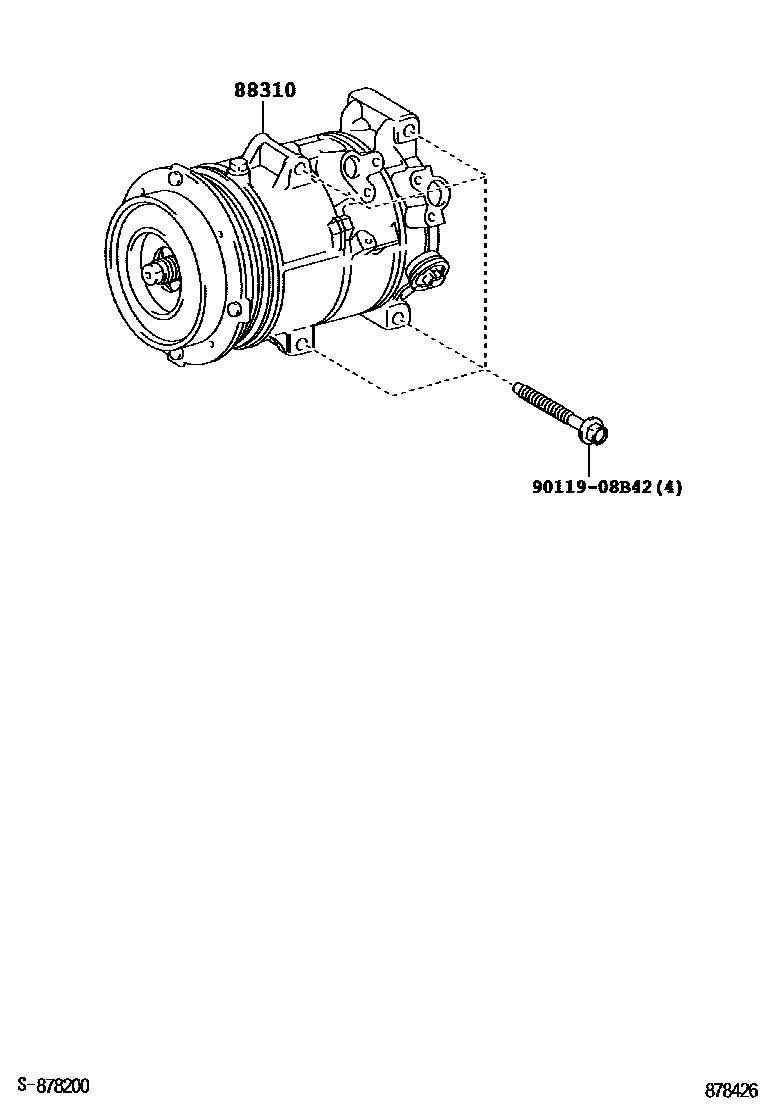

| 88310 | Compressor assembly with pulley | 88310-06260 · 88310-06280 · 88310-06370 |

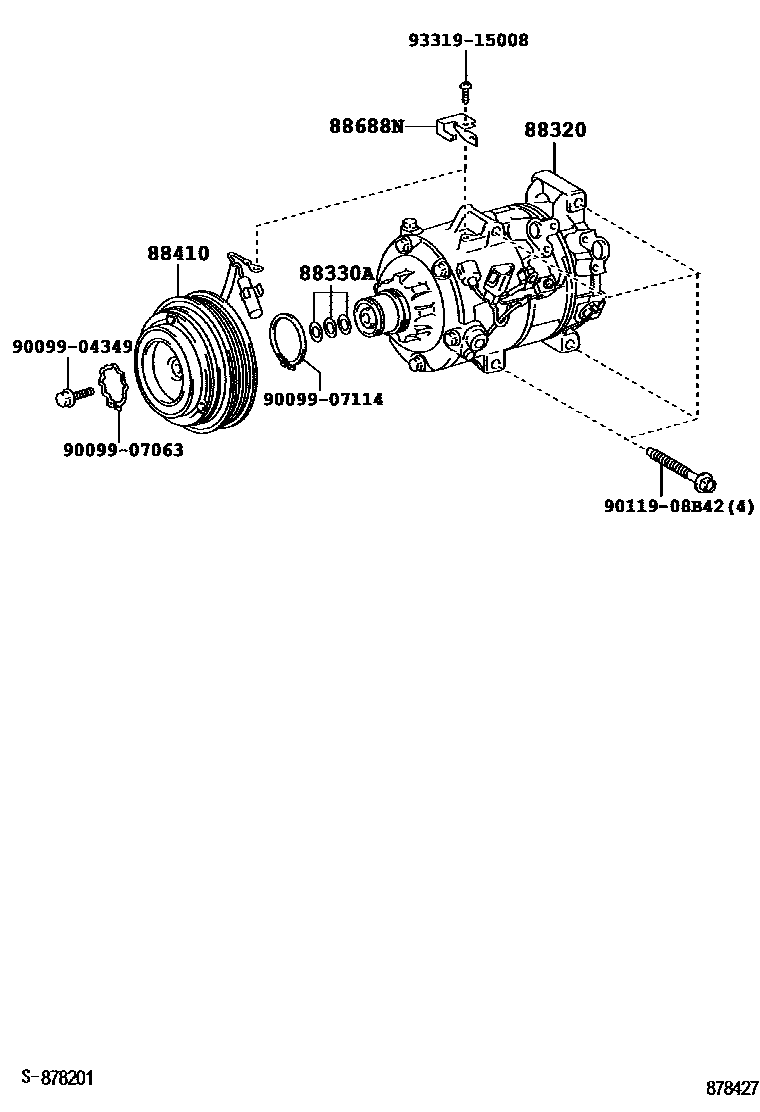

| 88320 | Cooler Compressor Assembly | 88320-33200 |
| 88330A | Washer (for electromagnetic clutch) | 88335-14020 |

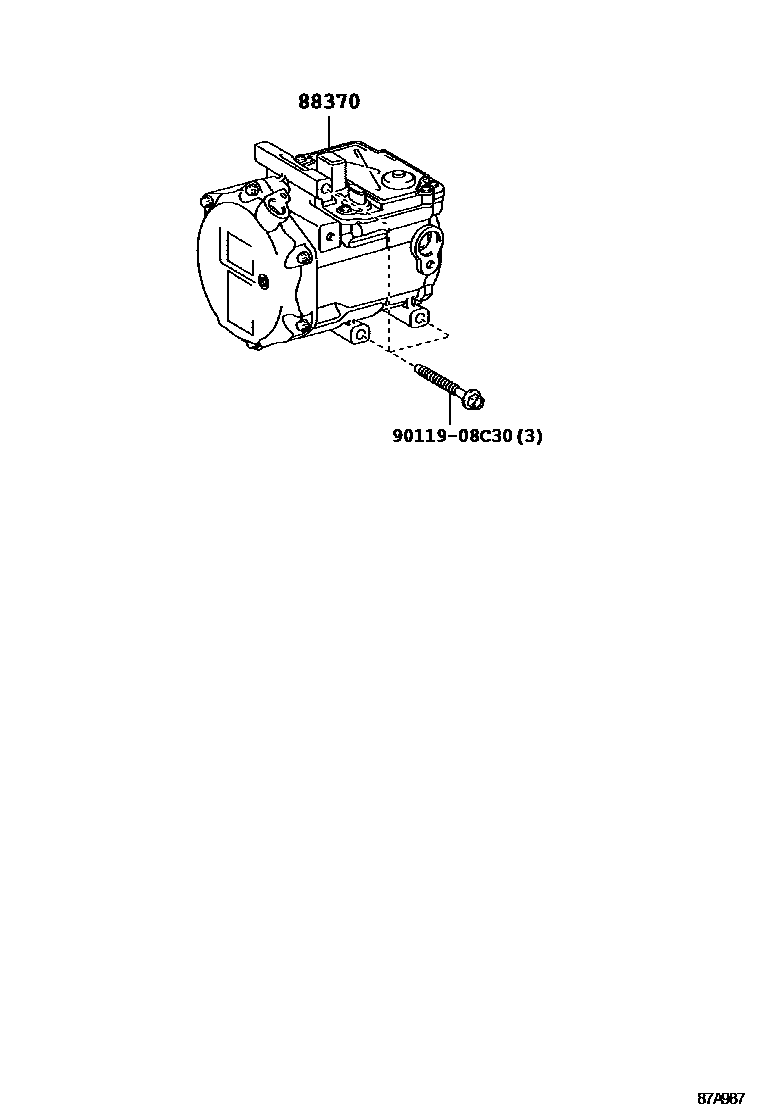

| 88370 | Compressor assembly with motor | 88370-30021 |
| 88410 | Magnetic Clutch Assembly | 88410-33150 · 88410-33170 |
| 88688N | cooler bracket | 88688-33460 |
