Toyota CAMRY Heating & Air Conditioning - Cooler Piping — Figure 8718

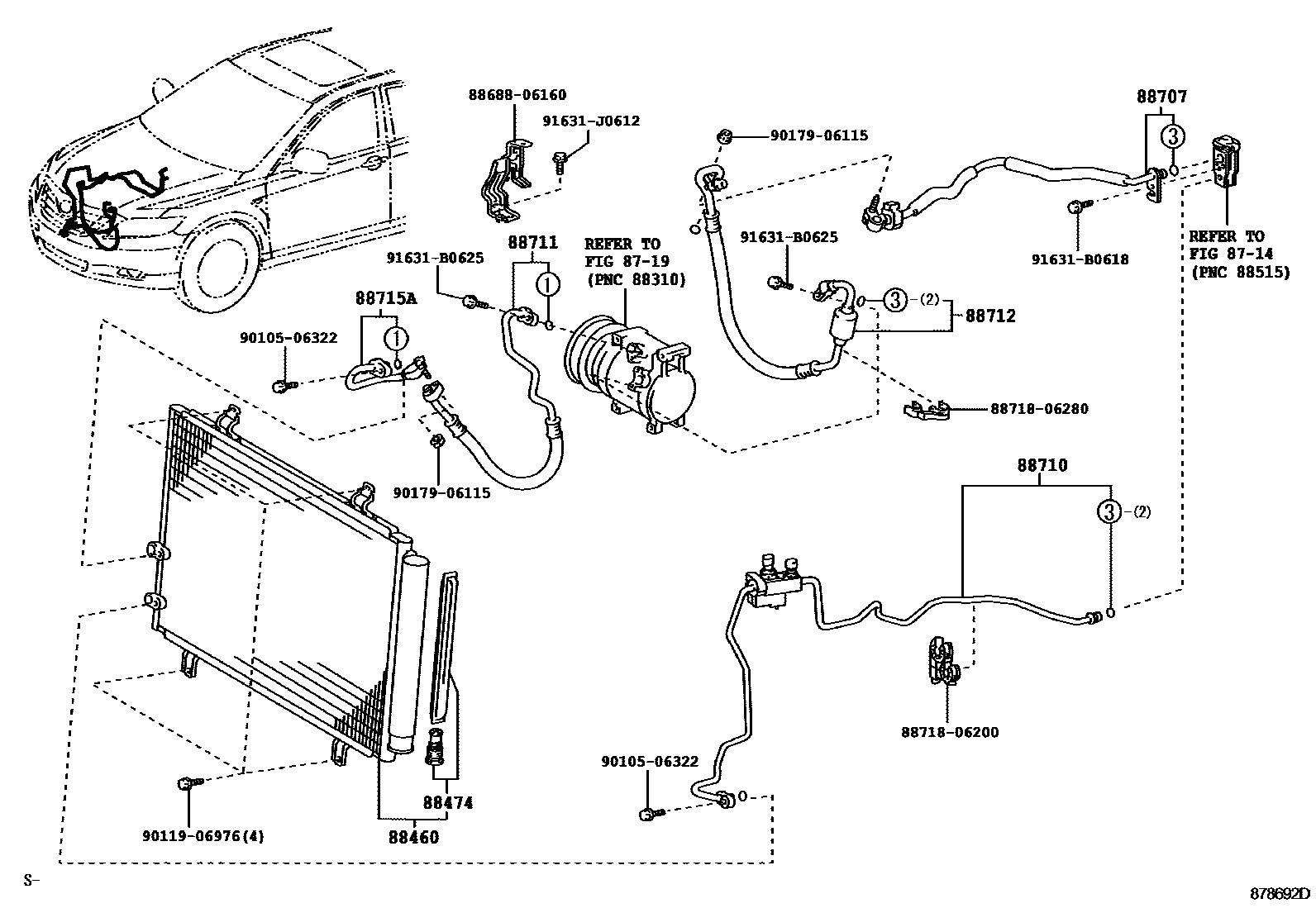

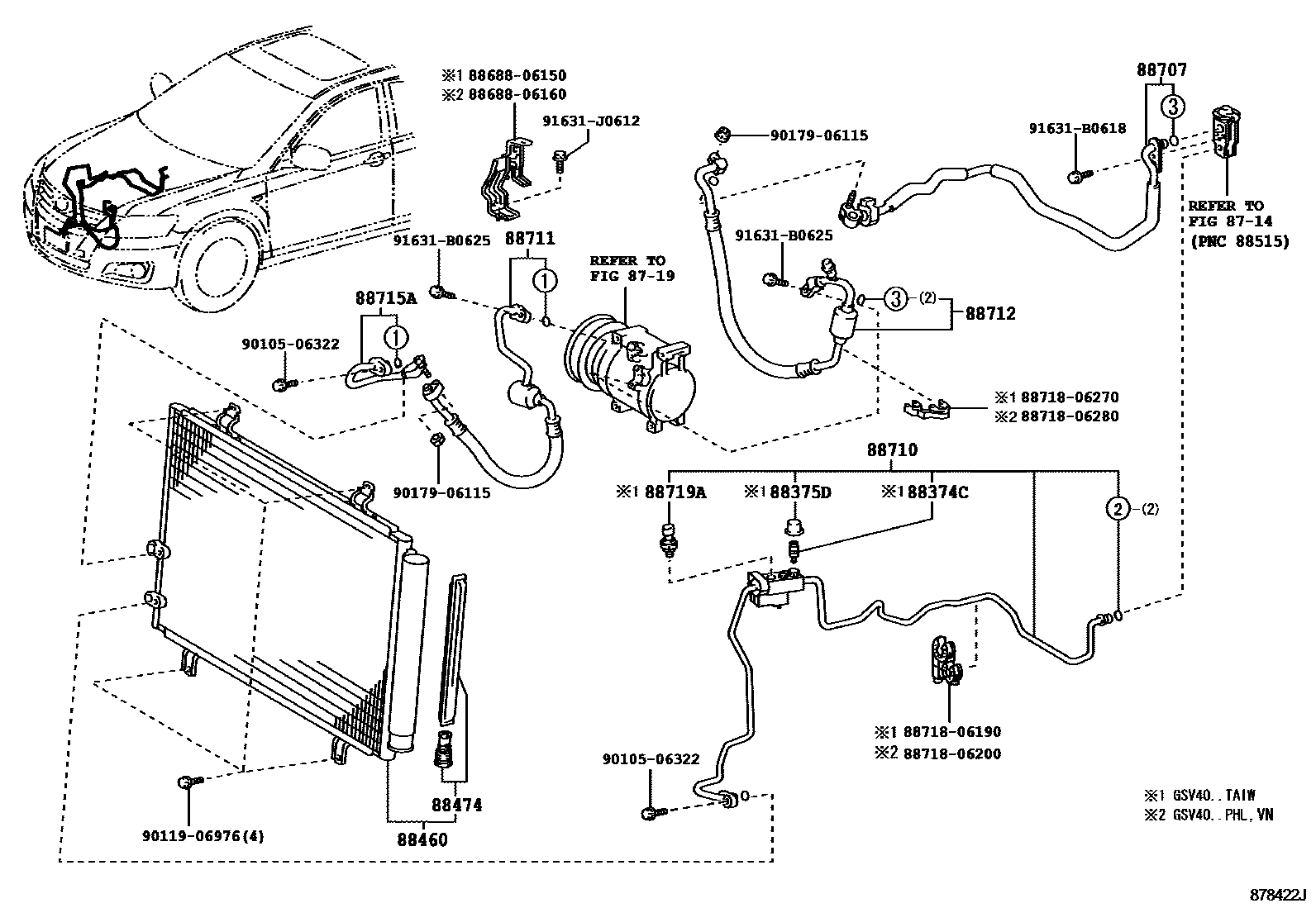

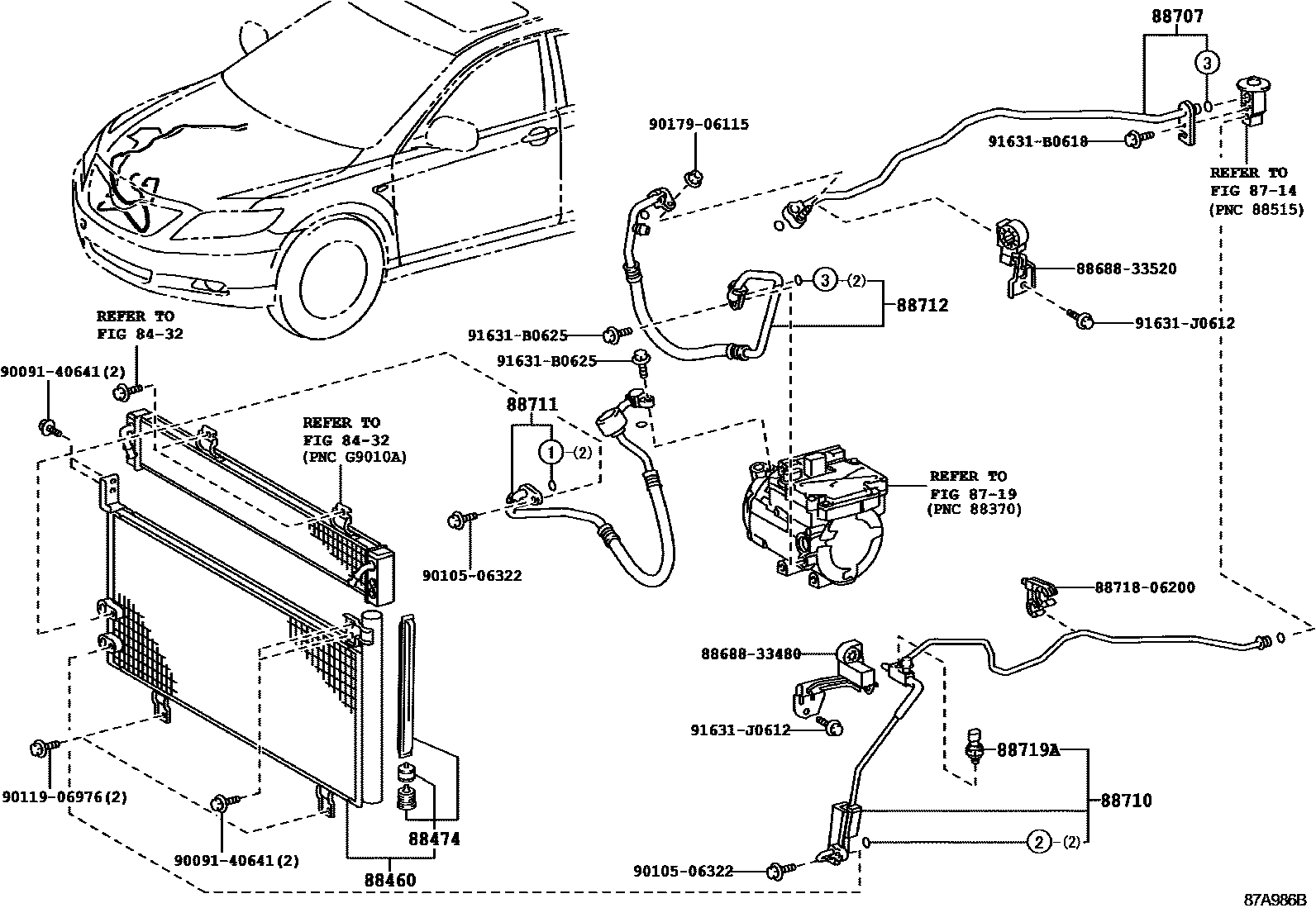

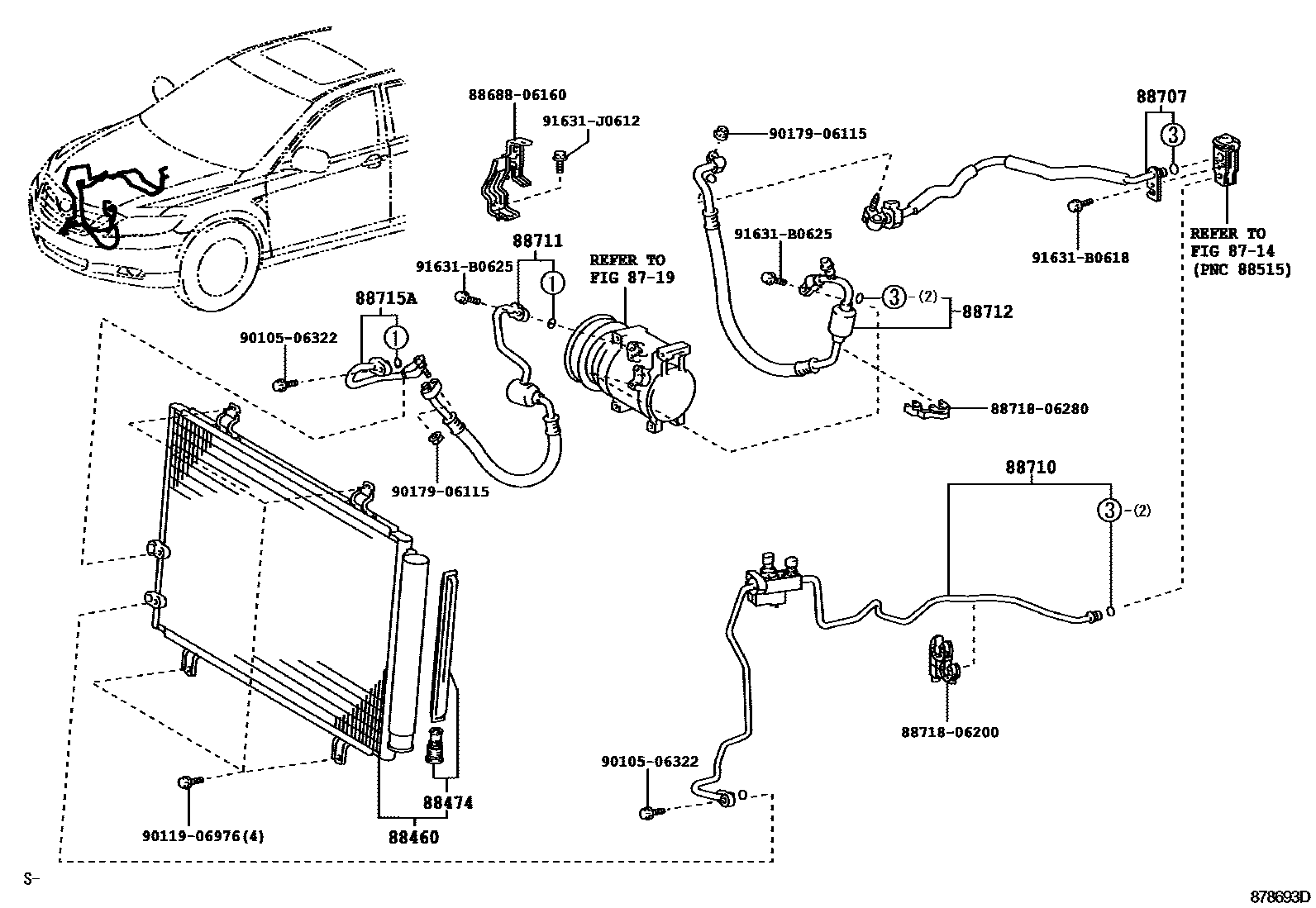

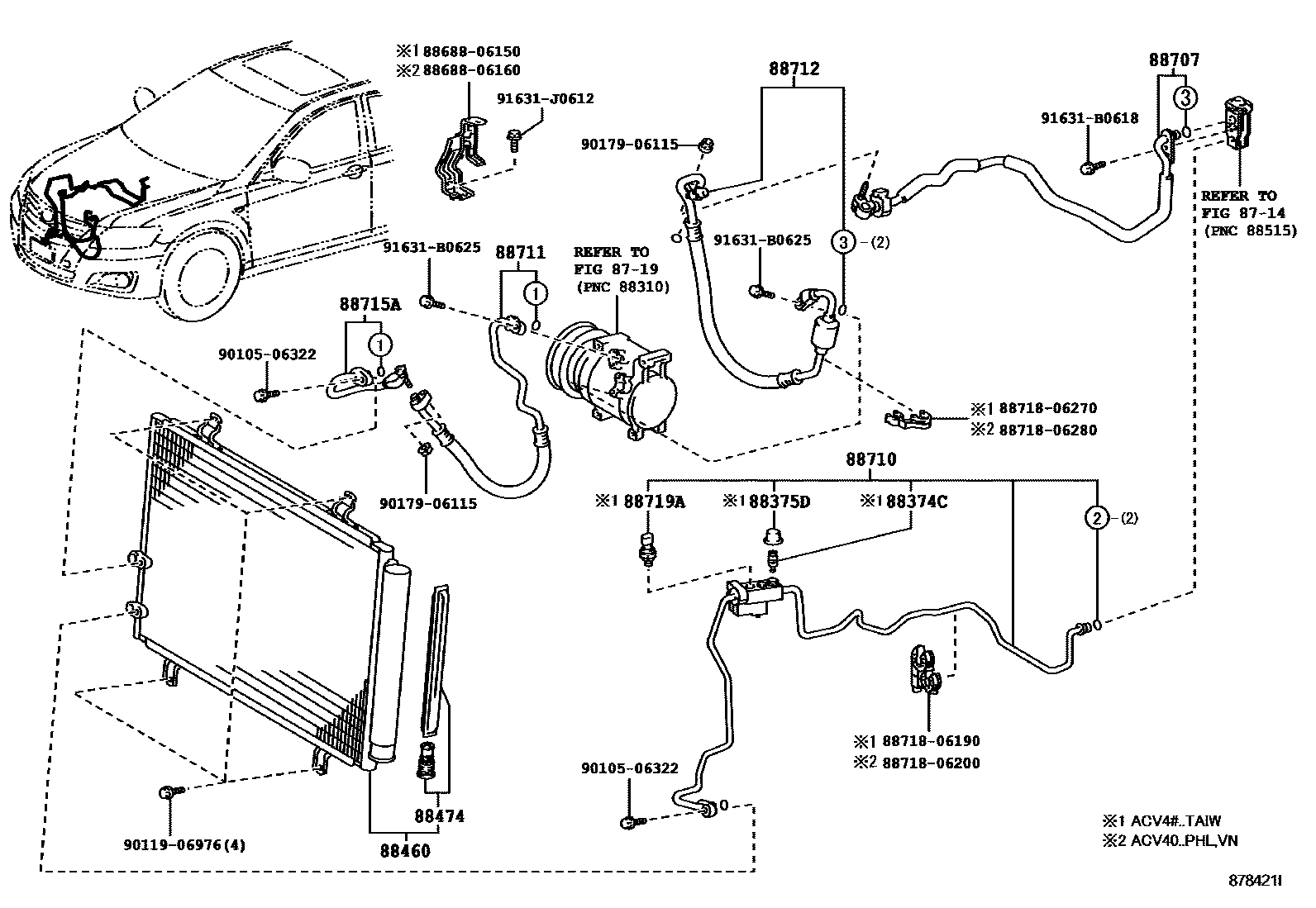

Toyota CAMRY EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 6 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88374C | Service valve No. 2 | 88374-30010 |
| 88375D | No. 2 maintenance valve cover | 88375-30280 |
| 88460 | Air conditioning condenser assembly | 88460-06160 · 88460-06170 · 88460-33120 |
| 88474 | cooler dryer | 88474-17010 · 88474-47020 |
| 88707 | Suction pipe sub-assembly | 88707-06020 · 88707-06030 · 88707-06040 · 88707-06100 |
| 88710 | Air conditioning pipe assembly | 88710-06210 · 88710-06211 · 88710-06212 · 88710-06220 · 88710-06221 · 88710-06230 · 88710-06231 · 88710-06291 |
| 88711 | Cooler No. 1 refrigerant drain hose | 88711-06250 · 88711-06260 · 88711-06270 · 88711-06280 · 88711-06381 |
| 88712 | Cooler No. 1 refrigerant suction hose | 88712-06100 · 88712-06110 · 88712-06120 · 88712-06130 · 88712-06210 |
| 88715A | Cooler refrigerant discharge pipe A | 88715-06040 · 88715-06041 · 88715-06050 · 88715-06051 |
| 88719A | Air conditioning pressure sensor | 88719-33020 |
