Toyota CAMRY 暖风和空调系统 - 水管 — Figure 8716

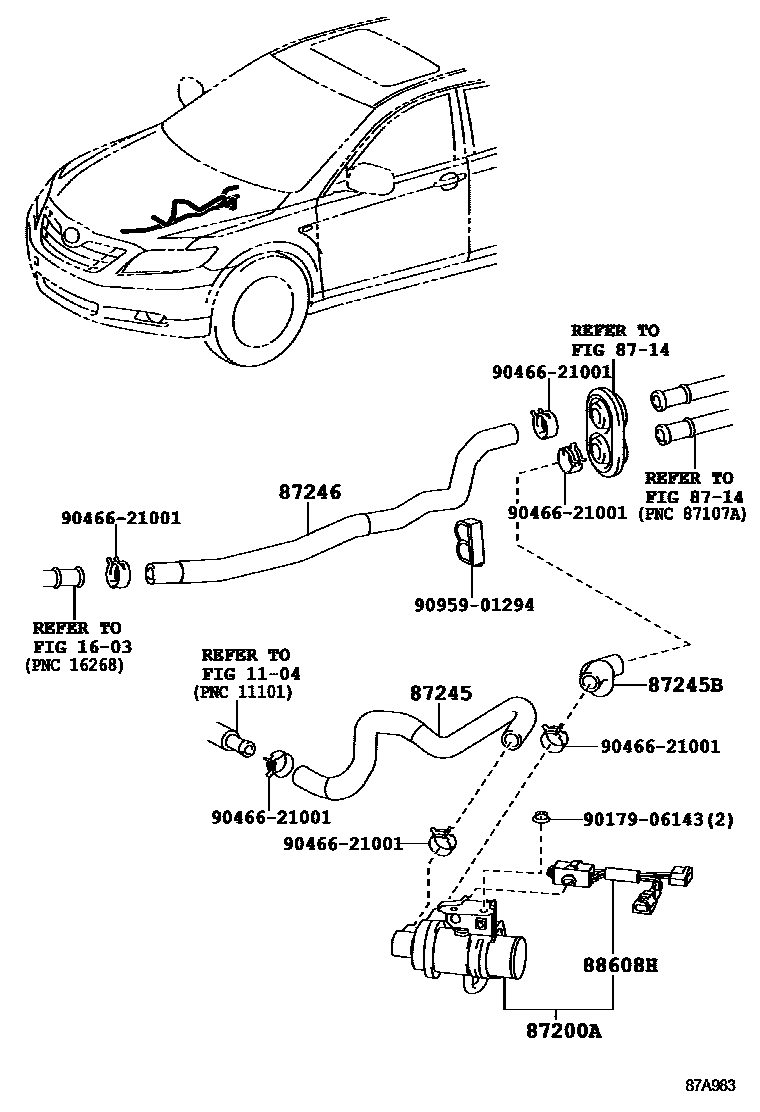

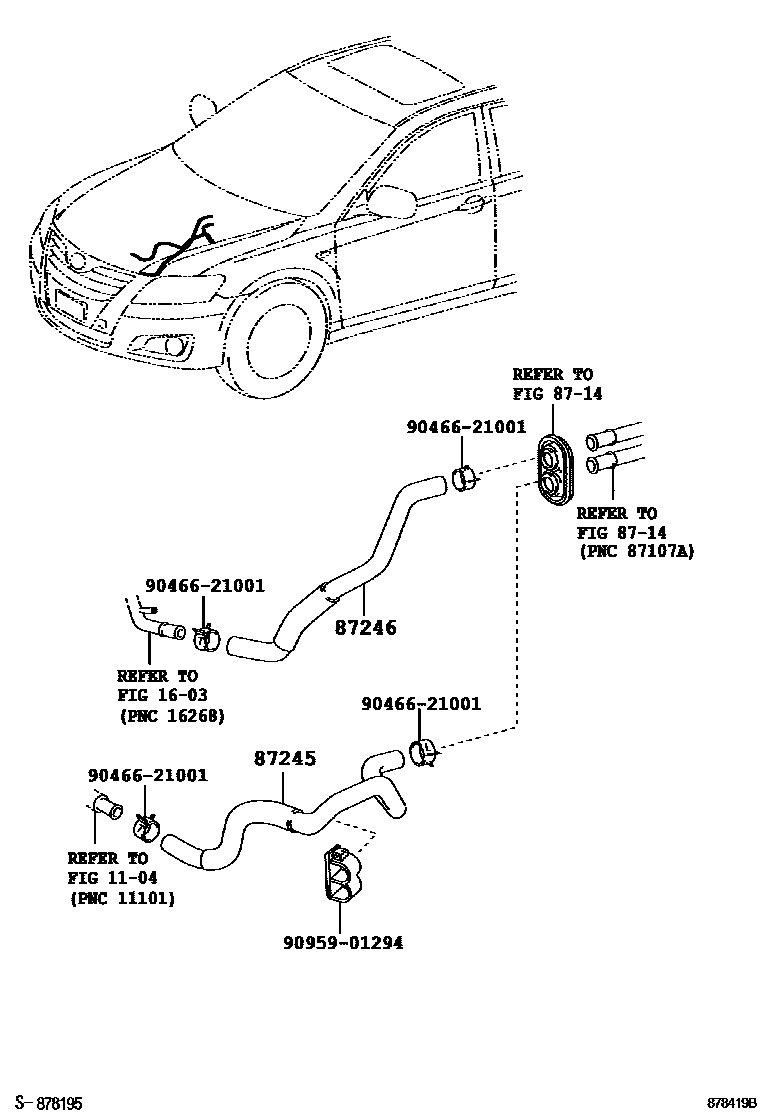

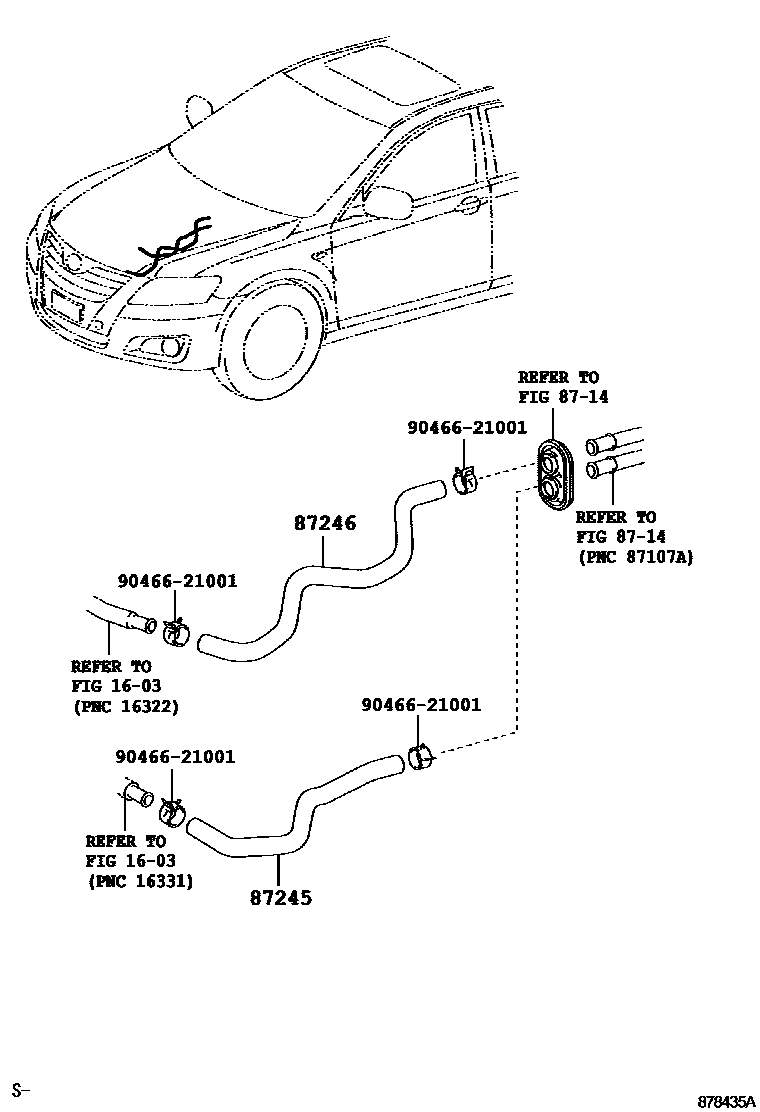

Toyota CAMRY EPC diagram 8716, 暖风和空调系统 - 水管, with 3 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87200A | Water pump assembly (for heater) | 87200-33020 |
| 87245 | Heater water inlet hose | 87245-06480 · 87245-06500 · 87245-06520 · 87245-06540 · 87245-06700 |
| 87245B | Heater water inlet hose B | 87245-06710 |
| 87246 | Heater outlet hose | 87245-06490 · 87245-06510 · 87245-06530 · 87245-06550 · 87245-06720 |
| 88608H | Air indicator No. 2 wiring harness sub-assembly | 88608-33020 |
