Toyota CAMRY 暖风和空调系统 - 控制器和风管 — Figure 8715
Toyota CAMRY EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 5 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

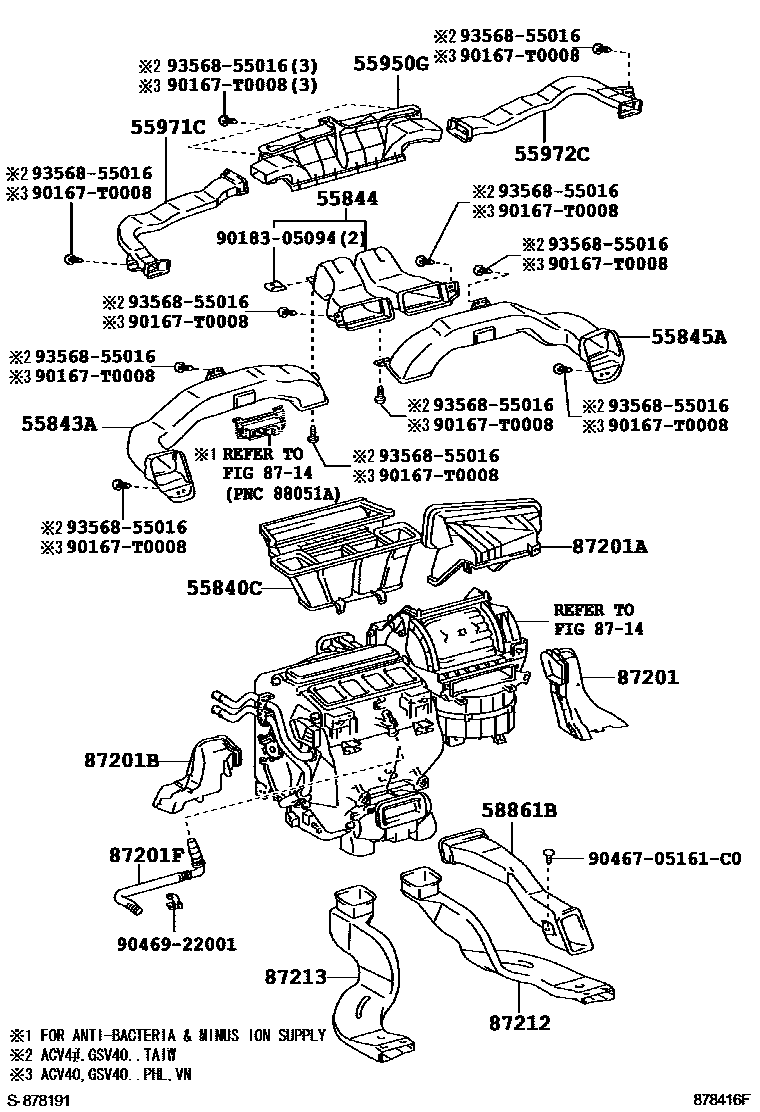

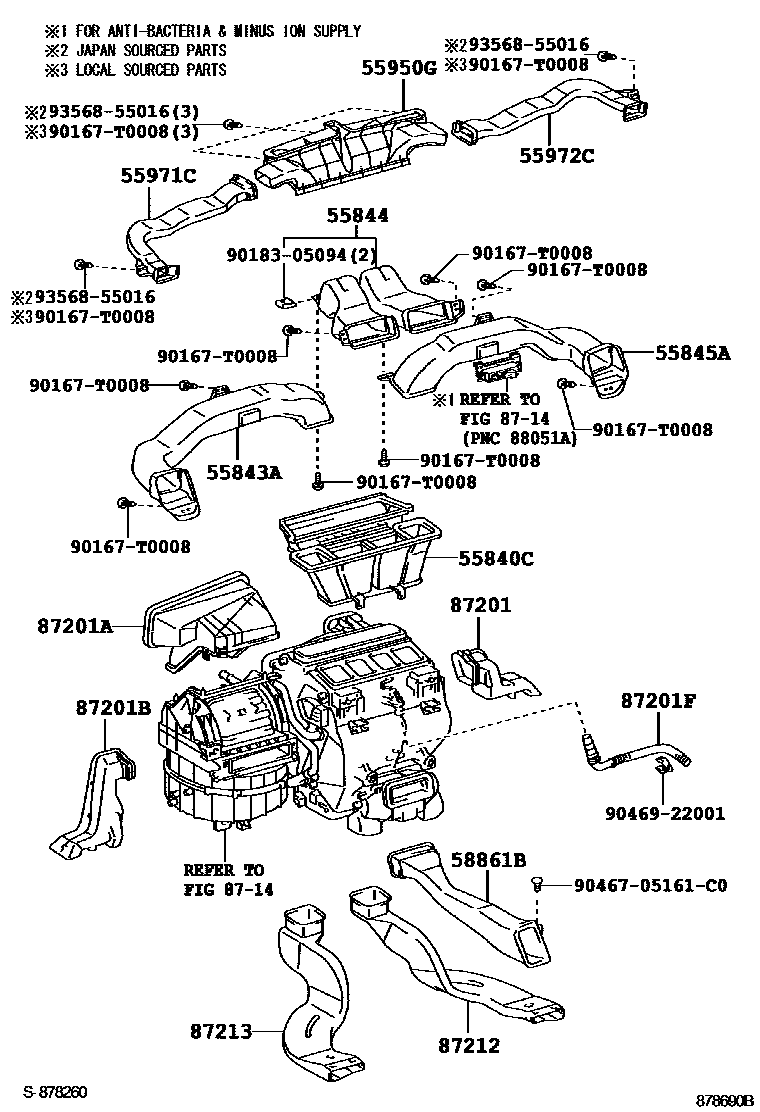

| 55840C | Air duct assembly from heater to air regulator No. 6 | 55840-06020 · 55840-06030 |
| 55843A | Air duct No. 1 from heater to air register | 55843-06110 · 55843-06120 · 55843-06150 |
| 55844 | Air duct No. 2 from heater to air regulator | 55844-06080 · 55844-06090 |
| 55845A | Air duct No. 3 from heater to air regulator | 55845-06070 · 55845-06080 · 55845-06100 |

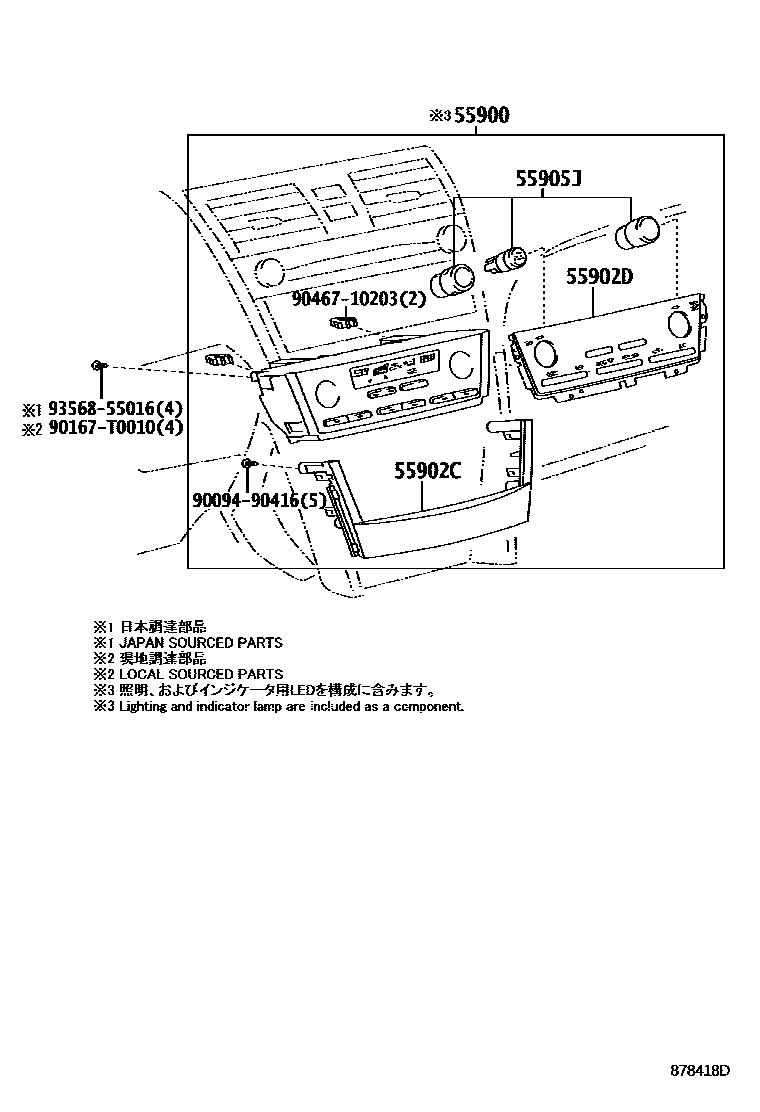

| 55900 | Air conditioning control assembly | 55900-33B60 · 55900-33B61 · 55900-33B62 · 55900-33B70 · 55900-33B71 · 55900-33B72 · 55900-33C50 · 55900-33C51 · 55900-33D21 |
| 55902C | Air conditioning panel sub-assembly | 55902-33850 · 55902-33851 |
| 55902D | Air conditioning panel sub-assembly | 55902-33830 · 55902-33840 · 55902-33860 · 55902-33890 |
| 55905J | Control lever handle sub-assembly | 55905-33220 · 55905-33240 |
| 55950G | Defroster nozzle assembly | 55950-06070 · 55950-06080 |
| 55971C | Side defroster No. 1 nozzle air duct | 55971-06060 · 55971-06070 |
| 55972C | Side defroster No. 2 nozzle air duct | 55972-06060 · 55972-06070 |
| 58861B | Air duct No. 1 for armrest box | 58861-06080 · 58861-06090 |
| 87201 | No. 1 air duct sub-assembly | 87201-06180 · 87201-06220 · 87201-06250 |
| 87201A | Air duct sub-assembly | 87201-06150 · 87201-06190 · 87201-06230 |
| 87201B | No. 2 air duct sub-assembly | 87201-06170 · 87201-06210 · 87201-06260 |
| 87201F | No. 3 air duct sub-assembly | 87201-06160 · 87201-06200 |
| 87212 | No. 1 rear air duct | 87212-06040 · 87212-06050 |
| 87213 | No. 2 rear air duct | 87213-06040 · 87213-06050 |

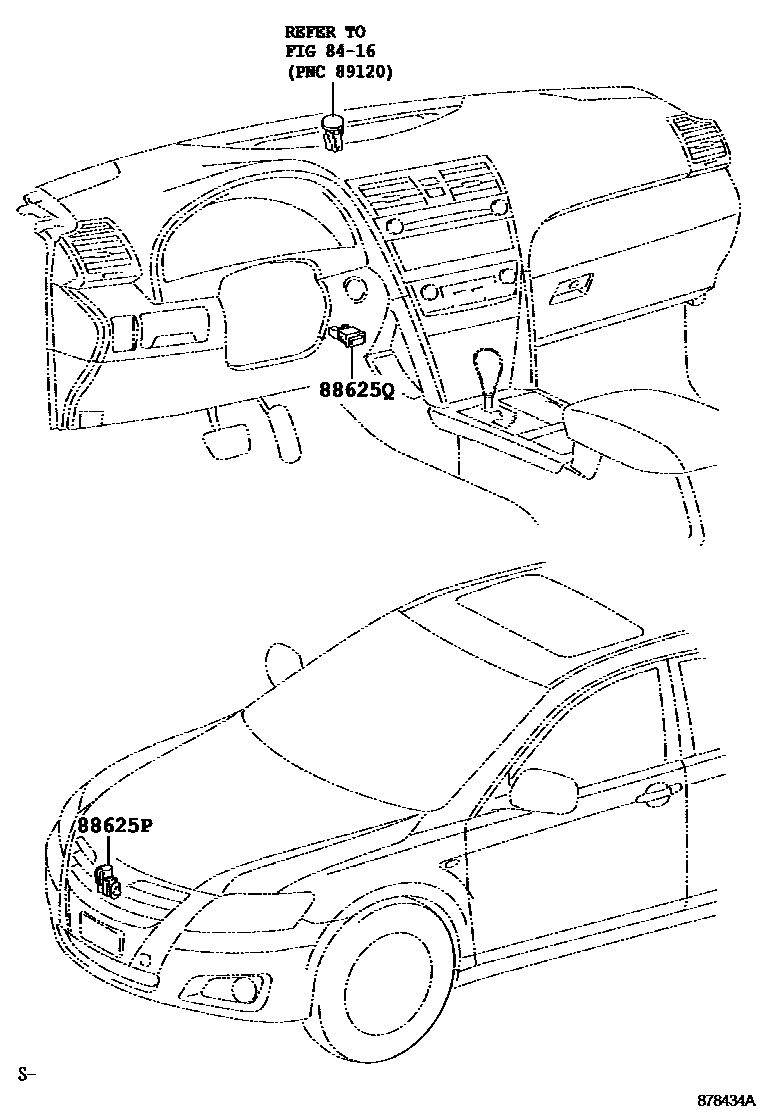

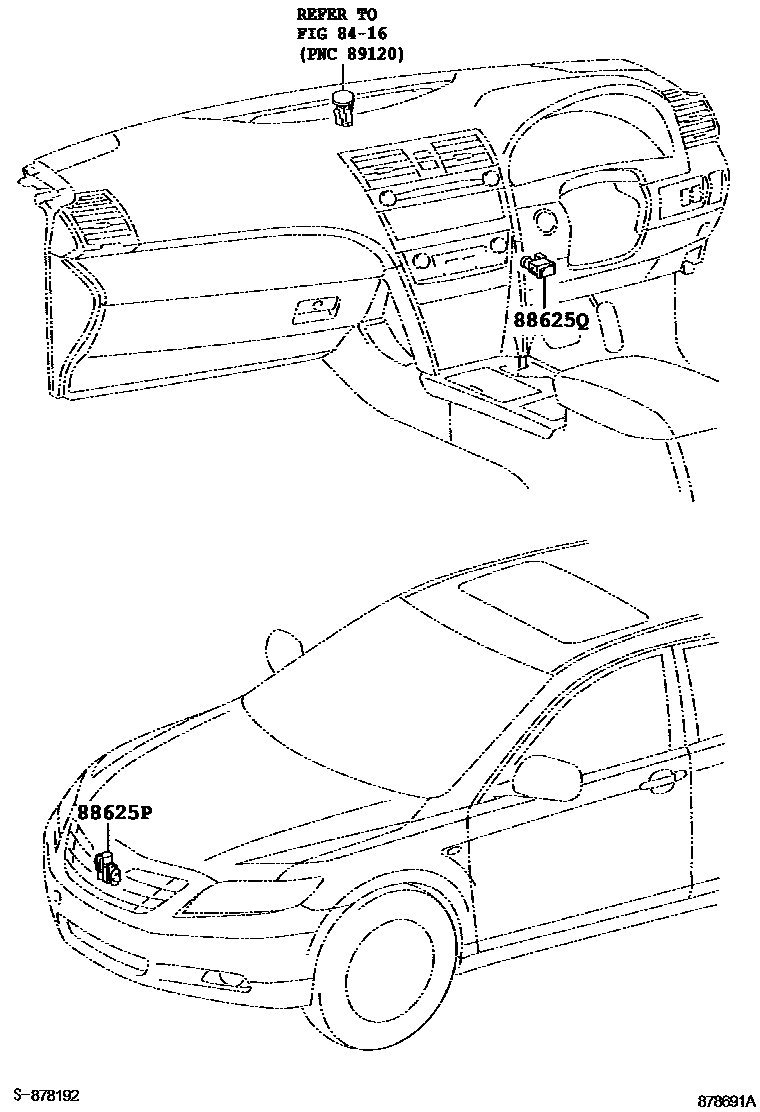

| 88625P | Cooler thermistor (ambient temperature sensor) | 88790-22131 |
| 88625Q | Cooler thermistor (interior temperature sensor) | 88625-47021 |
