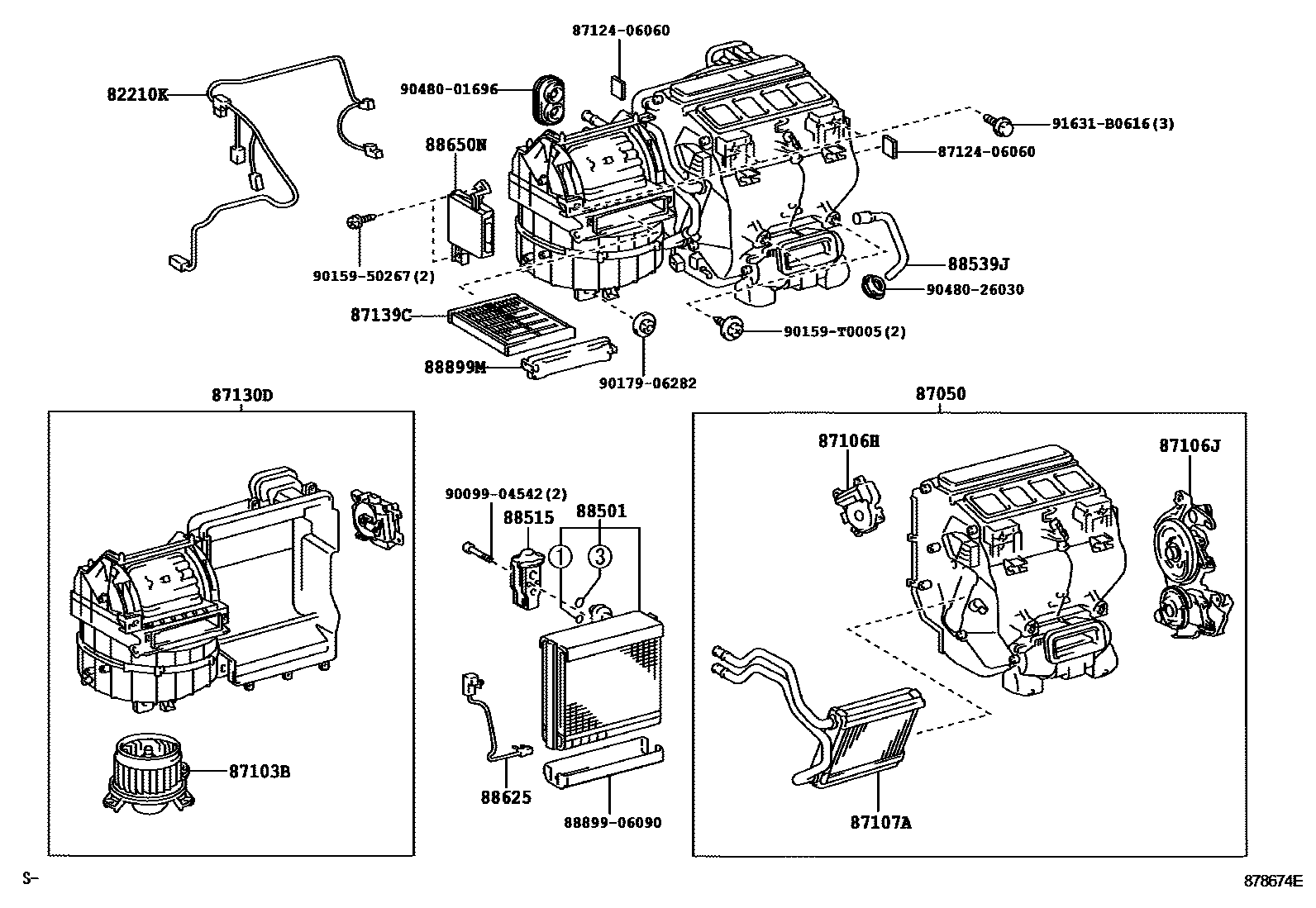

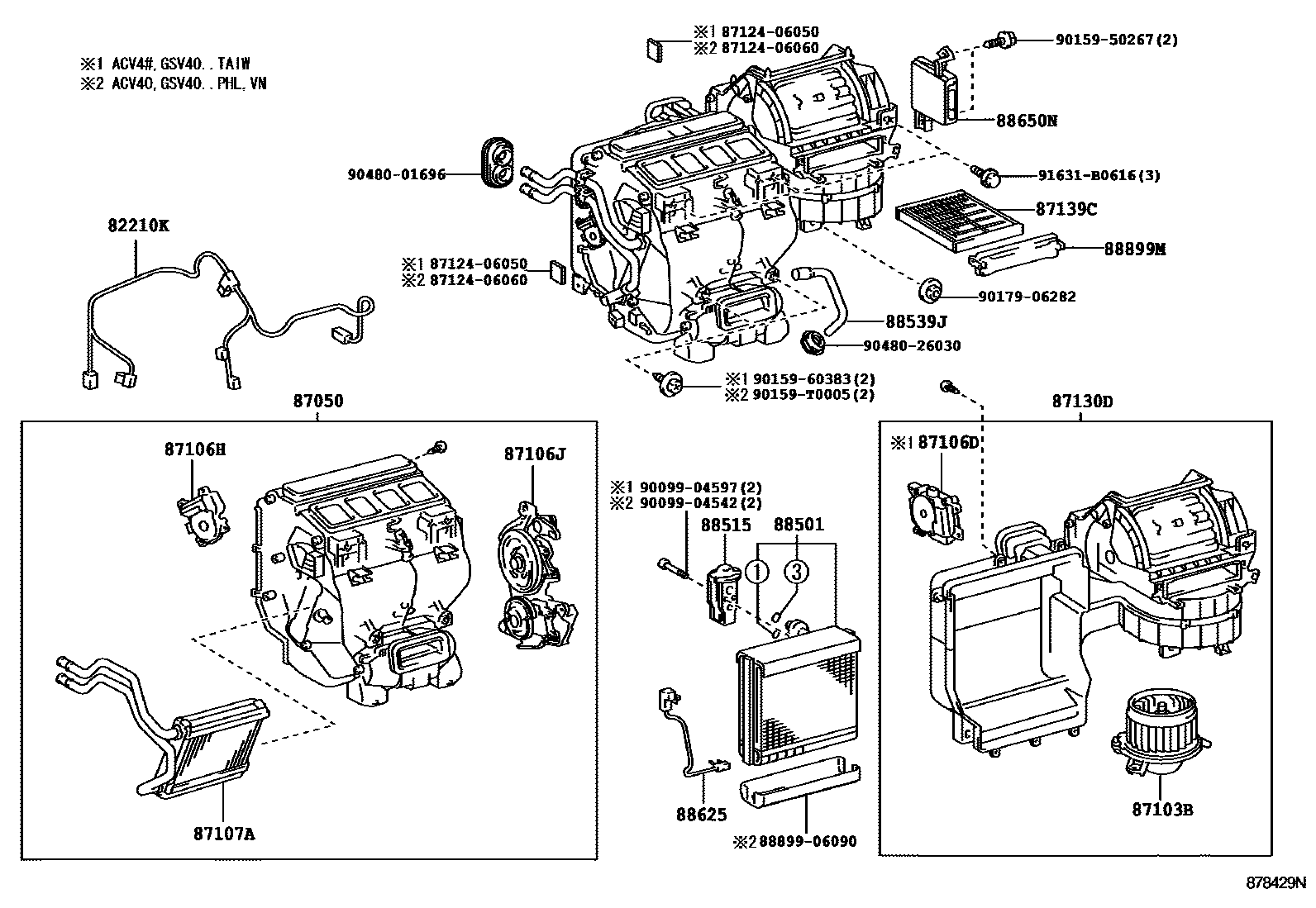

Toyota CAMRY 暖风和空调系统 - 冷却器组件 — Figure 8714
Toyota CAMRY EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 3 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 82210K | Air conditioning wiring harness assembly | 82212-06020 · 82212-06030 · 82212-06050 |
| 87050 | Air conditioning radiator assembly | 87050-06420 · 87050-06421 · 87050-06430 · 87050-06431 · 87050-06440 · 87050-06441 |
| 87103B | Blower motor sub-assembly with fan | 87103-06060 · 87103-06061 · 87103-06100 · 87103-06110 · 87103-07040 |
| 87106D | No. 1 damper servo mechanism sub-assembly | 87106-07140 |
| 87106H | Damper servo mechanism sub-assembly (for air mixing) | 87106-06170 · 87106-06280 · 87106-07120 |
| 87106J | Damper servo mechanism sub-assembly (for mode) | 87106-06160 · 87106-06161 · 87106-06270 |
| 87107A | Heater radiator device sub-assembly | 87107-06060 · 87107-06090 · 87107-07030 |
| 87130D | Blower assembly | 87130-06260 · 87130-06270 · 87130-06280 |
| 87139C | air purification filter | 87139-02110 · 87139-06070 · 87139-06080 · 87139-52020 |
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-06090 · 88501-06210 · 88501-8C002 |
| 88515 | Cooler expansion valve | 88515-06080 · 88515-07030 |
| 88539J | Cooler drain hose | 88539-06050 · 88539-06060 |
| 88625 | Cooler No. 1 Thermistor | 88620-06030 · 88620-06040 · 88625-26090 · 88625-33190 |
| 88650N | Air conditioning amplifier assembly | 88650-06150 · 88650-06151 · 88650-06160 · 88650-06161 · 88650-06170 · 88650-06171 · 88650-06172 · 88650-06180 · 88650-06181 · 88650-06182 · 88650-06360 · 88650-06370 · 88650-06371 · 88650-06380 · 88650-06381 · 88650-06390 · 88650-06391 · 88650-06430 · 88650-06470 |
| 88899M | cover (for air cleaner) | 88899-06030 · 88899-06040 |
